Product Description

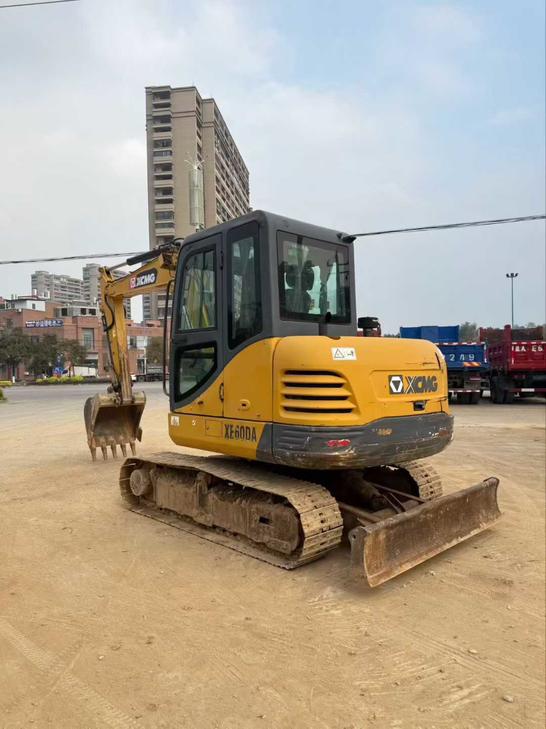

【 Premium Recommendation 】 Second-hand XCMG XE60 excavator, purchased in 2021, with a working time of approximately 1,500 hours, currently priced at 76,000 yuan. This device is equipped with a high-performance Yanmar 4TNV98 engine, with a maximum power output of 36.4 kilowatts, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, advanced load-sensitive hydraulic technology is adopted, equipped with high-quality hydraulic pumps and motors, which can achieve precise control and smooth operation, greatly enhancing work efficiency and construction quality. The main advantages include: First, outstanding digging force and stability, enabling it to handle complex working conditions with ease; Second, the spacious and comfortable cab design, combined with a good field of vision layout, provides operators with a safer and more comfortable working environment. Third, maintenance and upkeep are convenient. Key components are easily accessible for inspection or replacement, reducing the cost of long-term use. Fourth, XCMG, as one of the well-known domestic construction machinery brands, not only enjoys a good reputation in the domestic market but also has a high recognition rate internationally. Its product
| Specifications | Value |
|---|---|
| No. | 973884 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
