Product Description

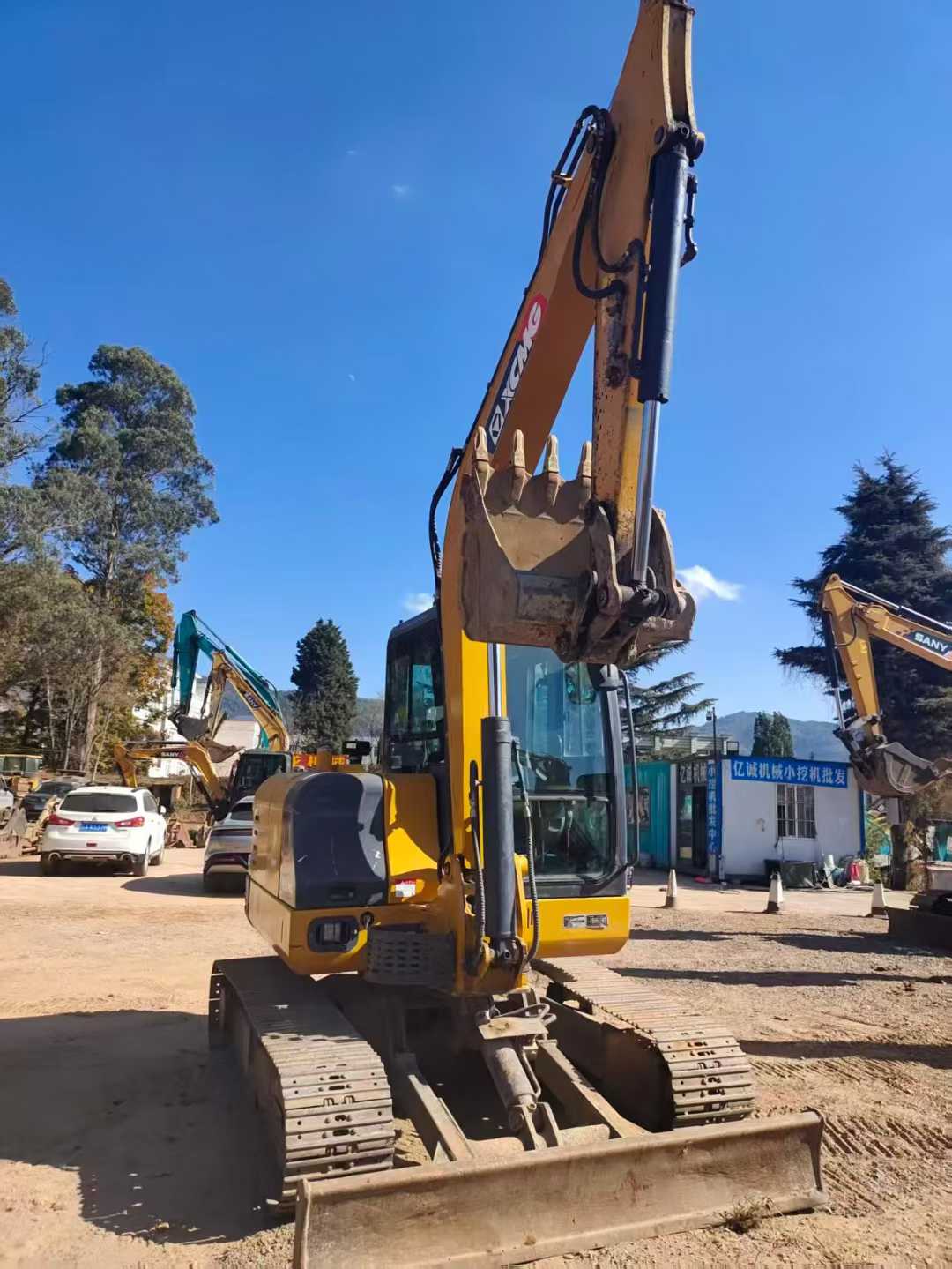

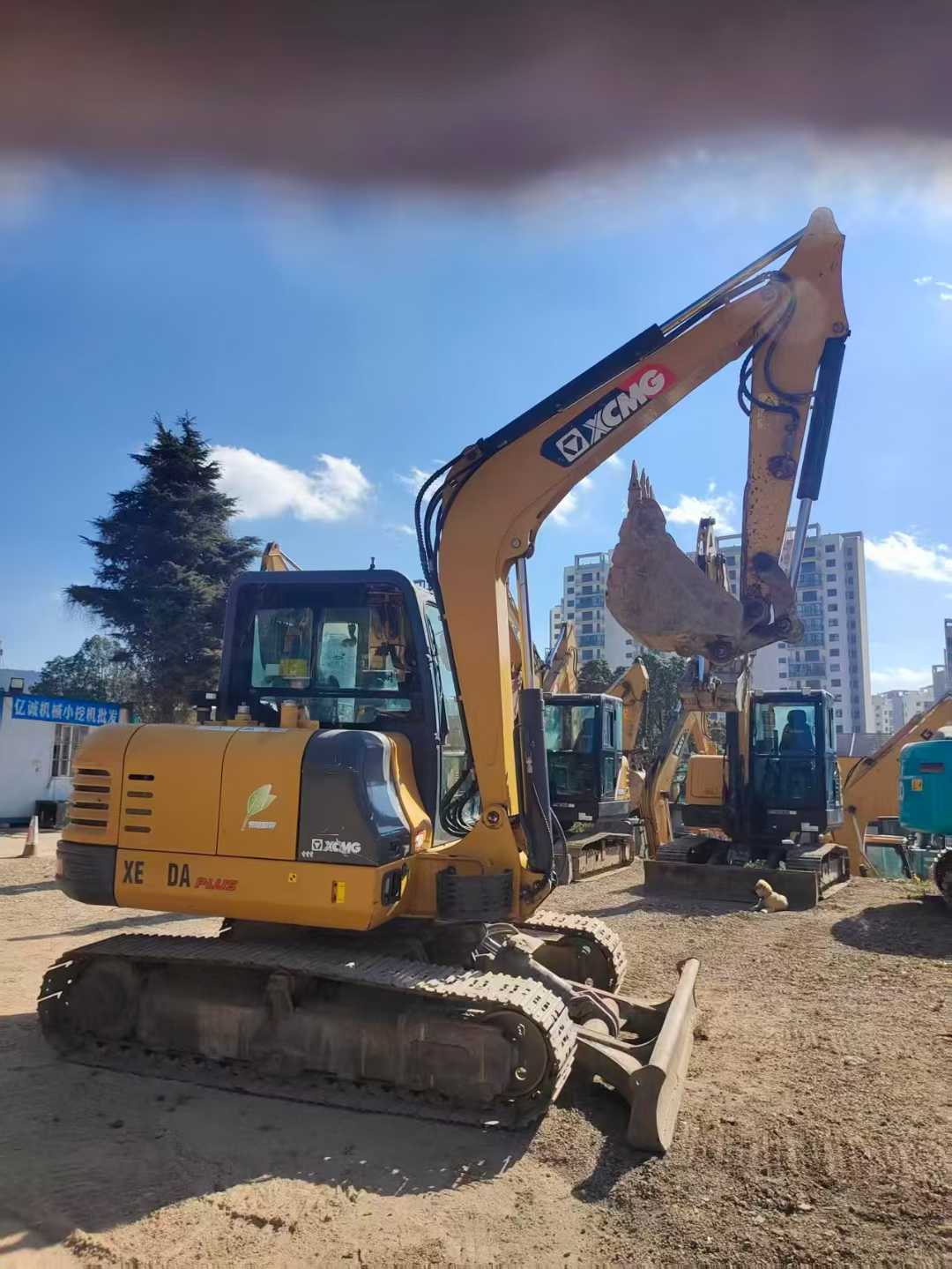

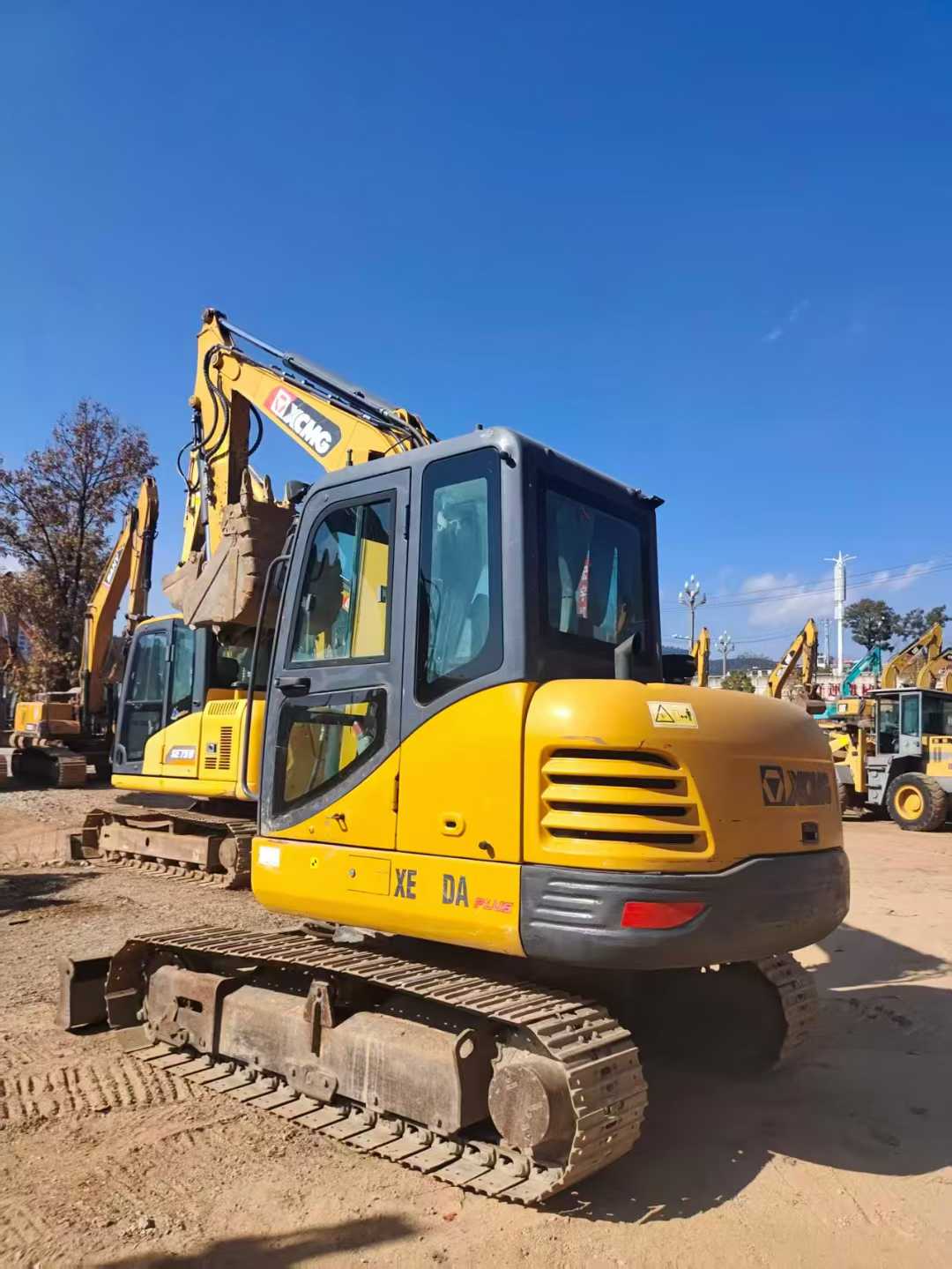

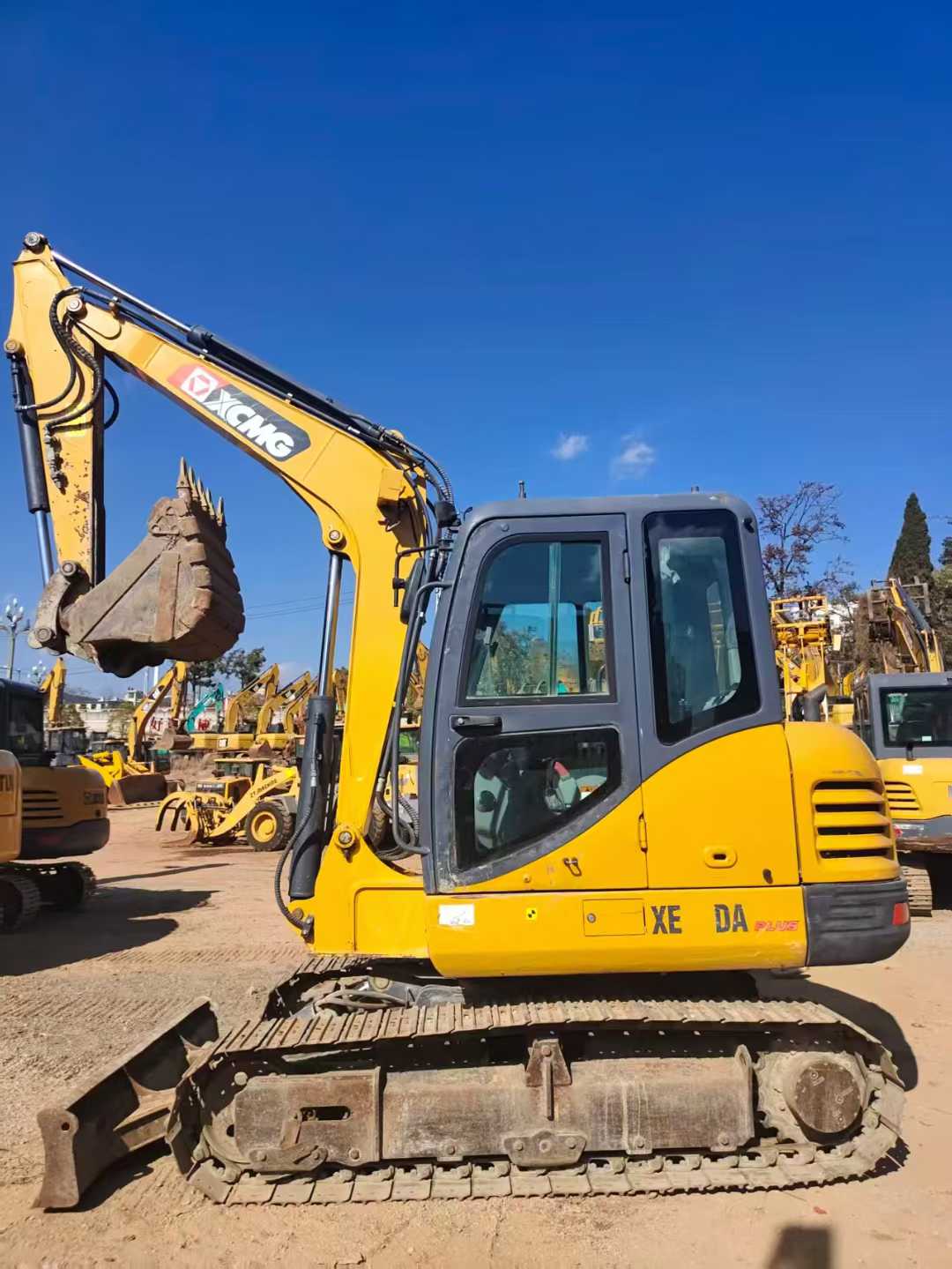

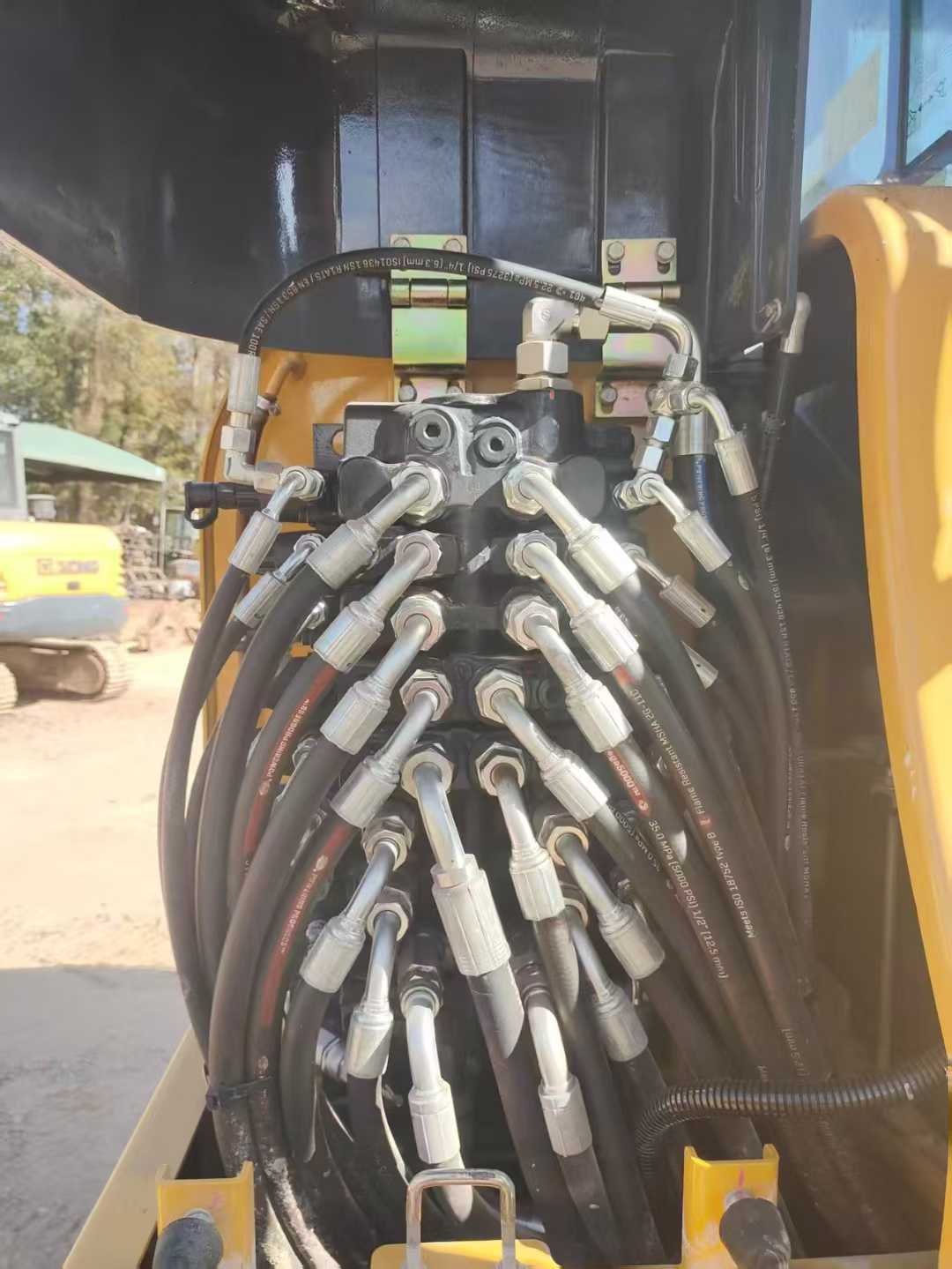

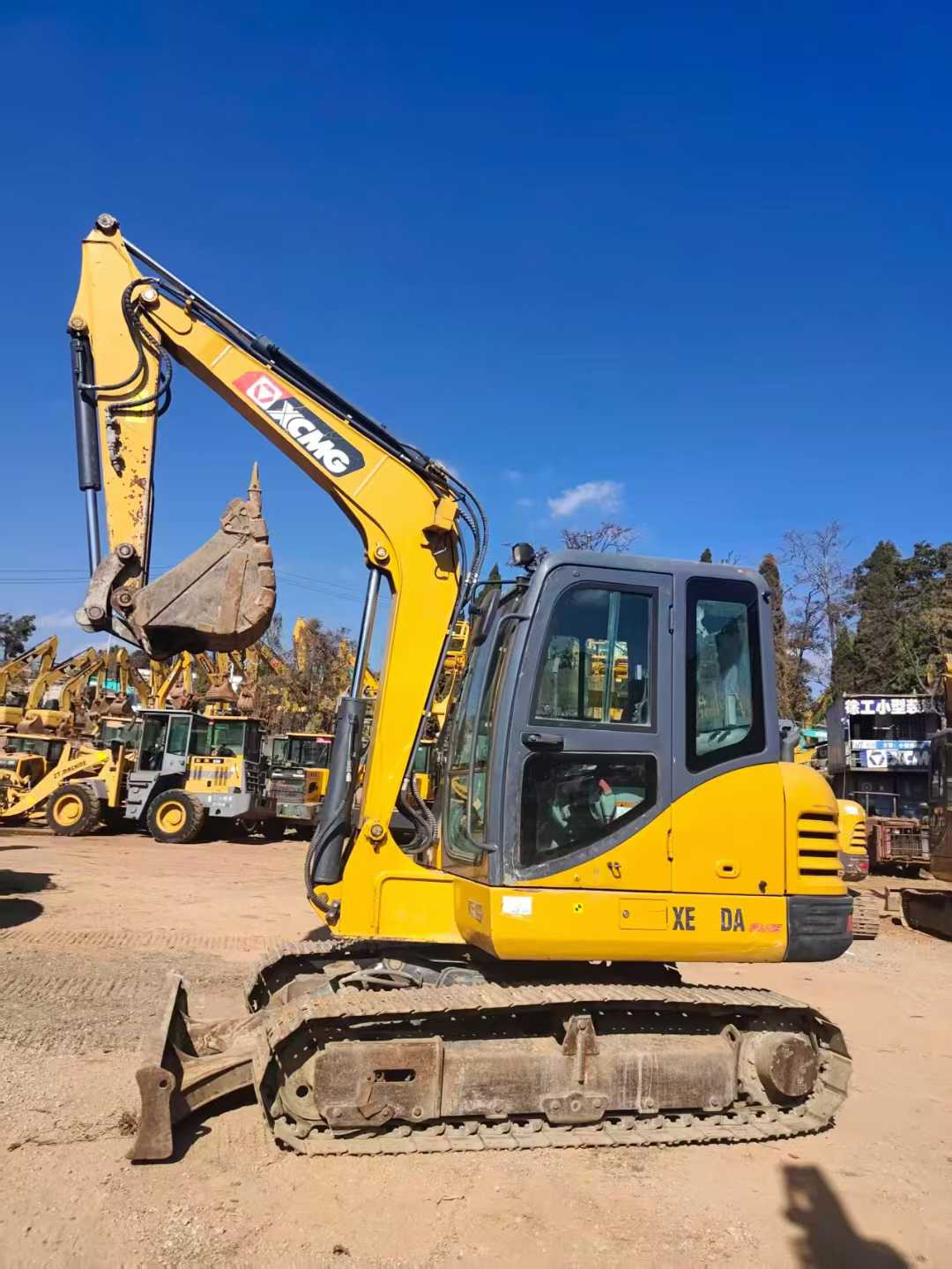

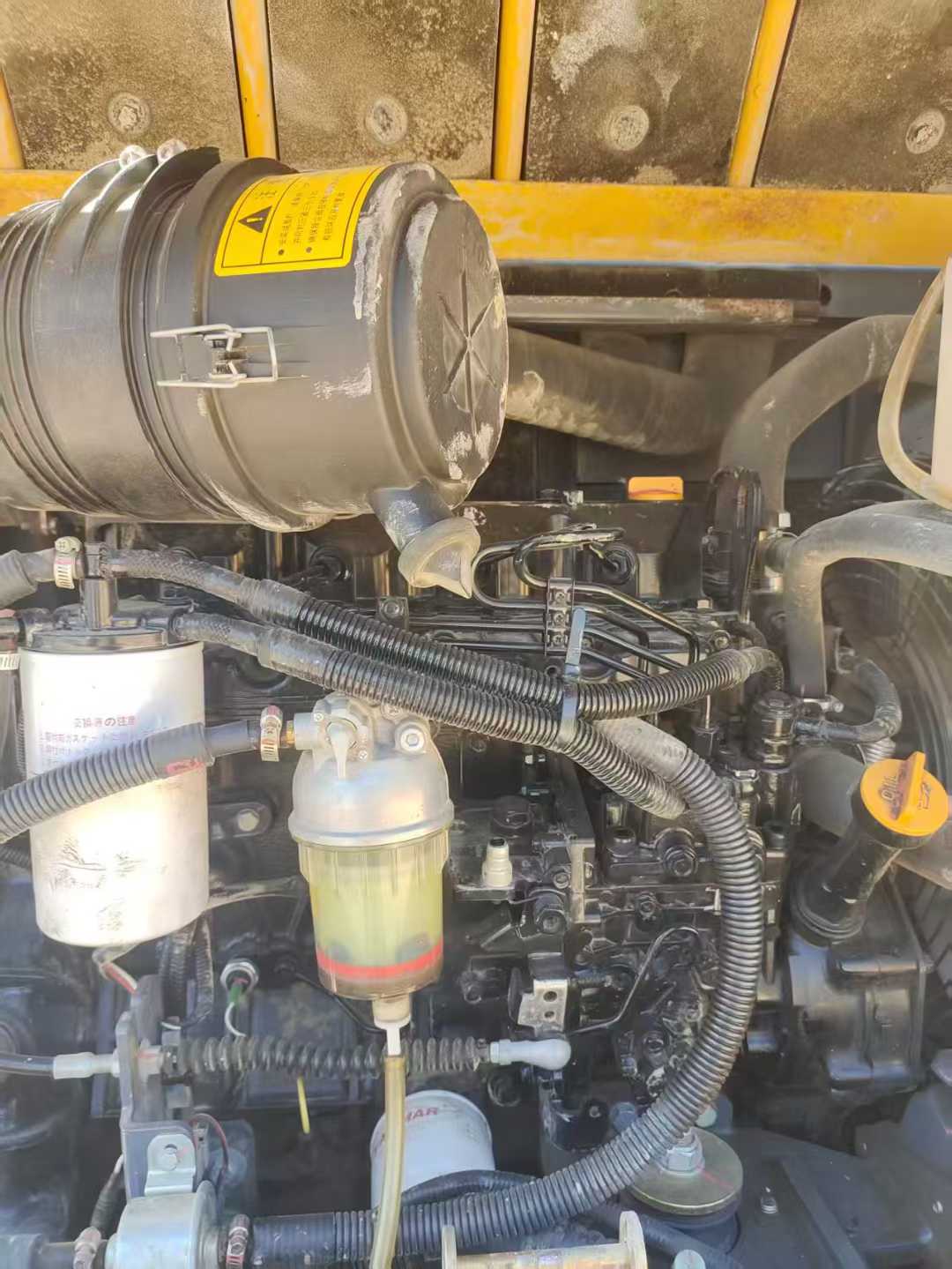

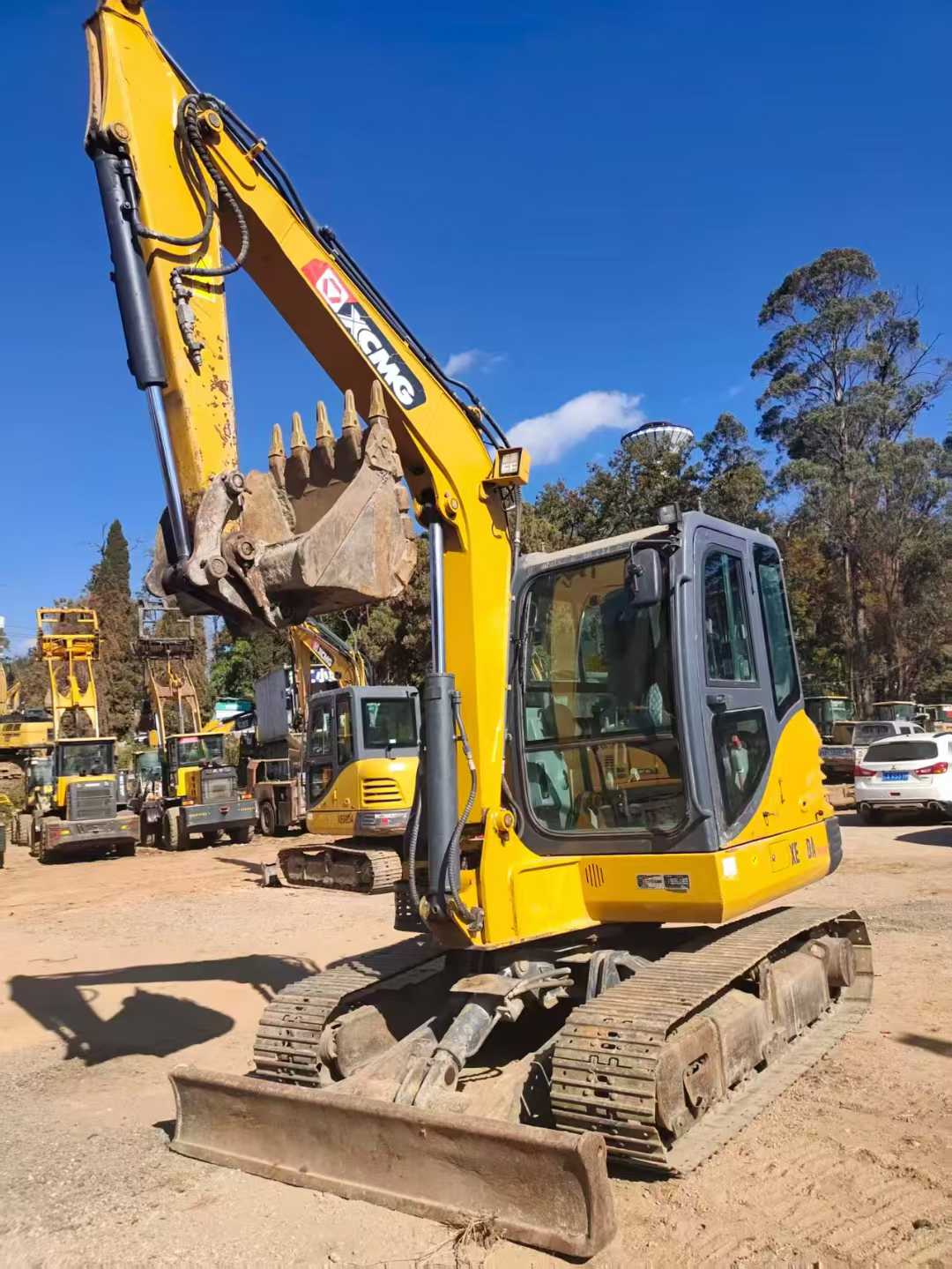

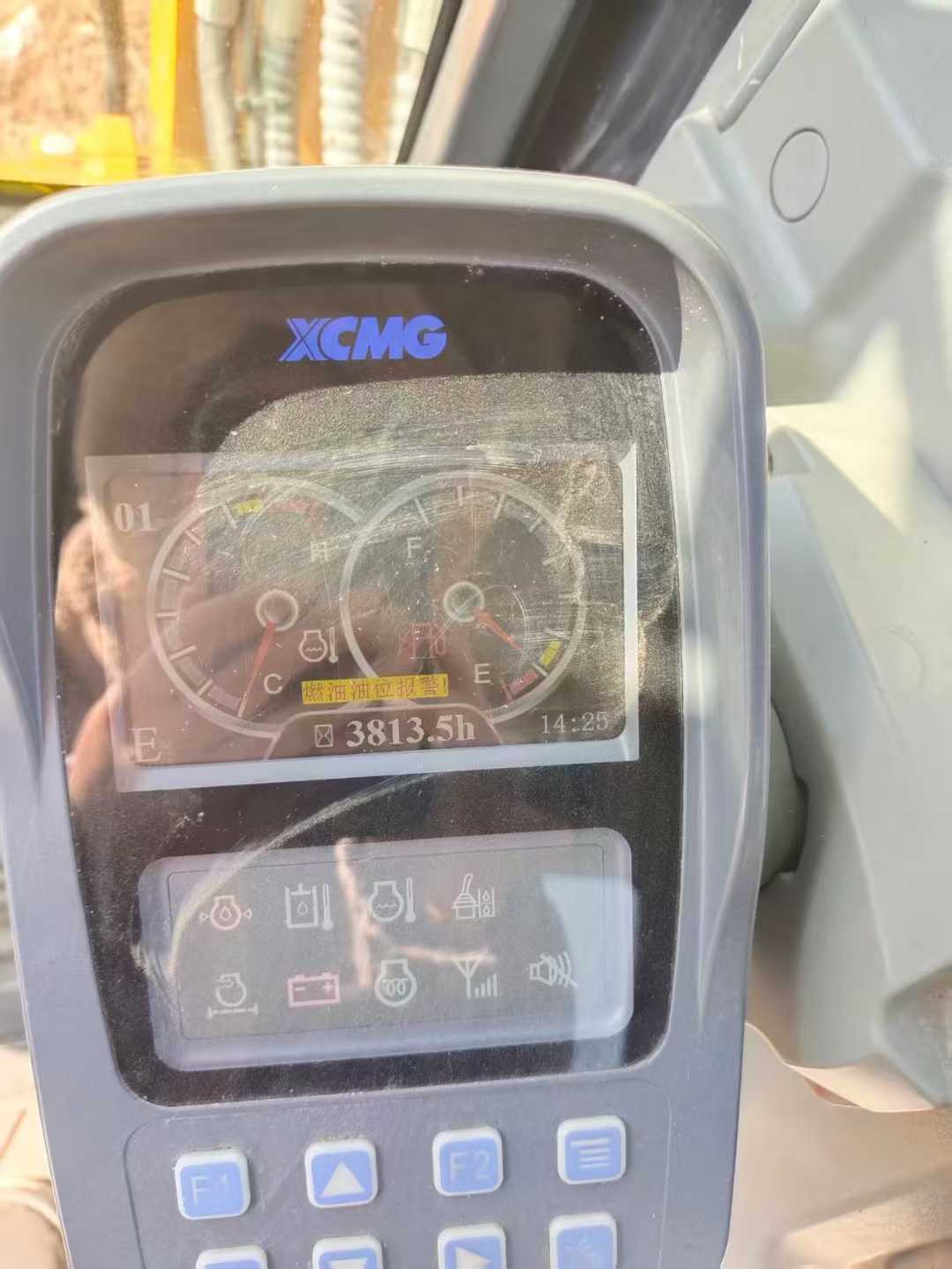

This 2021 model XCMG XE60 excavator has won wide recognition in the market for its outstanding performance and reliable stability. After strict testing, the working time of this equipment is estimated to be only about 3,000 hours. The overall condition is excellent and it is full of energy. It is an ideal choice for your construction project. In terms of power, this machine is equipped with a high-performance Yanmar engine, with a maximum power output of up to 40.5 kilowatts, ensuring strong and stable power output under various complex working conditions. In addition, advanced fuel injection systems not only enhance combustion efficiency but also effectively reduce fuel consumption and emissions, making them more environmentally friendly and energy-saving. The hydraulic system adopts a combination of imported high-quality hydraulic pumps and motors, featuring rapid response, flexible operation, and the ability to achieve precise control and smooth switching. Whether it is excavation or loading operations, they can all be handled with ease, greatly enhancing work efficiency. As a compact excavator, XCMG XE60 not only boasts excellent mobility and passability, but also is easy and quick to maintain, significantly reducing downtime. I
| Specifications | Value |
|---|---|
| No. | 974106 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
