Product Description

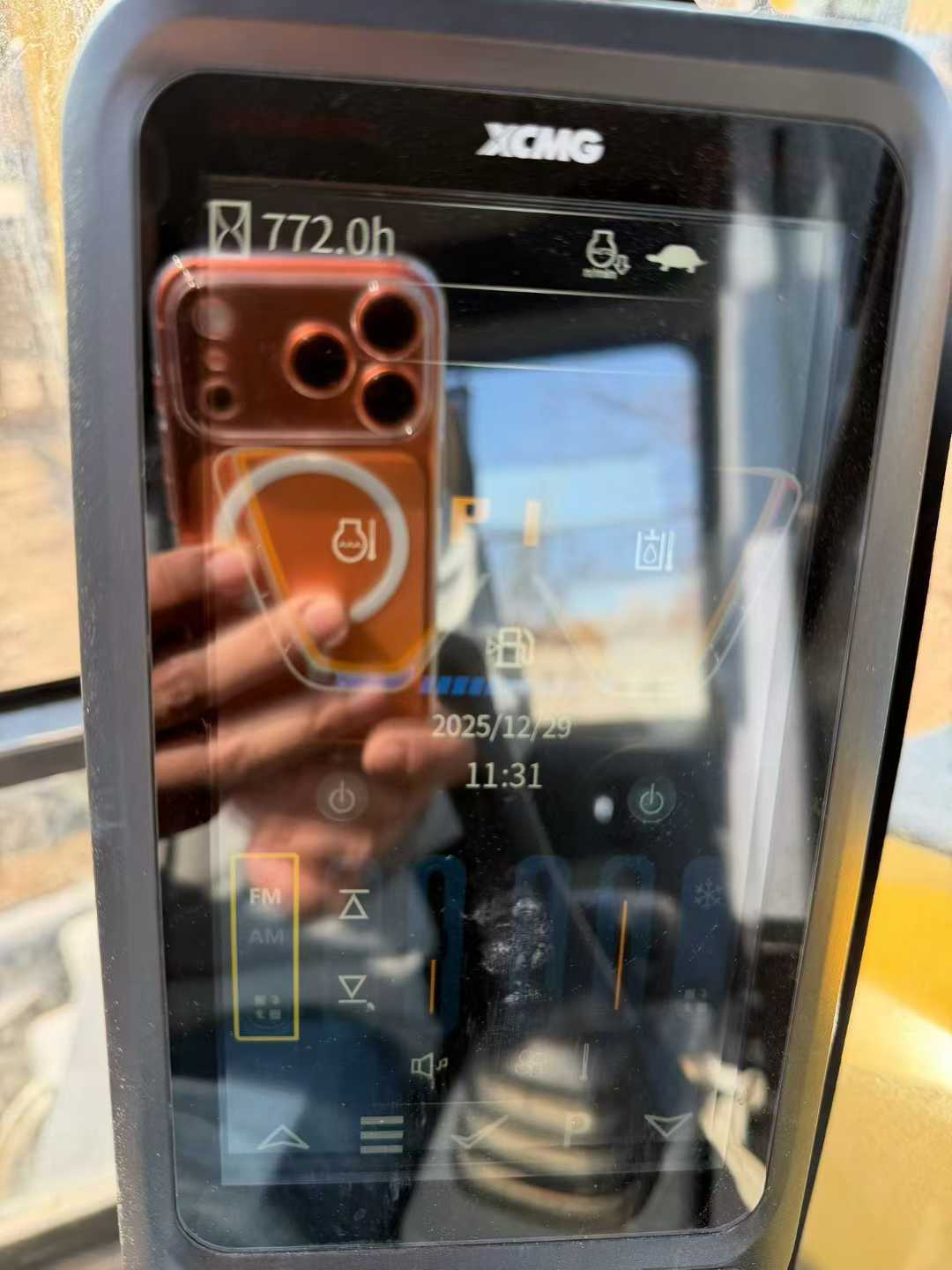

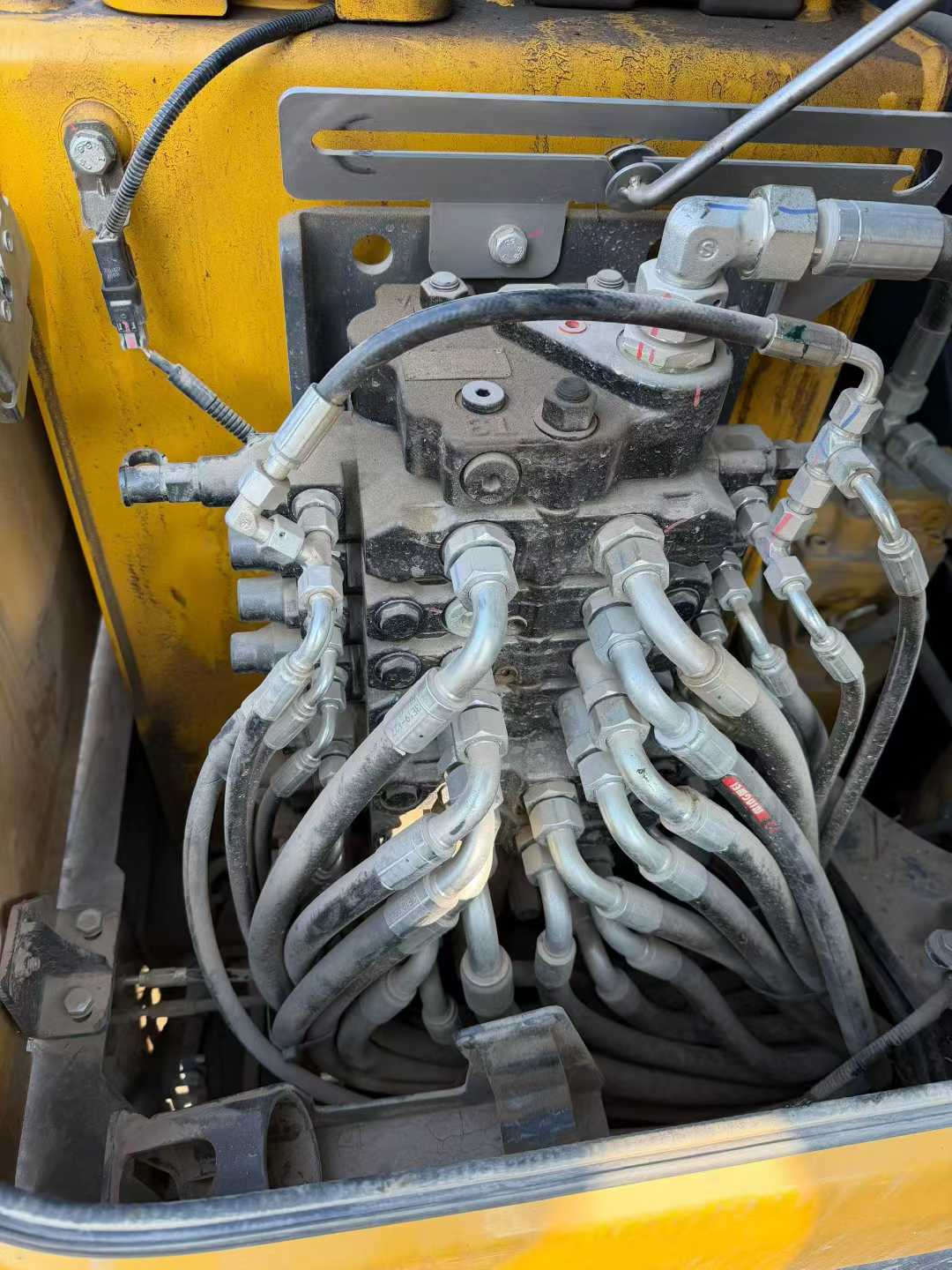

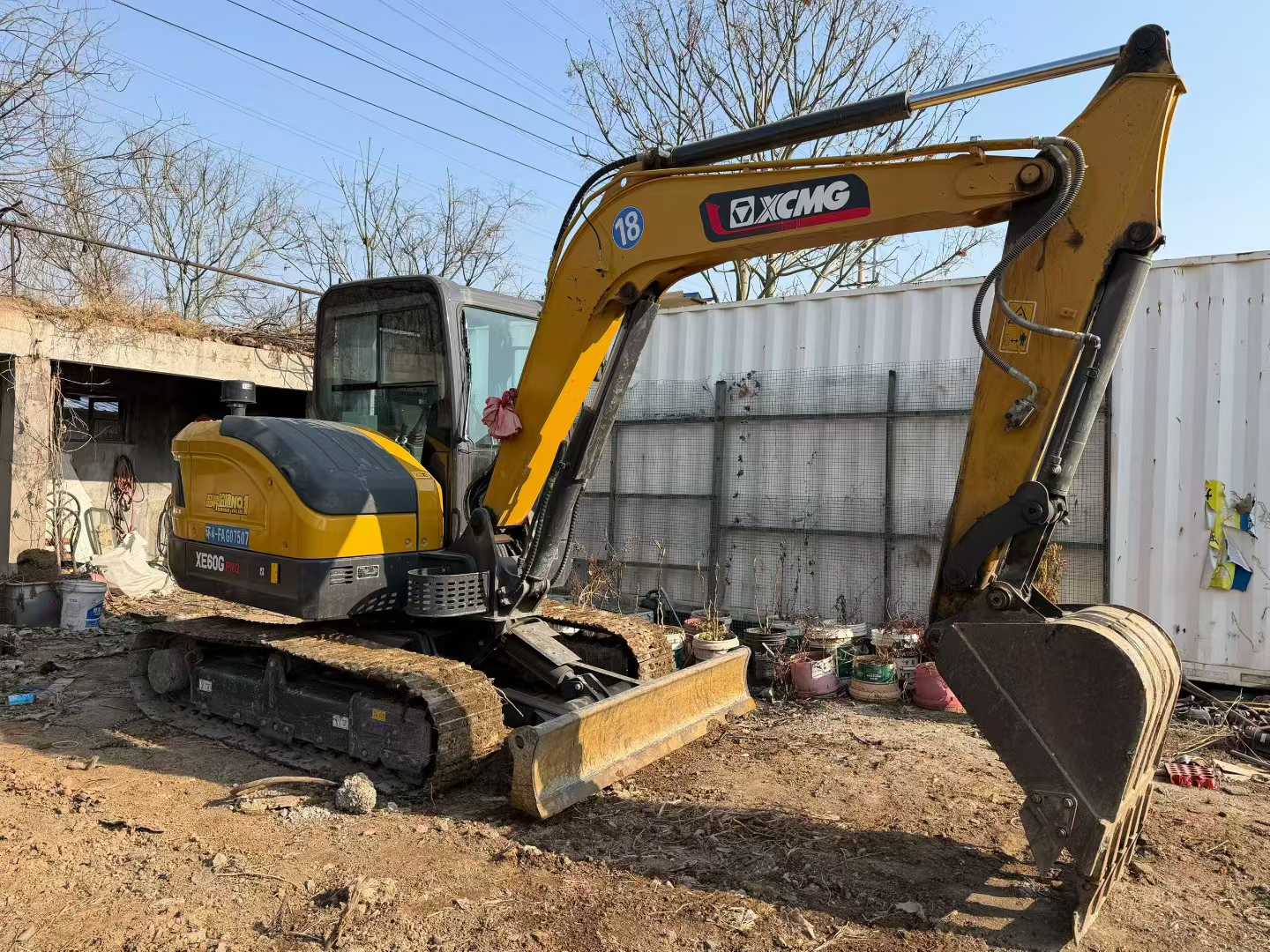

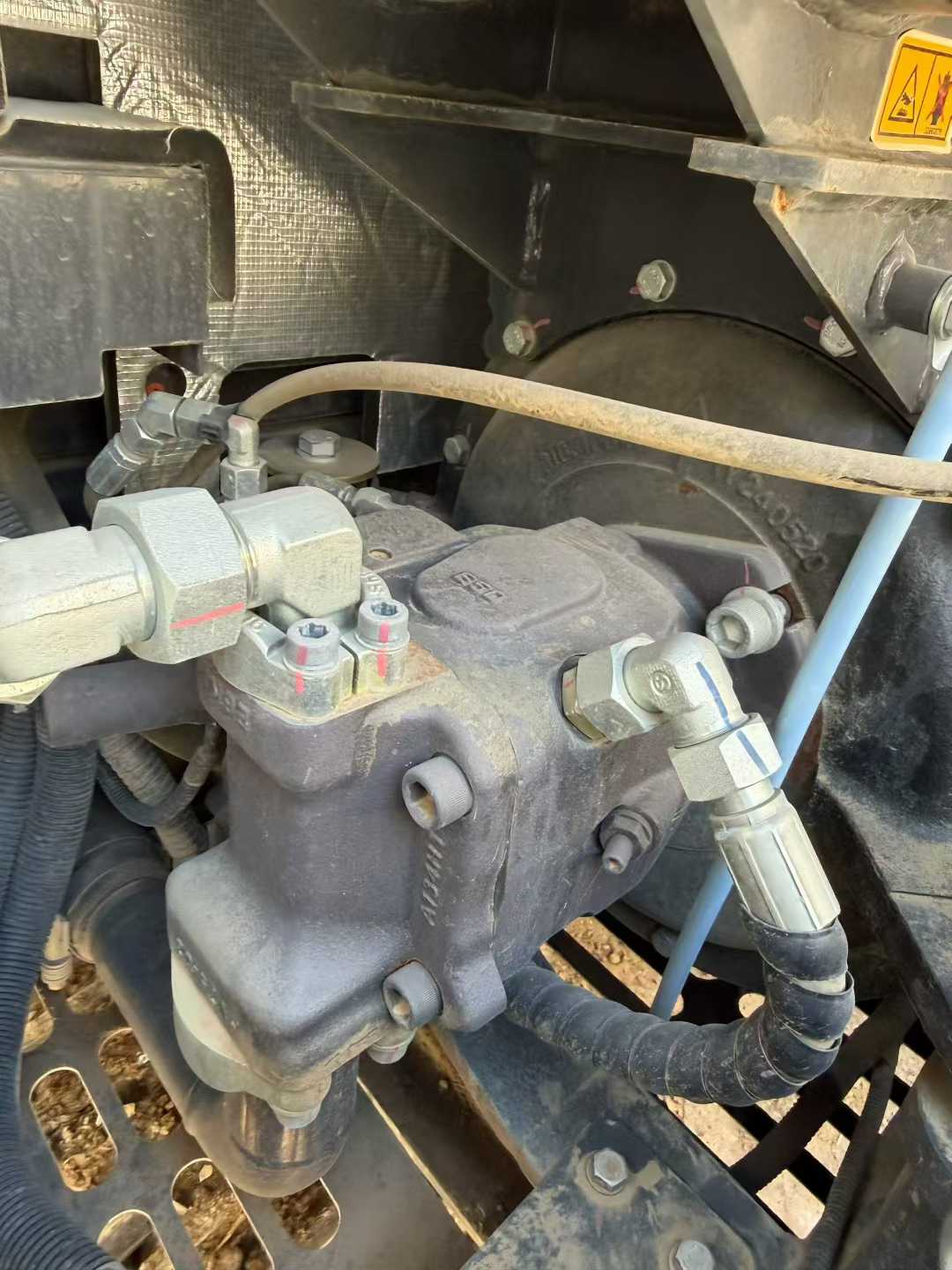

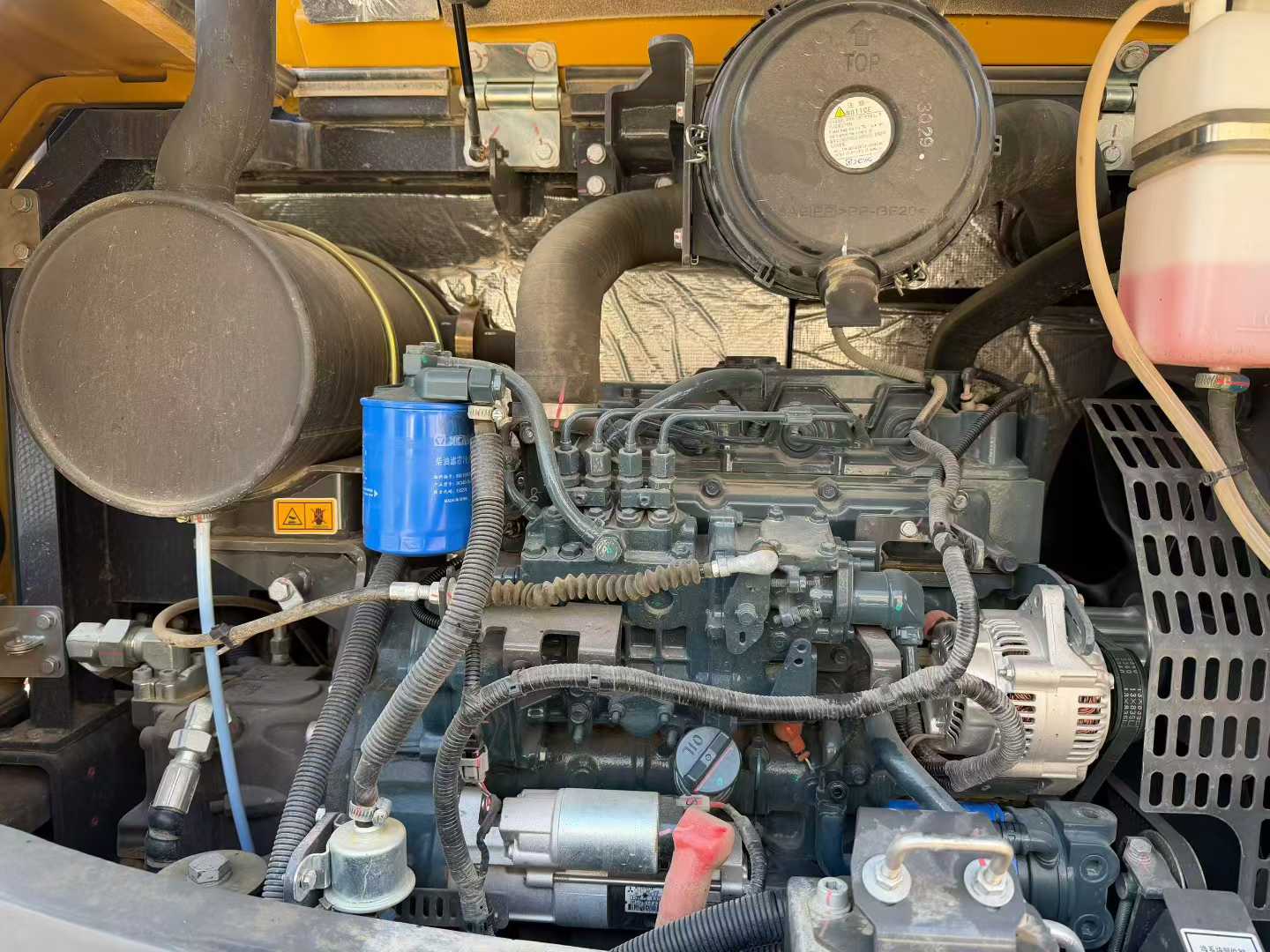

【 Premium Recommendation 】 Second-hand XCMG XE60 excavator This XCMG XE60 excavator completed its last update at the end of 2024, with a cumulative working time of only 700 hours, and is in excellent working condition. The equipment is equipped with the highly efficient and reliable Yanmar 4TNV98 engine, with a maximum output power of up to 36.5 kilowatts. This ensures strong power performance and excellent fuel economy, meeting the operational requirements under various complex working conditions. In terms of the hydraulic system, this machine adopts advanced negative flow control technology, equipped with high-performance variable piston pumps and high-torque walking motors. This not only enhances the operational flexibility and response speed of the entire machine but also significantly improves the digging force and stability. In addition, this model also features an automatic idle speed function. When there is no load, it can automatically reduce the speed, further saving fuel and extending the service life. As a compact excavator, XCMG XE60 boasts outstanding mobility and off-road capability, making it suitable for various application scenarios such as municipal construction and landscaping. Its unique design concept enables i
| Specifications | Value |
|---|---|
| No. | 975224 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
