2024 XCMG XE60

1/6
Used XCMG XE60 Excavator 2024 Model / 1

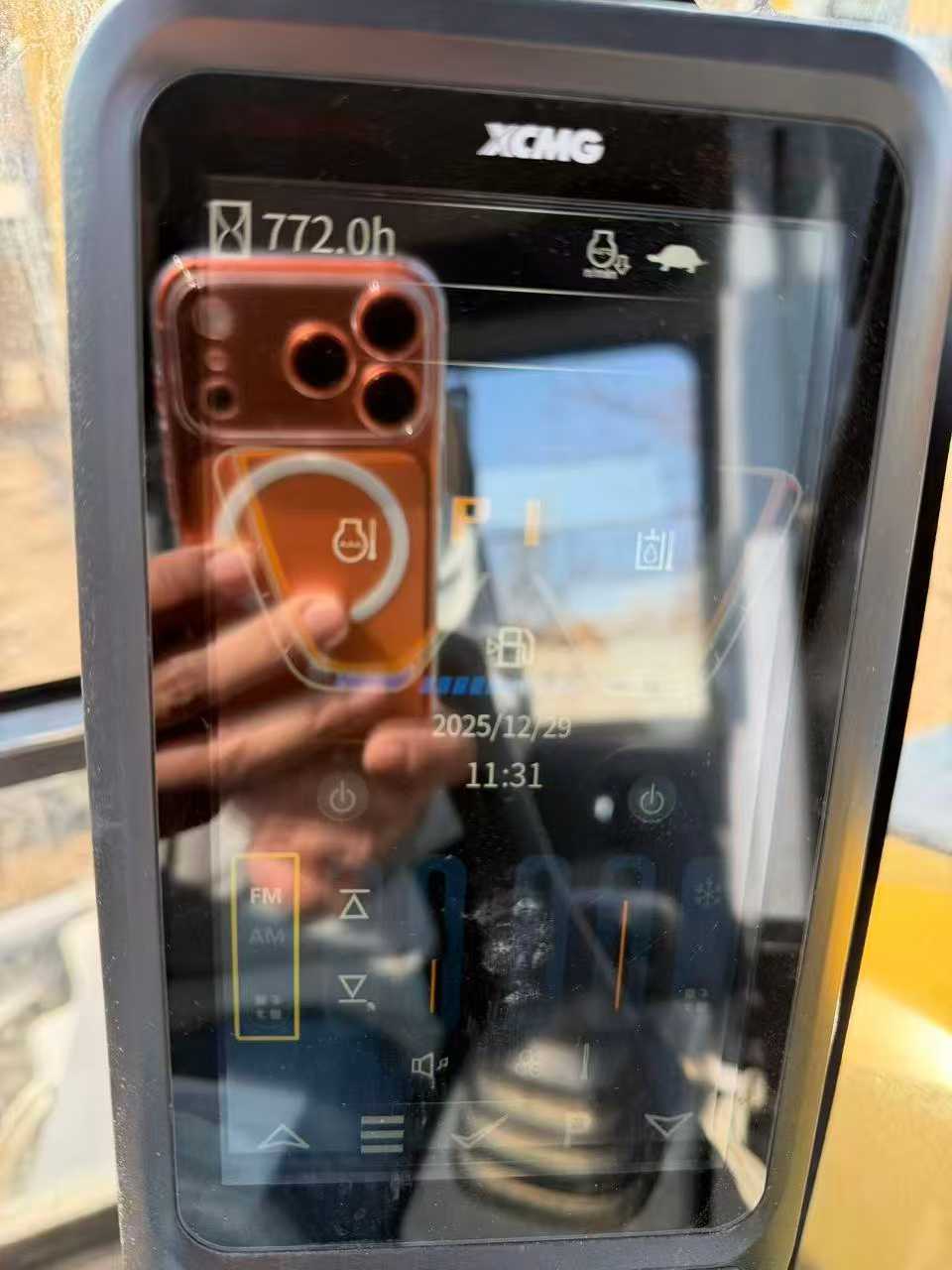

Used XCMG XE60 Excavator 2024 Model / 2

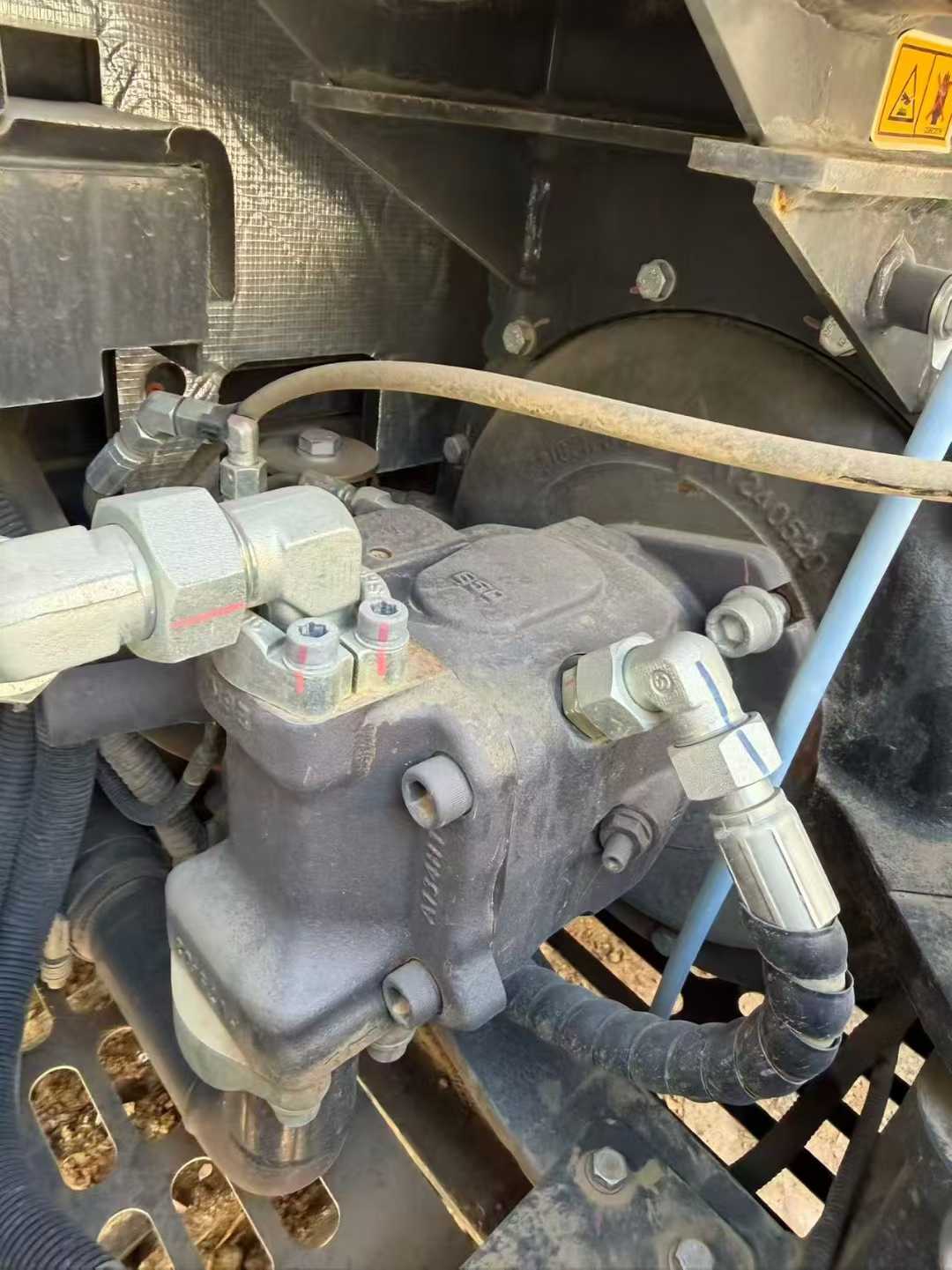

Used XCMG XE60 Excavator 2024 Model / 3

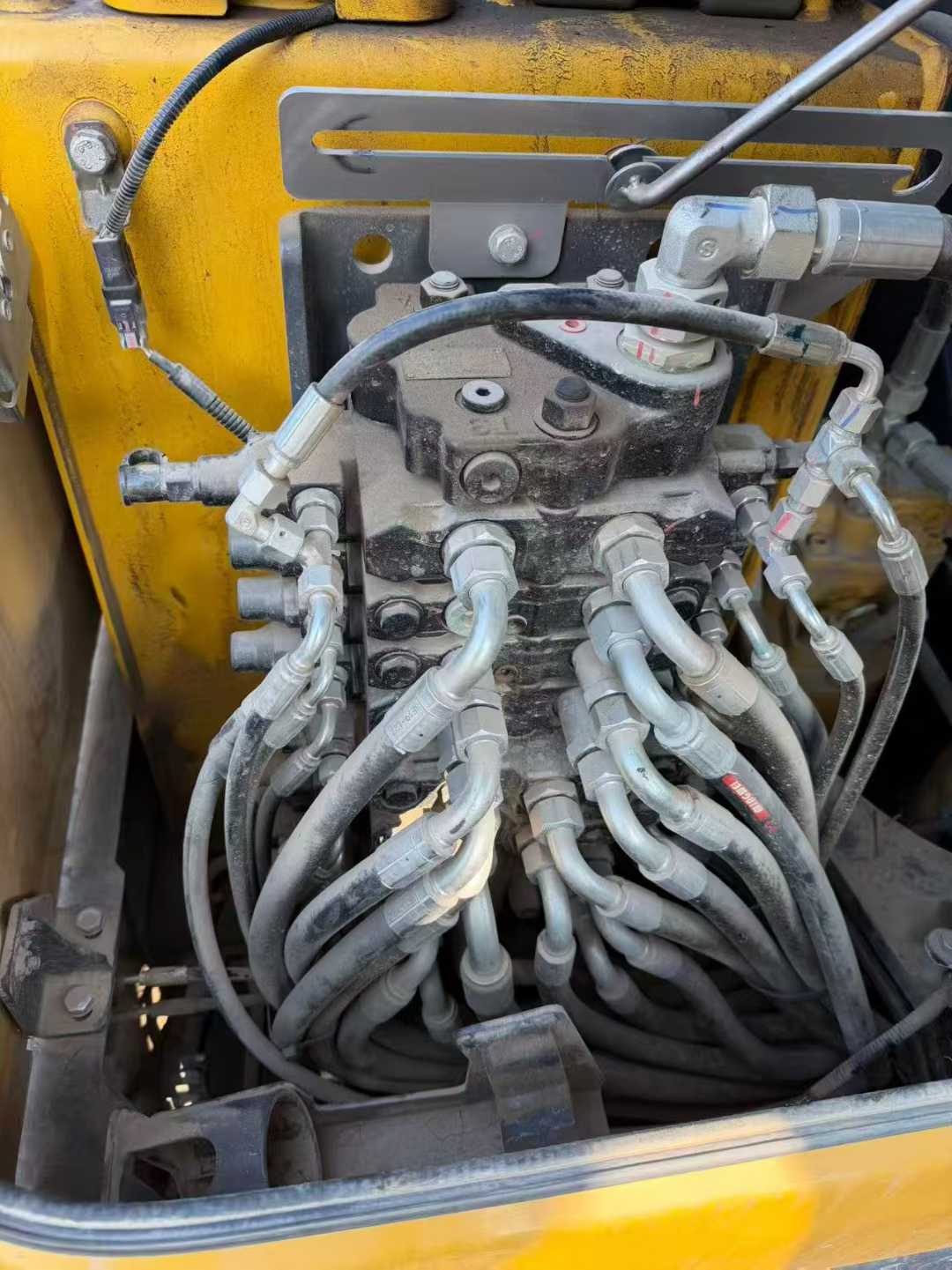

Used XCMG XE60 Excavator 2024 Model / 4

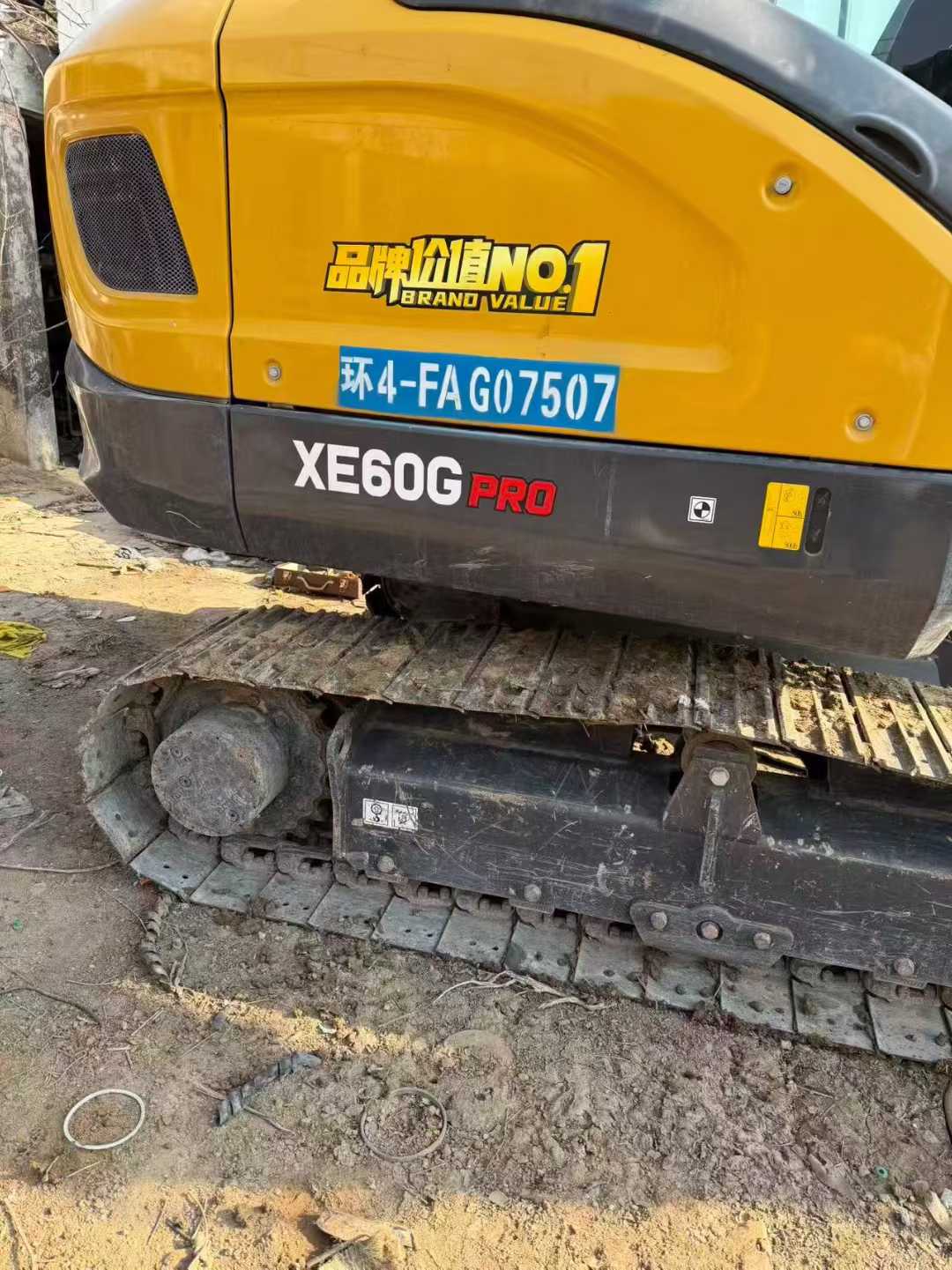

Used XCMG XE60 Excavator 2024 Model / 5

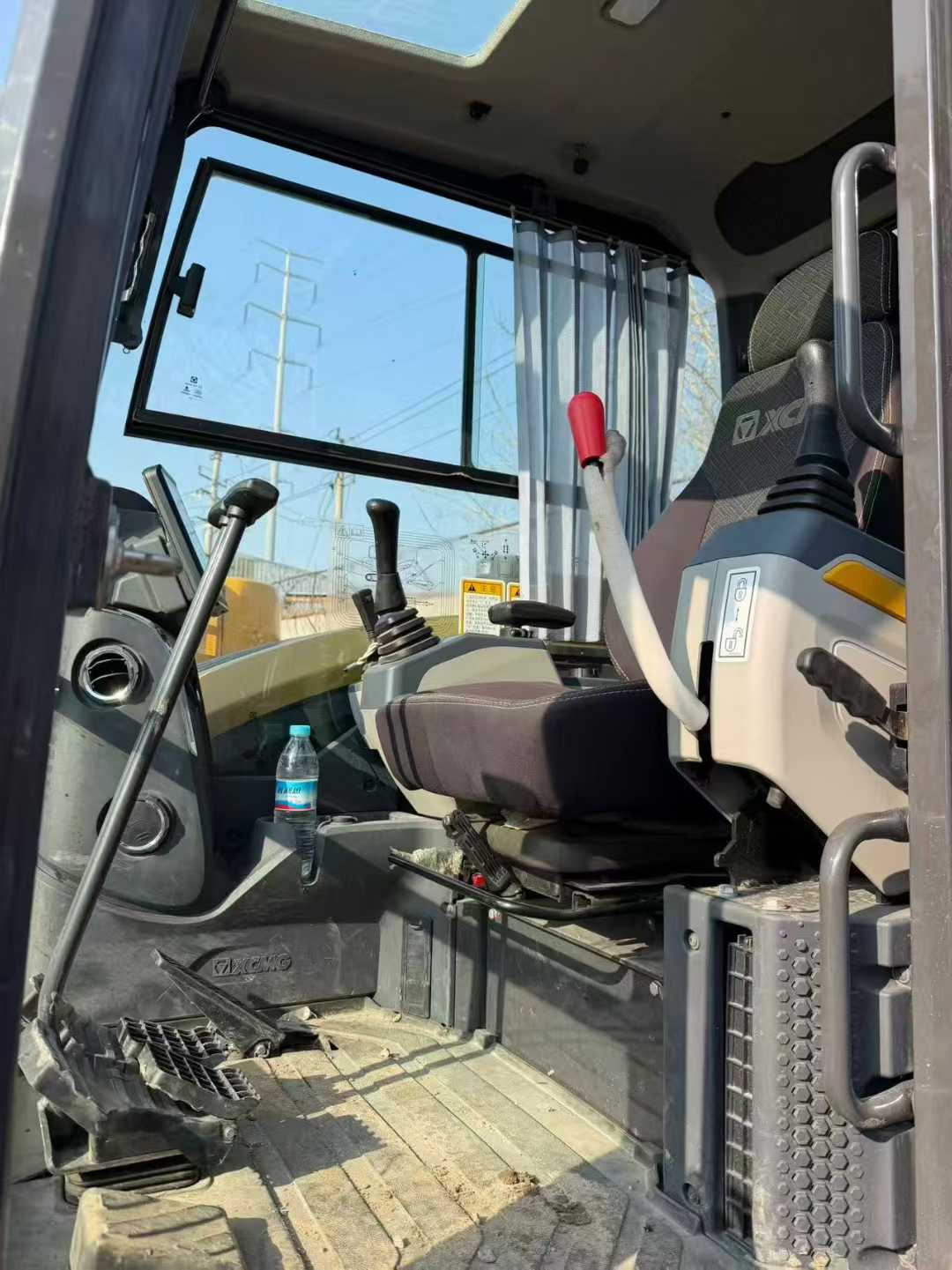

Used XCMG XE60 Excavator 2024 Model / 6

Product Description

We are selling a second-hand XCMG XE60 model excavator from the end of 2024, with a cumulative usage time of 700 hours. This device has won wide recognition in the market for its outstanding performance and reliability. Equipped with a high-performance engine (expected to be Yanmar or Kubota brand), with an output power of approximately 40 kilowatts, it ensures efficient operation in various working environments. Its power system has been meticulously tuned, not only providing strong power support but also ensuring good fuel economy and reducing operating costs. In terms of the hydraulic system, this machine is equipped with advanced variable piston pumps and high-quality hydraulic motors, enabling precise control and rapid response. It can handle both excavation and loading operations with ease. In addition, the optimized design of the oil circuit layout has effectively reduced energy loss and improved overall work efficiency. As a compact excavator, XCMG XE60 features flexible operability and excellent adaptability. Its compact body enables it to move freely even in narrow Spaces. The spacious and comfortable cab provides the operator with an excellent working experience. More importantly, this machine has undergone strict quality

SpecificationsValue
No.975795
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.975795

Brand Name:

XCMG

Model Number:

XE60

Year:

2024

Location:

Shandong China
