Product Description

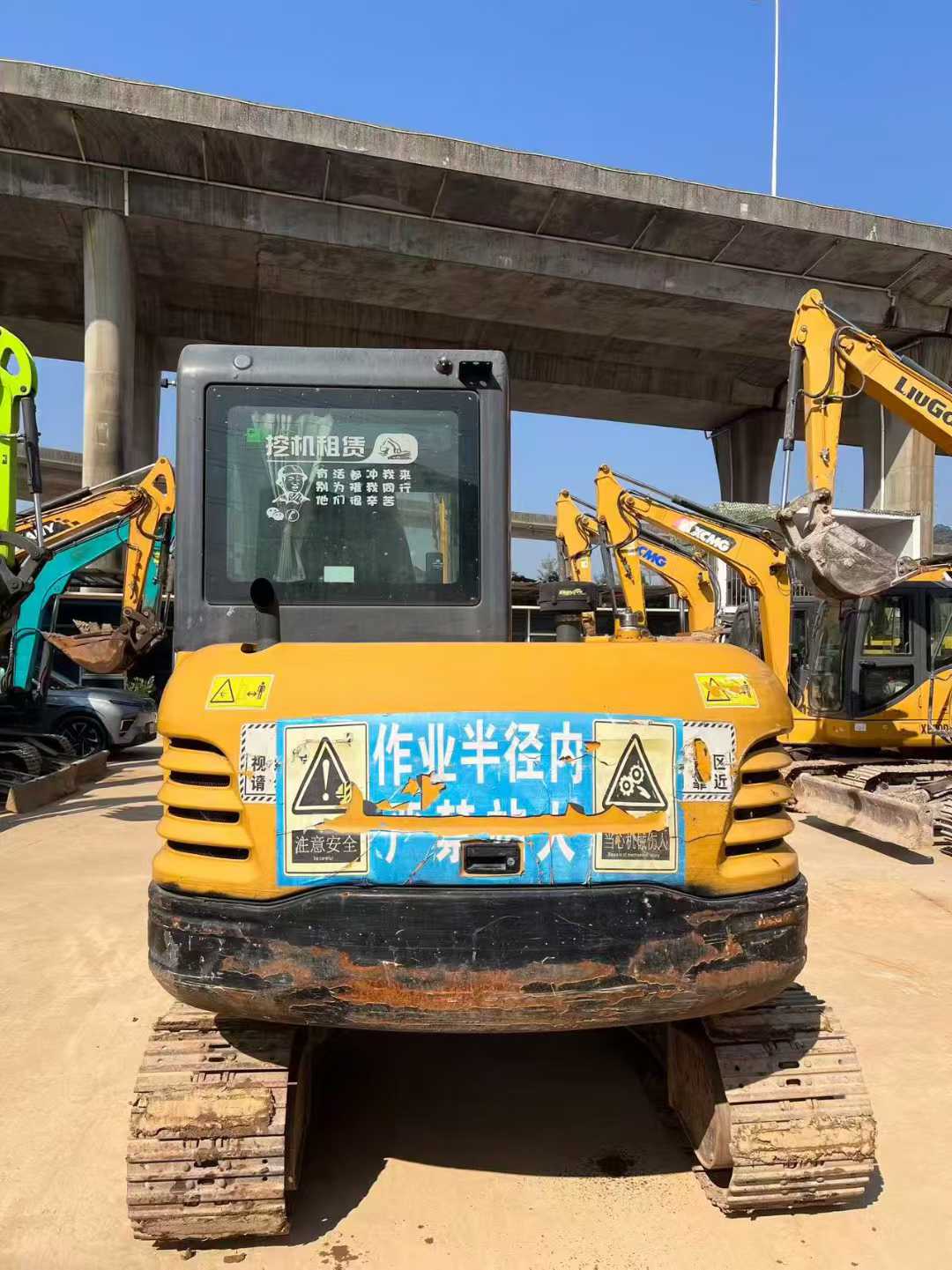

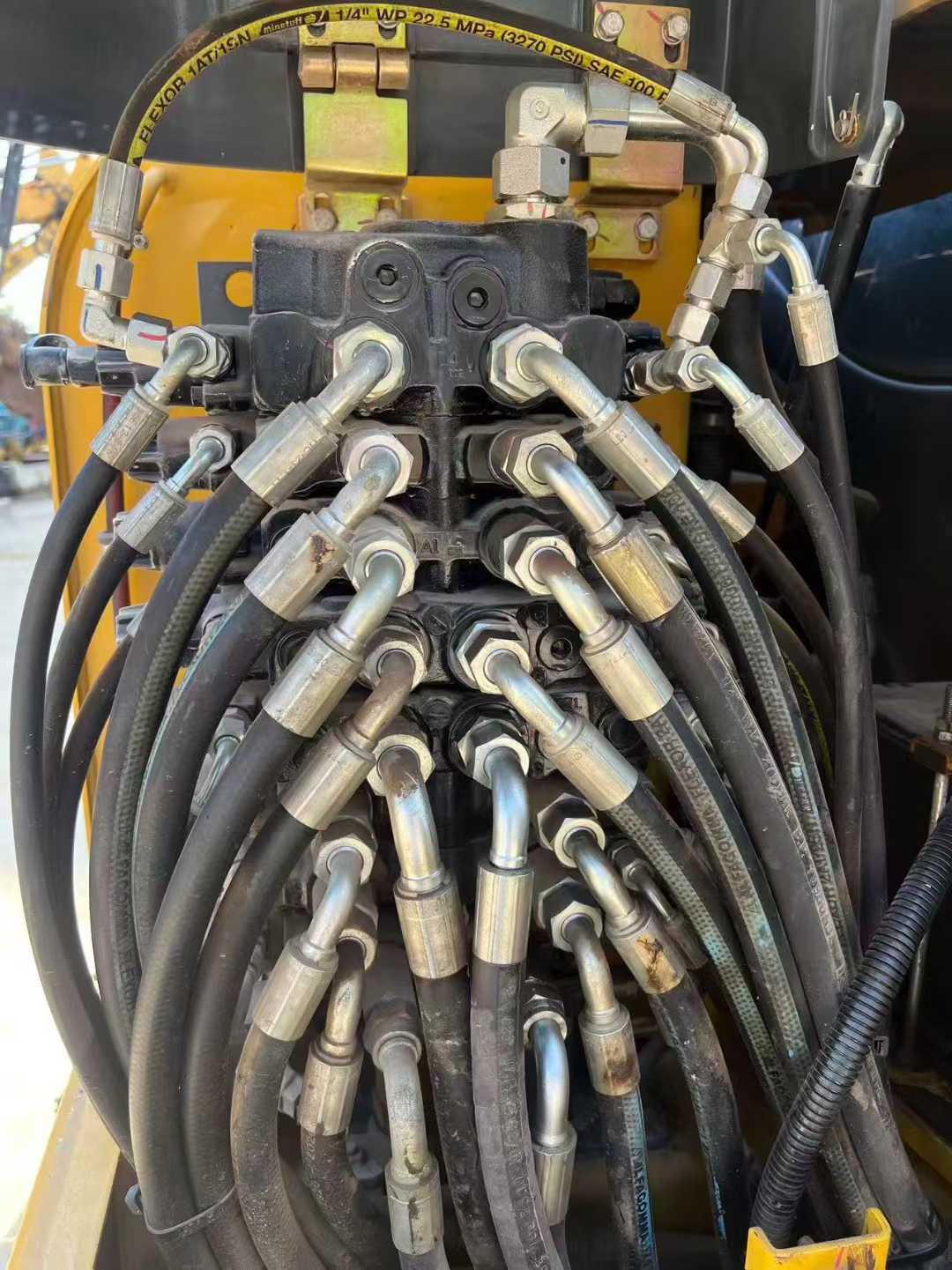

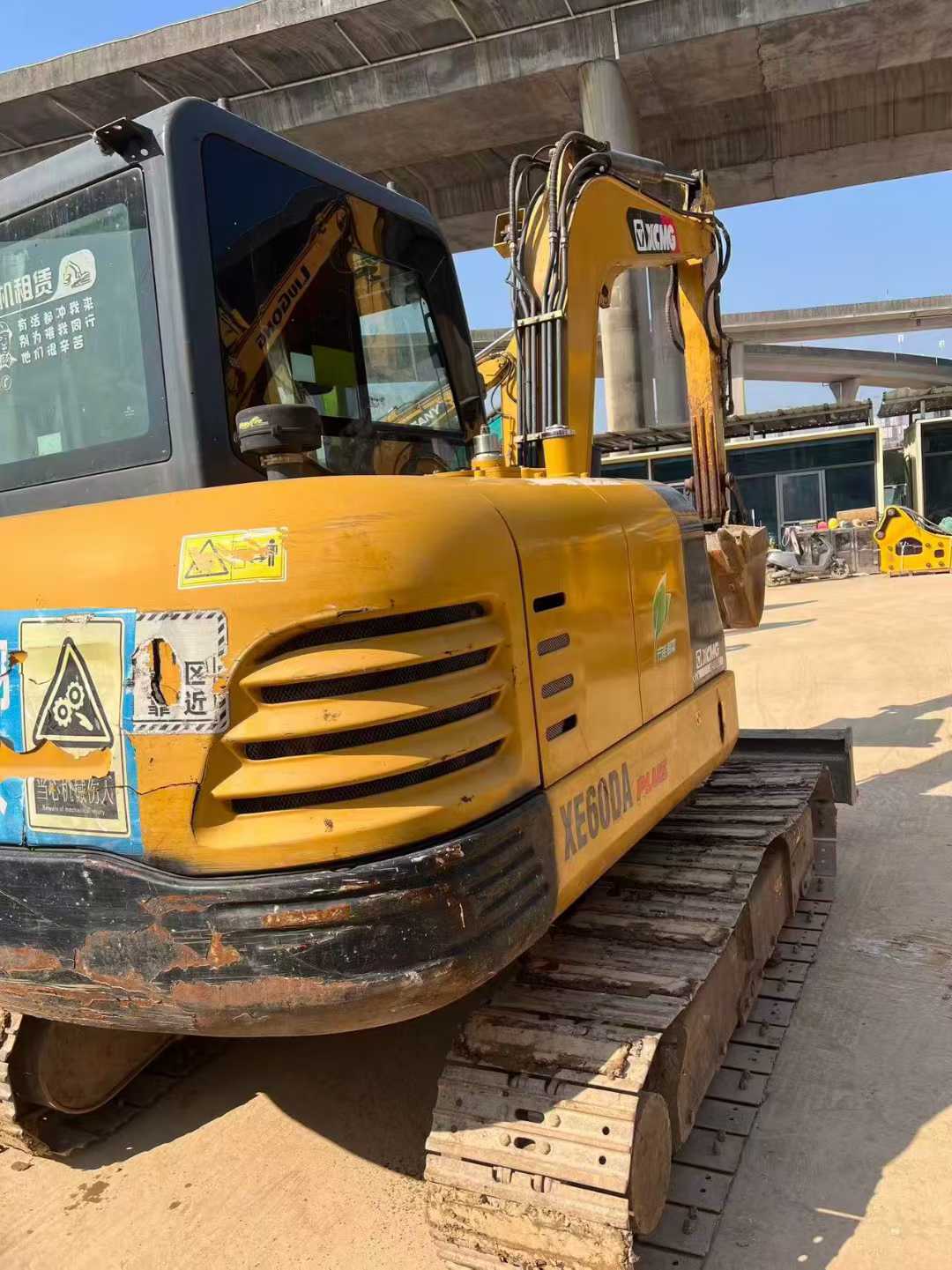

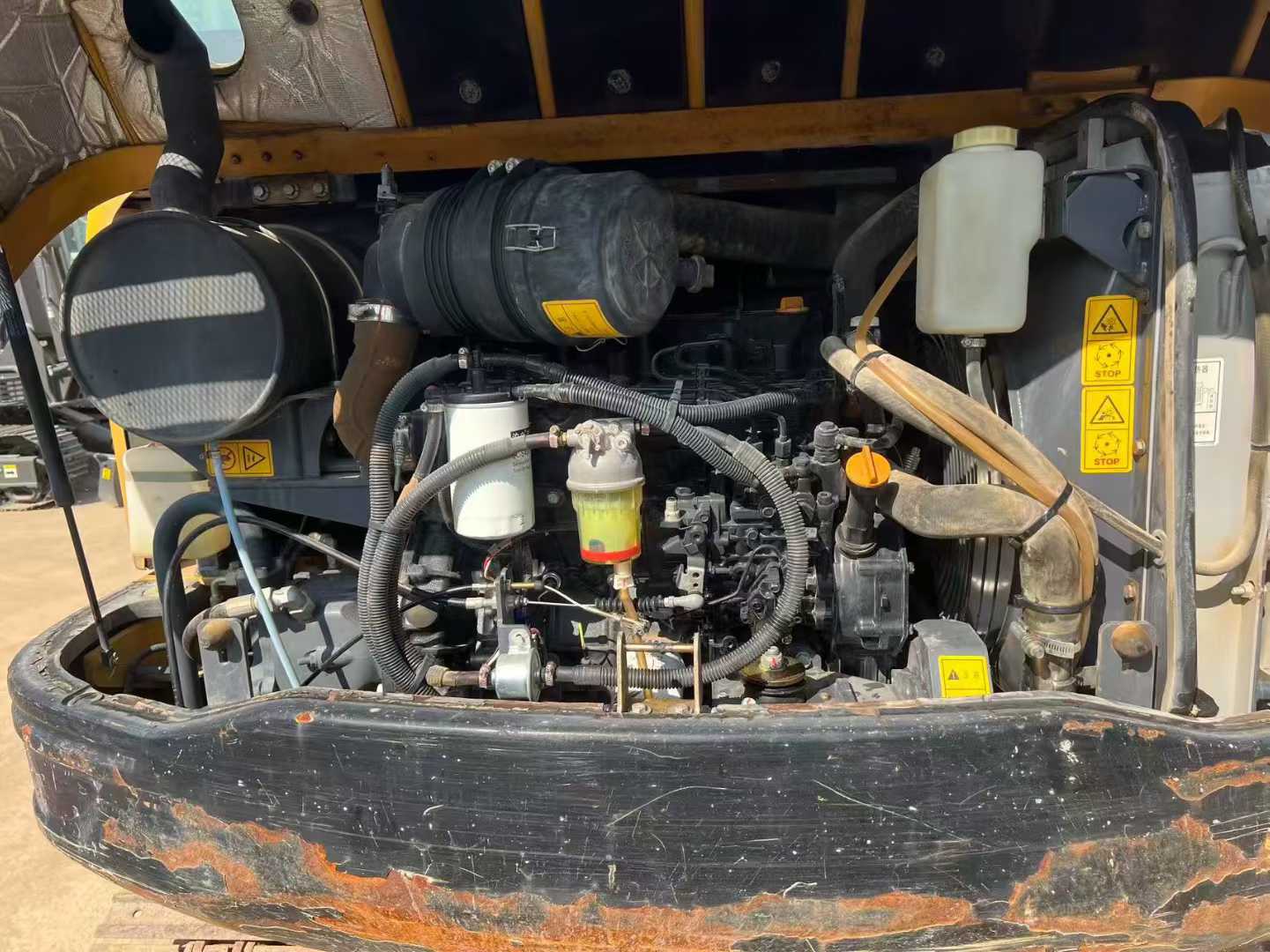

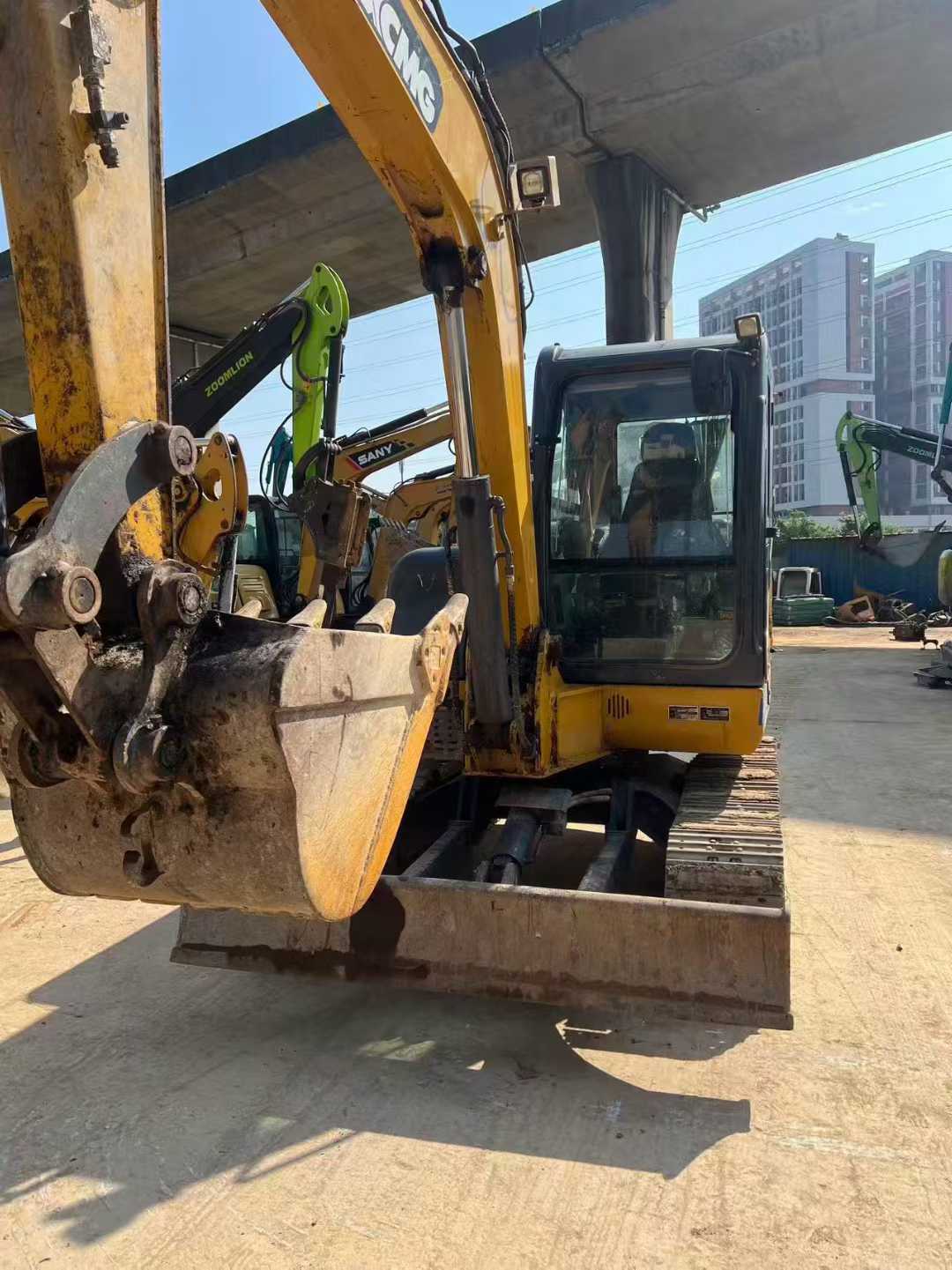

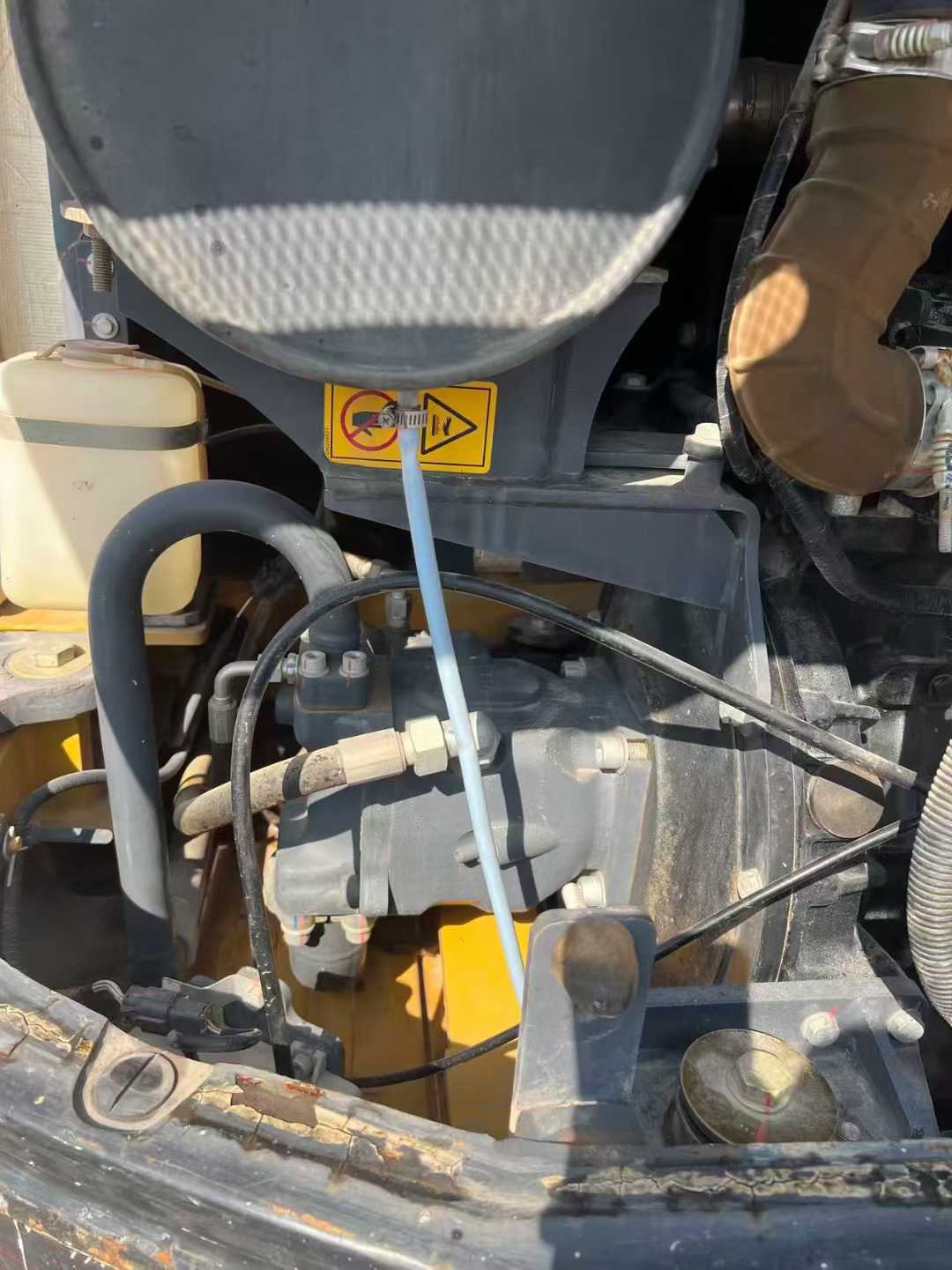

For sale, second-hand XCMG XE60 excavators from 2021 are available for rent or sale. The working time of this equipment is only 1,500 hours. It is in good overall condition and has stable and reliable performance. Equipped with the high-quality Yanmar 4TNV98 engine, it delivers a power output of 37.7 kilowatts, ensuring powerful output and low fuel consumption performance. Even in complex working environments, it can maintain efficient operation. In terms of the hydraulic system, it is equipped with an advanced combination of variable piston pumps and high-performance hydraulic motors, supporting the switching of multiple operation modes. Whether it is excavation, crushing or flat ground work, it can handle it with ease, demonstrating outstanding operational flexibility and accuracy. This excavator is particularly suitable for application scenarios such as municipal engineering, landscaping, and small-scale earthwork projects. Its compact design enables it to operate freely even in narrow Spaces. Meanwhile, the robust and durable structural design, combined with an excellent maintenance record, makes this second-hand XCMG XE60 a highly cost-effective choice. It is expected to have a long remaining service life and is an ideal partner
| Specifications | Value |
|---|---|
| No. | 975926 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
