Product Description
【 Premium Recommendation 】 Second-hand XCMG XE60D excavator, 2024 model, special offer on delivery price This second-hand XCMG XE60D excavator has been in use for only a few working hours since leaving the factory, ensuring the mechanical performance and durability of the equipment. This model is equipped with a high-performance engine and is expected to be a well-known domestic brand. It features strong power output and smooth operation performance, with a maximum power of up to 36.8 kilowatts, meeting the operational requirements in various construction environments. In terms of the hydraulic system, this machine is equipped with an advanced variable piston pump and a high-efficiency hydraulic motor combination, ensuring smooth operation, rapid response and low energy consumption during the operation process. Both the digging force and the rotation speed have reached the leading level in the industry, greatly enhancing work efficiency. In addition, this XCMG XE60D also features the following major highlights: It adopts a reinforced structural design. Key parts such as the boom and the bucket arm have all undergone special treatment to extend the service life. The cab is spacious and comfortable, with a wide field of vision. It is
| Specifications | Value |
|---|---|
| No. | 975939 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

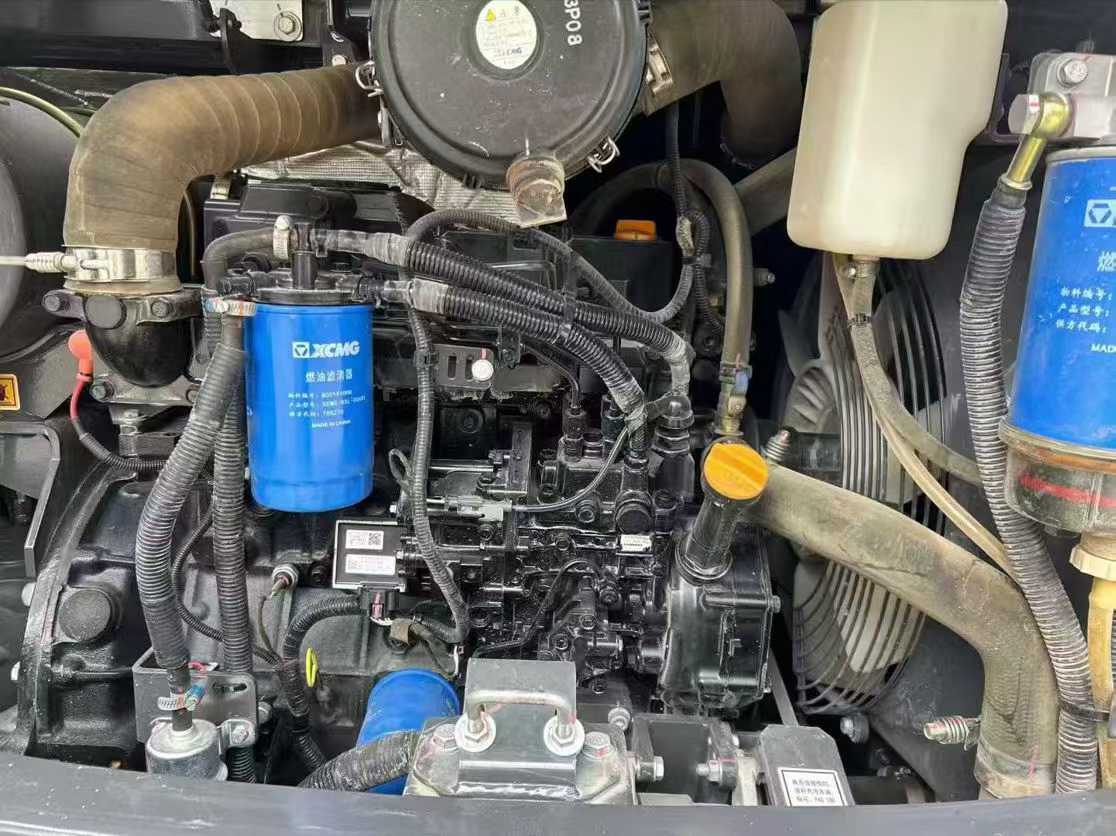

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
