Product Description

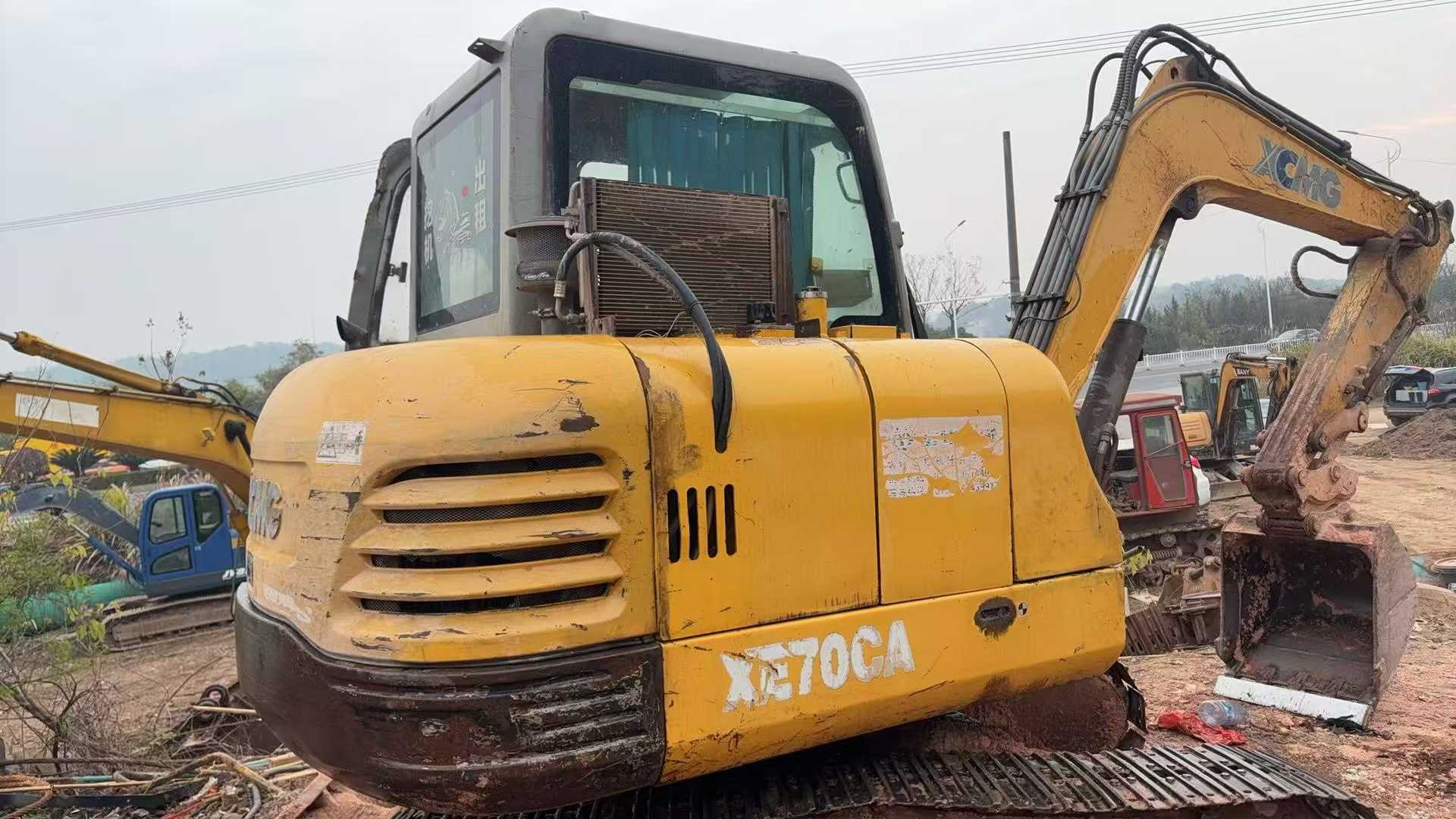

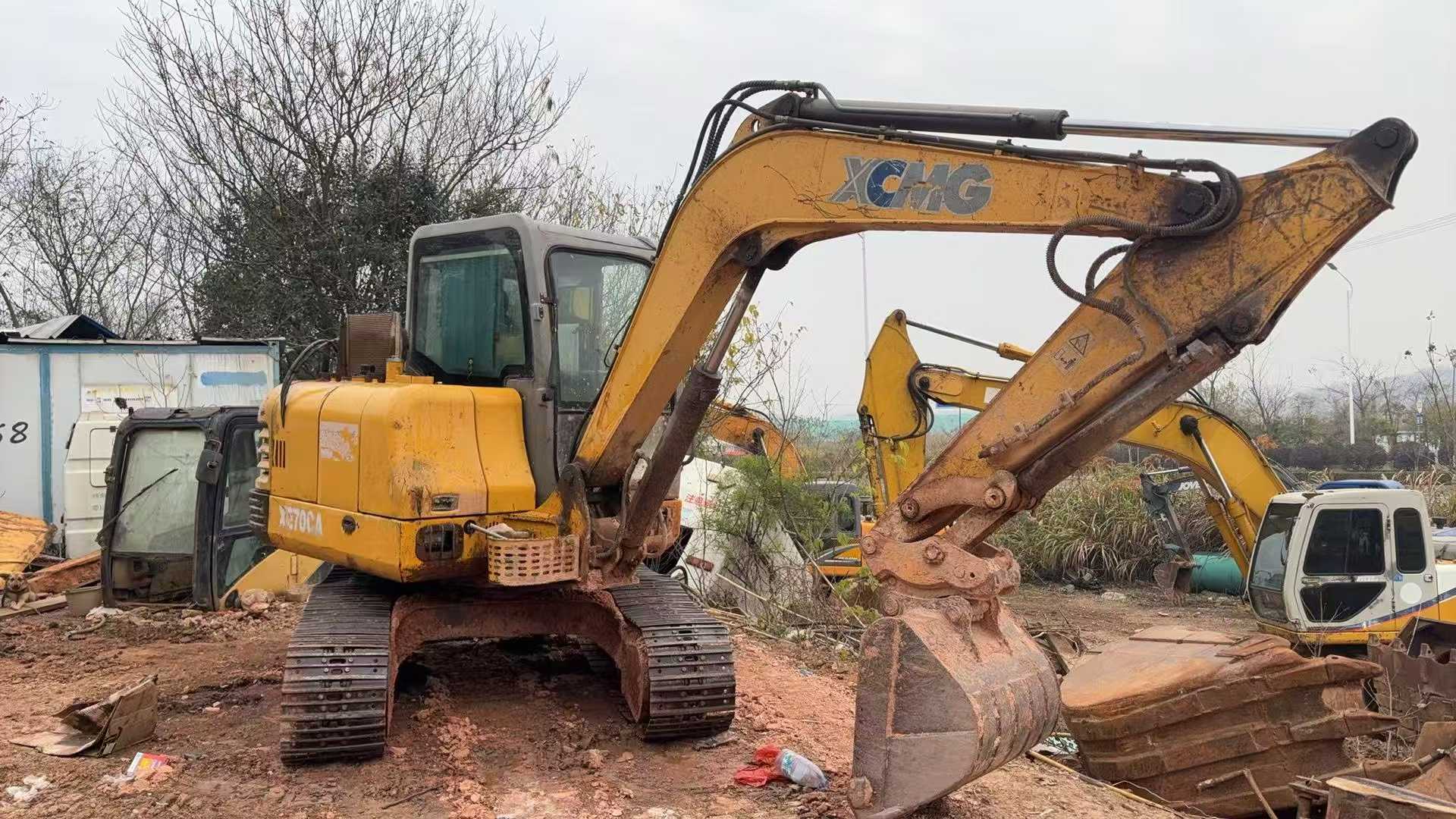

This second-hand XCMG XE60 excavator, as a powerful assistant for construction site work, features outstanding performance and stable reliability. The cumulative working time of this equipment is approximately 3,000 hours, which proves its durability and efficiency under various working conditions. In terms of the power system, it is equipped with a high-performance engine, which is expected to be a well-tested Yanmar or Cummins brand in the market, with a rated power of approximately 40 kilowatts, ensuring strong power output and a smooth operating experience. The hydraulic system is a major highlight of this excavator. It adopts advanced load-sensitive hydraulic technology. The hydraulic pump and the hydraulic motor work in perfect harmony, not only enhancing the working efficiency but also significantly reducing energy consumption. In addition, the fast-response control valve makes the operation more precise and smooth, allowing for easy handling of operations such as excavation, loading, and crushing. It is particularly worth mentioning that the air conditioning system of this machine operates well, providing a cool and comfortable working environment even in the hot summer, which greatly enhances the driver's job satisfaction. M
| Specifications | Value |
|---|---|
| No. | 975959 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
