Product Description

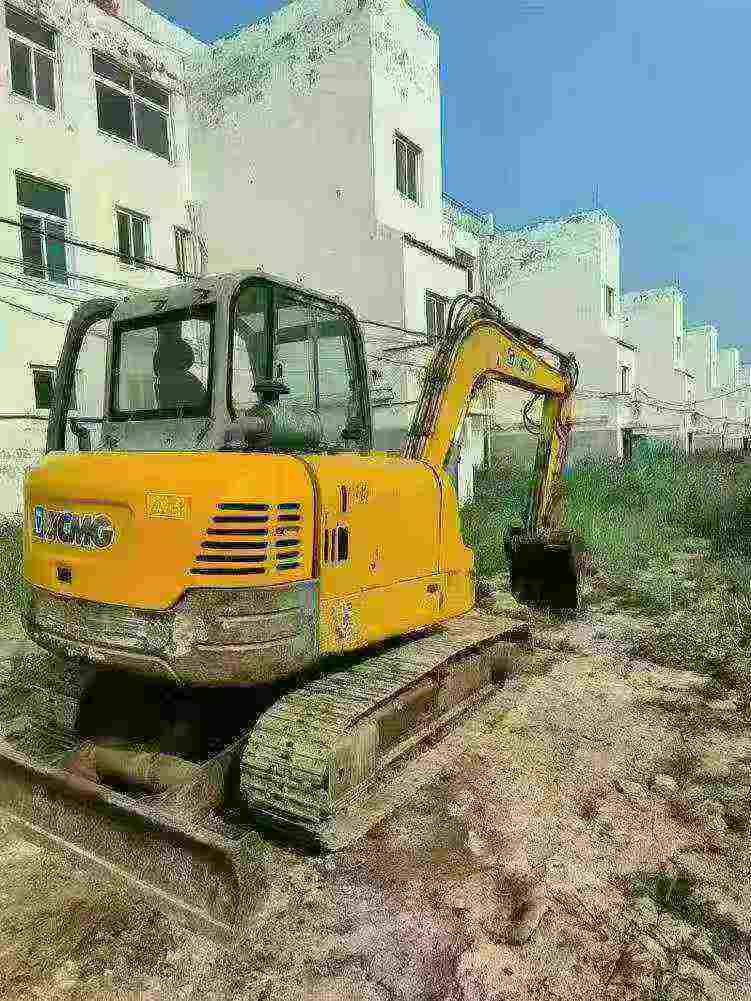

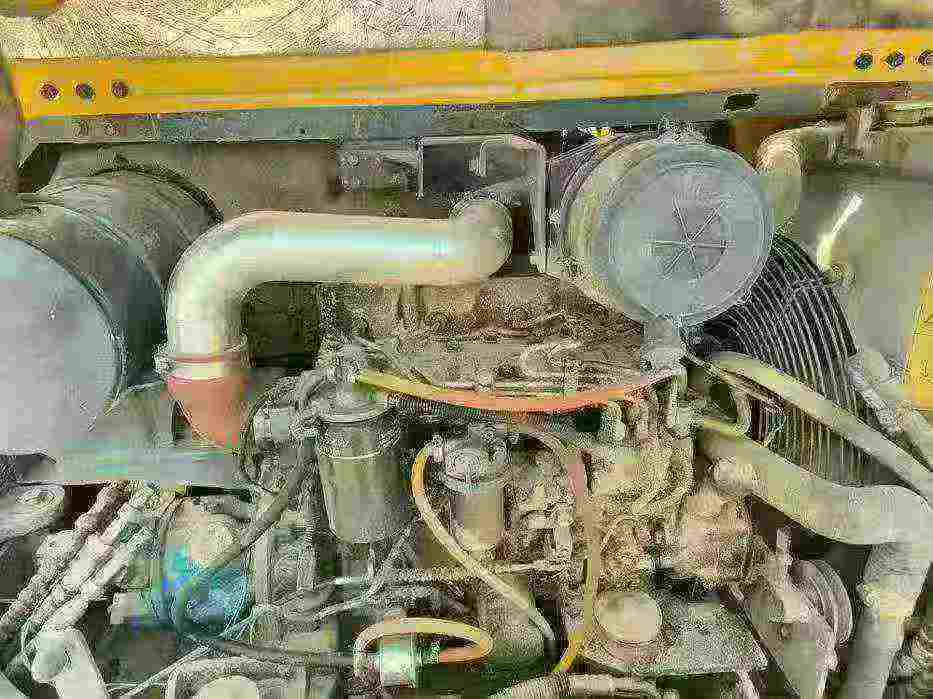

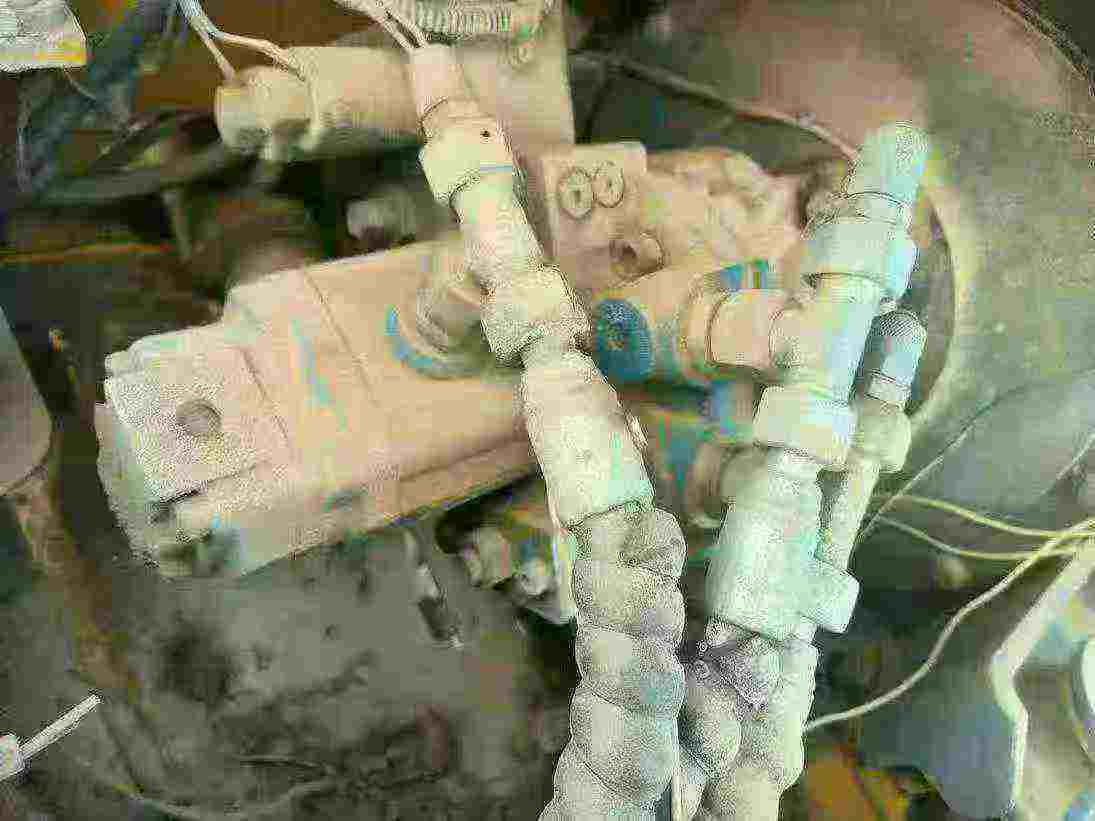

【 Premium Second-hand XCMG XE60 Excavator 】 - High Efficiency and stability, the best choice for cost performance This XCMG XE60 excavator is a high-quality device that has been meticulously maintained, with a cumulative working time of only 1,500 hours, ensuring its excellent mechanical condition and long service life. Equipped with the well-tested Yanmar 4TNV98 engine, it can achieve a maximum power of 37.5 kilowatts. It is powerful and has excellent fuel economy, capable of easily handling the operational demands under various complex working conditions. In terms of the hydraulic system, this machine is equipped with a combination of an efficient variable piston pump and a high-performance hydraulic motor, ensuring smoothness and response speed during operation. It can perform well in both excavation and loading operations. In addition, advanced load sensing technology enables the entire machine to maintain the best working efficiency under different load conditions, significantly enhancing construction efficiency while also reducing energy consumption. This XCMG XE60 excavator not only boasts outstanding performance but also spares no effort in humanized design. The spacious and comfortable cab provides an excellent operating vi
| Specifications | Value |
|---|---|
| No. | 976412 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
