Product Description

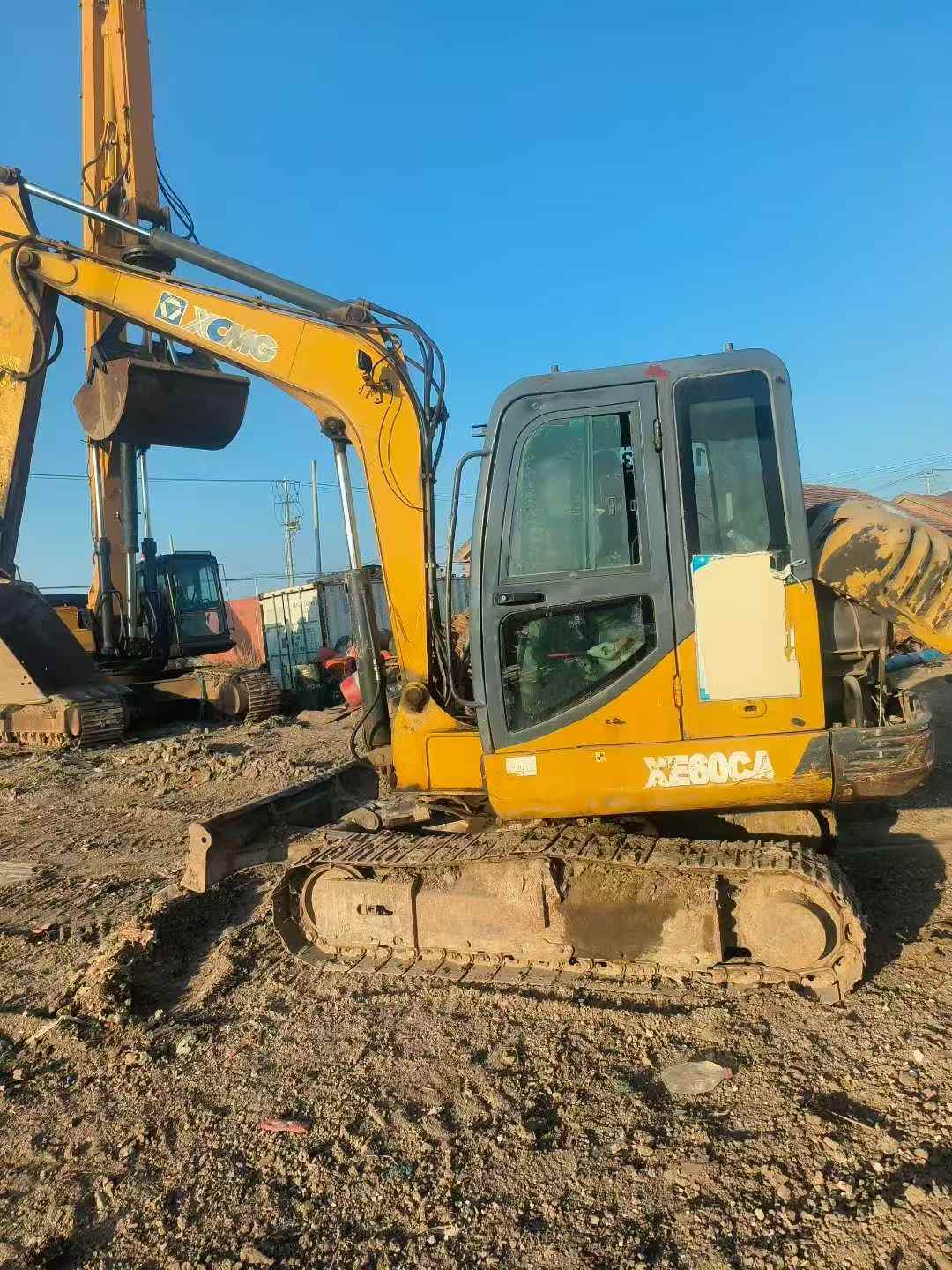

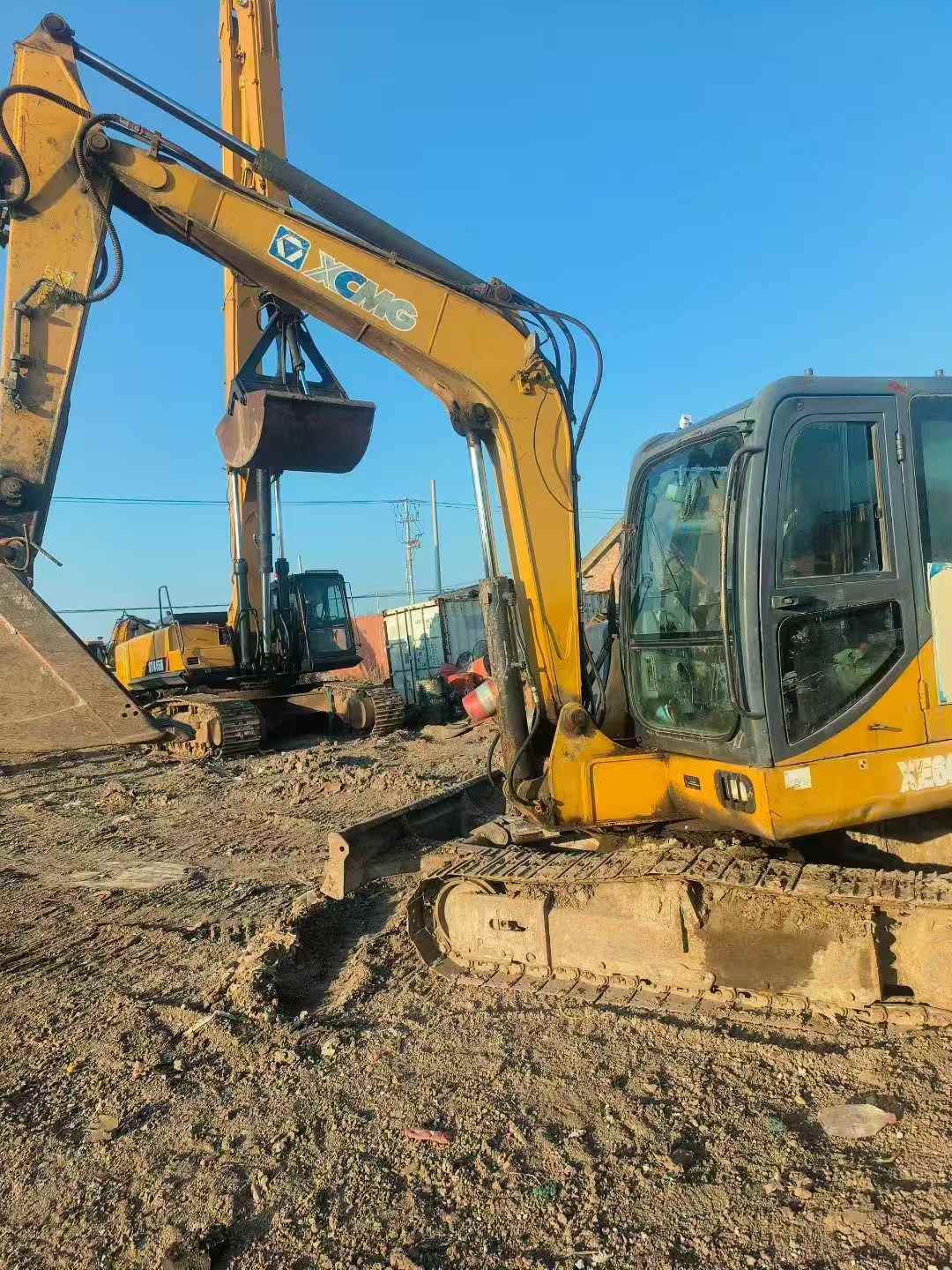

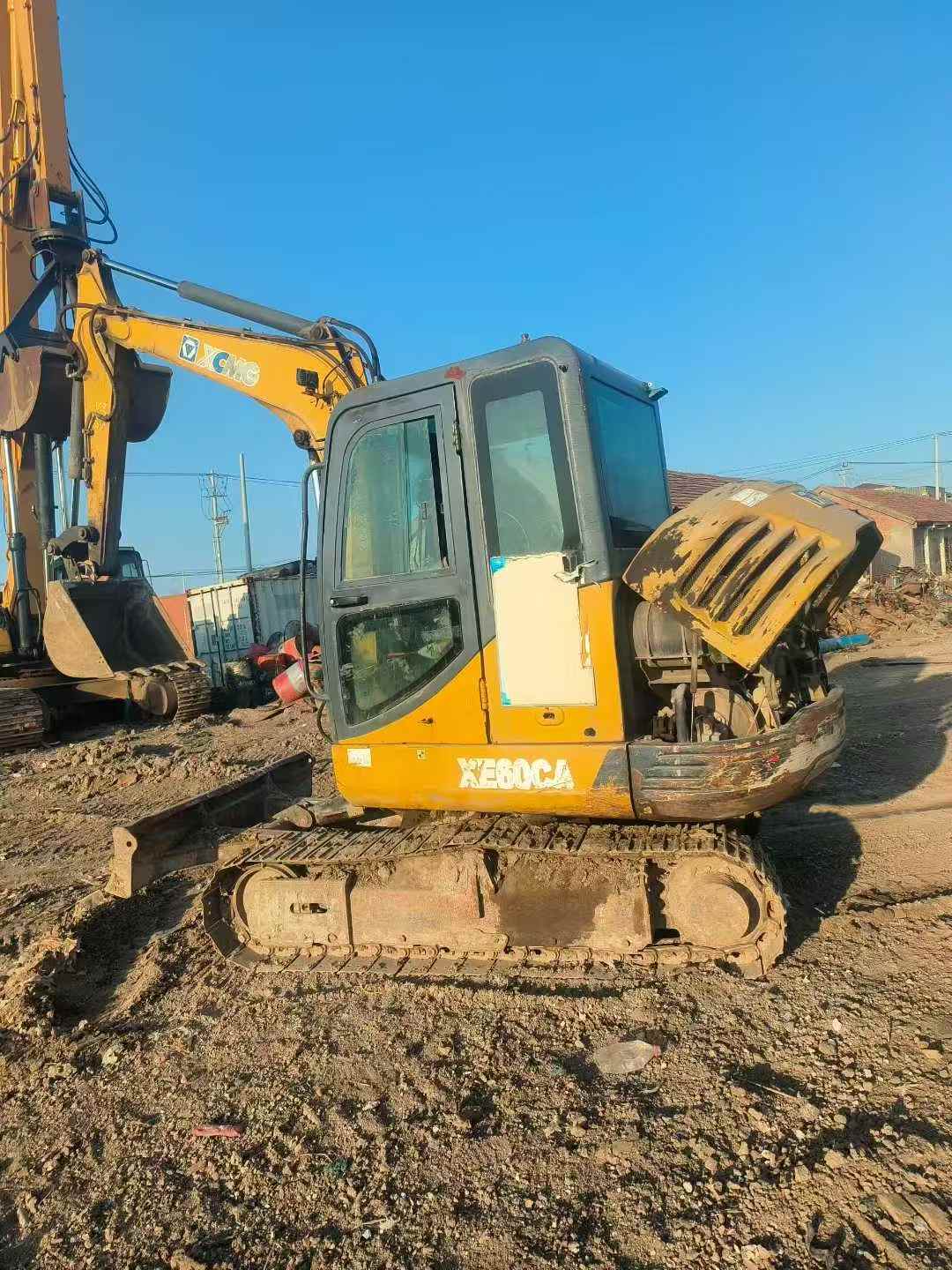

There is currently one XCMG XE60 excavator from 2016 for sale. The equipment is in good condition and has stable performance. It will be sold directly after the construction site operation is completed. The working time of this excavator is approximately 4,000 hours (please send a private message for confirmation of the exact usage hours), which is at a relatively low level among similar second-hand equipment and is very suitable for users who pursue cost performance. This excavator is equipped with a highly efficient and reliable Yanmar engine with a power output of 39.5 kilowatts, ensuring strong power output and excellent fuel economy. Its hydraulic system adopts components of internationally renowned brands, including variable piston pumps and high-performance hydraulic motors, etc., ensuring smooth operation and rapid response of the entire machine. In addition, this model is equipped with an advanced load sensing control system, which can automatically adjust the flow distribution according to the actual working requirements, further enhancing work efficiency and reducing energy consumption. The XCMG XE60 excavator is renowned for its outstanding maneuverability and durability, and is widely used in multiple fields such as urba
| Specifications | Value |
|---|---|
| No. | 976584 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

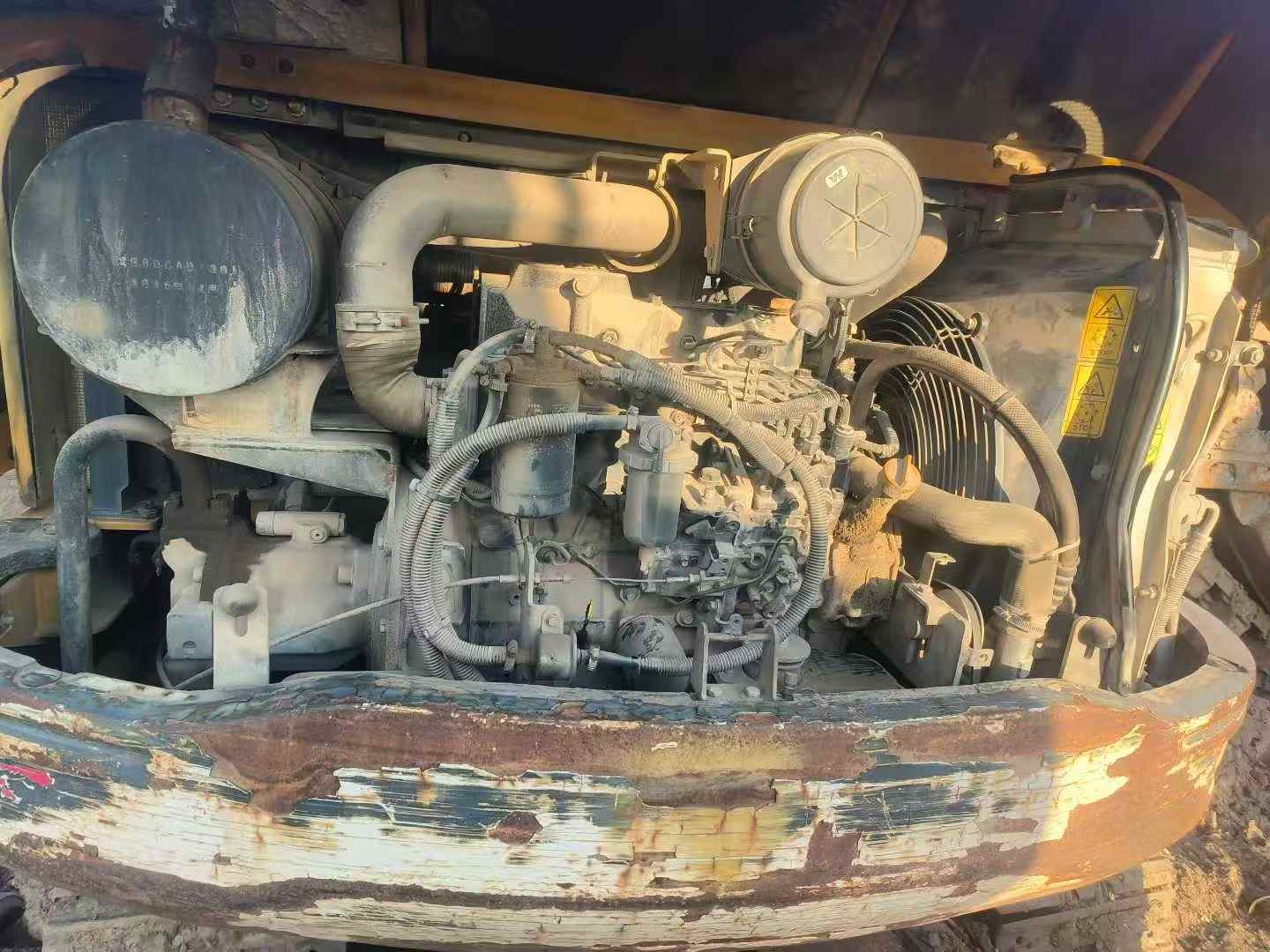

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

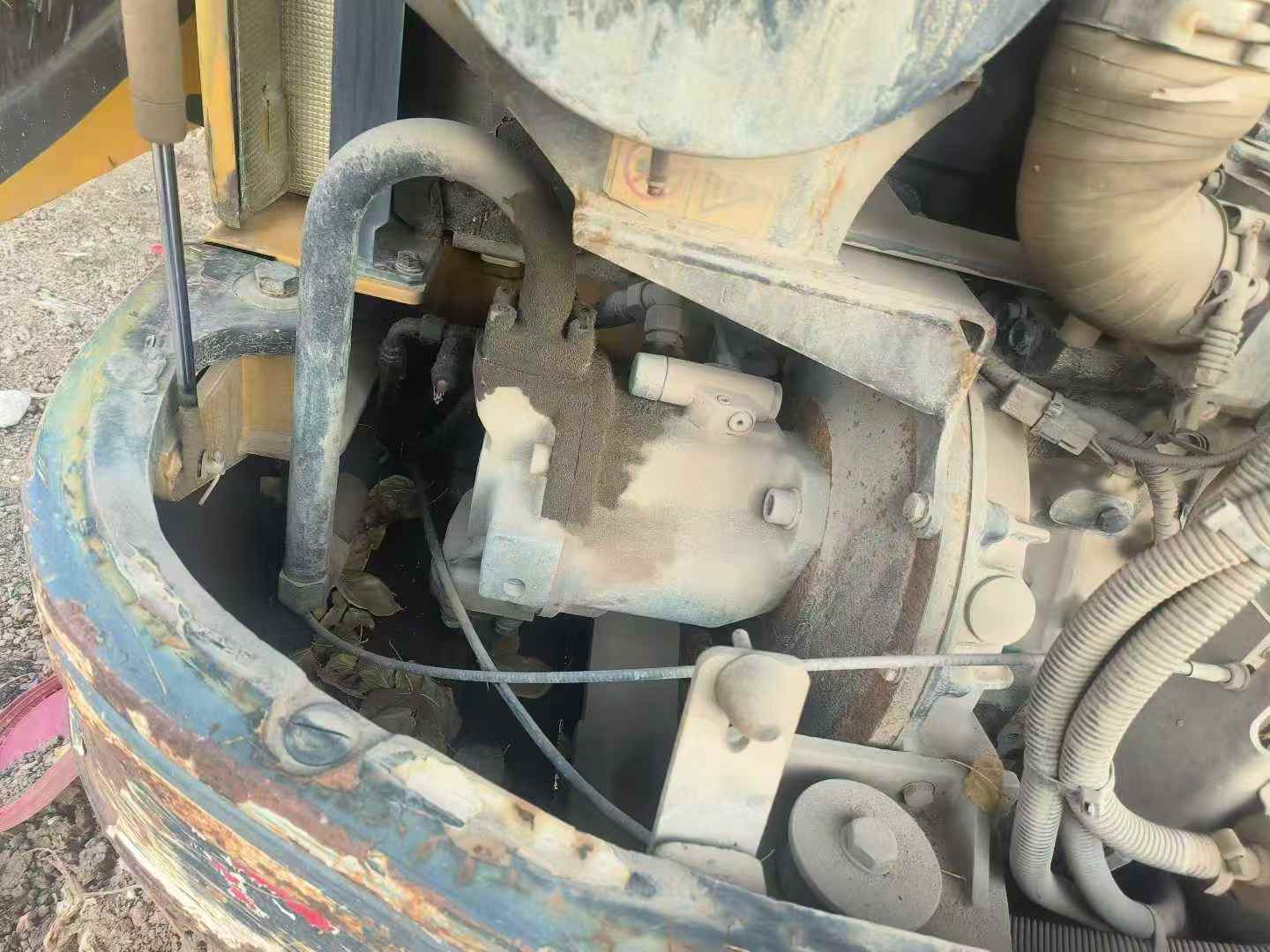

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
