Product Description

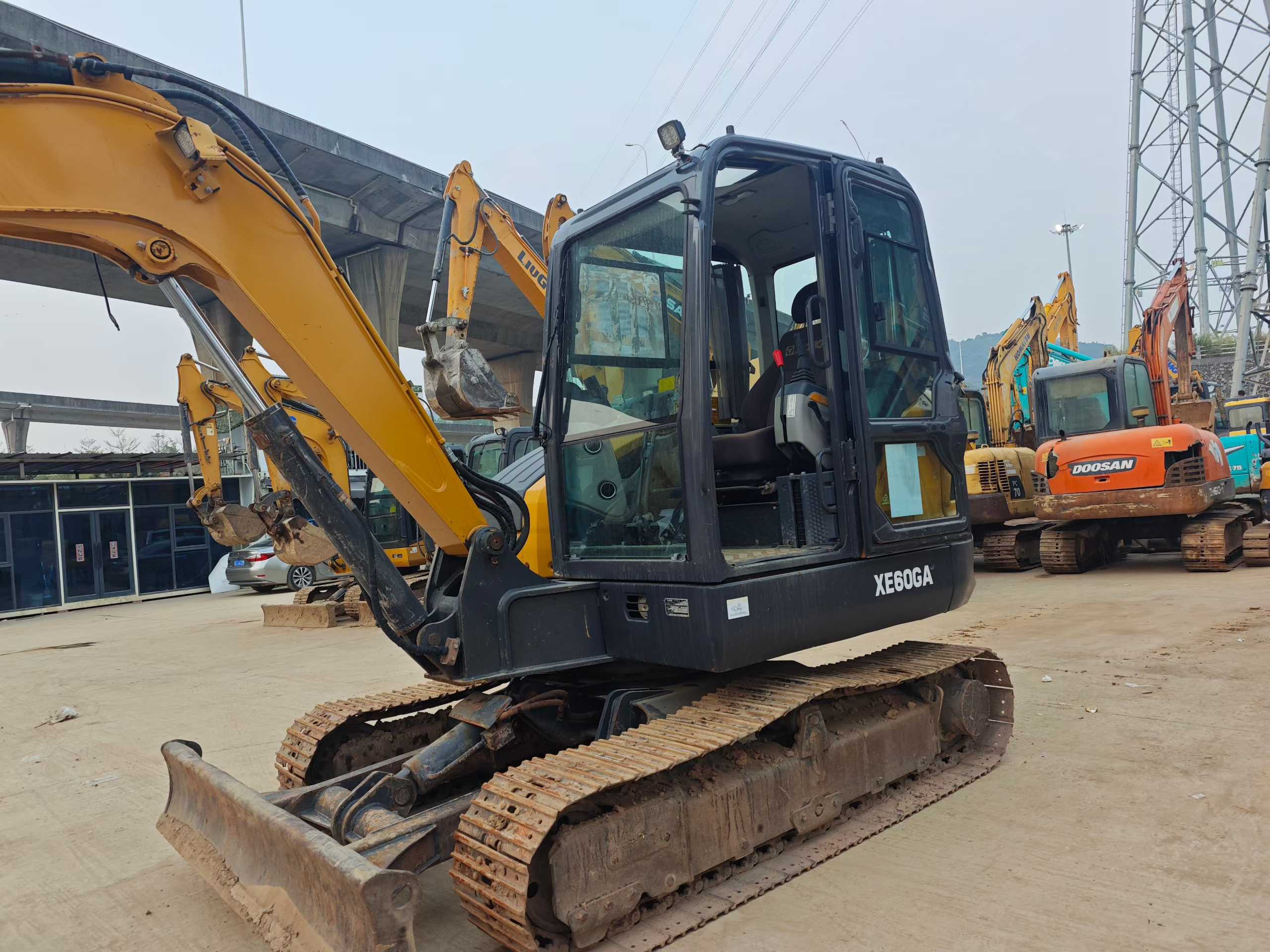

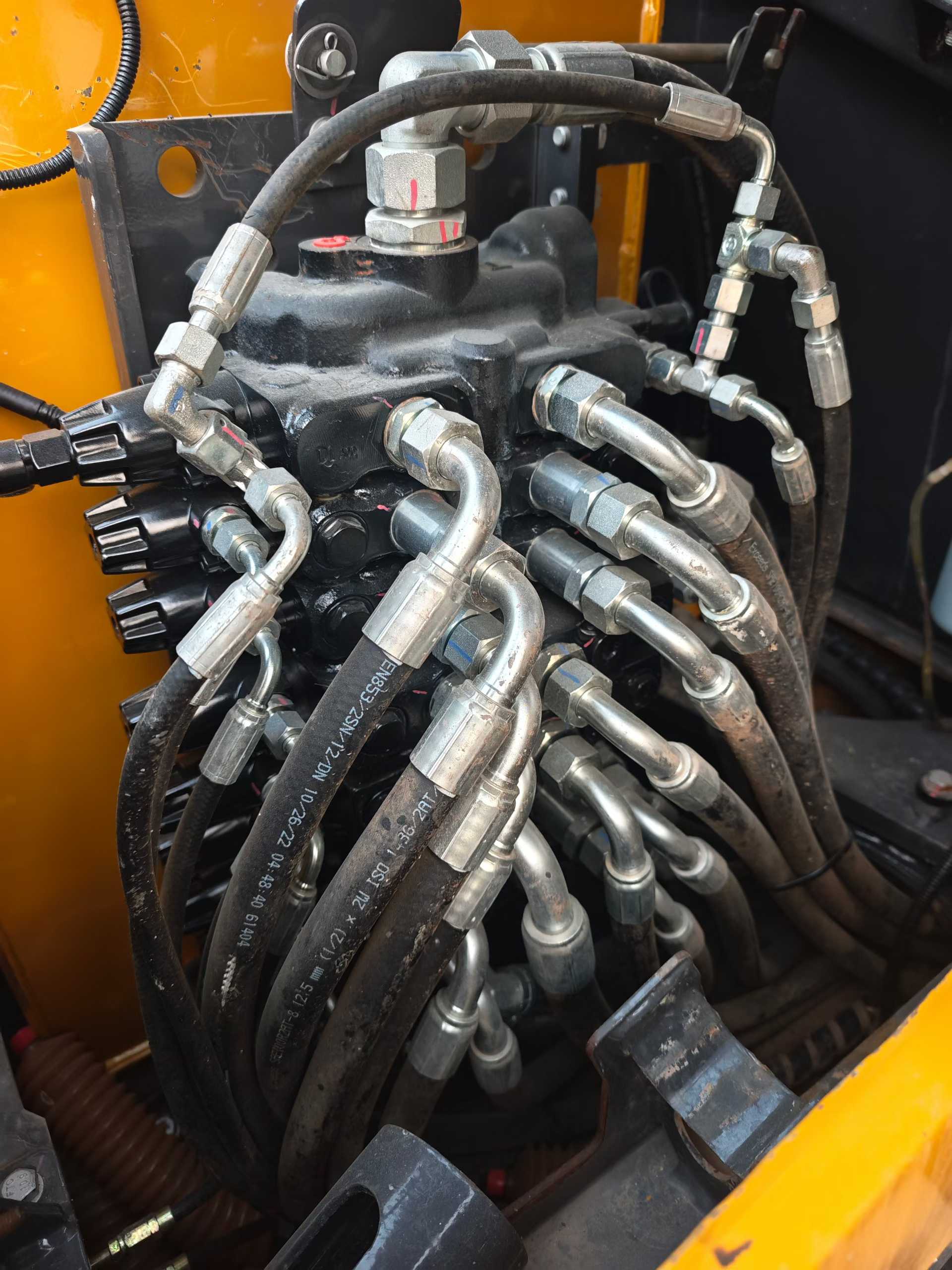

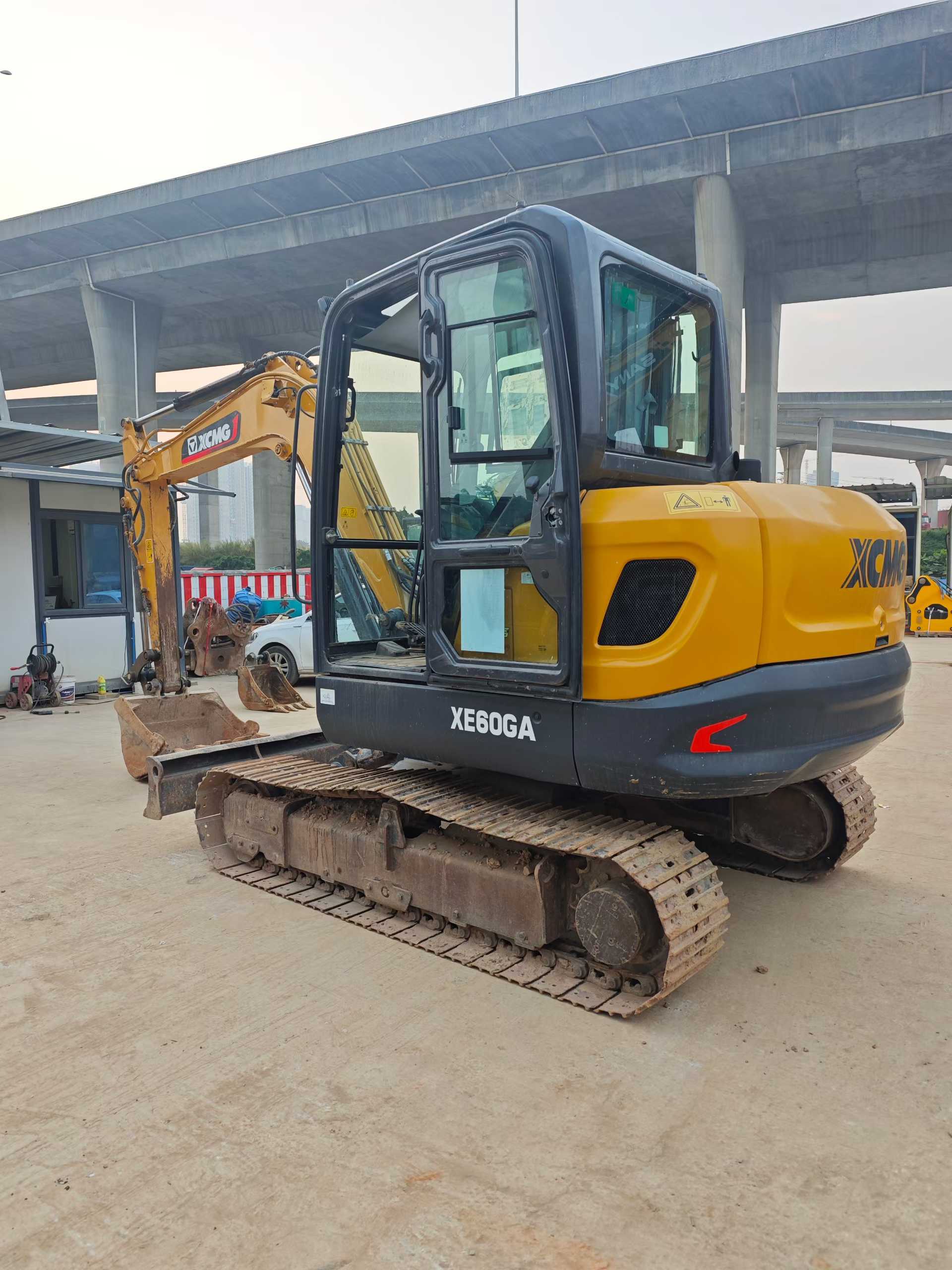

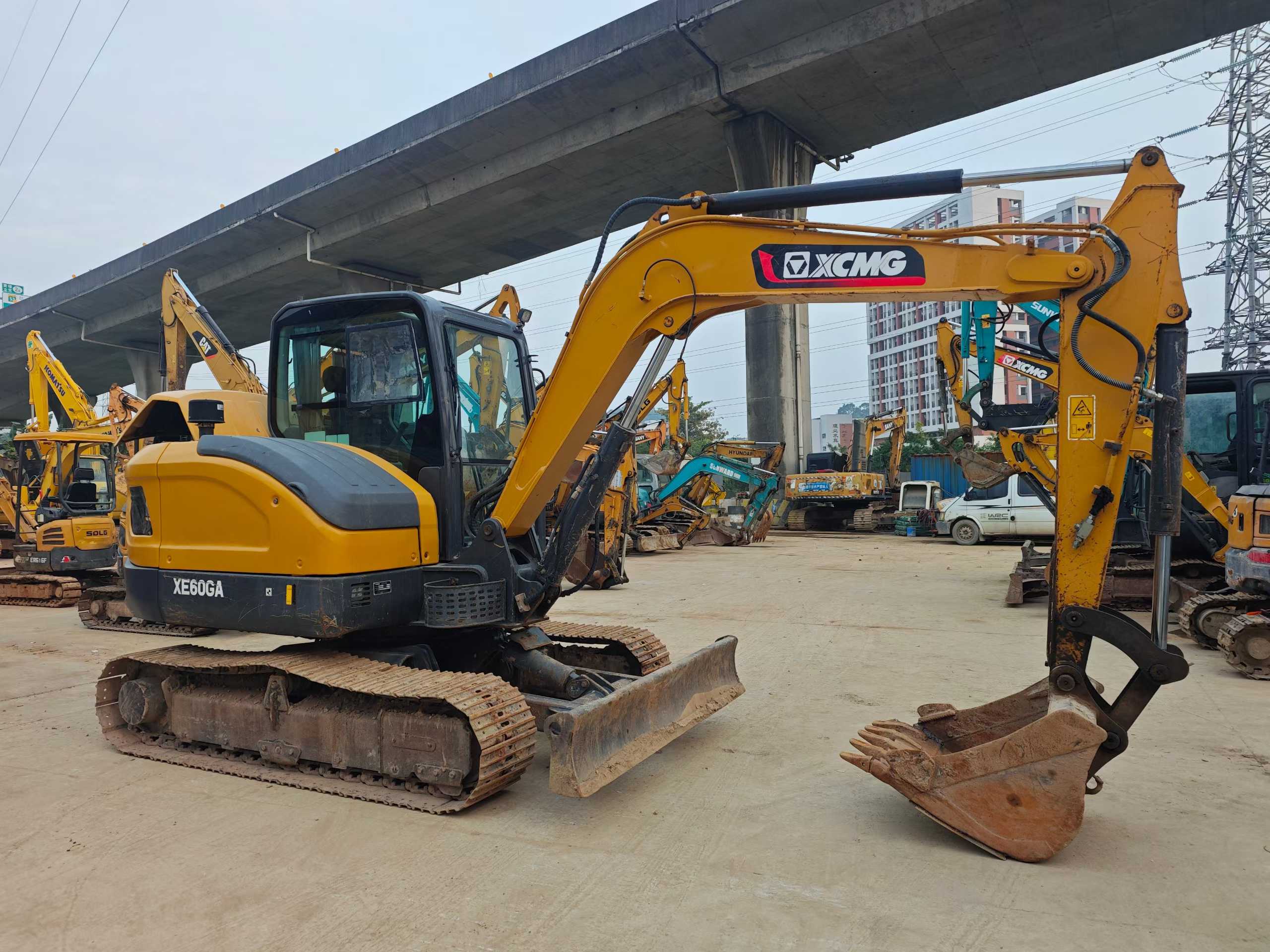

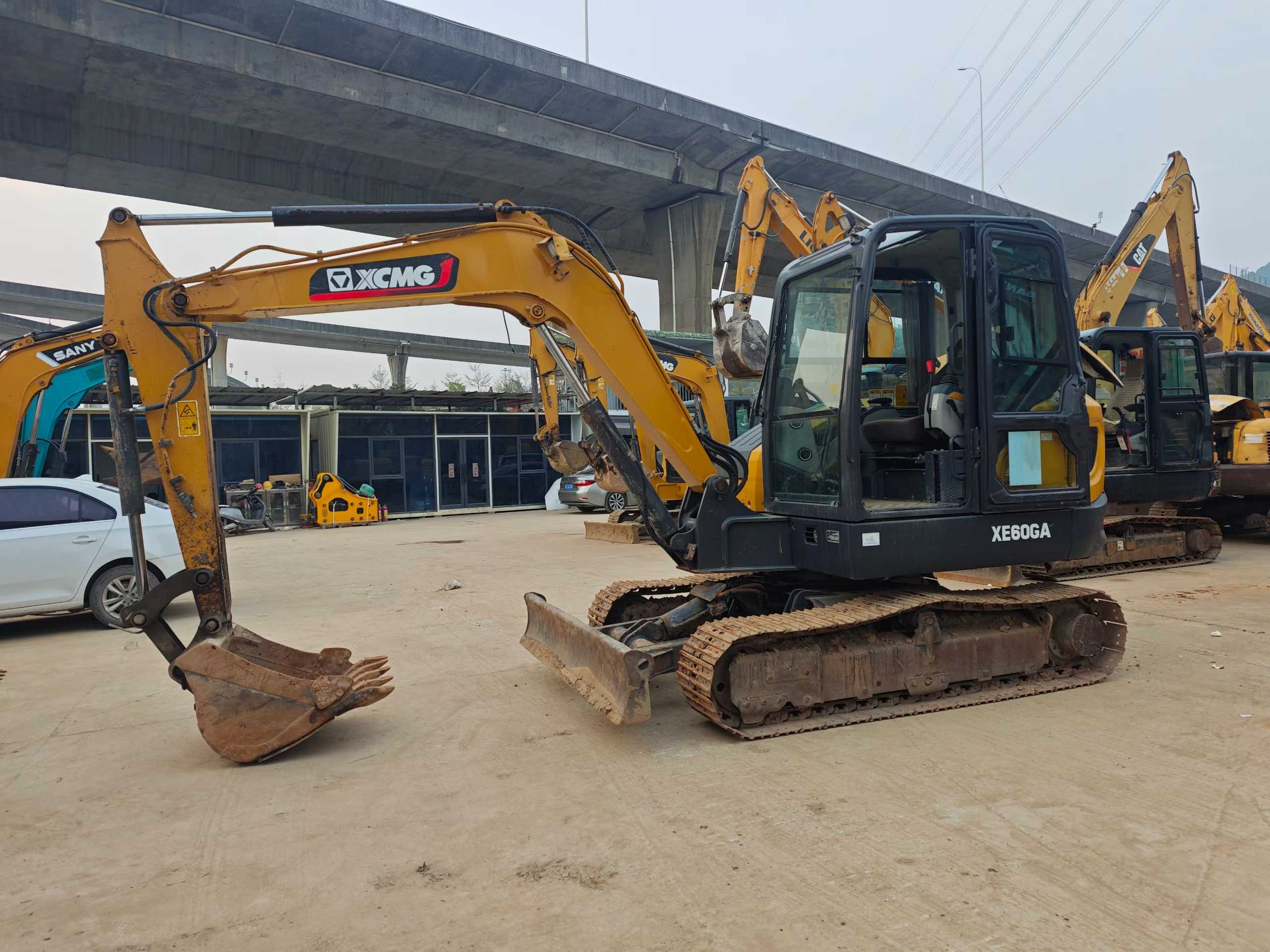

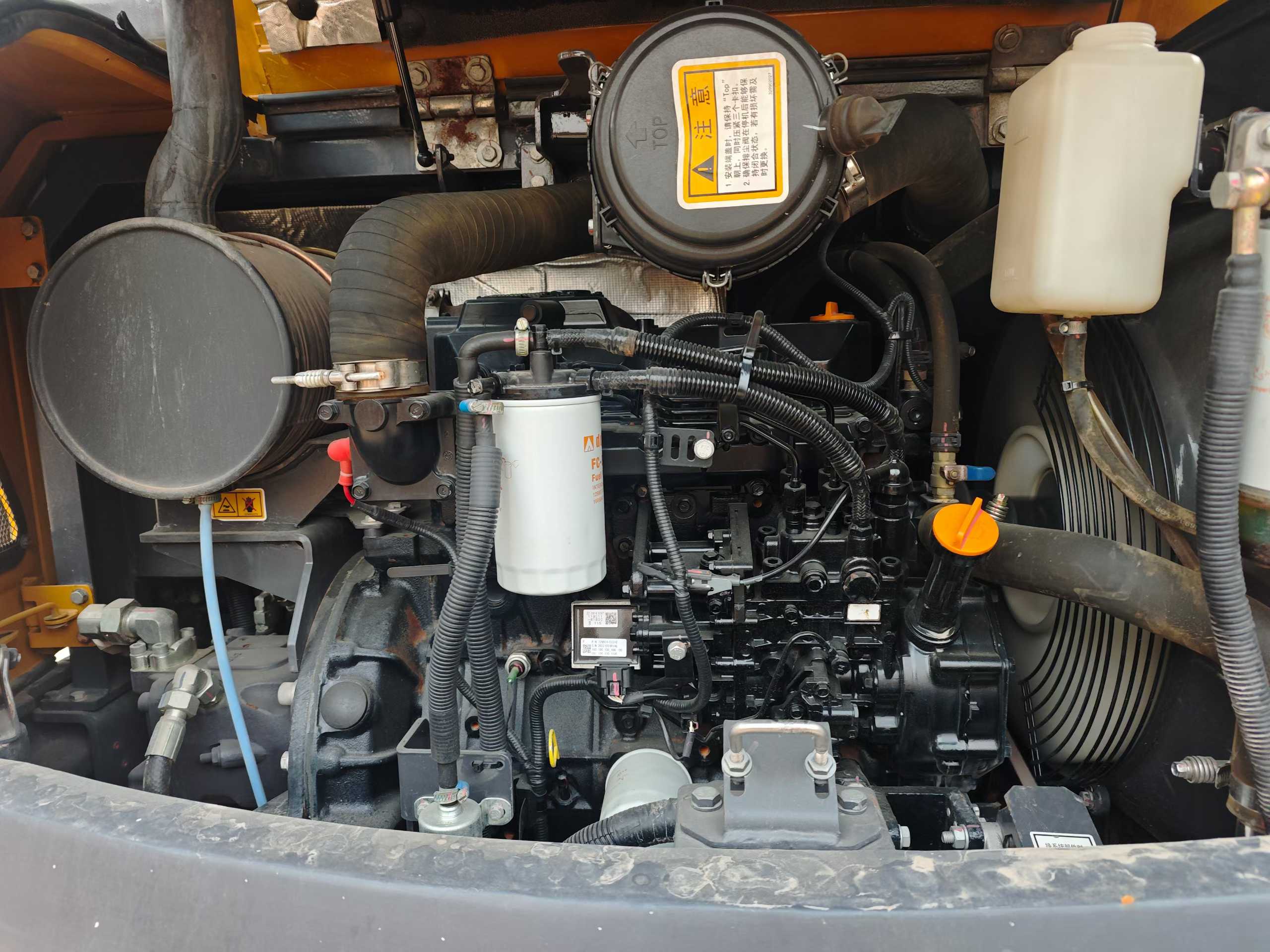

This XCMG XE60 excavator that meets the 2023 National IV emission standards is highly favored in the market for its outstanding performance and reliability. The equipment's working time is only expected to be 1,500 hours, in an excellent working condition, ensuring long-term stable operation performance. In terms of the power system, this excavator is equipped with a high-performance engine, which may be of the Weichai WP4.1 series. It has strong power and can provide a power output of up to 40kW. This engine not only meets the National IV emission standards, but also features excellent fuel economy and low noise, making it suitable for efficient operation under various complex working conditions. The hydraulic system is a major highlight of this equipment. It adopts an advanced load-sensitive hydraulic system and is equipped with high-quality variable piston pumps and hydraulic motors. This configuration not only enhances work efficiency but also significantly reduces energy consumption, making the operation more stable and smooth. In addition, its powerful excavation force and flexible operability enable it to handle engineering tasks such as earthwork excavation, road construction, and mining with ease. This XCMG XE60 excavator a
| Specifications | Value |
|---|---|
| No. | 977086 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
