Product Description

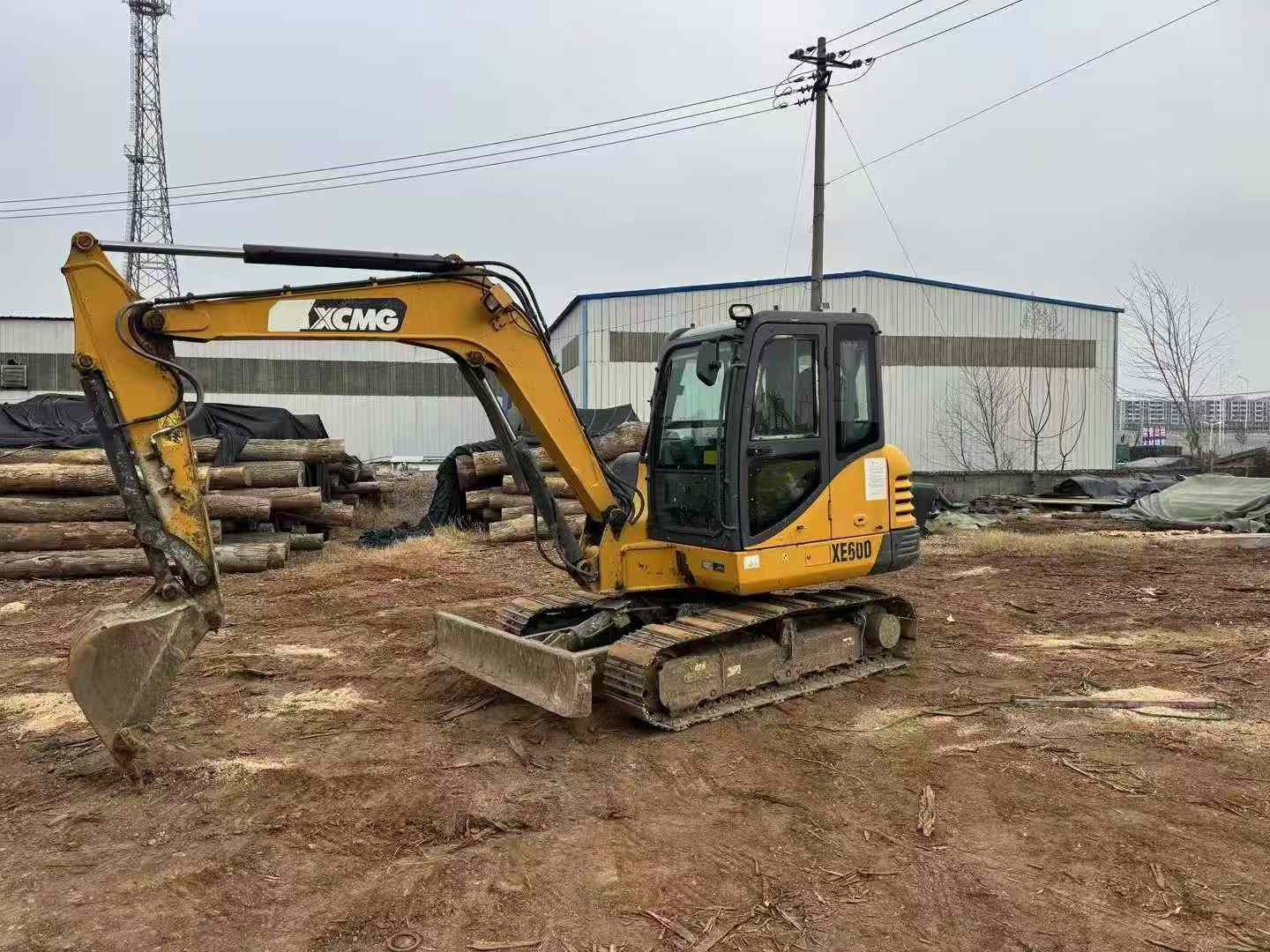

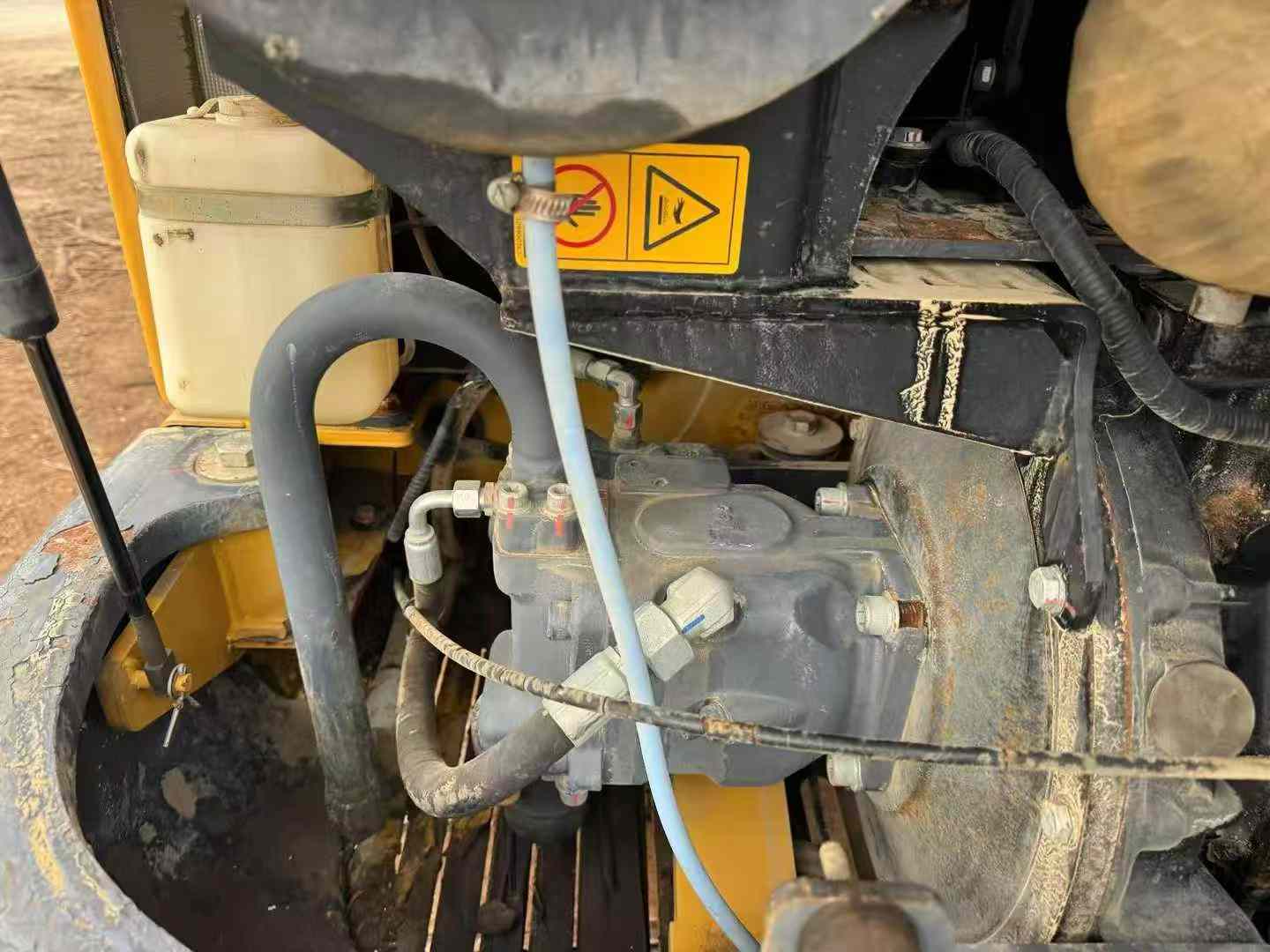

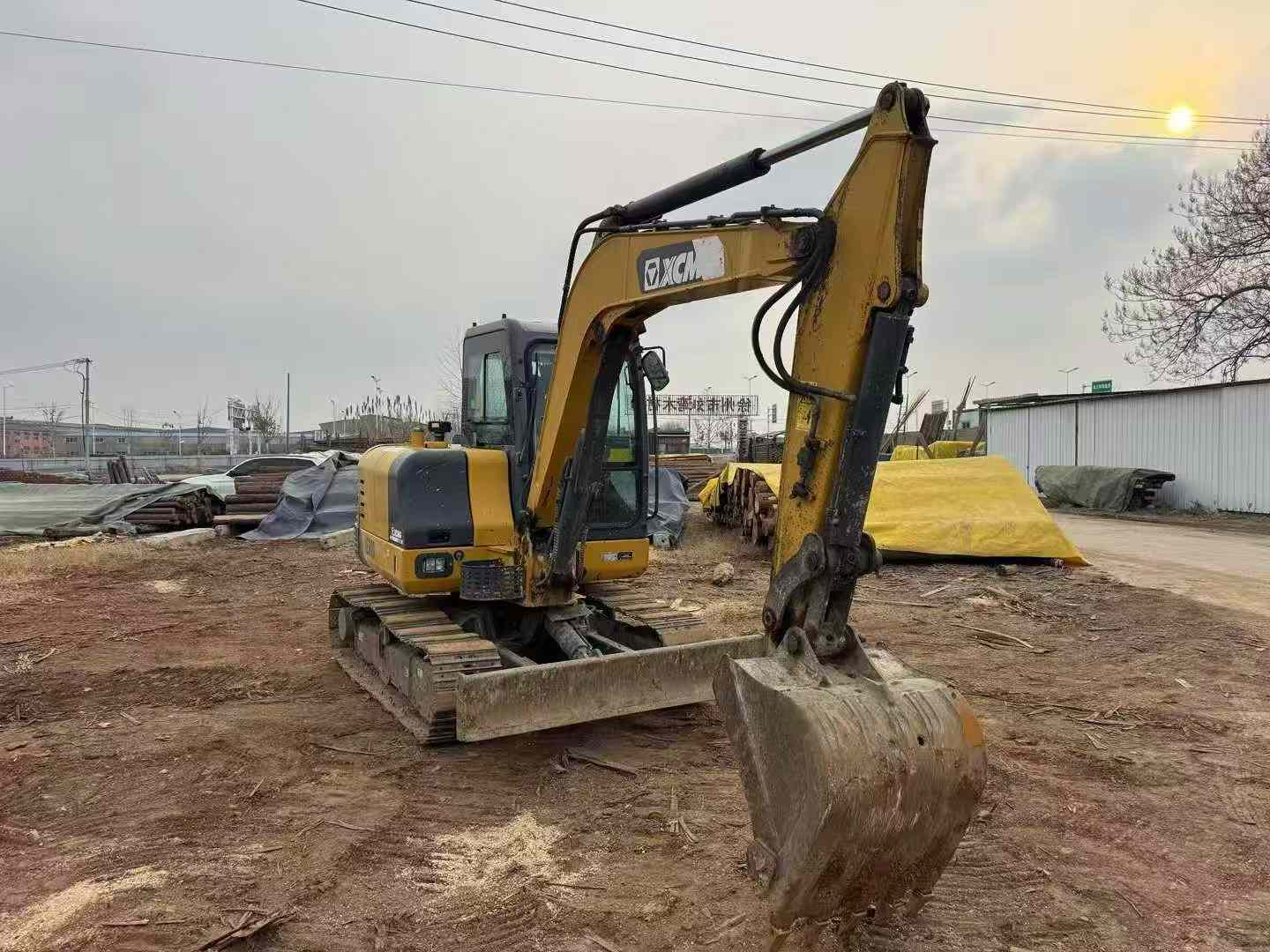

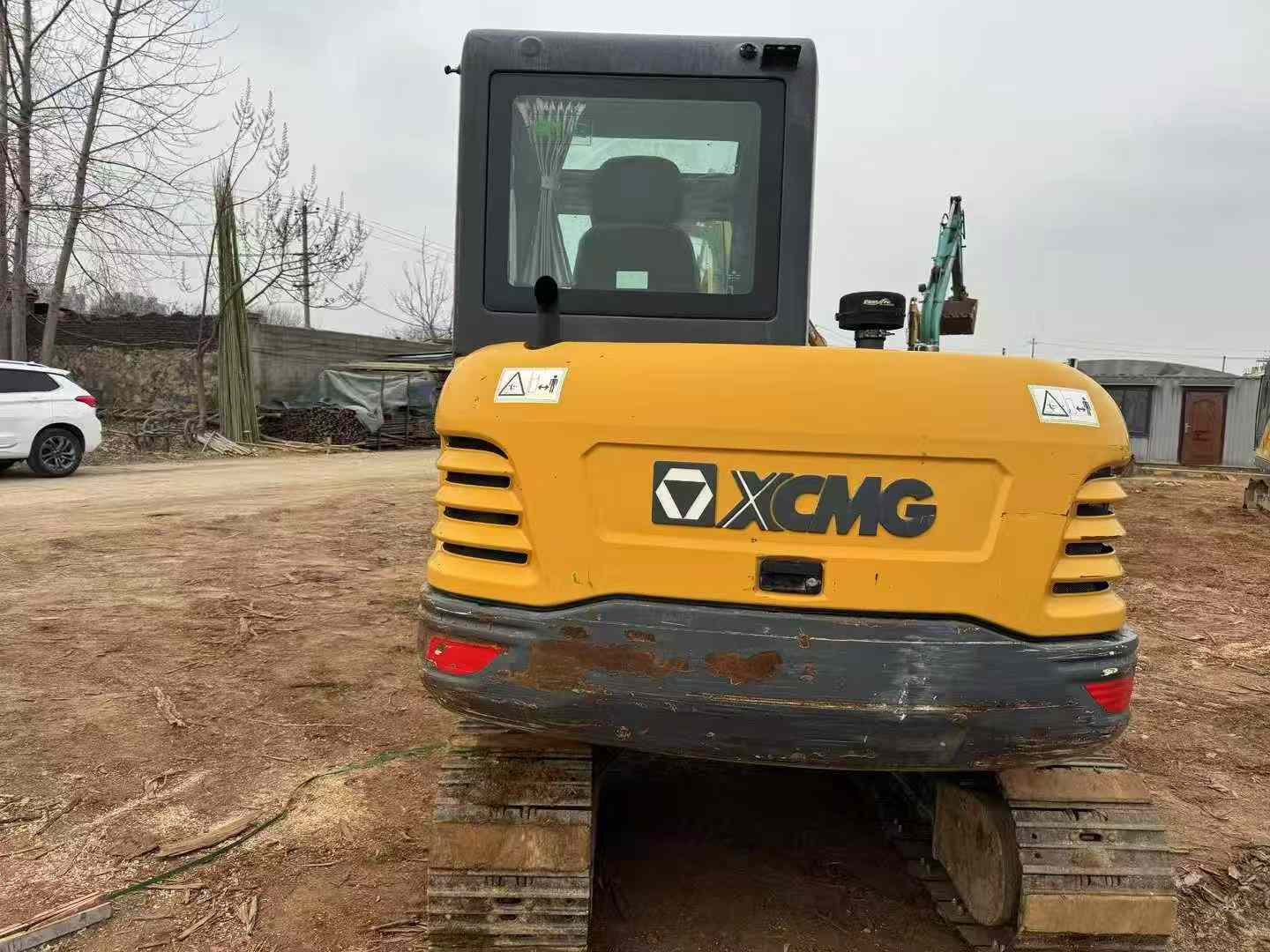

This second-hand XCMG XE60 excavator produced in 2019 has a cumulative working time of only a few thousand hours and is in excellent overall condition. It is equipped with an efficient and reliable engine (possibly model Weichai WP4G150E301), with a power output of 45.6 kilowatts, ensuring strong power output and stable operation performance. In terms of the hydraulic system, this machine is equipped with an advanced main pump and motor combination (expected to be a variable plunger pump and an axial plunger motor), which not only responds quickly and controls precisely, but also effectively reduces energy consumption and improves work efficiency. The appearance of the equipment is well maintained, and there are no obvious damages or rust marks on the major structural components, demonstrating the meticulous maintenance of the machine by the previous user. In addition, after professional testing, all key components are in the best working condition and can be immediately put into construction without additional maintenance. As a small excavator, it has significant advantages in flexibility, ease of operation and the ability to adapt to complex terrains, making it highly suitable for precise operations in fields such as urban construct
| Specifications | Value |
|---|---|
| No. | 977091 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
