Product Description

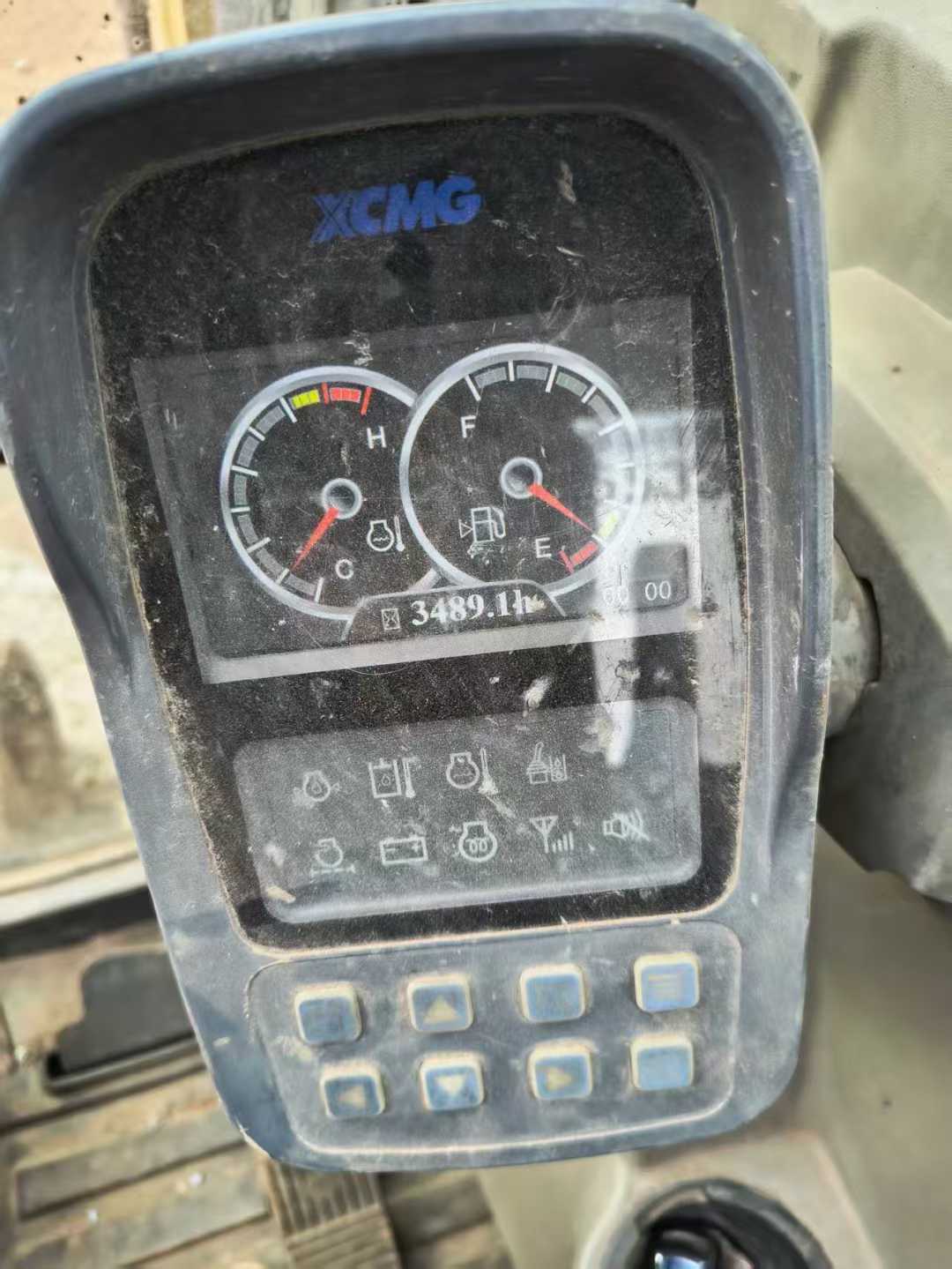

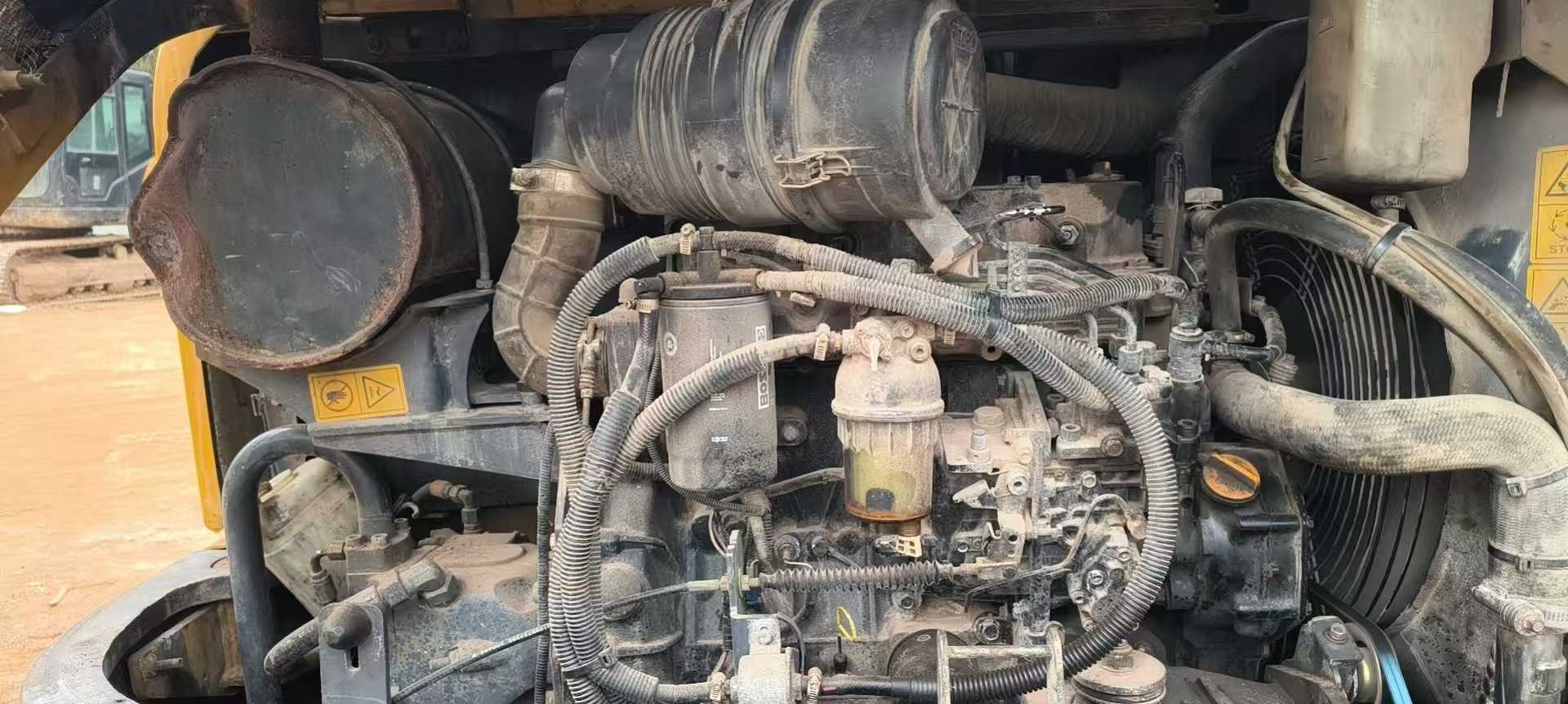

There is currently a 2021 XCMG XE60 excavator with complete procedures. Its actual working time is only over 3,000 hours. It is stable and reliable in performance and does not require additional testing. This equipment is equipped with a highly efficient and energy-saving engine (the expected model is a four-cylinder diesel engine that meets the National III emission standards), which is powerful and can provide continuous and stable power output, ensuring excellent performance under various complex working conditions. In terms of the hydraulic system, this excavator is equipped with a high-quality combination of variable piston pumps and hydraulic motors, ensuring precise control and smoothness during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its advanced load sensing technology effectively enhances fuel efficiency and reduces operating costs. As a compact excavator, the XCMG XE60 not only boasts powerful digging force and excellent stability, but also features flexible steering ability and a relatively small turning radius, making it highly suitable for construction operations in confined Spaces such as urban construction sites and landscaping. The vehicle body d
| Specifications | Value |
|---|---|
| No. | 977158 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
