Product Description

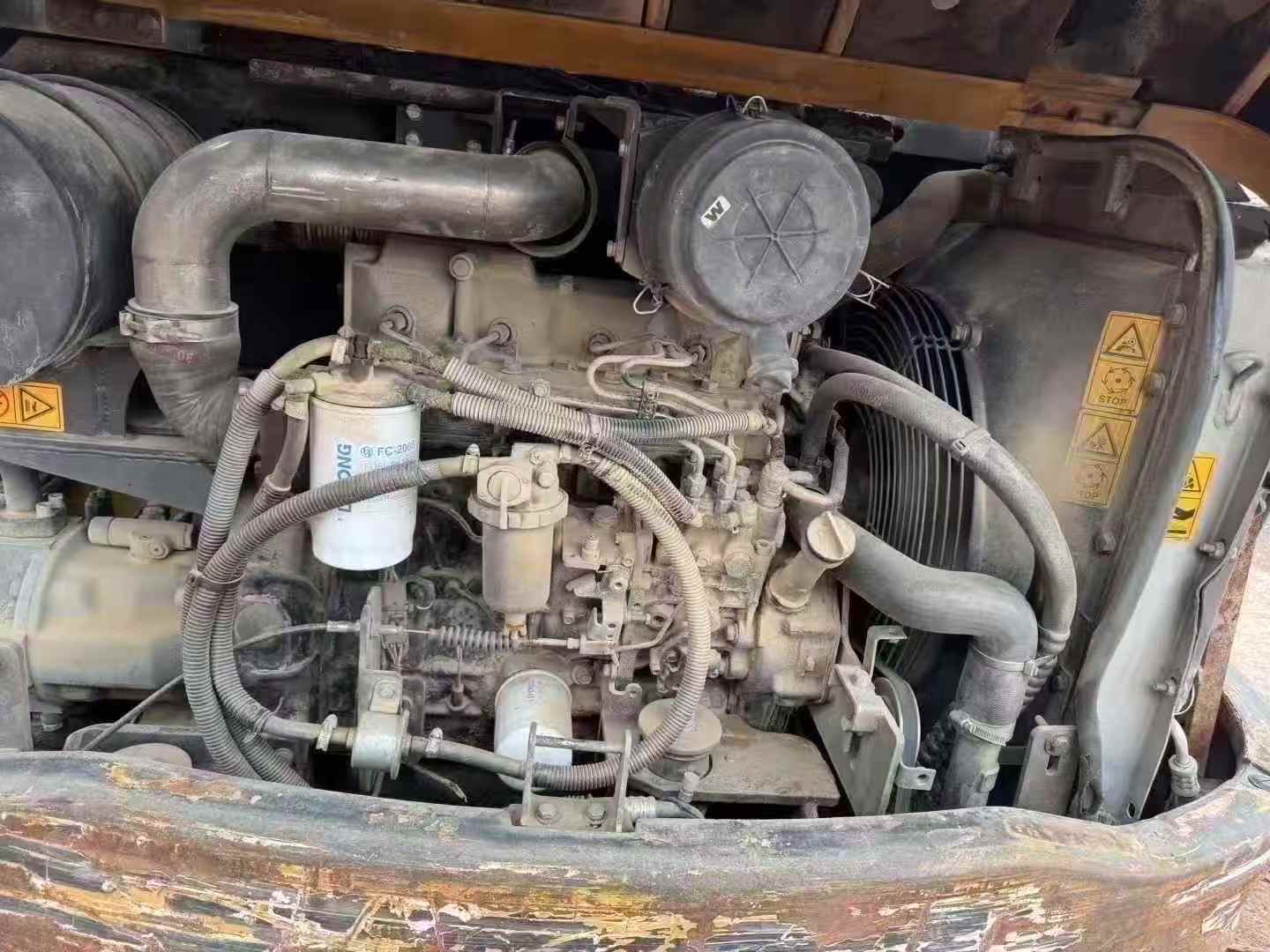

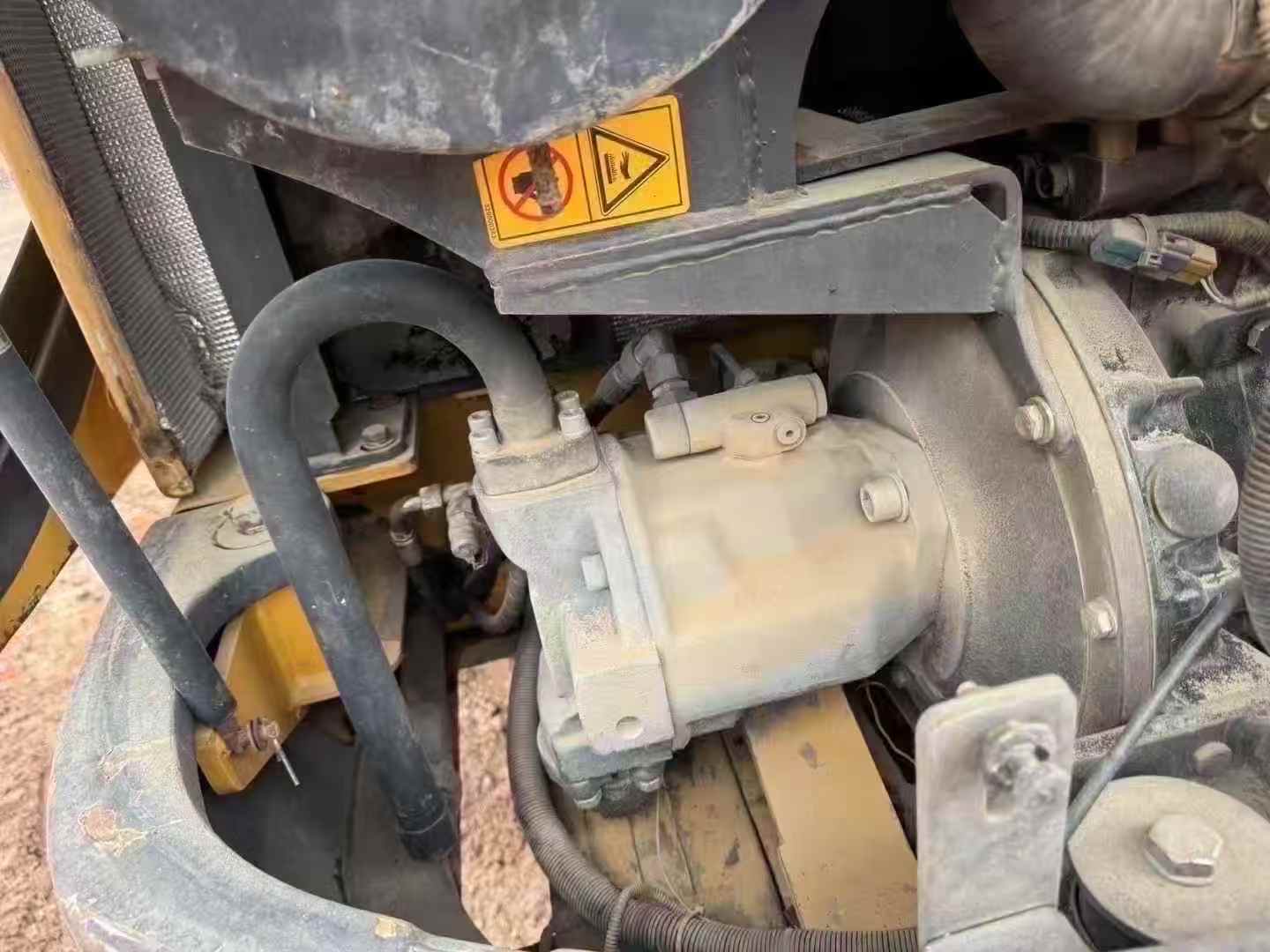

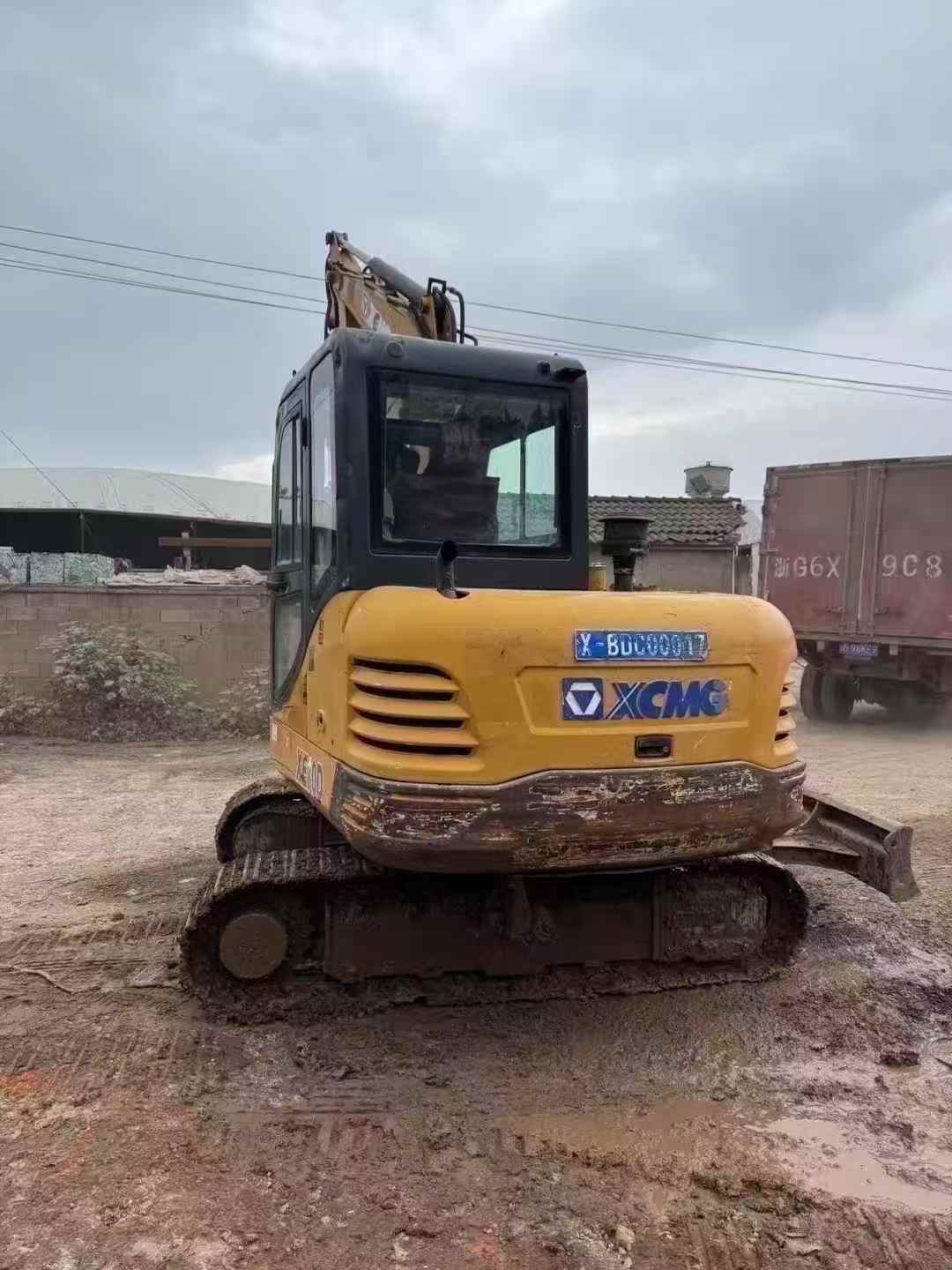

We are selling a second-hand XCMG XE60 excavator with outstanding performance from 2017. Its cumulative working time is only over 30,000 hours. The equipment is in good condition and operates stably. This excavator is equipped with an efficient engine system (expected to be a four-cylinder diesel engine that meets the National III emission standards), which is powerful, economical and environmentally friendly, ensuring sufficient power support in various working environments. In terms of the hydraulic system, this machine is equipped with a high-performance variable piston pump combined with an imported brand hydraulic motor, ensuring high efficiency and low energy consumption during operation. Both the digging force and the rotational speed perform exceptionally well. It is particularly worth mentioning that this excavator is equipped with an air conditioning system, which can maintain a comfortable temperature inside the cab even in hot summers. Its working efficiency is extremely high, and the "speed airplane" -like experience has won high praise from users. In addition, after a comprehensive inspection by a professional team, it was confirmed that the overall condition of this XCMG XE60 excavator is excellent and it can be put int
| Specifications | Value |
|---|---|
| No. | 977216 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
