Product Description

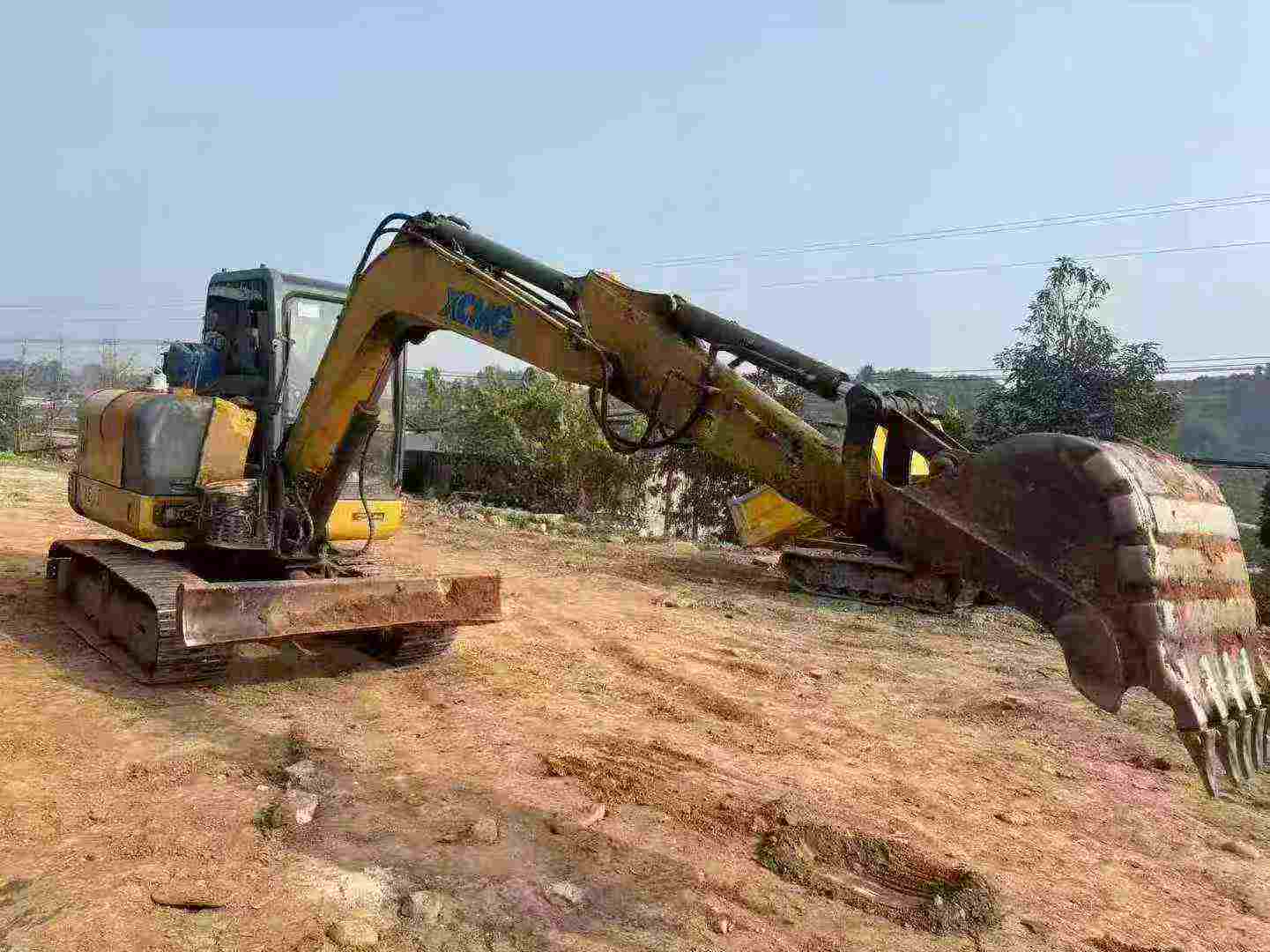

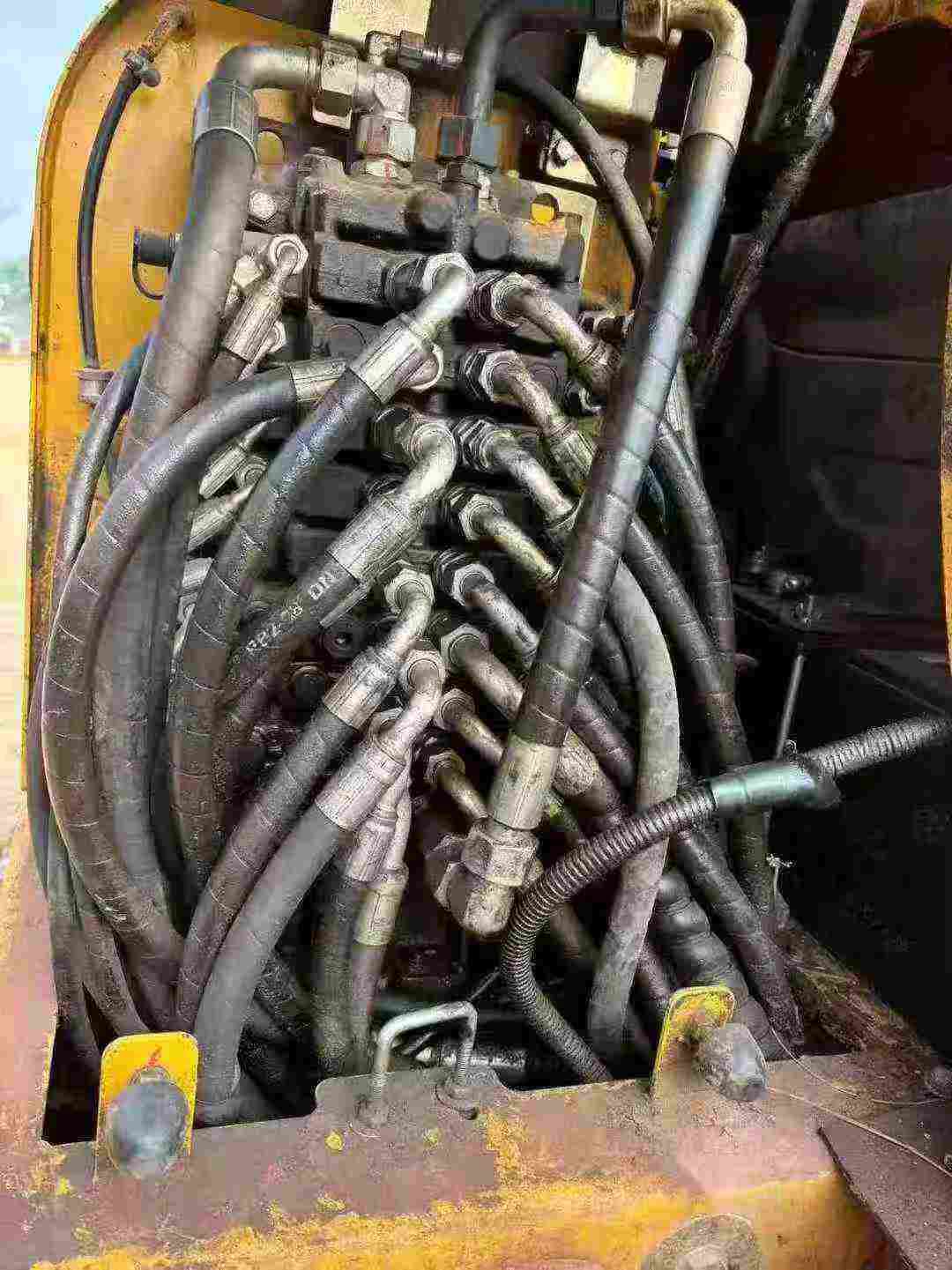

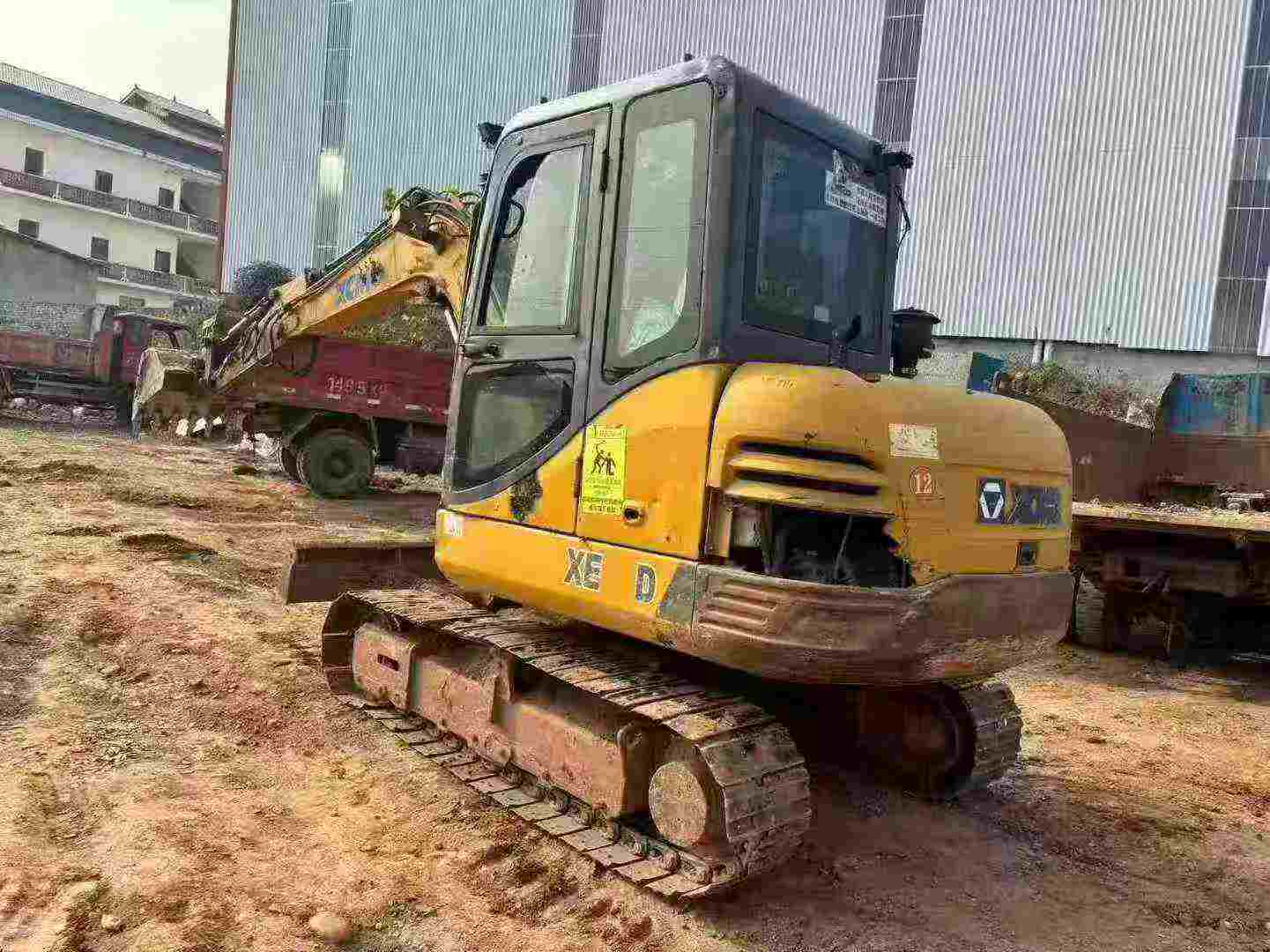

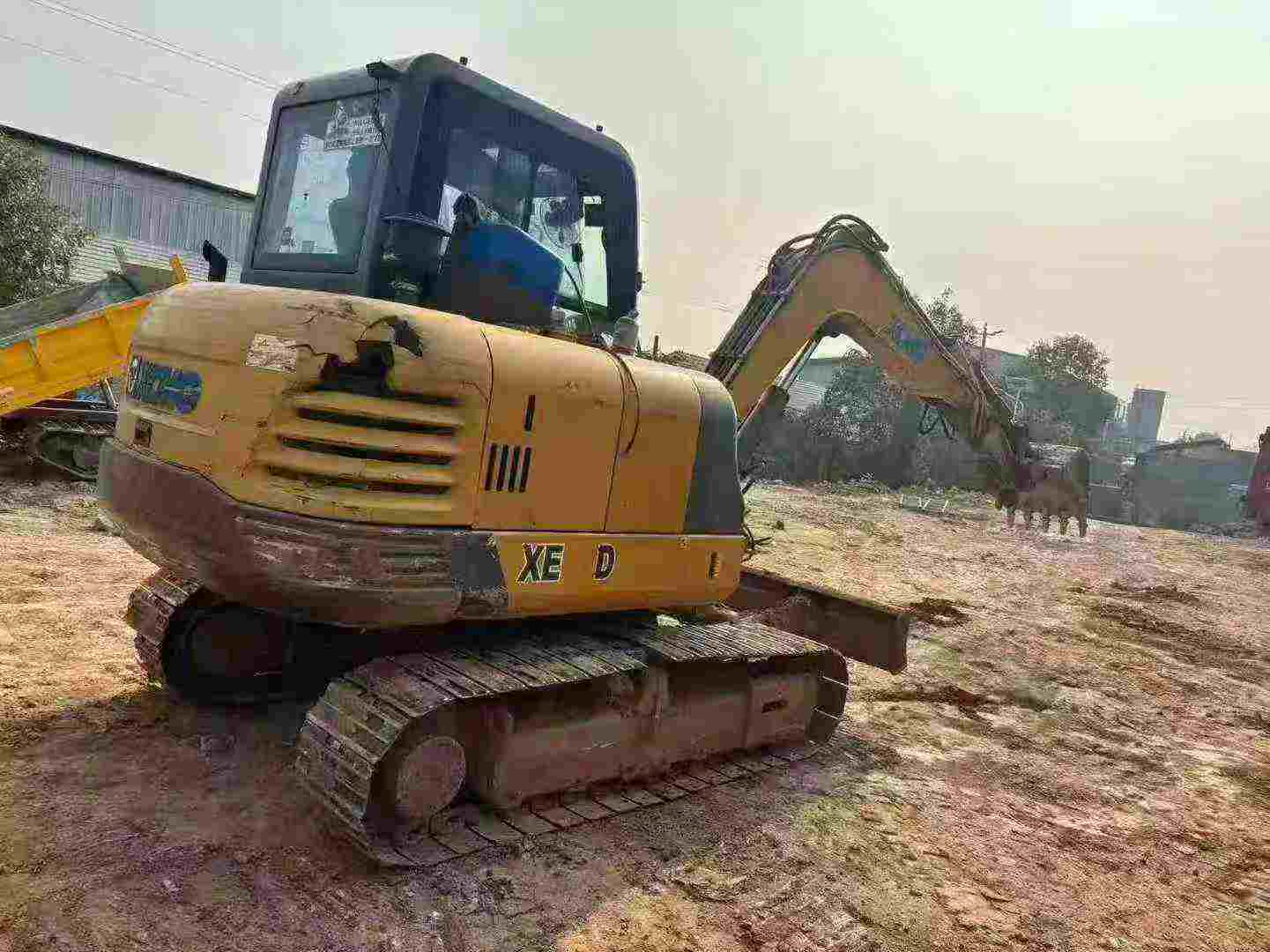

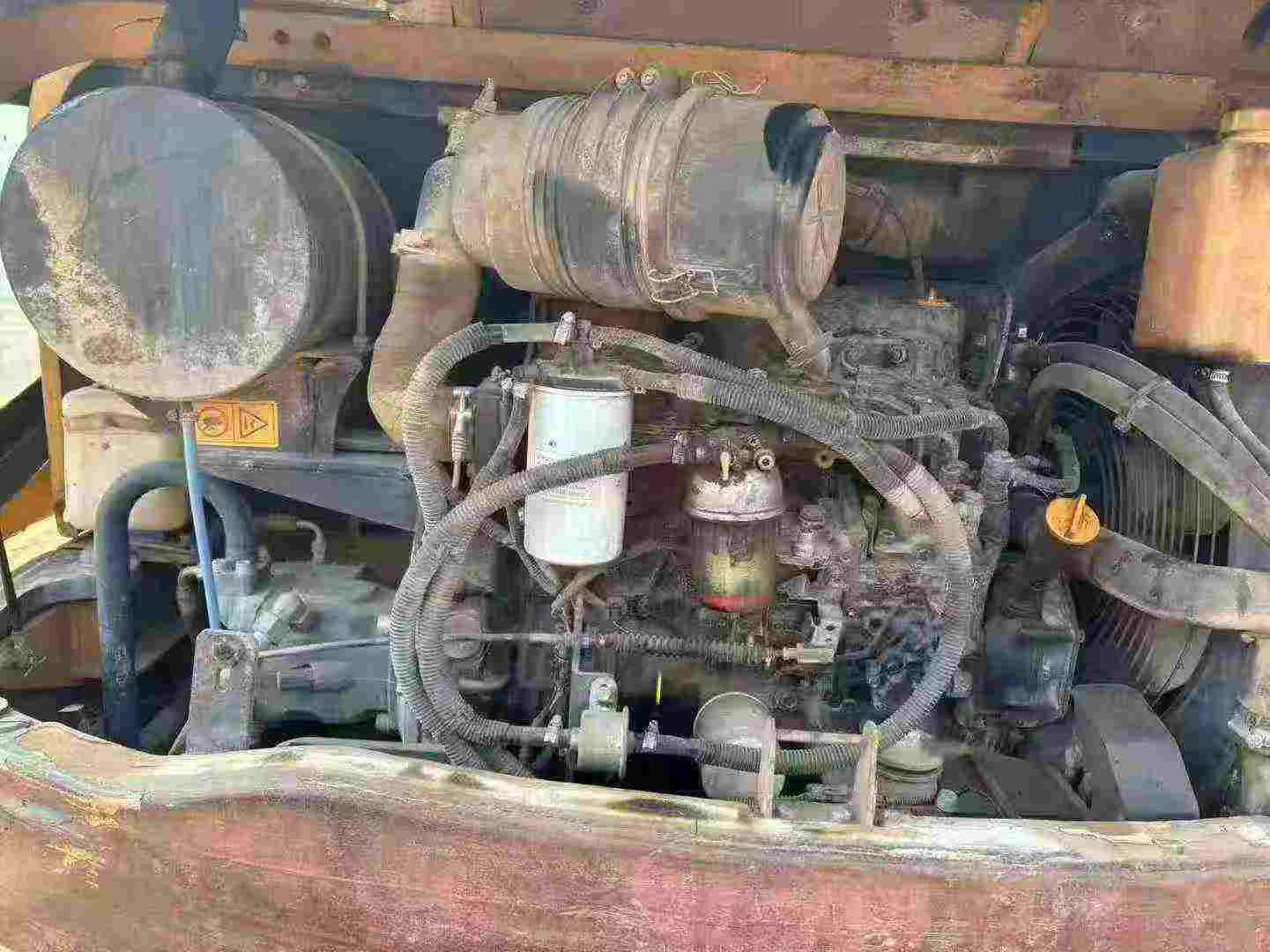

This second-hand XCMG XE60 excavator produced in 2018 offers you a highly cost-effective choice at a price of 40,000 yuan. This device has a working record of approximately 3,500 hours, indicating that it has demonstrated excellent durability and reliability in past use. In terms of the power system, it is equipped with an efficient and energy-saving engine. Although the specific model is not provided, based on the configuration of XCMG's products in the same series, it is very likely to be a Yanmar or Kubota brand inline four-cylinder diesel engine with a rated power of approximately 40kW (possibly), which can provide sufficient power support for the entire machine. The hydraulic system is one of the key factors in measuring the performance of an excavator. This XCMG XE60 model adopts mature and reliable negative flow control technology, combined with high-performance variable piston pumps and radial piston motors, ensuring smooth operation and precise control during the working process. In addition, this model also pays special attention to the design of maintenance convenience. For instance, the open hood facilitates daily inspection and maintenance, effectively reducing long-term operating costs. Overall, this second-hand XCMG XE
| Specifications | Value |
|---|---|
| No. | 977268 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
