Product Description

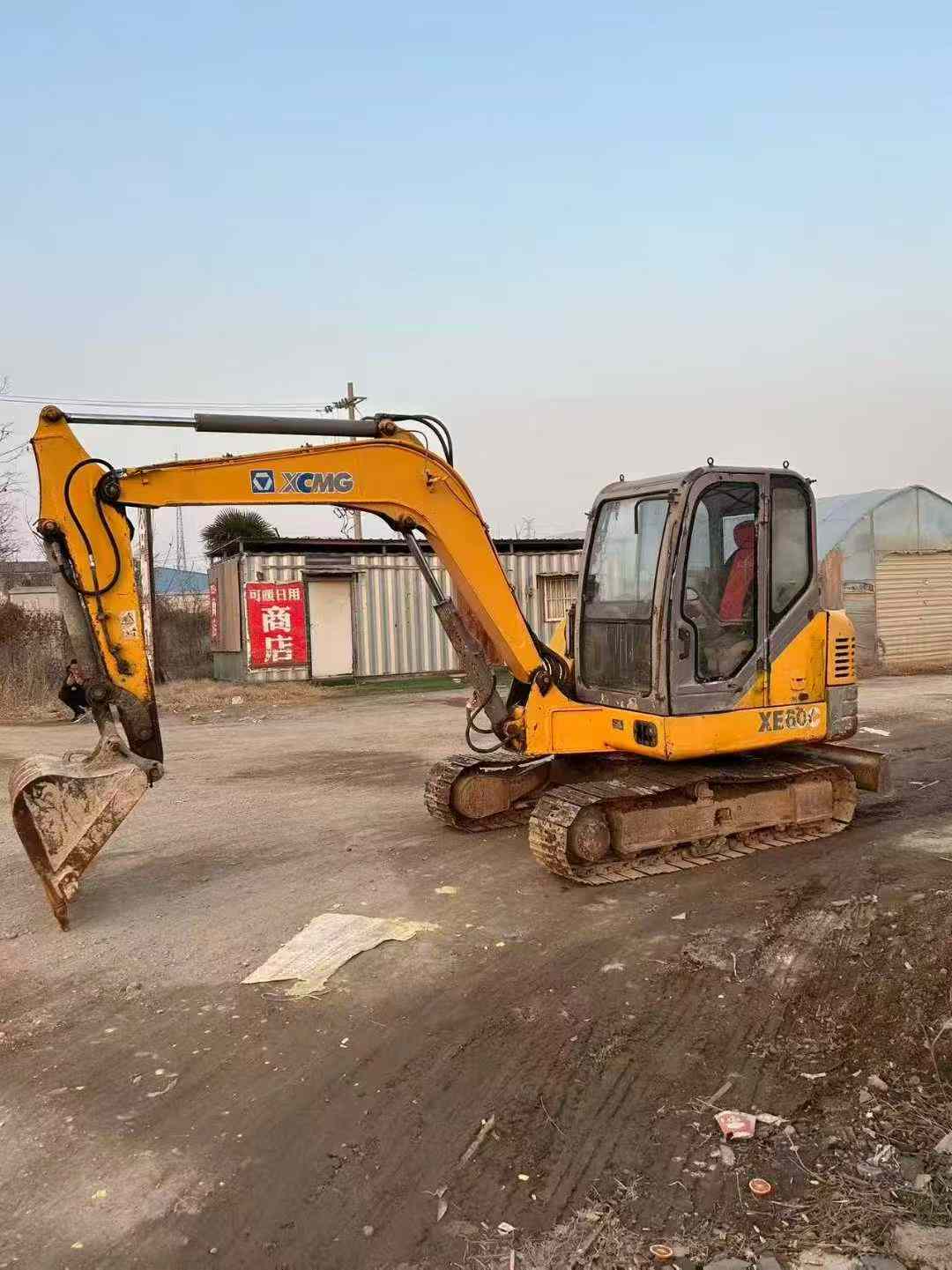

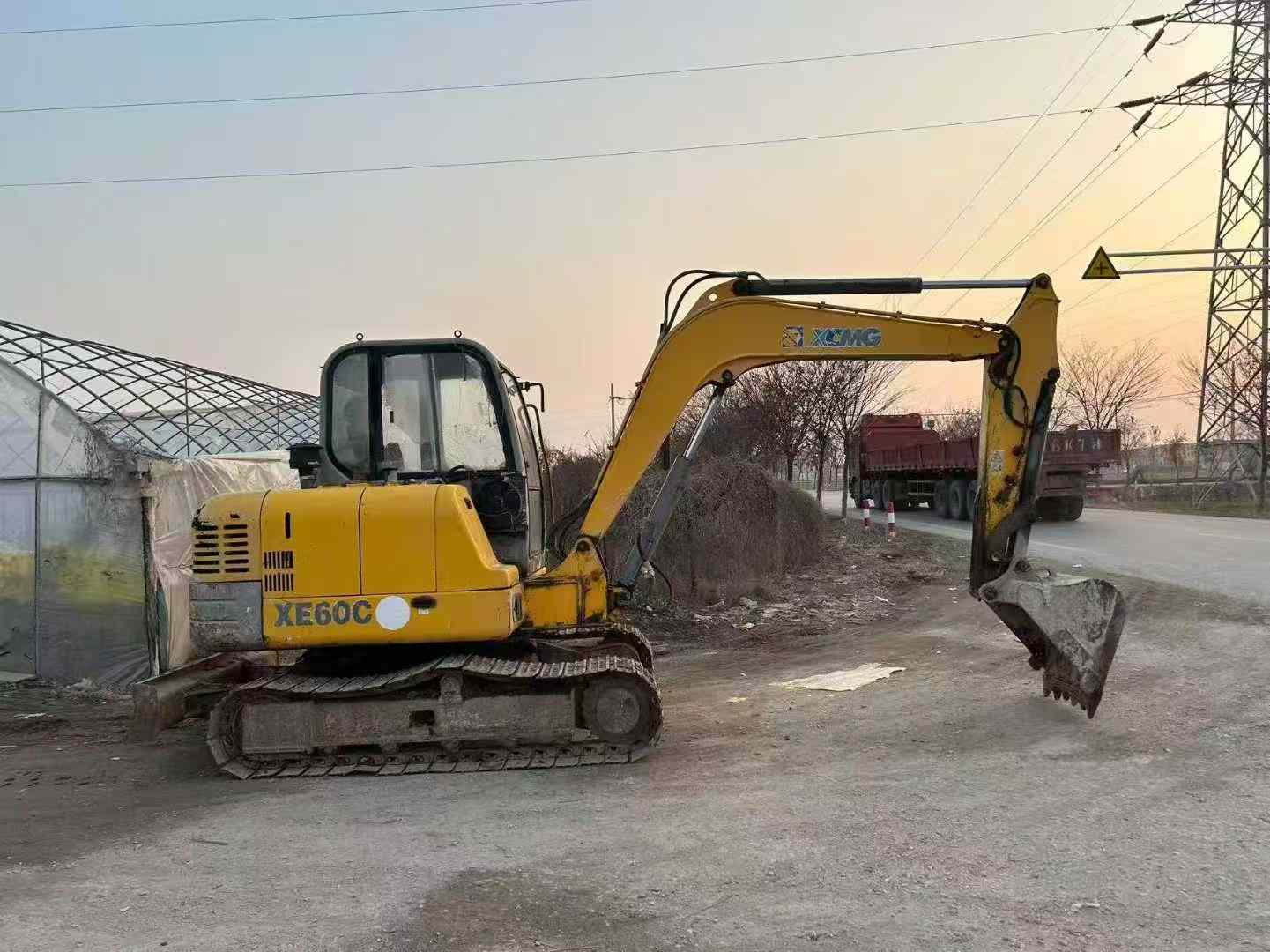

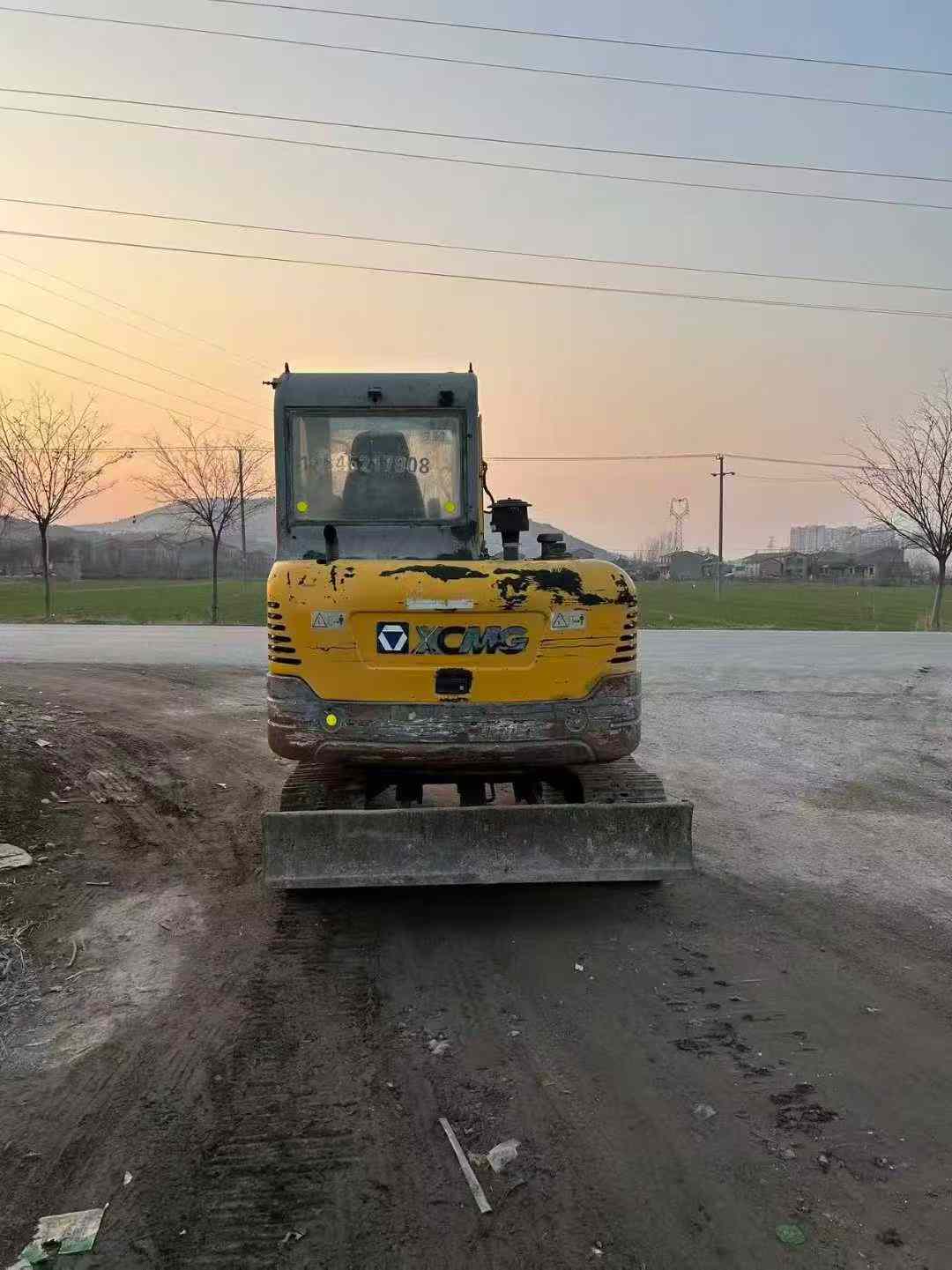

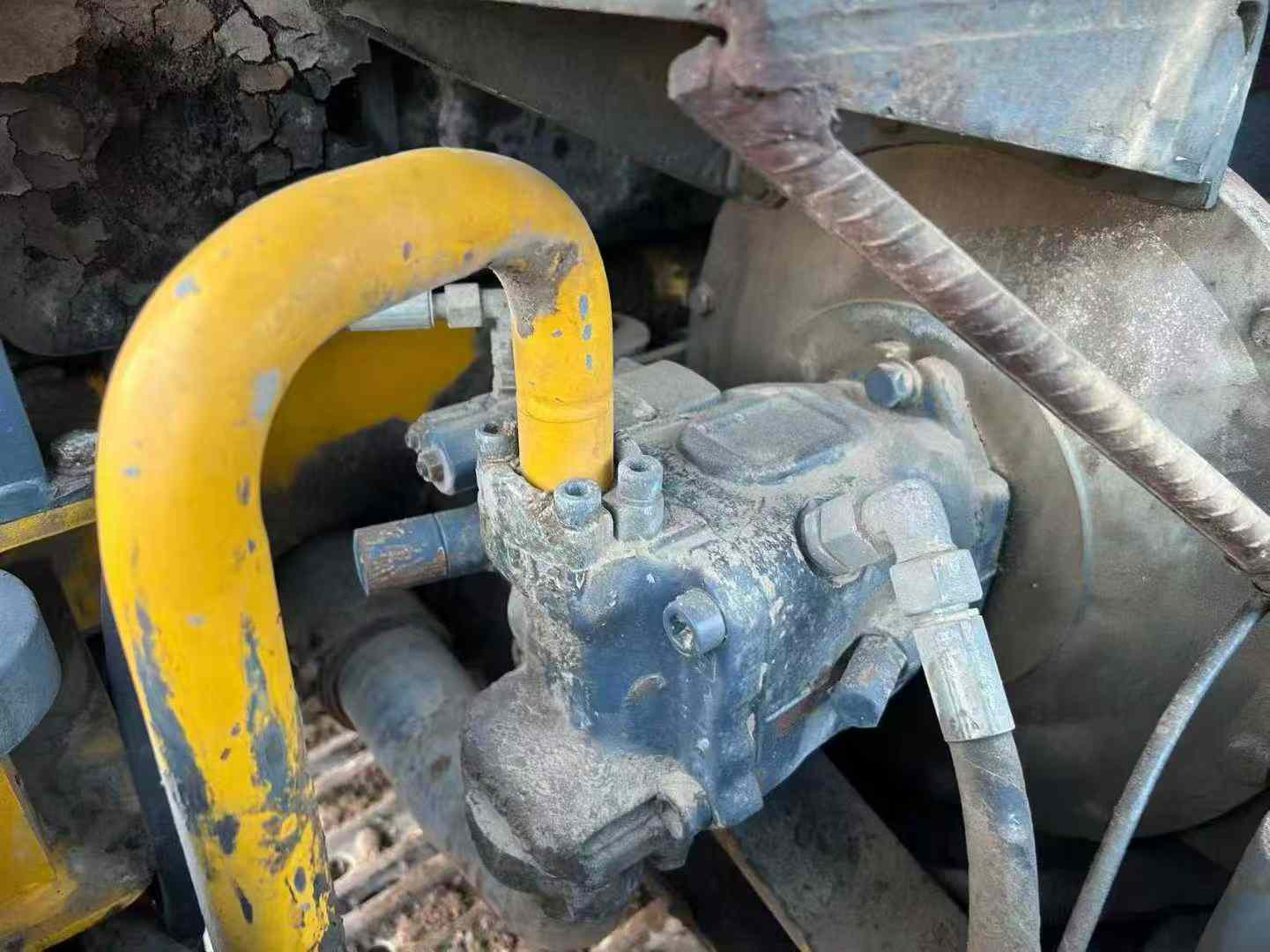

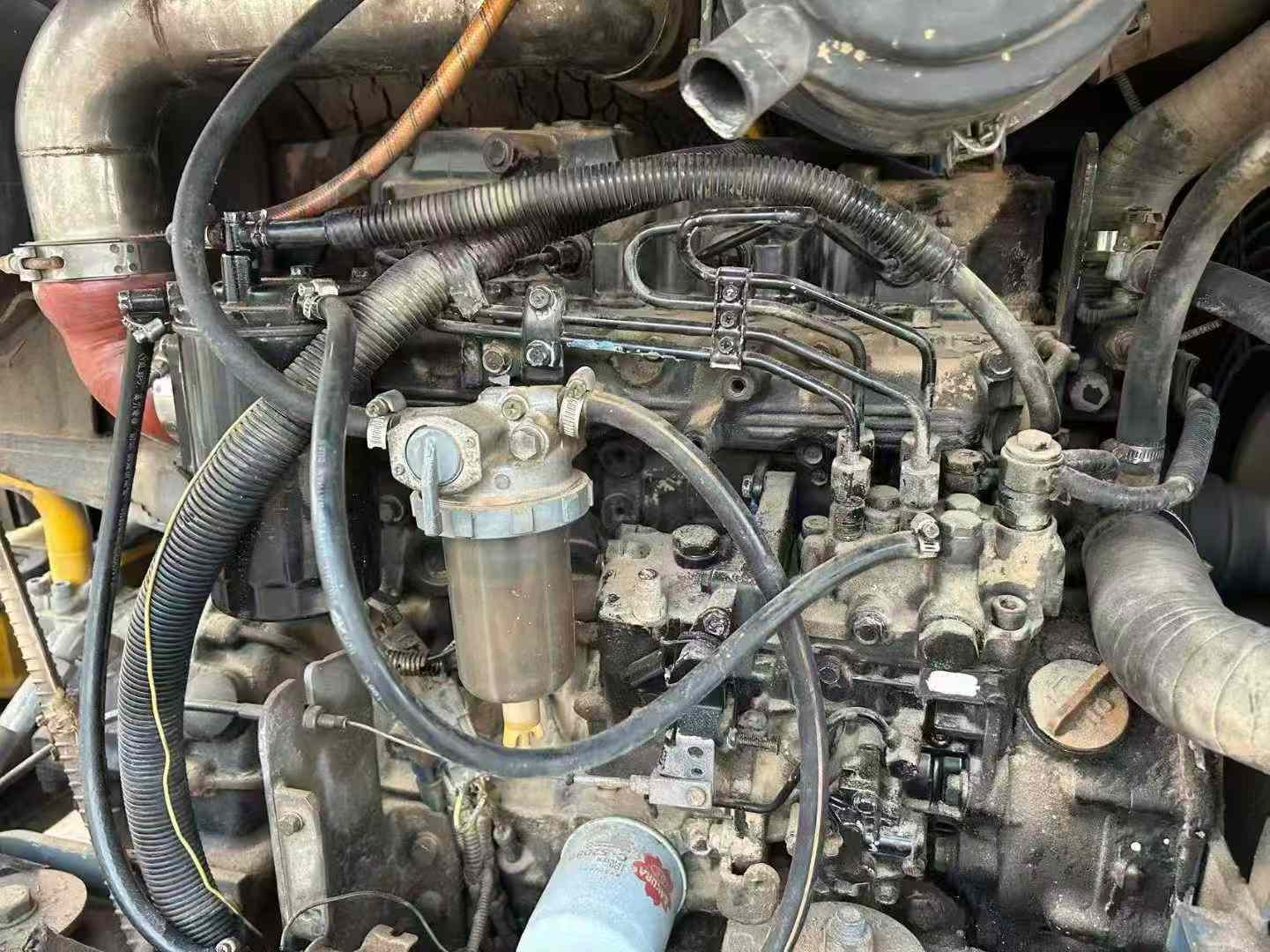

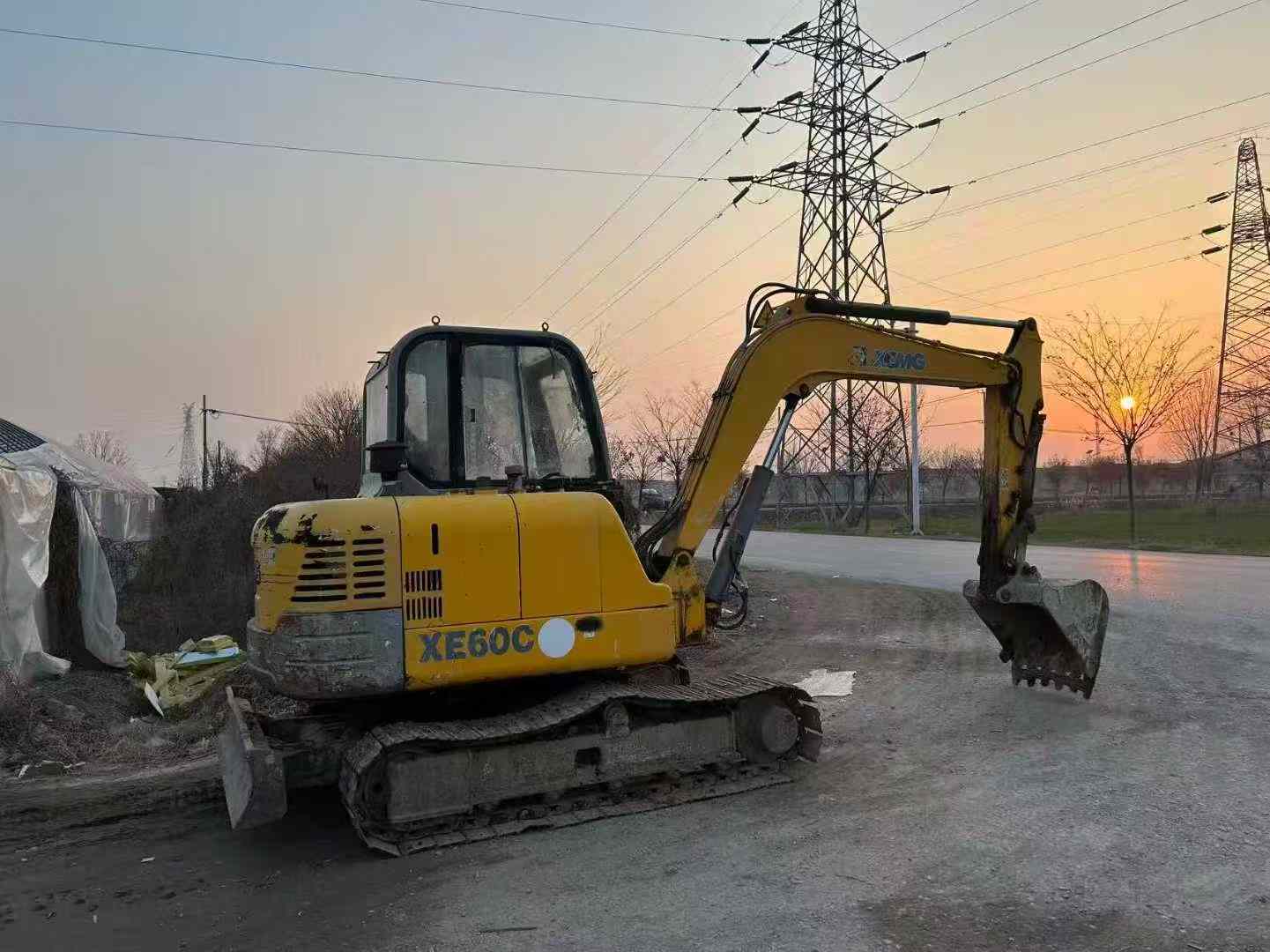

This second-hand XCMG XE60 excavator produced in 2013 is highly favored in the market for its outstanding performance and excellent cost performance. The cumulative working time of this equipment is approximately 5,000 hours. Despite meticulous maintenance, it still maintains a good working condition. It is equipped with a high-performance engine (the specific model might be Yanmar 4TNV98), with a rated power of 40.5 kilowatts, ensuring strong power output and smooth operation performance. In terms of the hydraulic system, the XE60 is equipped with an advanced combination of variable piston pumps and high-quality hydraulic motors. This configuration not only ensures a high efficiency conversion rate during operation but also makes the entire machine more flexible and precise when performing complex actions. In addition, its optimally designed cooling system effectively enhances the reliability during long-term operation. As a compact excavator, the XCMG XE60 is particularly suitable for applications in urban construction, landscaping, and small-scale earthwork projects. Its fast-response operating system, combined with powerful mining capabilities, can easily meet various construction demands. The spacious and comfortable cab provide
| Specifications | Value |
|---|---|
| No. | 977395 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
