2017 XCMG XE60

1/7
Used XCMG XE60 Excavator 2017 Model / 1
Used XCMG XE60 Excavator 2017 Model / 2

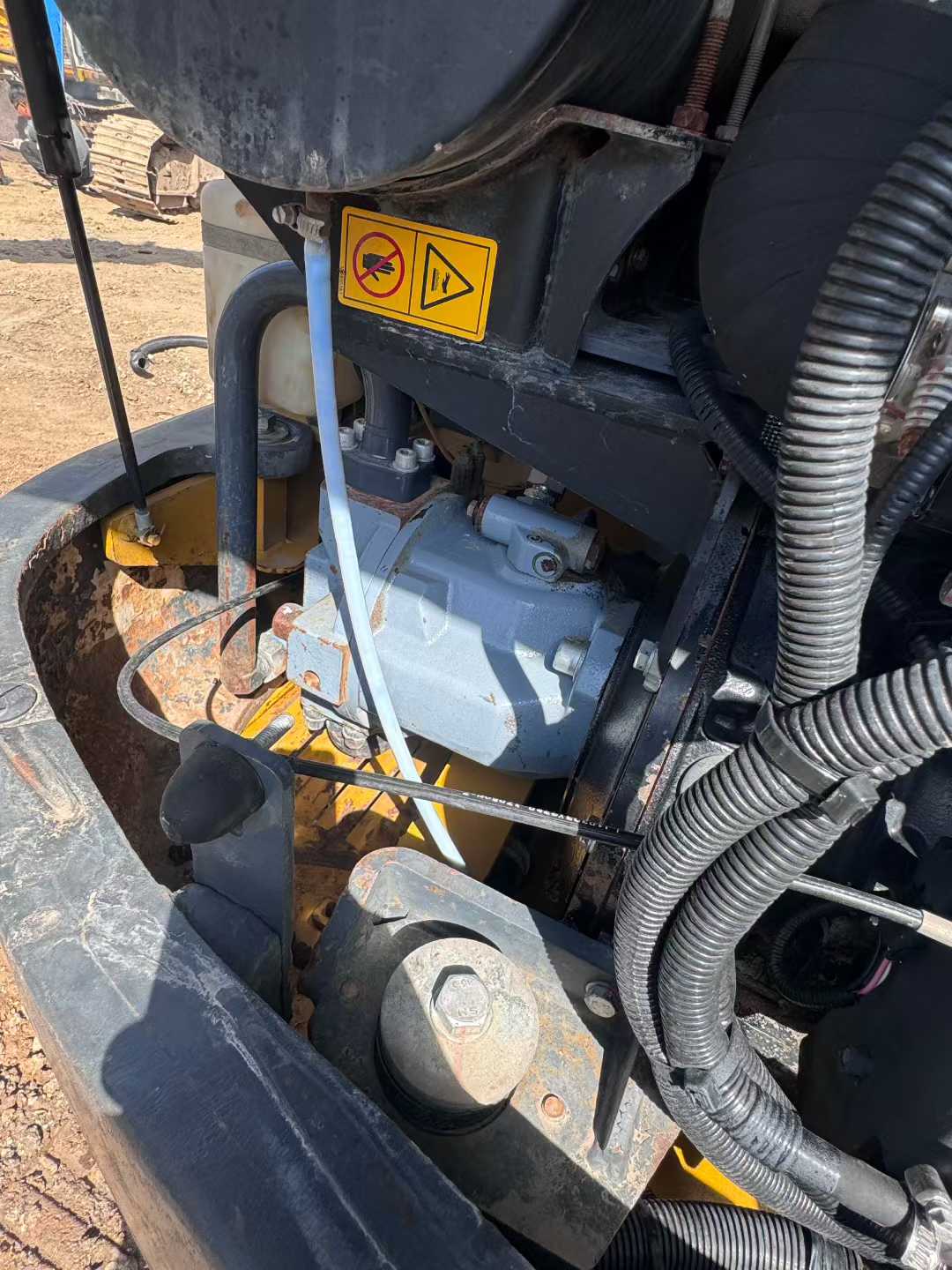

Used XCMG XE60 Excavator 2017 Model / 3

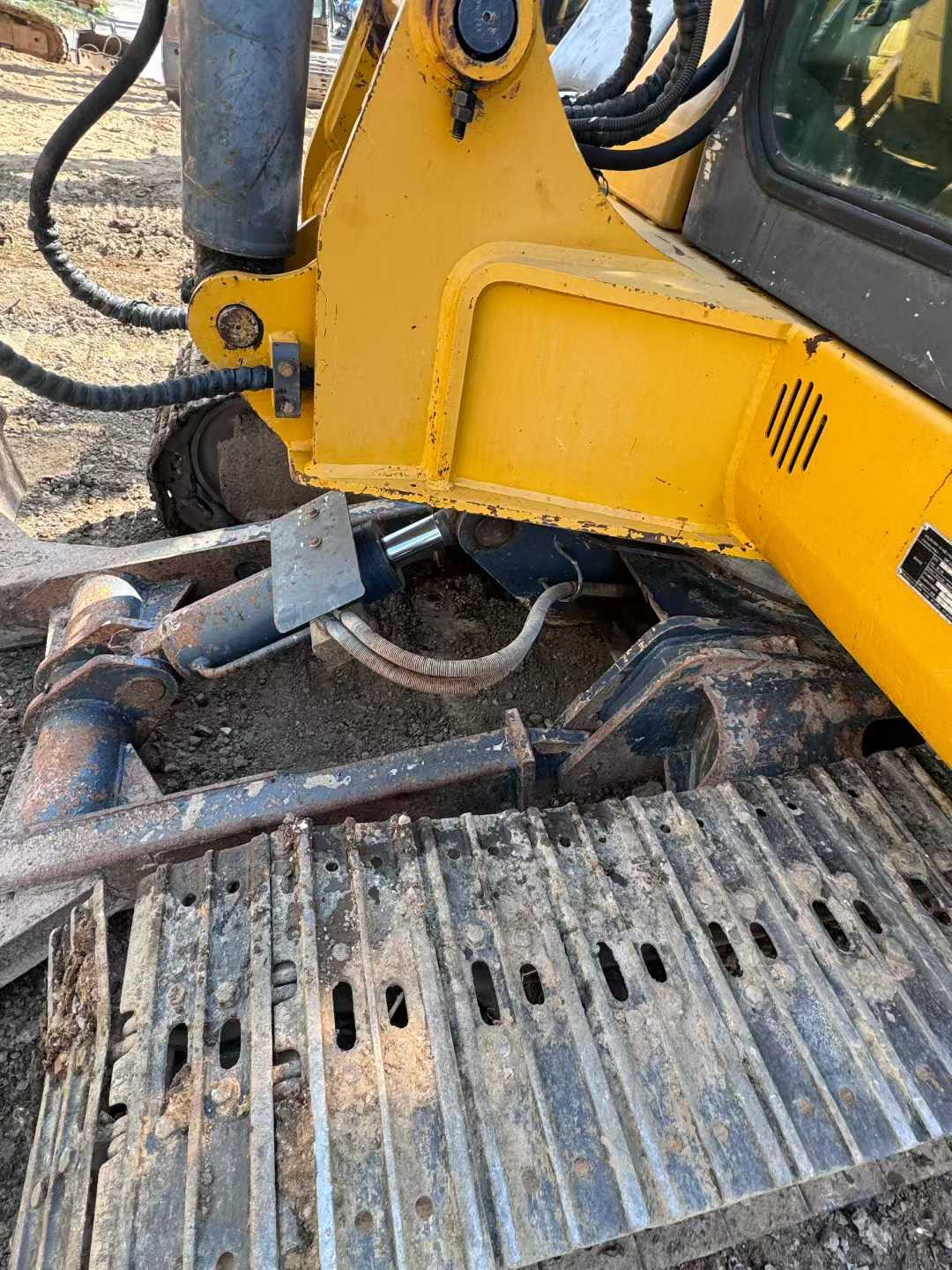

Used XCMG XE60 Excavator 2017 Model / 4

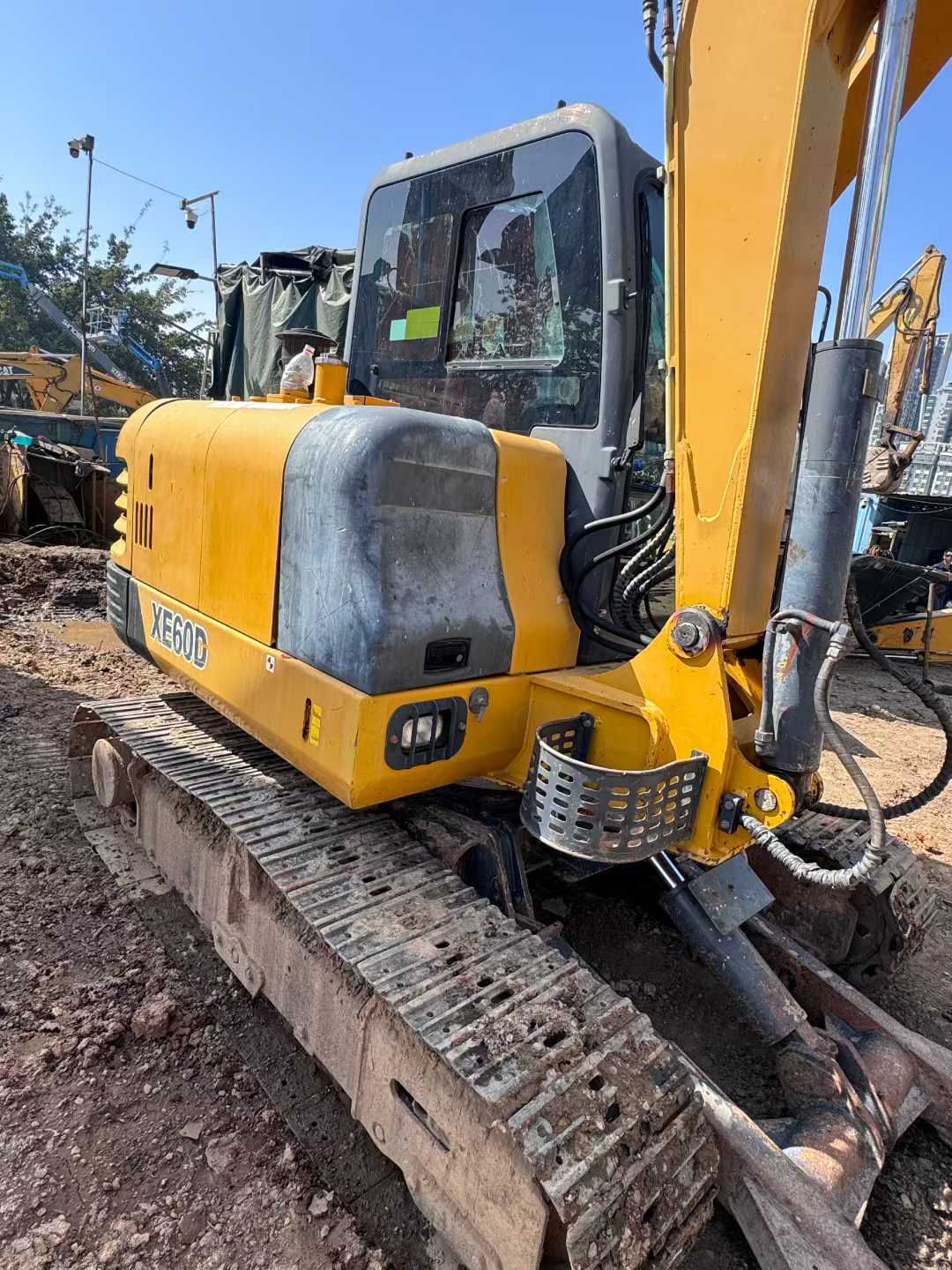

Used XCMG XE60 Excavator 2017 Model / 5

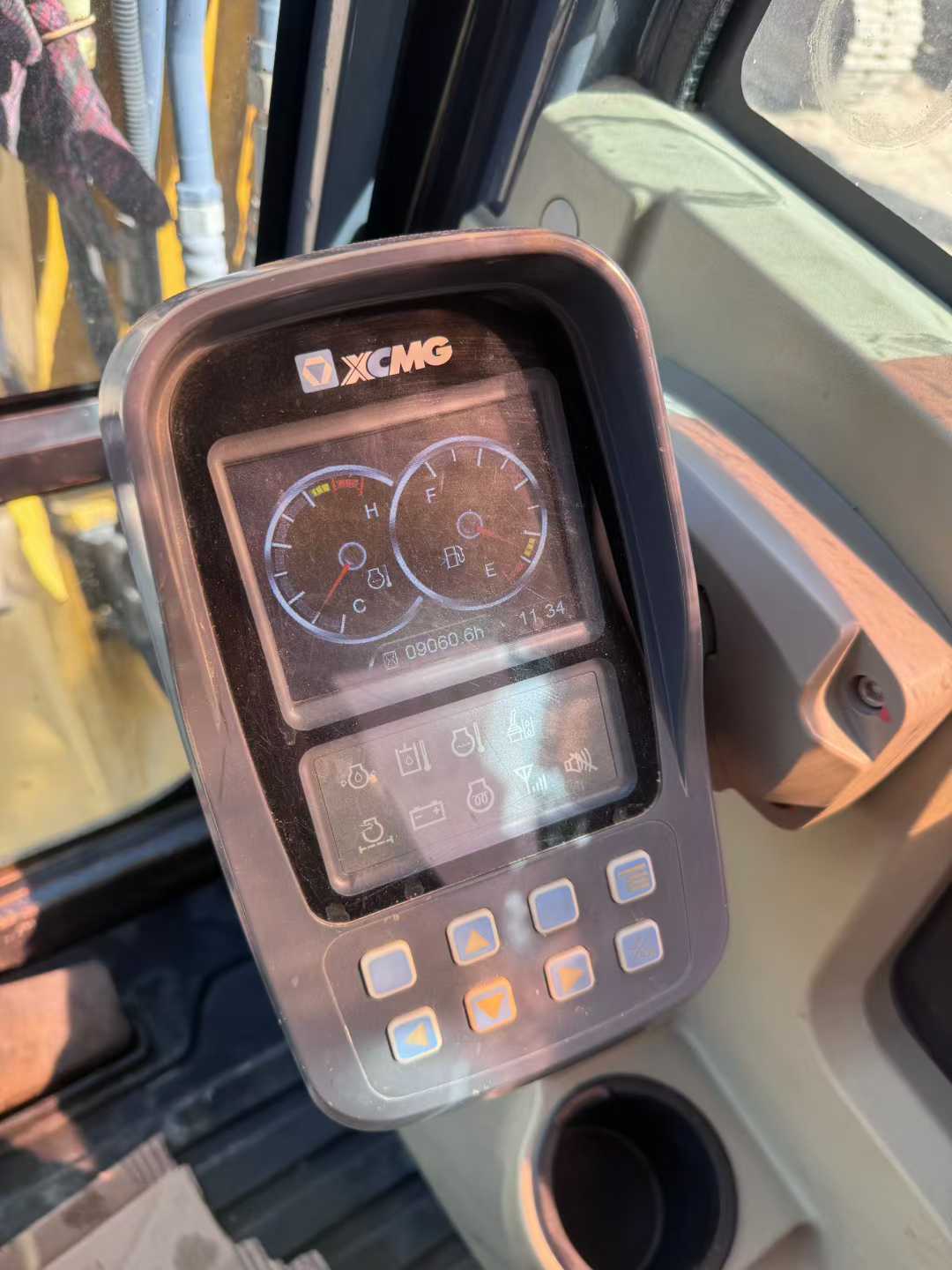

Used XCMG XE60 Excavator 2017 Model / 6
Used XCMG XE60 Excavator 2017 Model / 7

Product Description

There is currently a second-hand XCMG XE60D excavator from 2017, which has been in use for only a few hundred hours and is in excellent working condition. This device is equipped with a high-performance Yanmar 4TNV98 engine, with a power output of 35.3 kilowatts, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, an advanced variable plunger pump combined with an efficient hydraulic motor is adopted, providing a stable and precise operation experience. Whether it is excavation or loading operations, it can be handled with ease. One of the highlights of this excavator is its versatility. Besides the standard configuration, it is also equipped with an additional breaker hammer (cannon bucket), which greatly expands the application range of the equipment. As a result, it is not only suitable for earthwork projects but also performs well in complex working conditions such as rock crushing. In addition, the compact design of the XE60D enables it to have extremely high flexibility in narrow Spaces, making it highly suitable for use in urban construction sites or small-scale projects. Overall, this XCMG XE60D excavator has won the favor of many users with its outstanding performance, reliable quality

SpecificationsValue
No.977718
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.977718

Brand Name:

XCMG

Model Number:

XE60

Year:

2017

Location:

Guangdong China
