Product Description

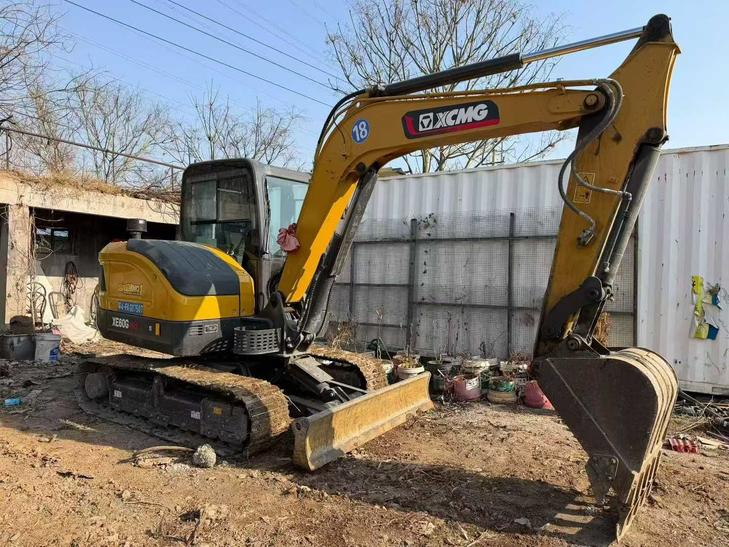

This second-hand XCMG XE60 excavator has only been in operation for over 700 hours since it was put into use in 2024, and its condition is almost as good as that of a brand new device. This excavator is equipped with a high-performance engine, which is expected to be from well-known brands such as Cummins or Weichai series, with a rated power of approximately 40 kilowatts, ensuring strong power output and efficient operation capacity. Its hydraulic system adopts an advanced combination of variable piston pumps and high-quality hydraulic motors, which not only provides a stable and precise operation experience, but also significantly improves the overall working efficiency and fuel economy of the machine. XCMG XE60 is renowned for its outstanding performance, reliability and durability. The compact design enables it to operate flexibly even in confined Spaces, making it particularly suitable for application scenarios such as urban construction and landscaping. In addition, this model is equipped with a comfortable cab, featuring a good field of vision and an operation interface, which greatly enhances the driver's working comfort and safety. After a comprehensive inspection and maintenance by a professional team, this XCMG XE60 excavat
| Specifications | Value |
|---|---|
| No. | 978709 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
