Product Description

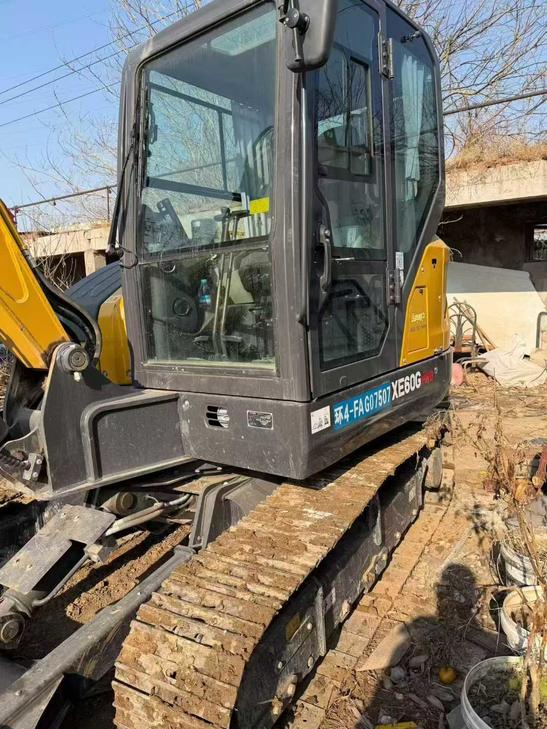

This second-hand XCMG XE60 excavator has only been in use for over 700 hours and is in excellent working condition. Equipped with the highly efficient and reliable Yanmar 4TNV98 engine, it delivers a power output of 36.5 kilowatts, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, it is equipped with high-quality variable piston pumps and hydraulic motors, which can provide a stable and precise operation experience. Whether it is excavation, loading or crushing operations, it can handle them with ease. The main advantages of this equipment include: Firstly, its compact design enables it to operate flexibly even in confined Spaces; Secondly, the cab is spacious and comfortable, and the operation interface is intuitive and easy to understand, which greatly improves work efficiency. Finally, after professional maintenance and upkeep, all components remain in good condition, which not only extends the machine's service life but also reduces the failure rate. In addition, considering its relatively low usage time, it is undoubtedly an extremely attractive choice for buyers who are seeking cost performance.
| Specifications | Value |
|---|---|
| No. | 978712 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
