Product Description

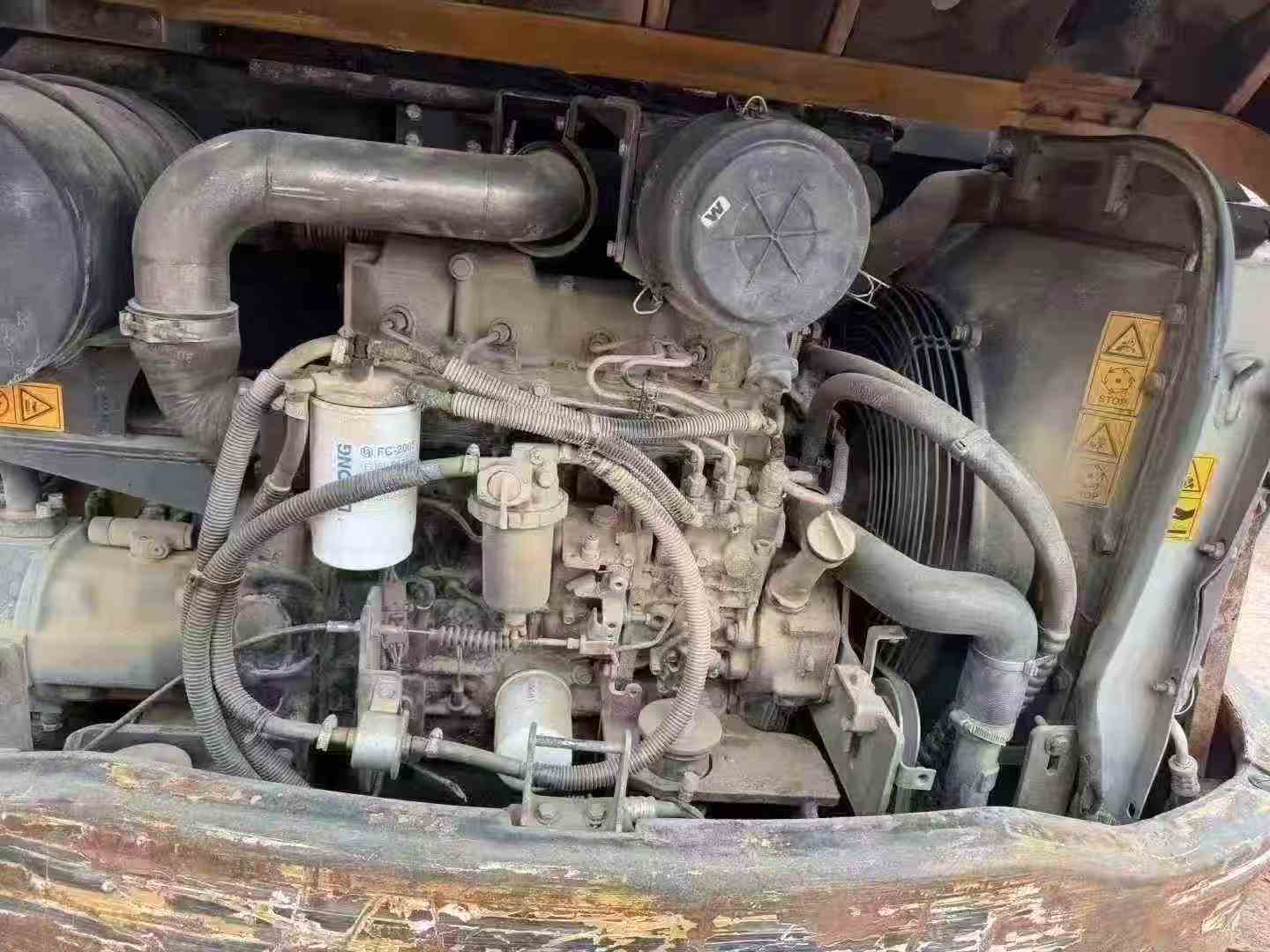

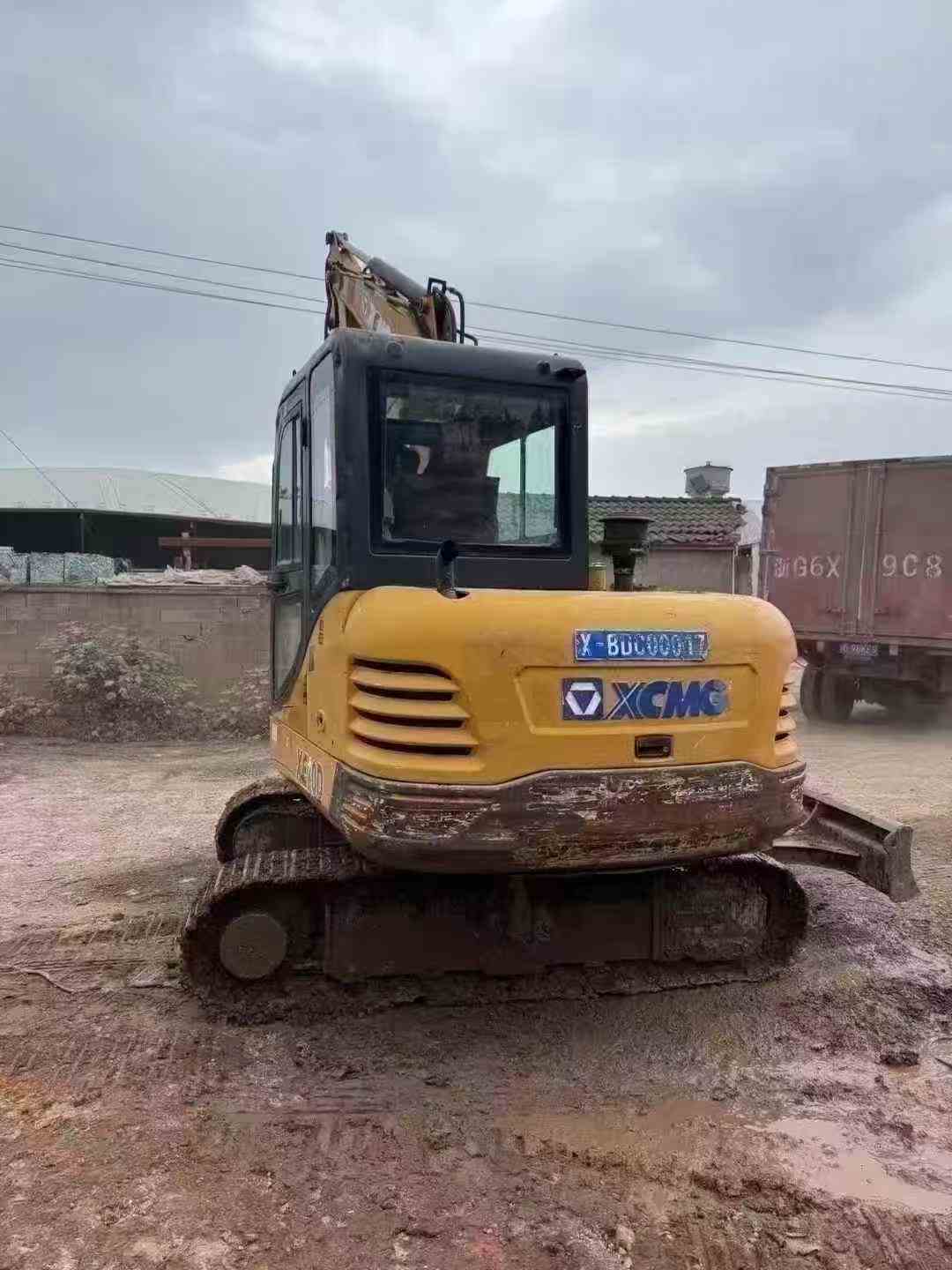

【 Premium Second-hand Excavator 】 XCMG XE60D, with outstanding performance and soaring speed This XCMG XE60D mini excavator produced in 2017 has a total usage time of only over 30,000 hours. It is powerful and operates stably. Equipped with the original imported Yanmar 4TNV98 engine, with a power output of 40.5 kilowatts, it ensures high operational efficiency and excellent fuel economy. The hydraulic system adopts a combination of well-known brand pumps and motors, which responds quickly and operates smoothly. It can handle operations such as excavation, loading and crushing with ease. One of the highlights of this aircraft is its extremely fast working speed, earning it the title of "little plane", which stands out particularly among devices of the same level. Meanwhile, it is also equipped with an air conditioning system, which can provide operators with a comfortable working environment even in the hot summer. In addition, after comprehensive testing and maintenance by a professional team, all performance indicators of this equipment are in the best condition, so there is no need to worry about subsequent maintenance issues. By choosing this XCMG XE60D, you will obtain a small excavator with extremely high cost performance and s
| Specifications | Value |
|---|---|
| No. | 979480 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
