Product Description
Built for immediate deployment, this 2019 XCMG XE65D compact excavator delivers reliable 6-ton performance across construction and utility projects. Powered by a proven Yanmar 4TNV94L engine producing 39.8kW at 2200 RPM, this machine handles demanding excavation tasks with 48.3kN bucket digging force and 3.83m maximum dig depth.
Key operational specifications include:
- 6,200kg working weight with 0.09-0.25m³ bucket capacity range
- 6.13m maximum reach radius for versatile positioning
- 35° climbing capability on challenging terrain
- 4.2km/h travel speed for efficient site mobility
- 110L fuel tank supporting extended work cycles
Factory-equipped with hydraulic crushing pipeline and water-cooled engine system, this XE65D requires minimal setup time. Located in Guangdong, China, the machine shows typical wear consistent with commercial use while maintaining operational integrity. Compact 2m transport width enables easy trailer loading, while the 2053mm track ground length provides stable excavation platform for trenching, grading, and demolition work.
| Specifications | Value |
|---|---|
| No. | 980853 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6200 |
| Bucket capacity (m³) | 0.09-0.25 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

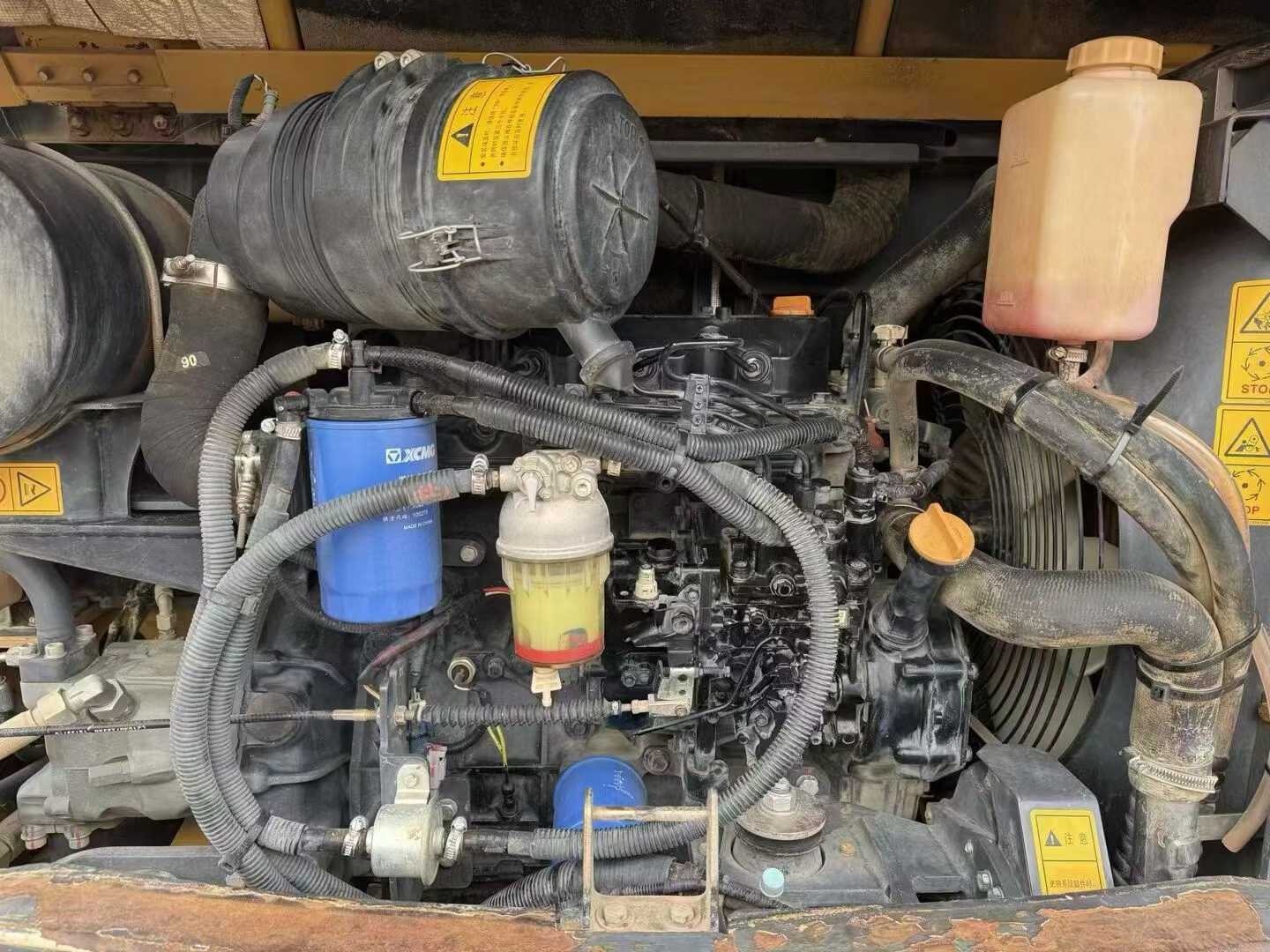

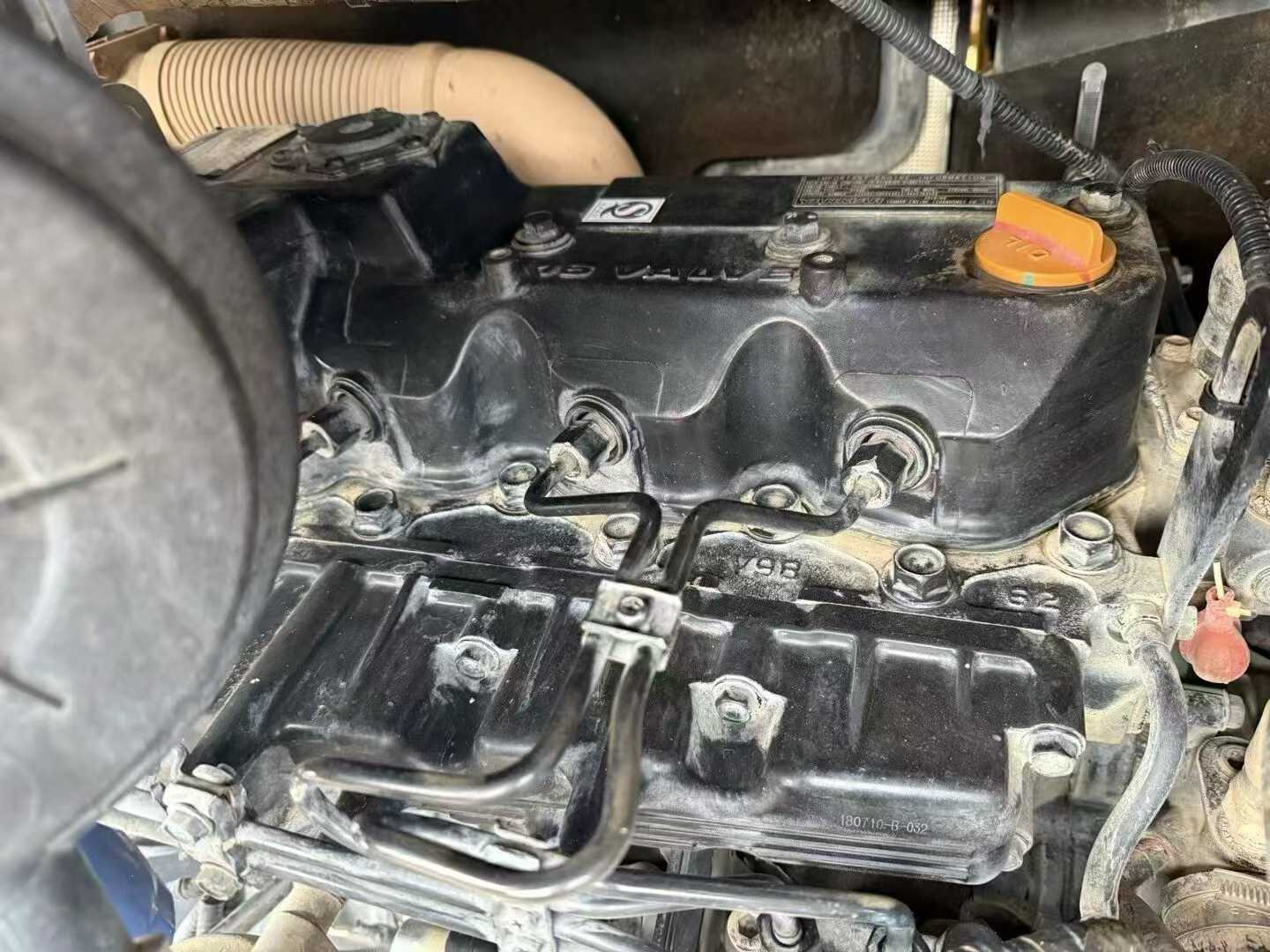

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 138/143 |
| Rotary Hydraulic Circuit (Mpa) | 23 |

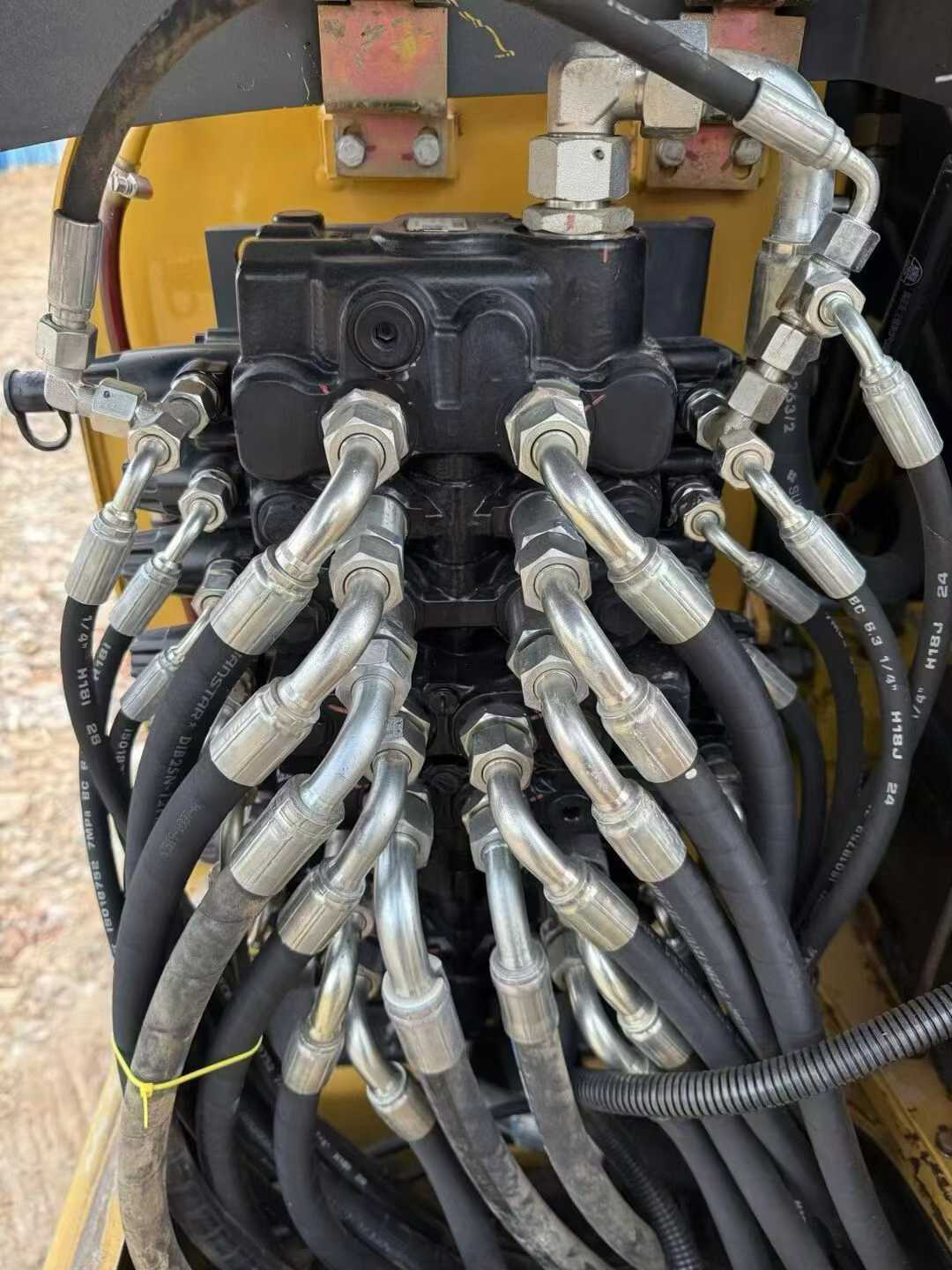

| Hydraulic crushing pipeline is standard | is |

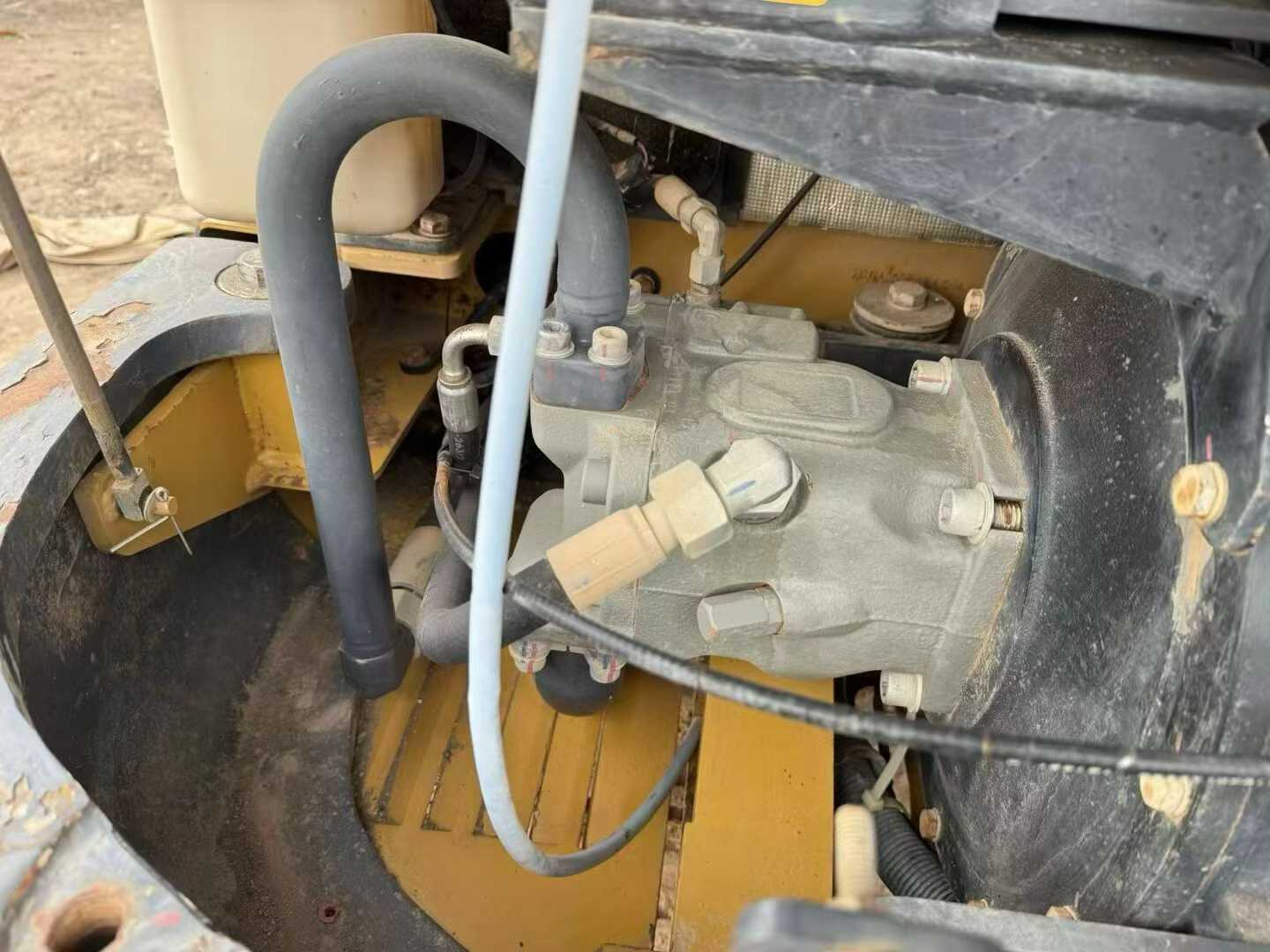

| Main pump type | Rexley/Ogail |
| Working Hydraulic Circuit (Mpa) | 22 |
| Pilot Oil Circuit (MPa) | 2.6 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2000/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1660 |
| Track gauge (mm) | 1600/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 2053/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 2000*365/1920*340 |
