| Specifications | Value |
|---|---|
| No. | 962529 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

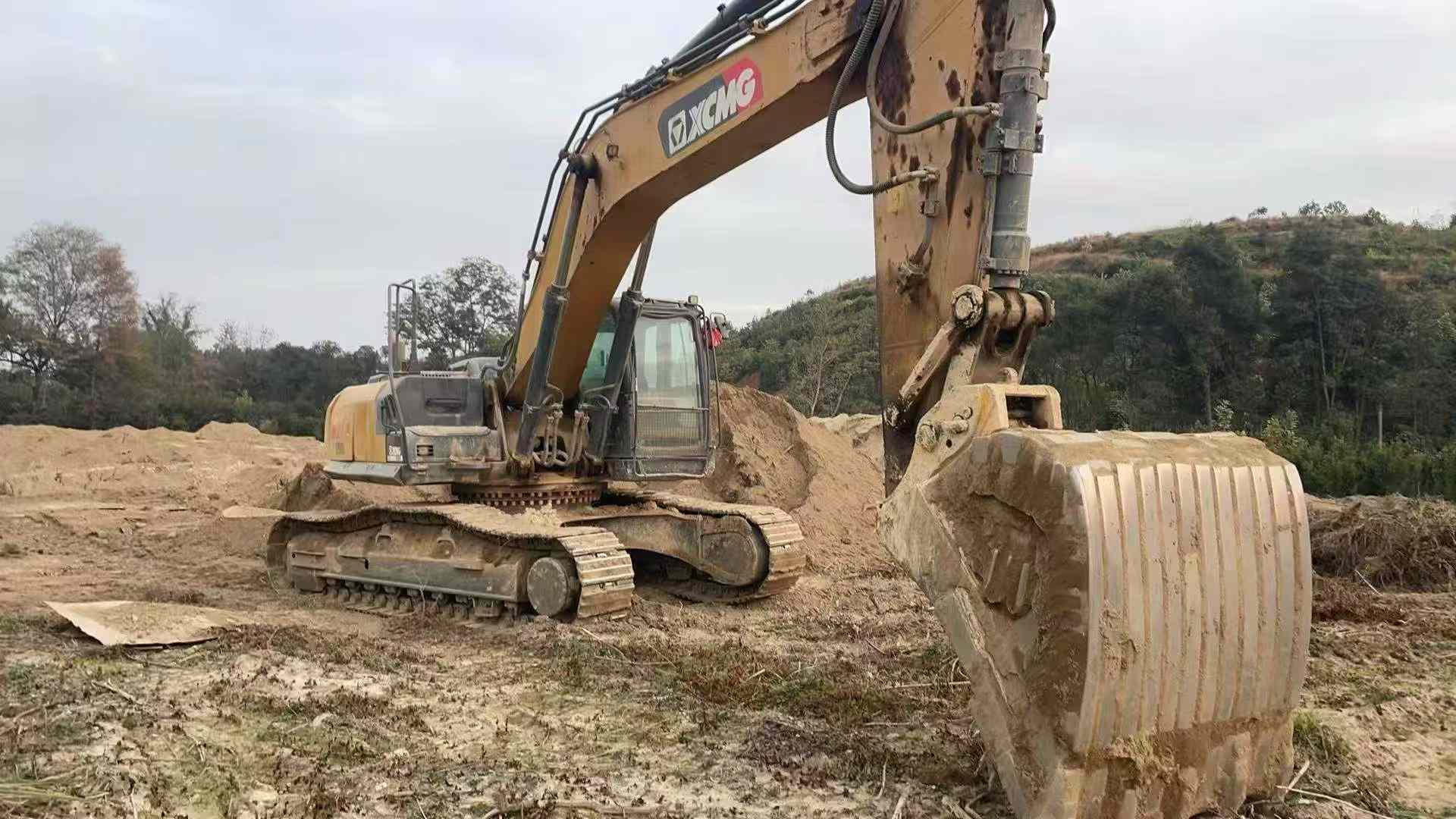

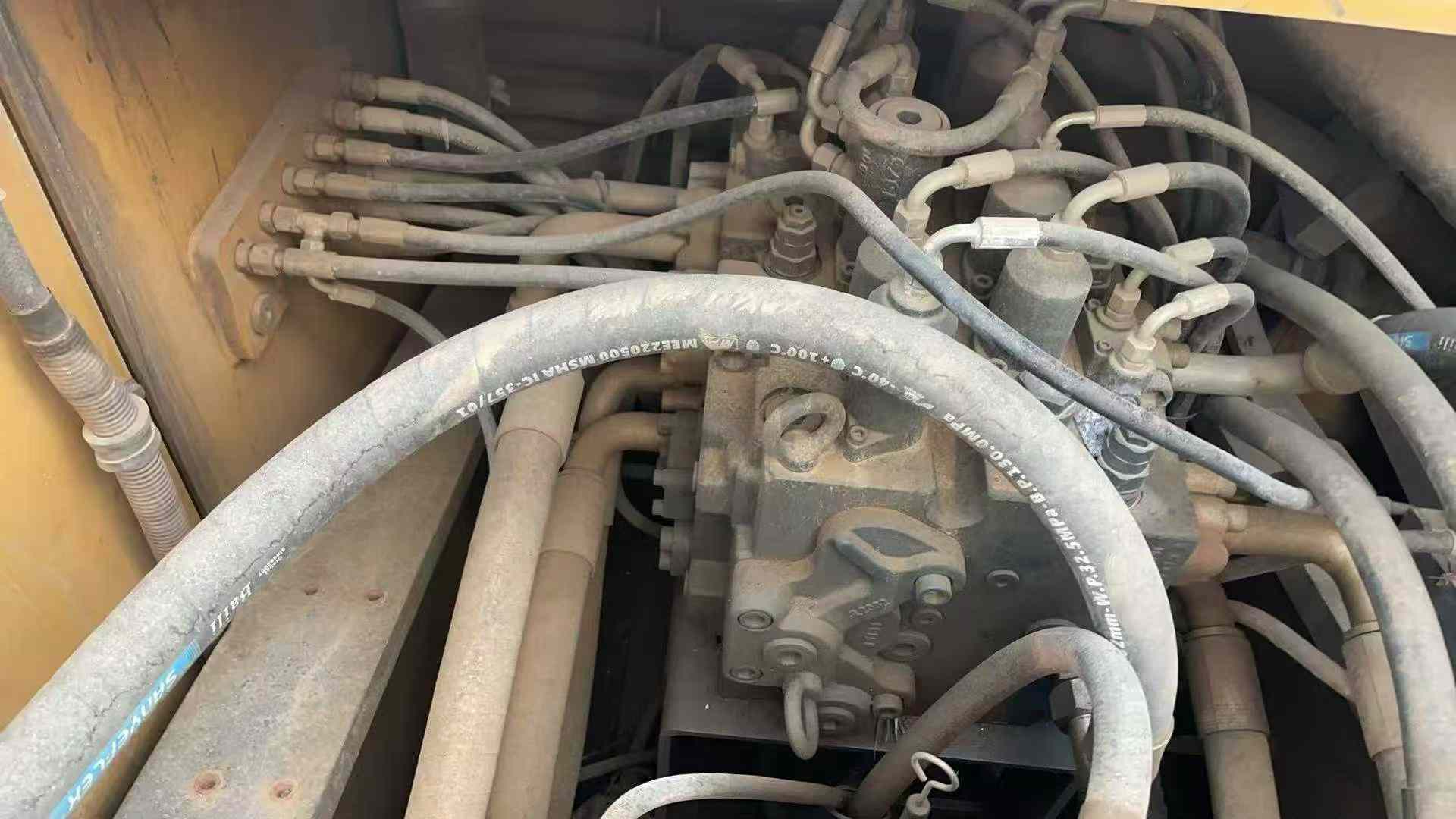

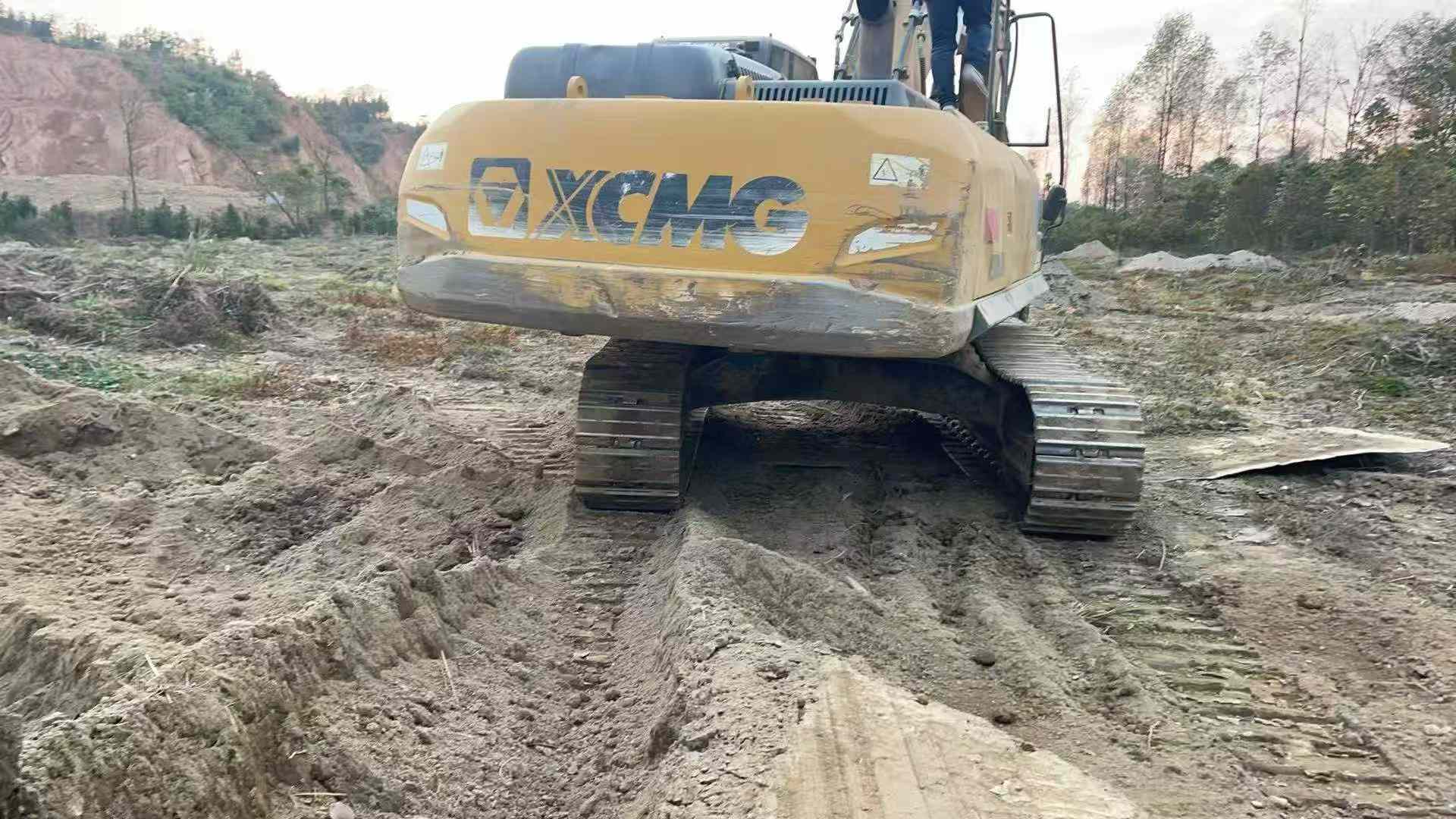

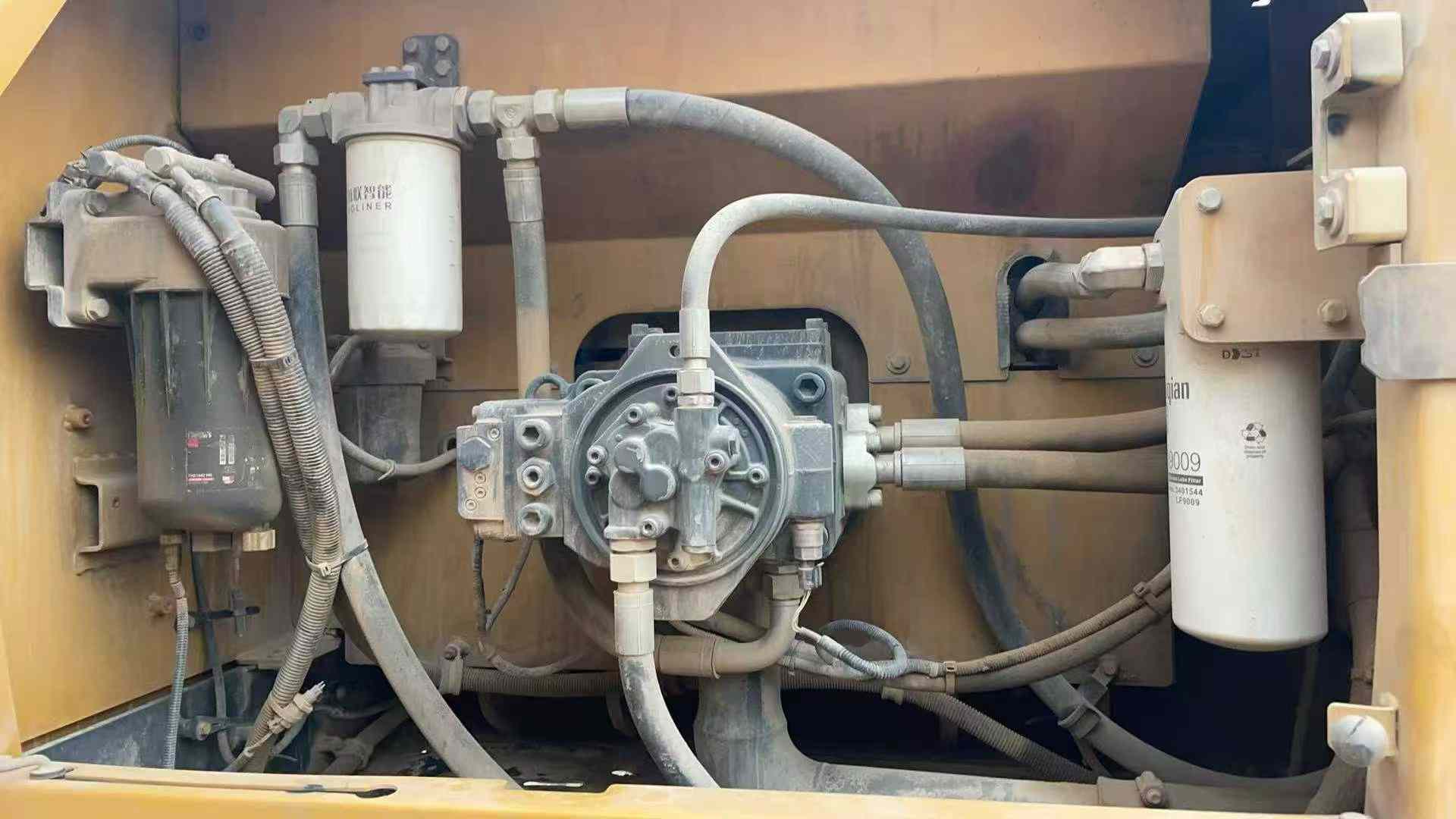

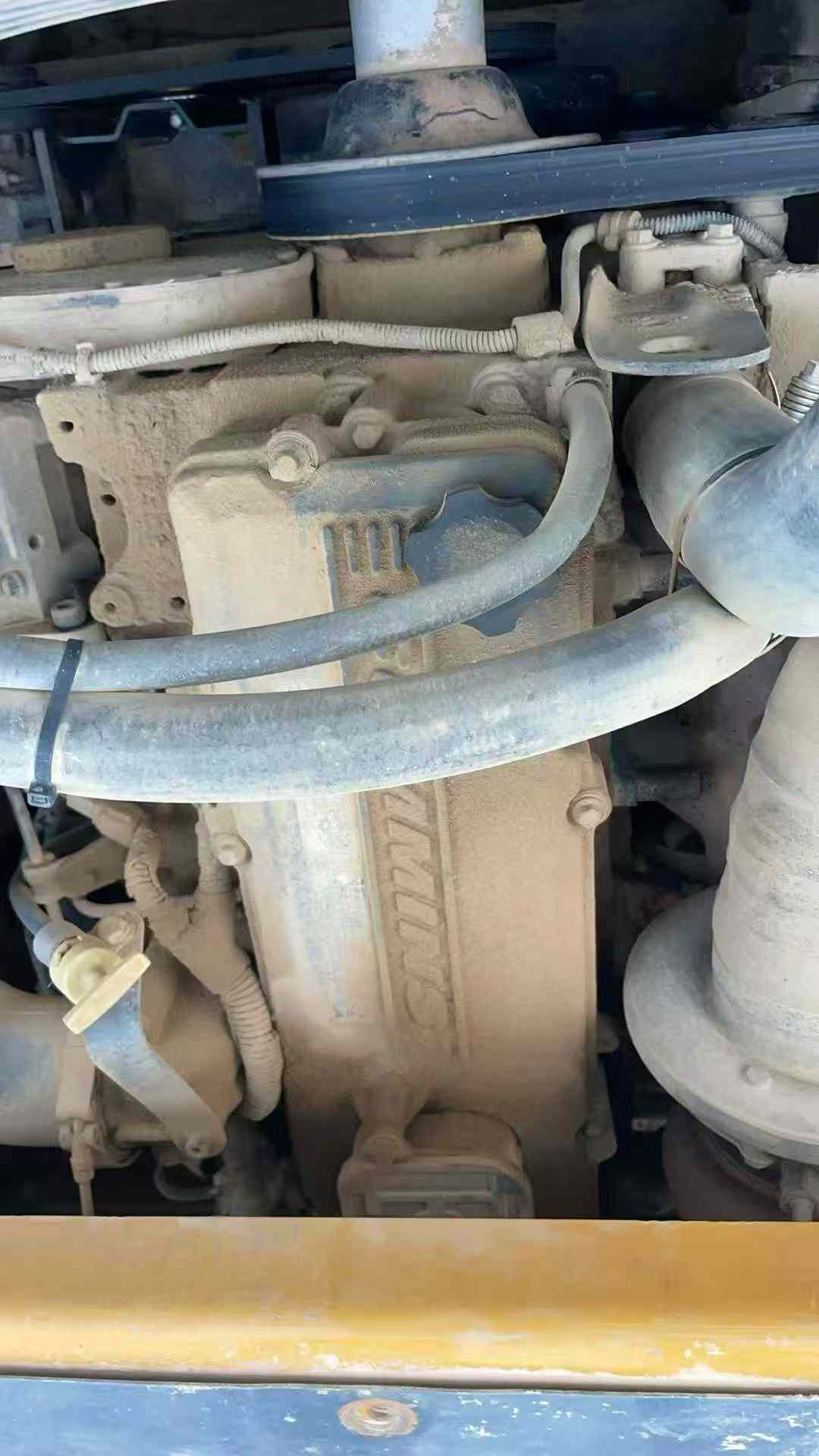

【 Second-hand XCMG XE380 Excavator This XCMG XE380 excavator was purchased in 2022 and has only been in use for about 40 hours so far. It can almost be said to be in a nearly new condition. It boasts outstanding performance and extremely low working hours, making it a rare quality choice for you in the second-hand market. "Power System: This aircraft is equipped with a Cummins QSB6.7-C215 high-efficiency and energy-saving engine, with a maximum power output of up to 160kW (approximately 215 horsepower). It not only offers powerful performance but also has excellent fuel economy. This engine has undergone rigorous testing and optimization. While ensuring powerful output, it also significantly reduces fuel consumption and noise pollution, making it highly suitable for the demand of long-term continuous operation. "Hydraulic system: Adopting advanced negative flow control technology ensures that the entire machine operates more smoothly and accurately. The main pump is designed as a variable piston pump, which can automatically adjust the displacement size according to the actual working load, thereby achieving the best matching effect. In addition, it is equipped with key components such as highly efficient rotary motors and walking r
