| Specifications | Value |
|---|---|
| No. | 962683 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

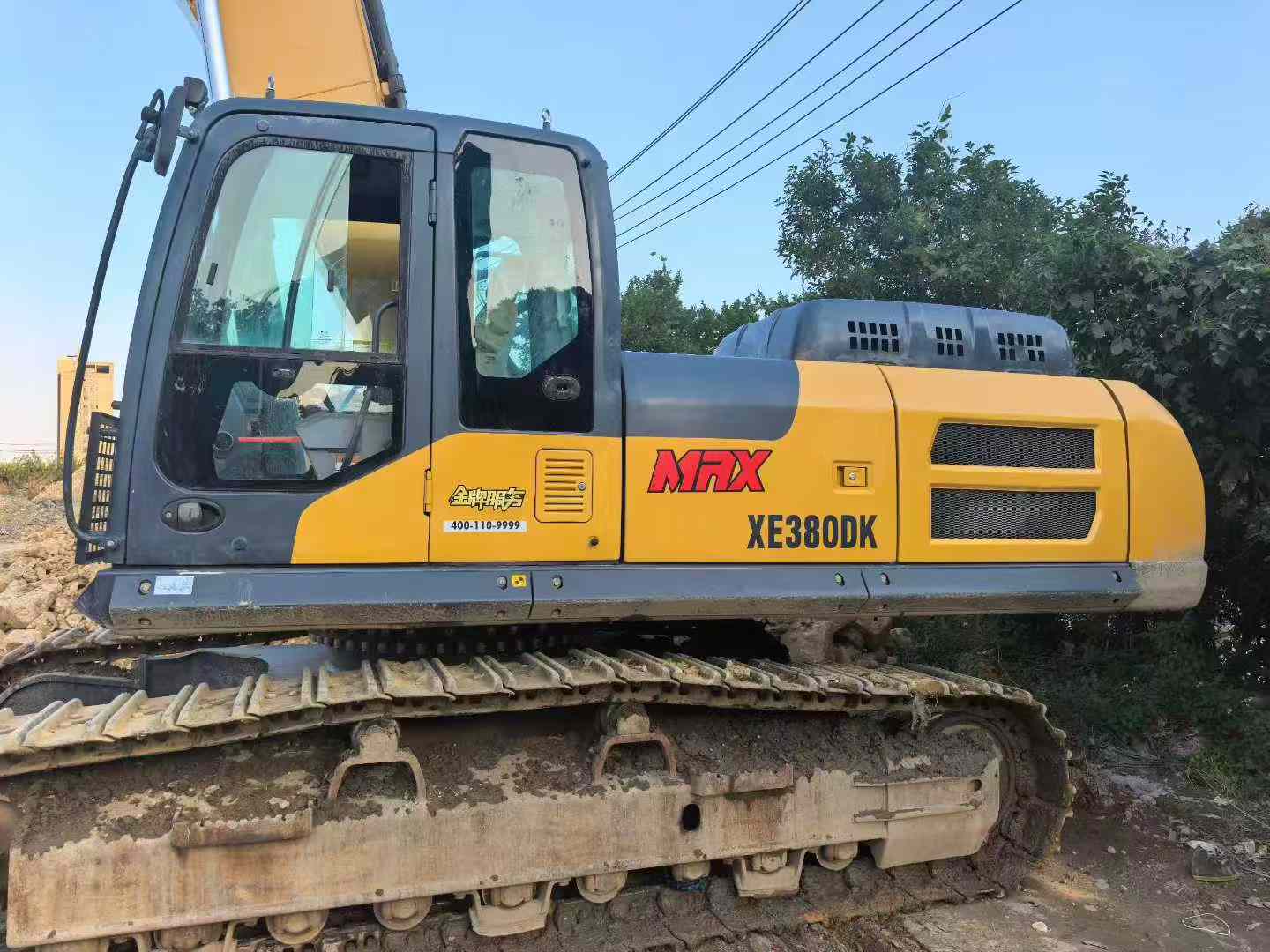

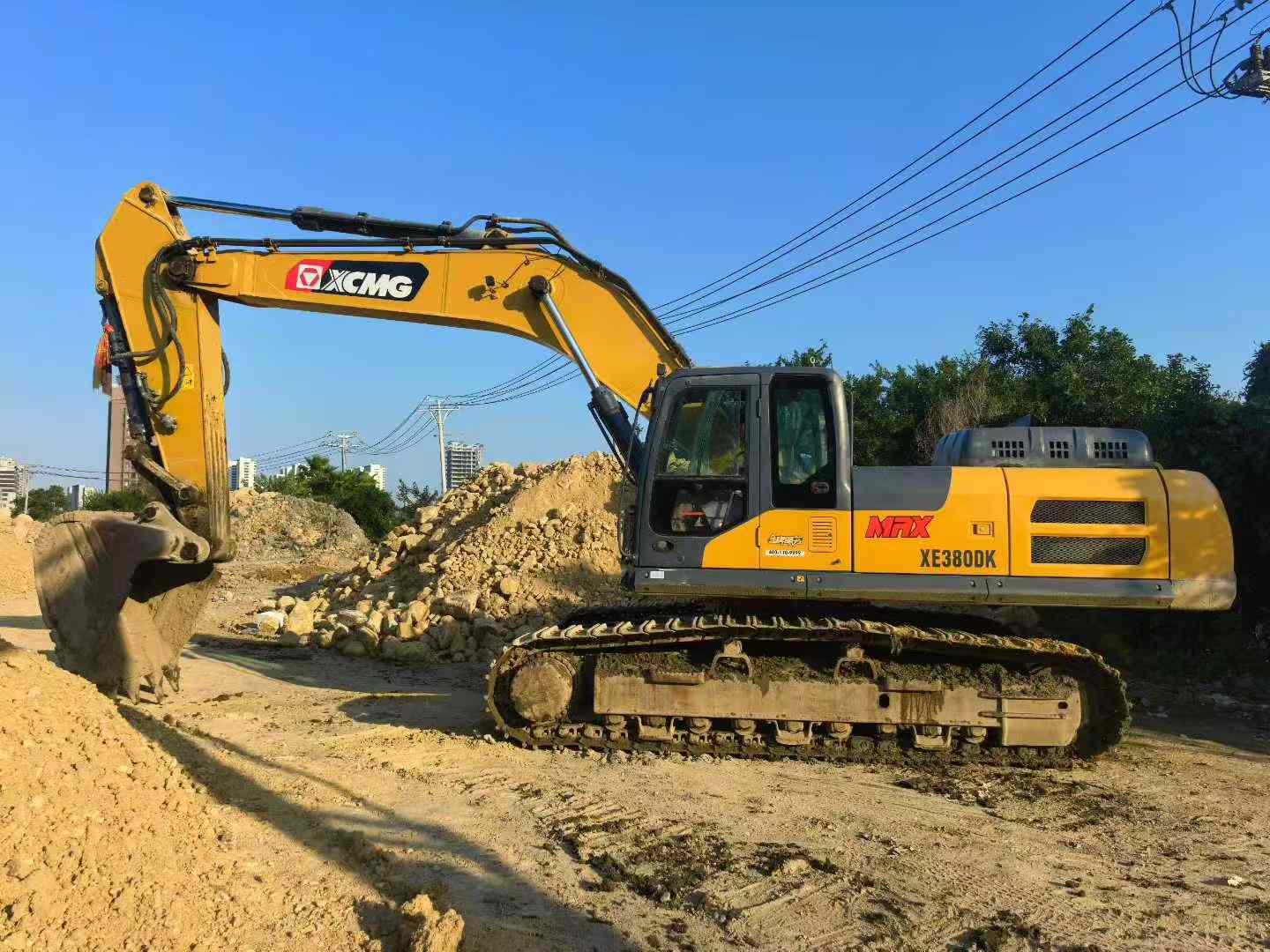

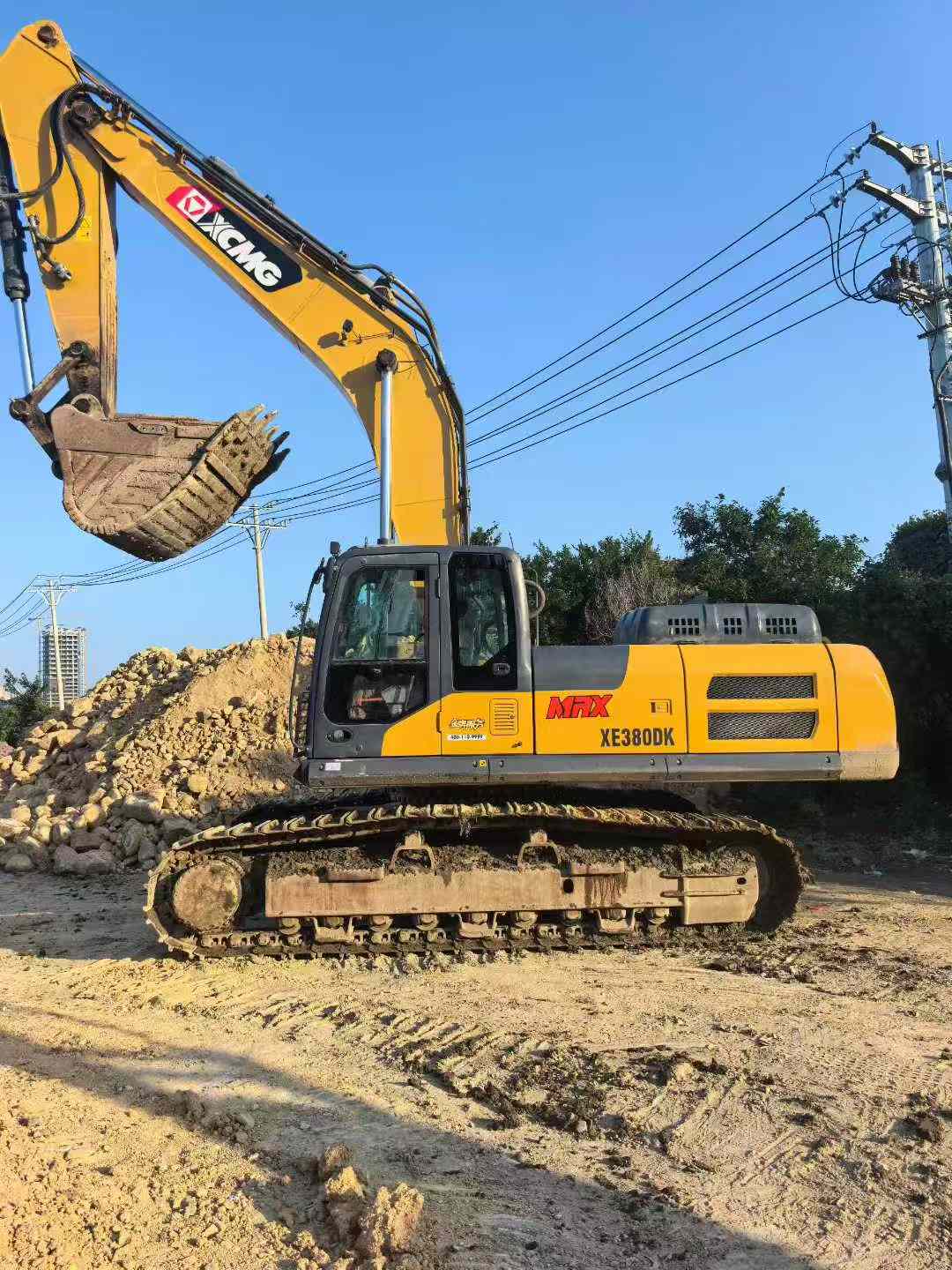

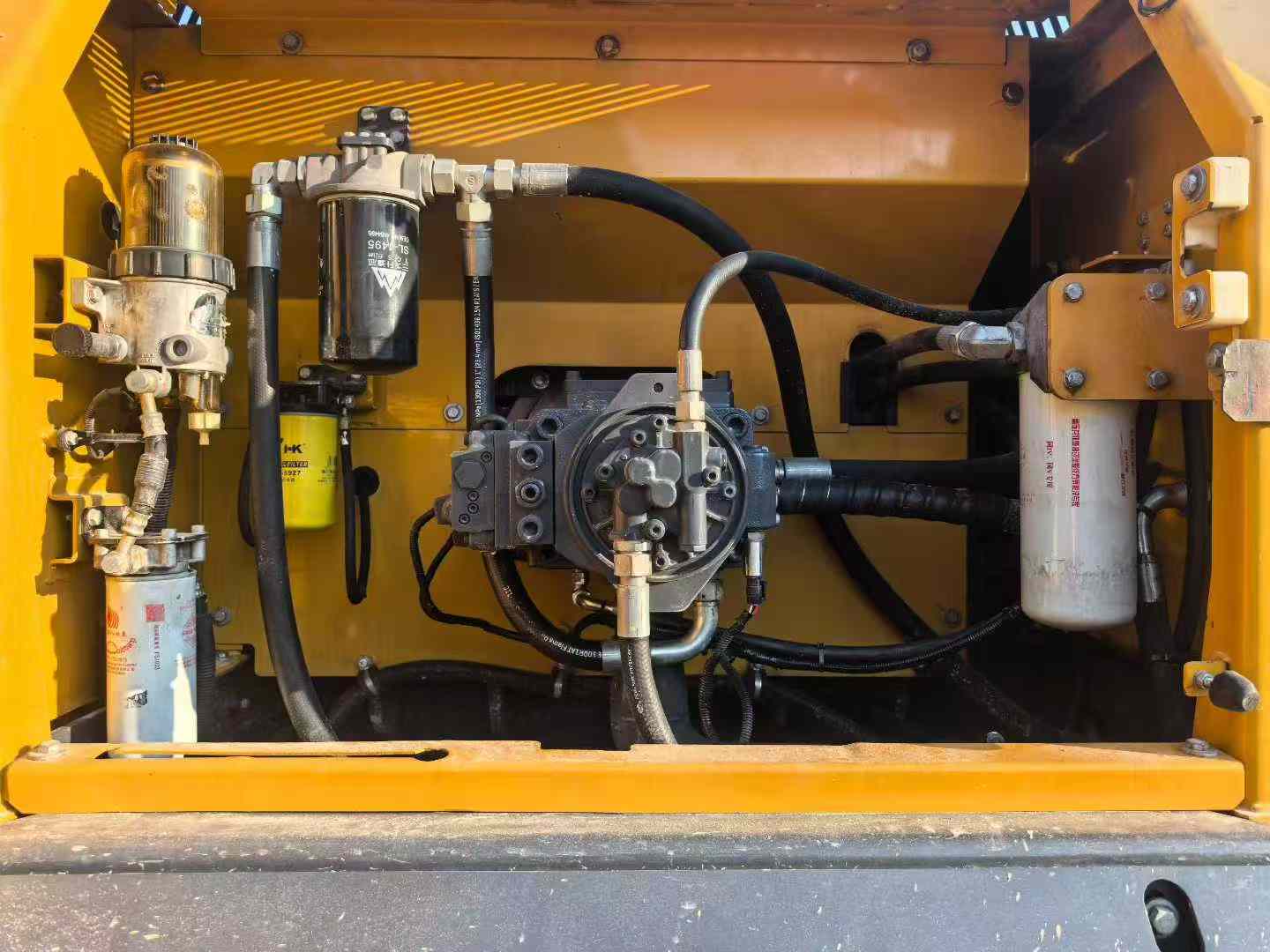

【 Premium 2021 XCMG 380 Excavator 】 This 2021 XCMG XE380 excavator is a highly regarded medium to large-sized earthmoving machine in the market. It boasts outstanding working performance and extremely high durability, with a working time of only 2,500 hours, almost in brand new condition. This device not only performs well in construction efficiency, but also is extremely worry-free in maintenance and upkeep. In terms of the power system, XCMG XE380 is equipped with a highly efficient and energy-saving engine. This engine features powerful torque output and smooth power response characteristics, ensuring stable and reliable power support under various complex working conditions. Meanwhile, its advanced fuel injection technology effectively reduces fuel consumption and improves economic efficiency. The hydraulic system is a major highlight of this excavator. It adopts advanced negative flow control technology, which can automatically adjust the oil supply according to the actual load, thereby achieving more precise operation control and higher work efficiency. In addition, the optimized layout of the hydraulic pipelines reduces pressure loss and extends the service life of key components. In conclusion, this XCMG XE380 excavator sta
