| Specifications | Value |
|---|---|
| No. | 963668 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

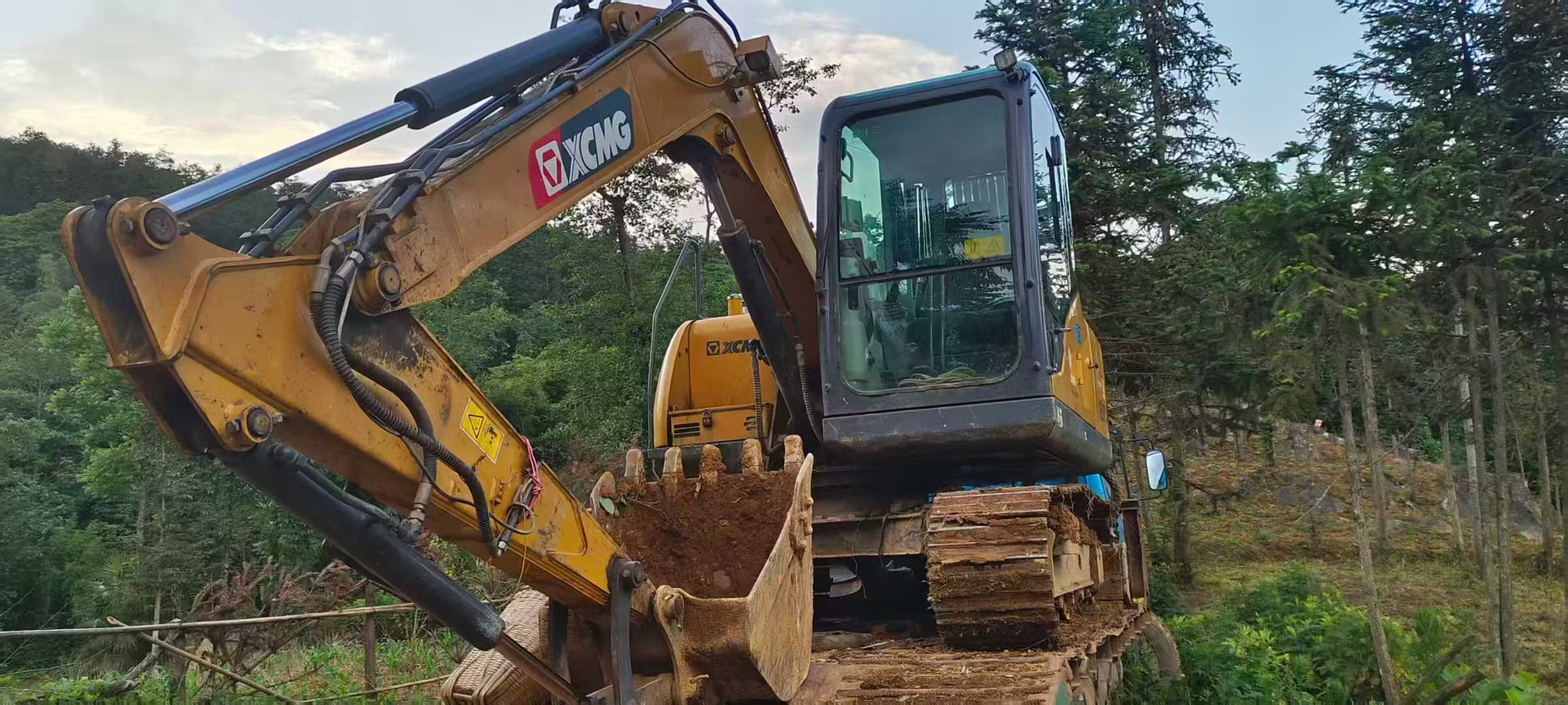

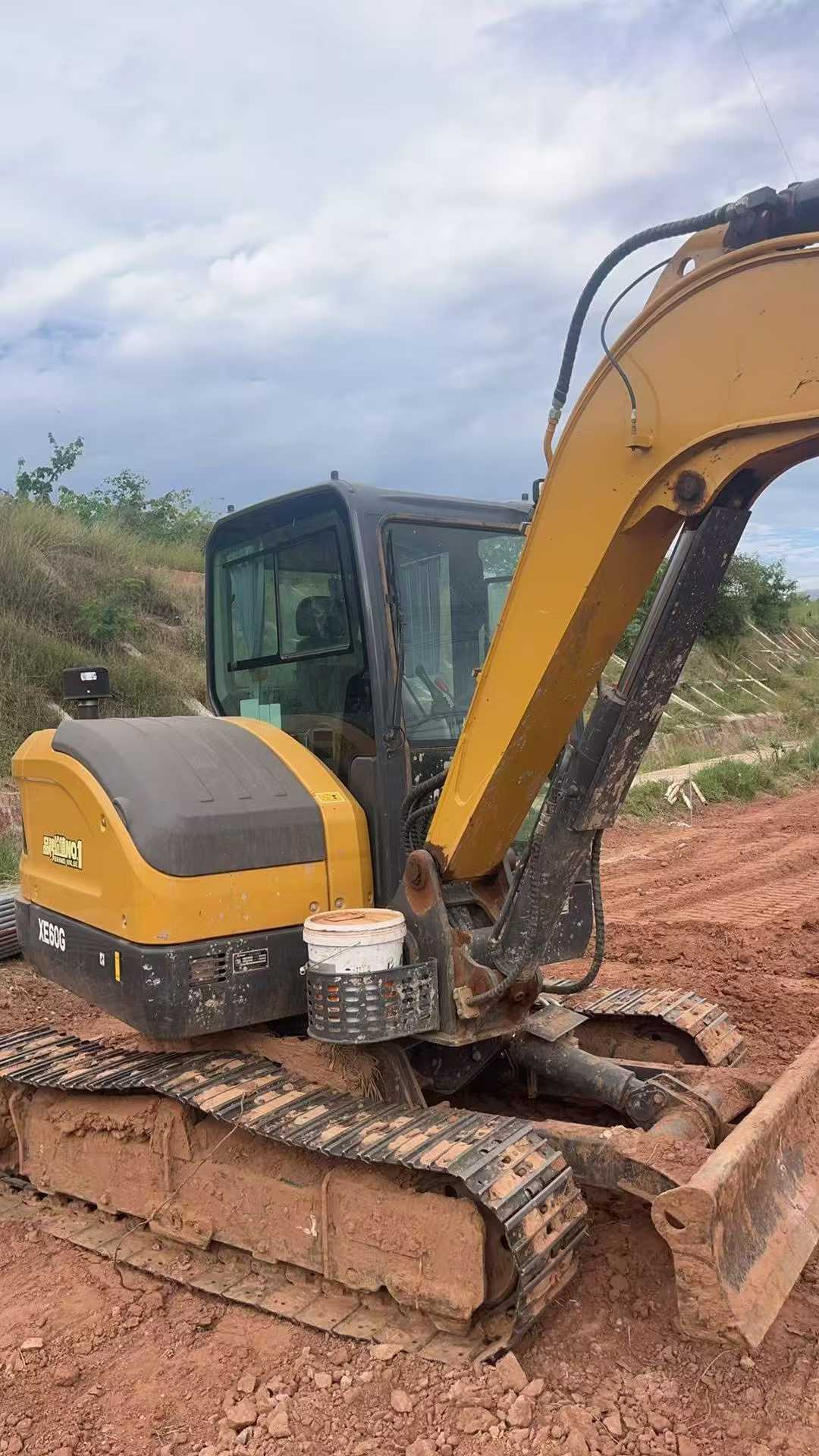

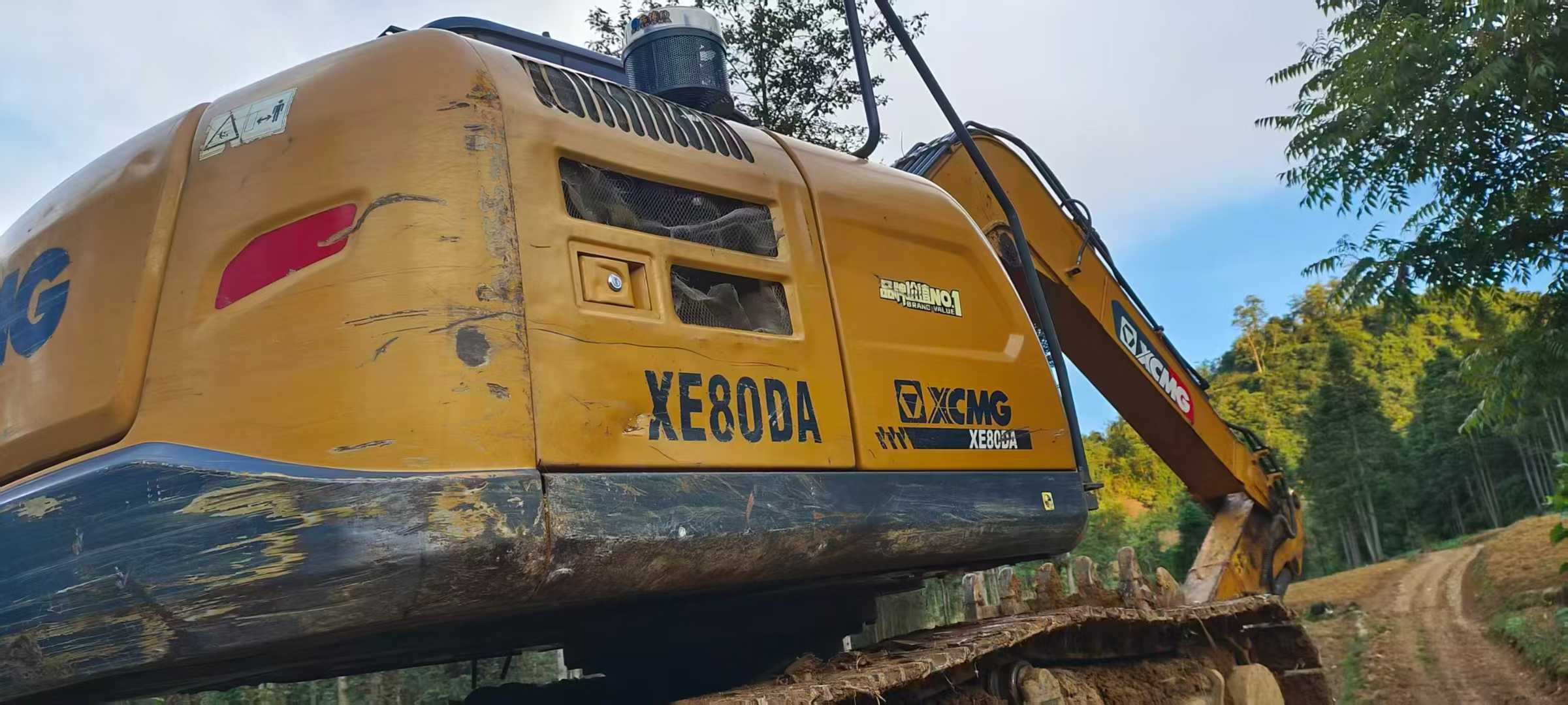

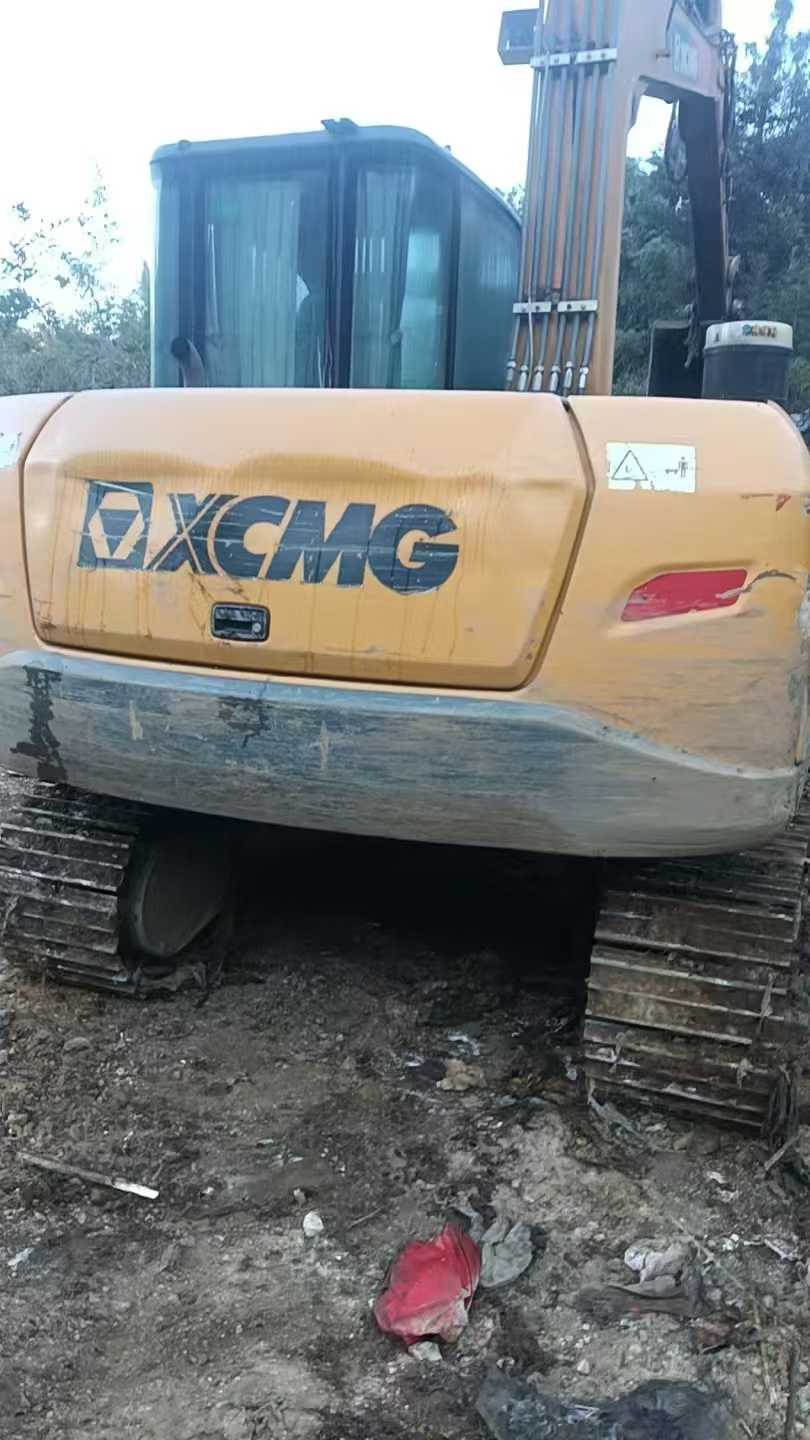

【 Premium Recommendation 】2022 XCMG XE80 second-hand excavator. This equipment has only been in operation for 1,500 hours since leaving the factory, and its overall condition is excellent, almost comparable to that of a new car. It comes with complete procedures and documents, including but not limited to vehicle qualification certificates, invoices, maintenance records, etc., ensuring that you can purchase it with peace of mind and without any worries. In terms of power, this excavator is equipped with a high-performance engine, which not only has strong power but also excellent fuel economy. It can maintain stable operation even in harsh working environments. After being tested by a professional team, all the indicators of the engine are in the best condition, and no abnormal wear or malfunction was found. The hydraulic system is one of the key factors in evaluating the performance of an excavator. This XCMG XE80 adopts advanced hydraulic technology, with a well-matched pump and valve, fast response speed, flexible and precise operation. It performs outstandingly in both digging force and lifting speed. Meanwhile, due to proper maintenance, the entire hydraulic circuit has a high level of cleanliness and no oil leakage has occurred
