| Specifications | Value |
|---|---|
| No. | 963992 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

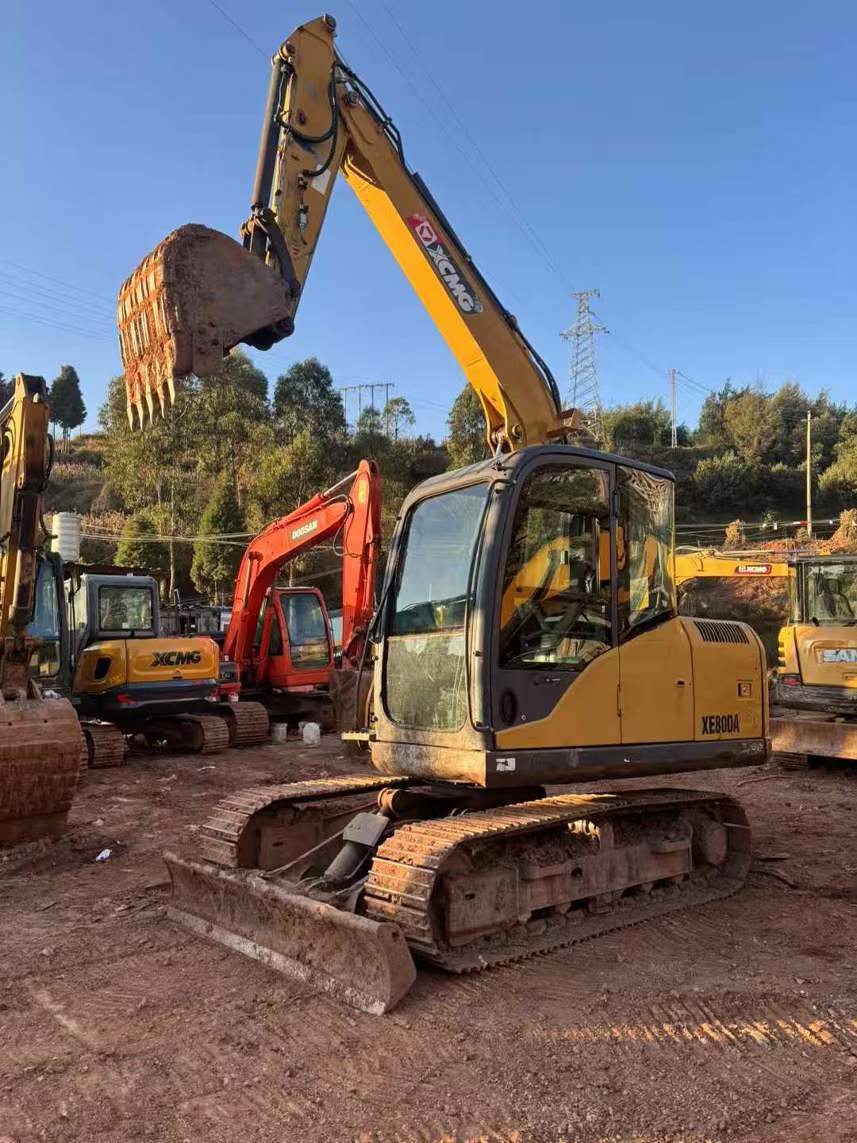

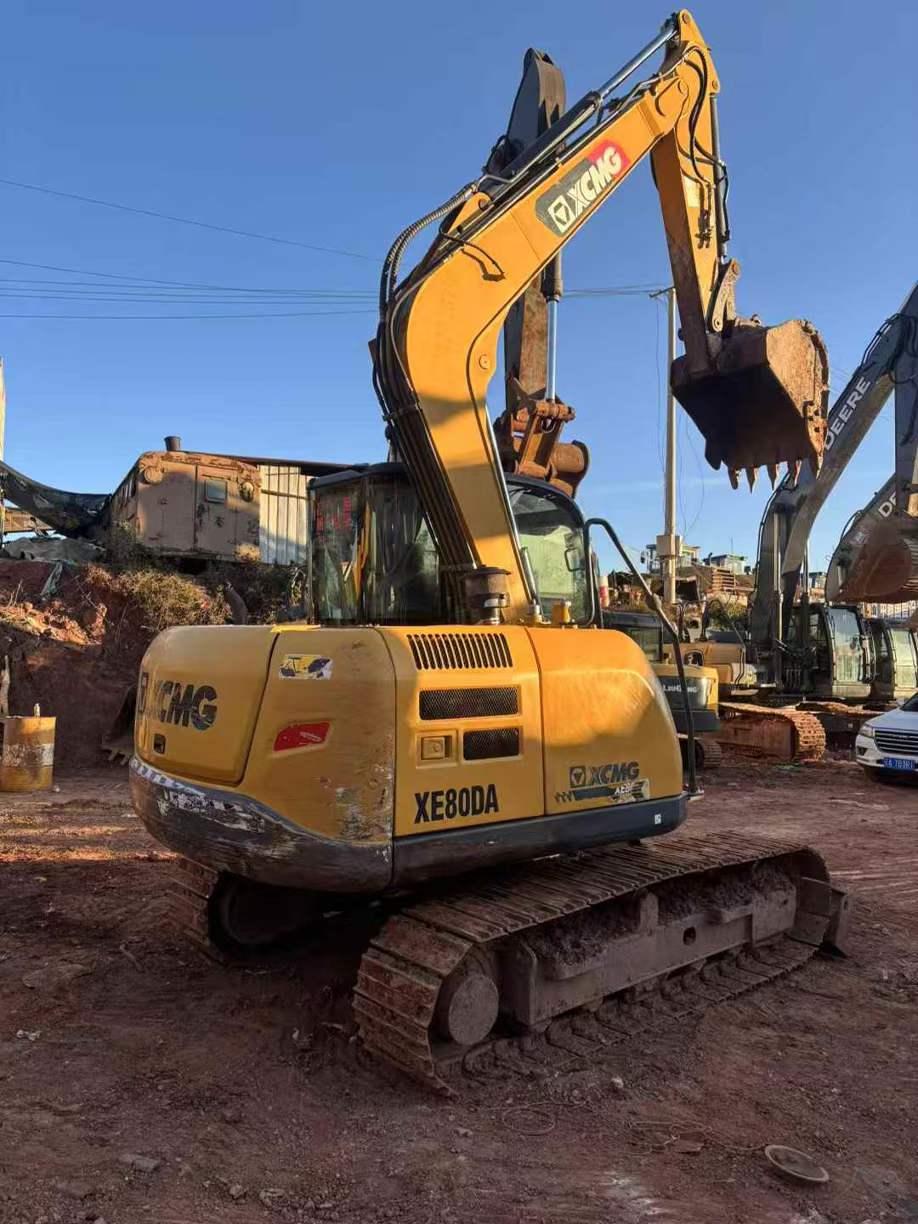

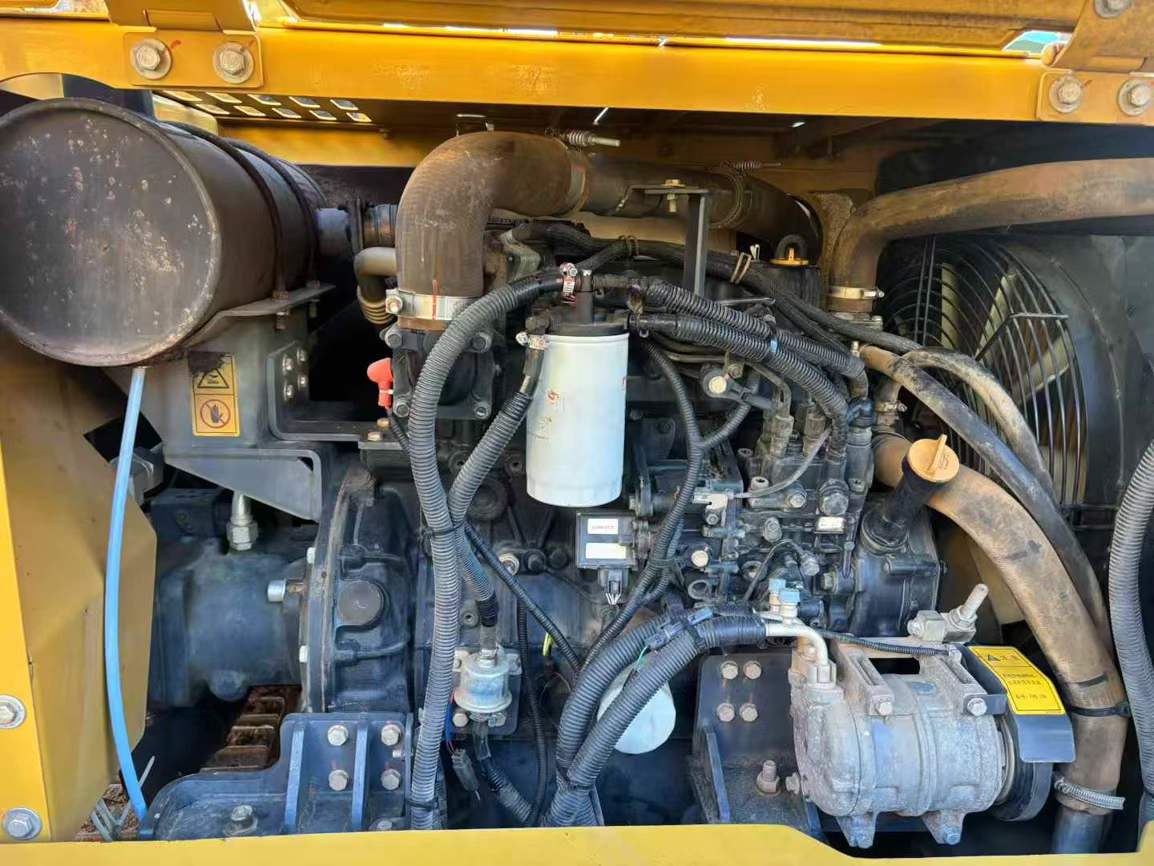

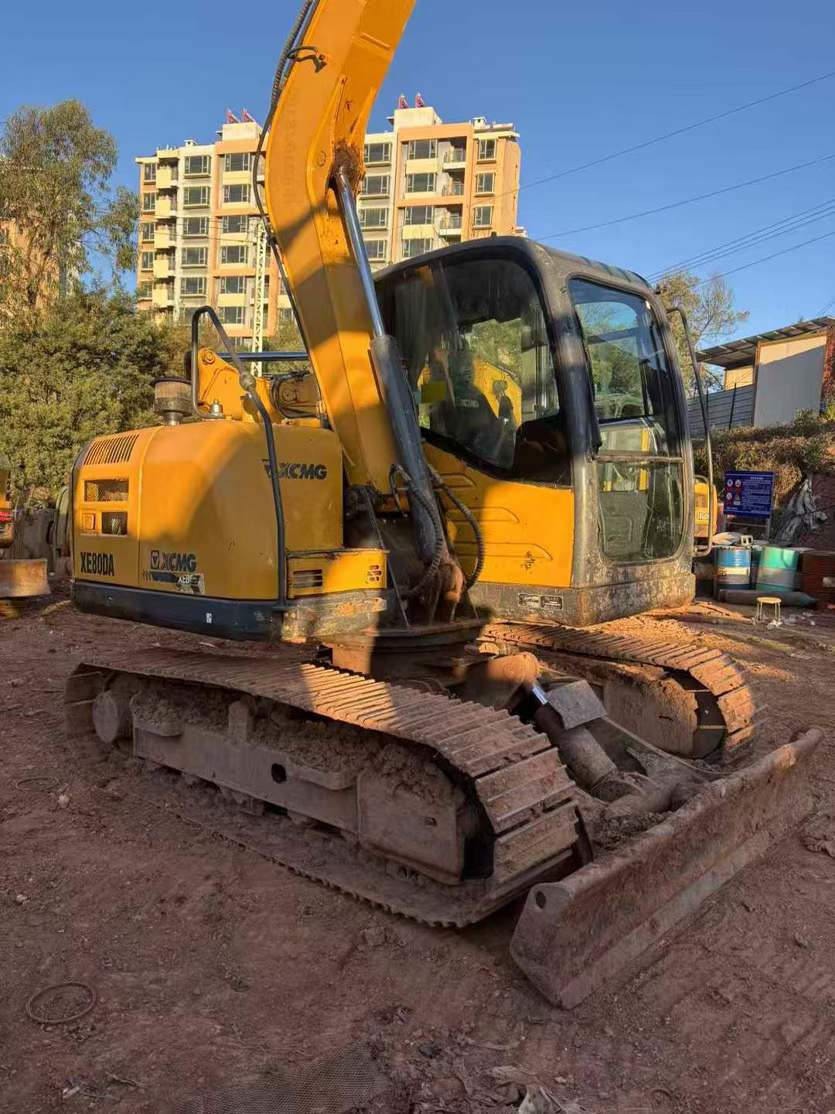

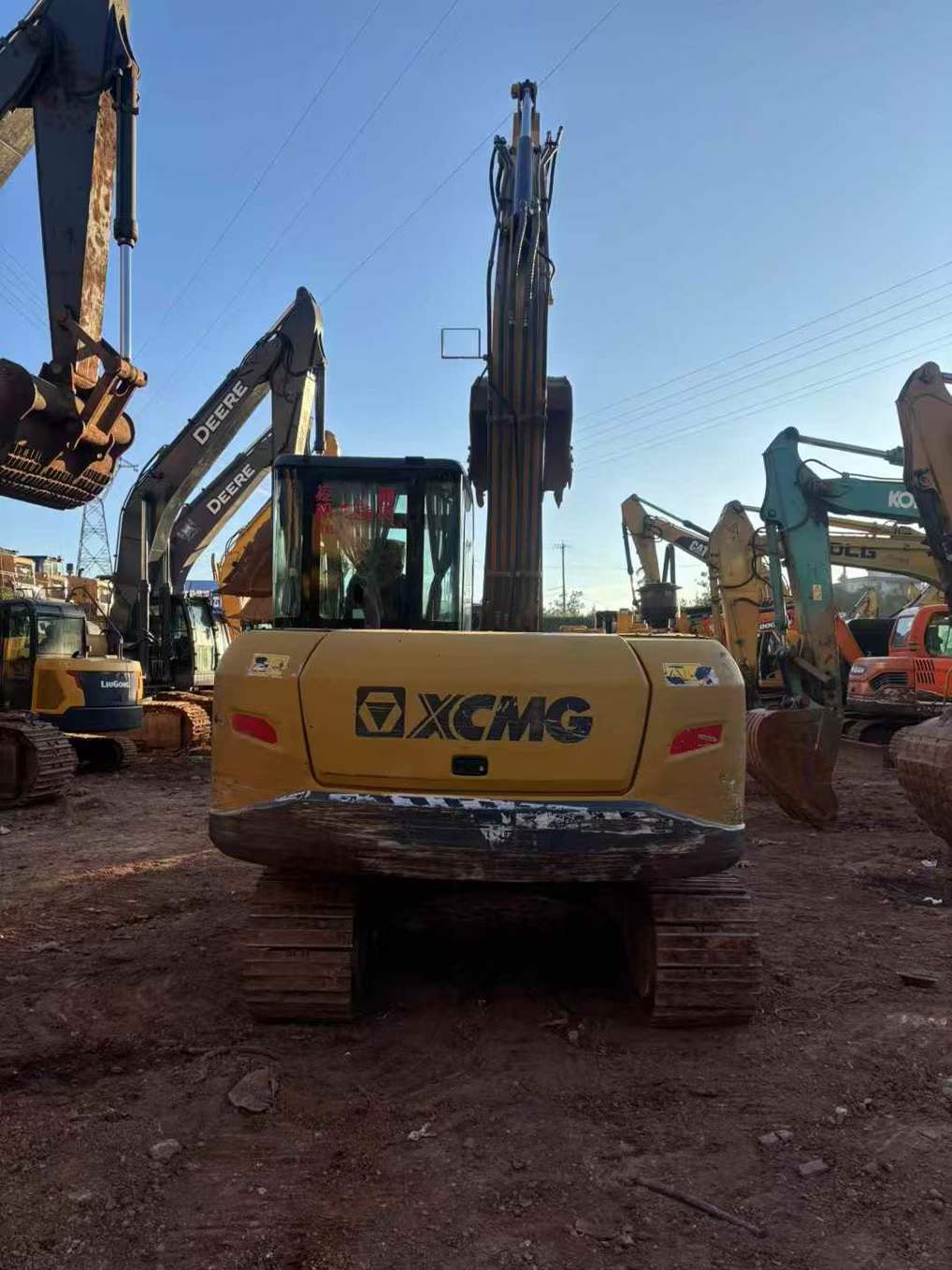

【 Premium Recommendation 】 XCMG XE80 excavator of 2019, outstanding performance, local viewing in Kunming! Since its release in 2019, this XCMG XE80 excavator has only been in operation for 3,500 hours. Its overall condition is excellent and its mechanical performance is stable and reliable. As a medium-sized excavator, it is not only suitable for various earthwork projects and municipal construction, but also widely used in mining, farmland water conservancy and other projects, serving as your reliable assistant in construction. In terms of power, this aircraft is equipped with a high-performance Yanmar 4TNV98 engine, with a maximum power output of 42.4kW at 2200rpm, offering strong power output and excellent fuel economy. Even in harsh working environments, it can maintain efficient operation to ensure the smooth progress of your engineering projects. The hydraulic system adopts advanced negative flow control technology, which can automatically adjust the flow rate according to the actual load, effectively reducing energy consumption while improving work efficiency. In addition, this model is also equipped with a large-capacity fuel tank, ensuring the demand for long-term continuous operation, reducing the frequency of refueling a
