| Specifications | Value |
|---|---|
| No. | 964120 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

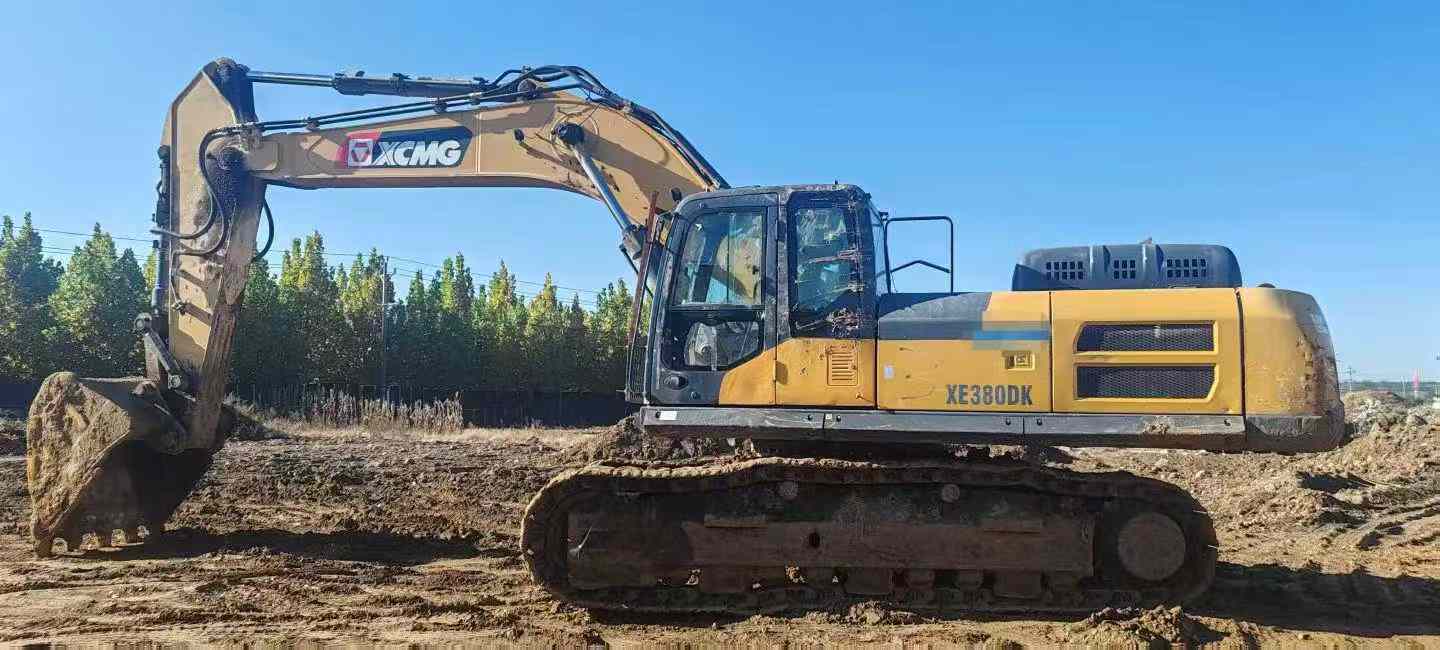

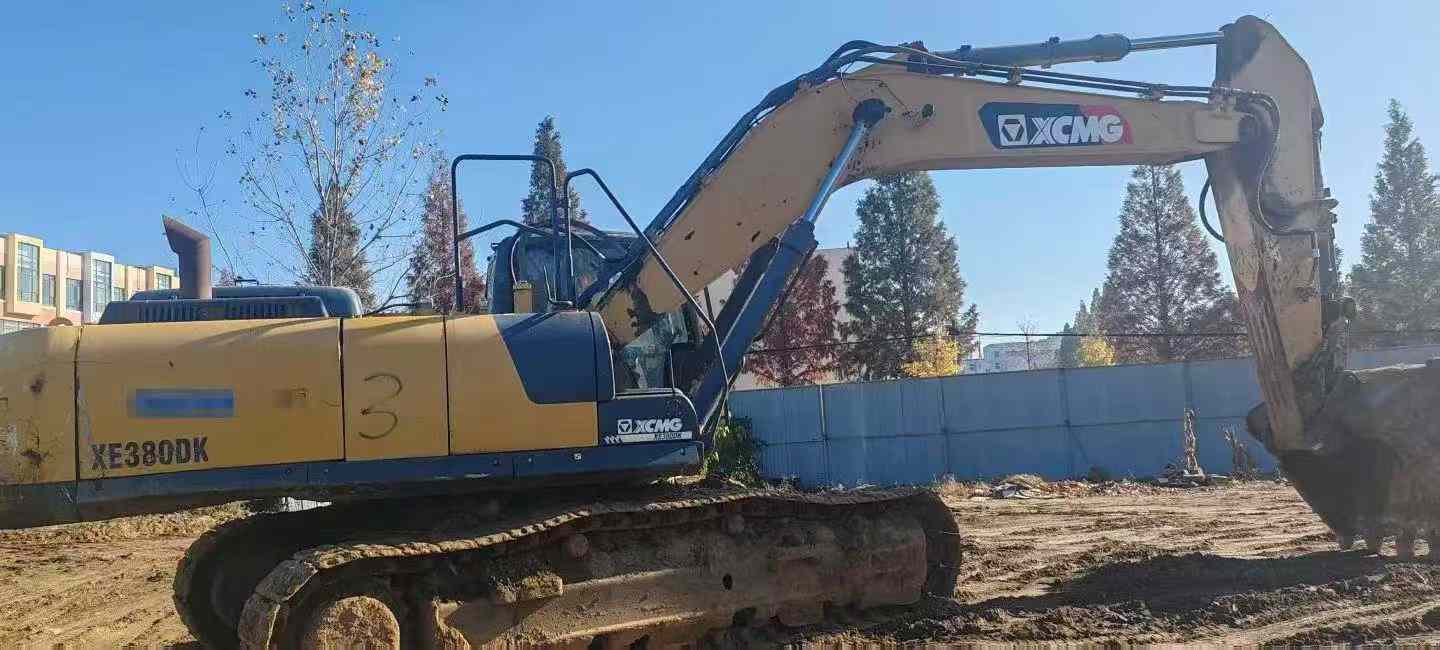

【 Second-hand XCMG XE380 Excavator This XCMG XE380 excavator, a premium device manufactured at the end of 2020, has only been in operation for about 2,000 hours so far and is in excellent condition. As a medium to large-sized excavator, it performs particularly well in heavy-duty working environments such as mines, quarries, and earthwork projects. This machine is equipped with a high-performance Cummins QSB6.7-C240 engine, which is powerful and fuel-efficient. Its maximum power can reach 179KW at 2100rpm. It not only meets the National III emission standards but also provides abundant power output at low speeds, ensuring efficient operation while reducing fuel consumption. In terms of the hydraulic system, this excavator is equipped with advanced negative flow control technology, which makes the movement smoother and more precise, and the response speed faster, greatly improving work efficiency. The main pump is designed as a bivariable plunger pump, ensuring the stability and reliability of the entire machine during operation. In addition, its spacious and comfortable cab, all-round view and user-friendly operation interface also provide drivers with a good working environment, effectively alleviating the fatigue caused by long hou
