| Specifications | Value |
|---|---|
| No. | 964753 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

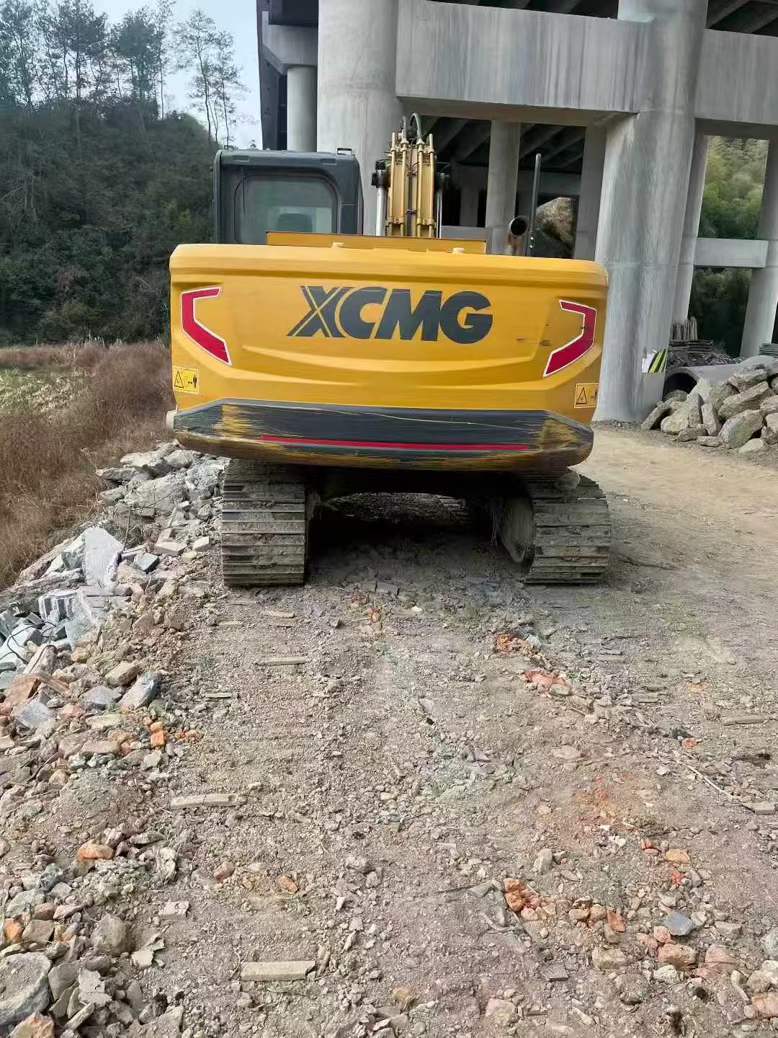

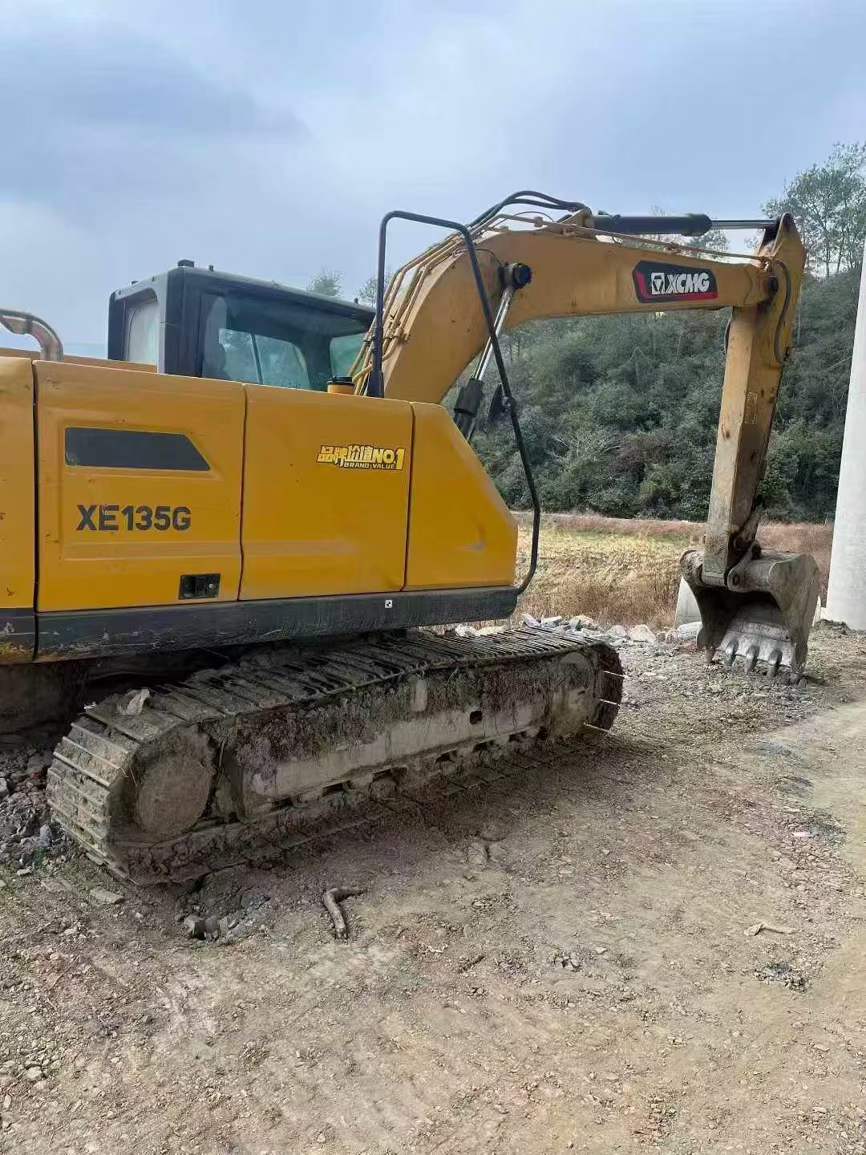

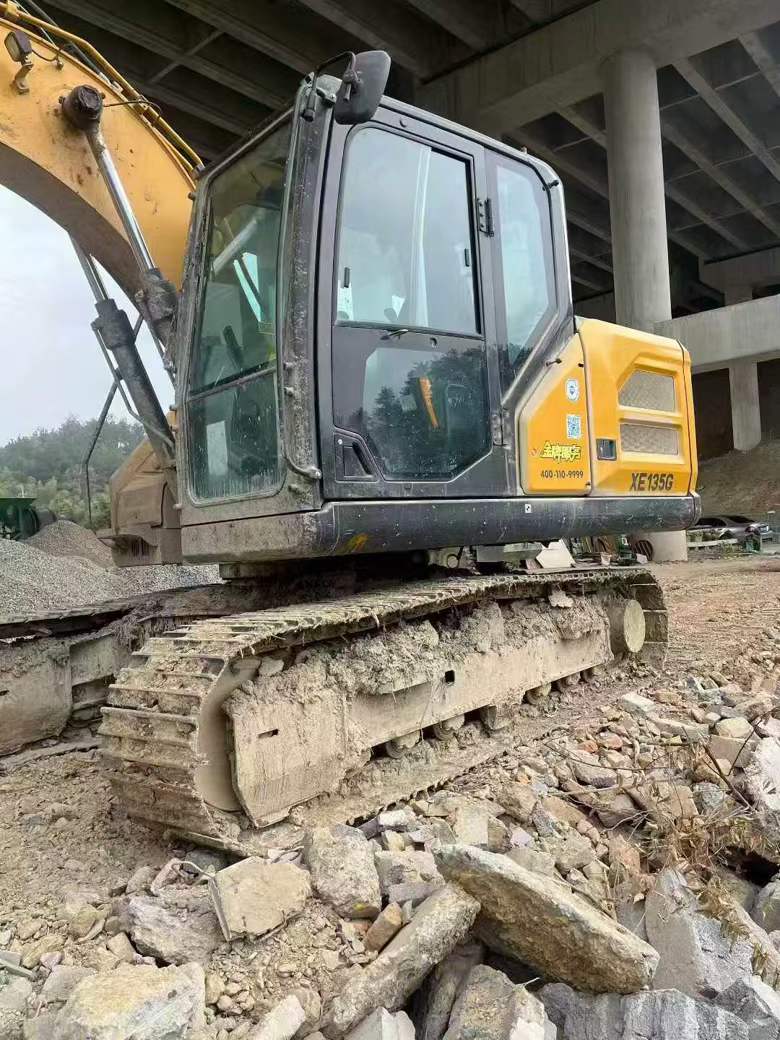

【 Premium Recommendation 】 XCMG XE135 second-hand excavator, 2024 model, with only 1800 hours of use, complete procedures, and outstanding performance, it is your reliable assistant in engineering projects! This XCMG XE135 excavator adopts an advanced power system and is equipped with a highly efficient and energy-saving engine. It not only has strong power but also excellent fuel economy. During long-term operation, this engine has performed stably and reliably, with low noise and small vibration, ensuring the comfort and work efficiency of the operators. In addition, it is equipped with an efficient cooling system, which can maintain a good working condition even in high-temperature environments. In terms of the hydraulic system, XCMG XE135 adopts advanced hydraulic technology, featuring an outstanding response speed and a smooth operating experience. Whether it is excavation, loading or crushing operations, they can all be handled with ease, greatly improving the construction efficiency. Meanwhile, the maintenance and upkeep of its hydraulic system are also very convenient, reducing the maintenance costs in the later stage. It is worth mentioning that this excavator has undergone strict inspection and maintenance, and all key com
