| Specifications | Value |
|---|---|
| No. | 965935 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

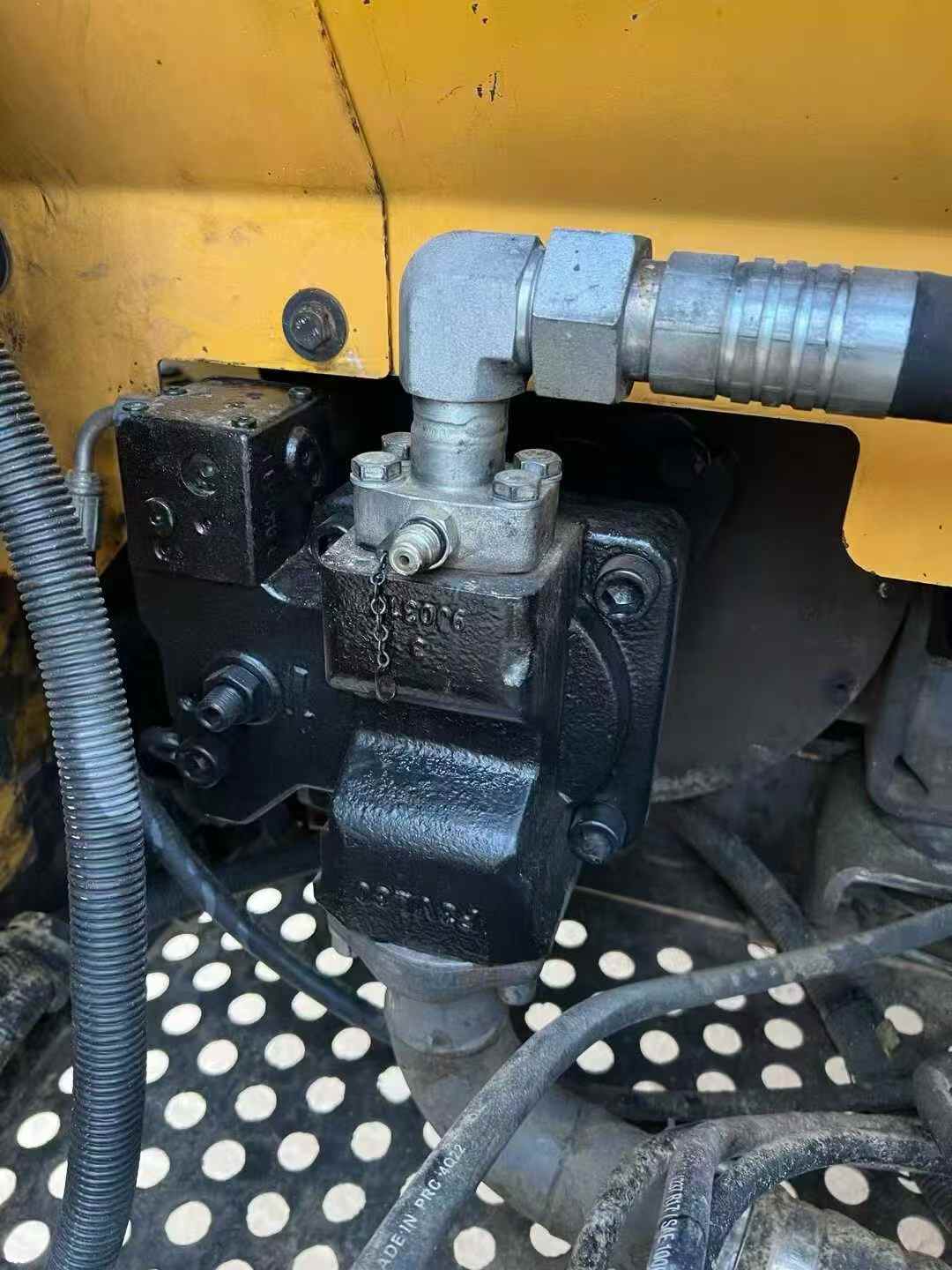

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

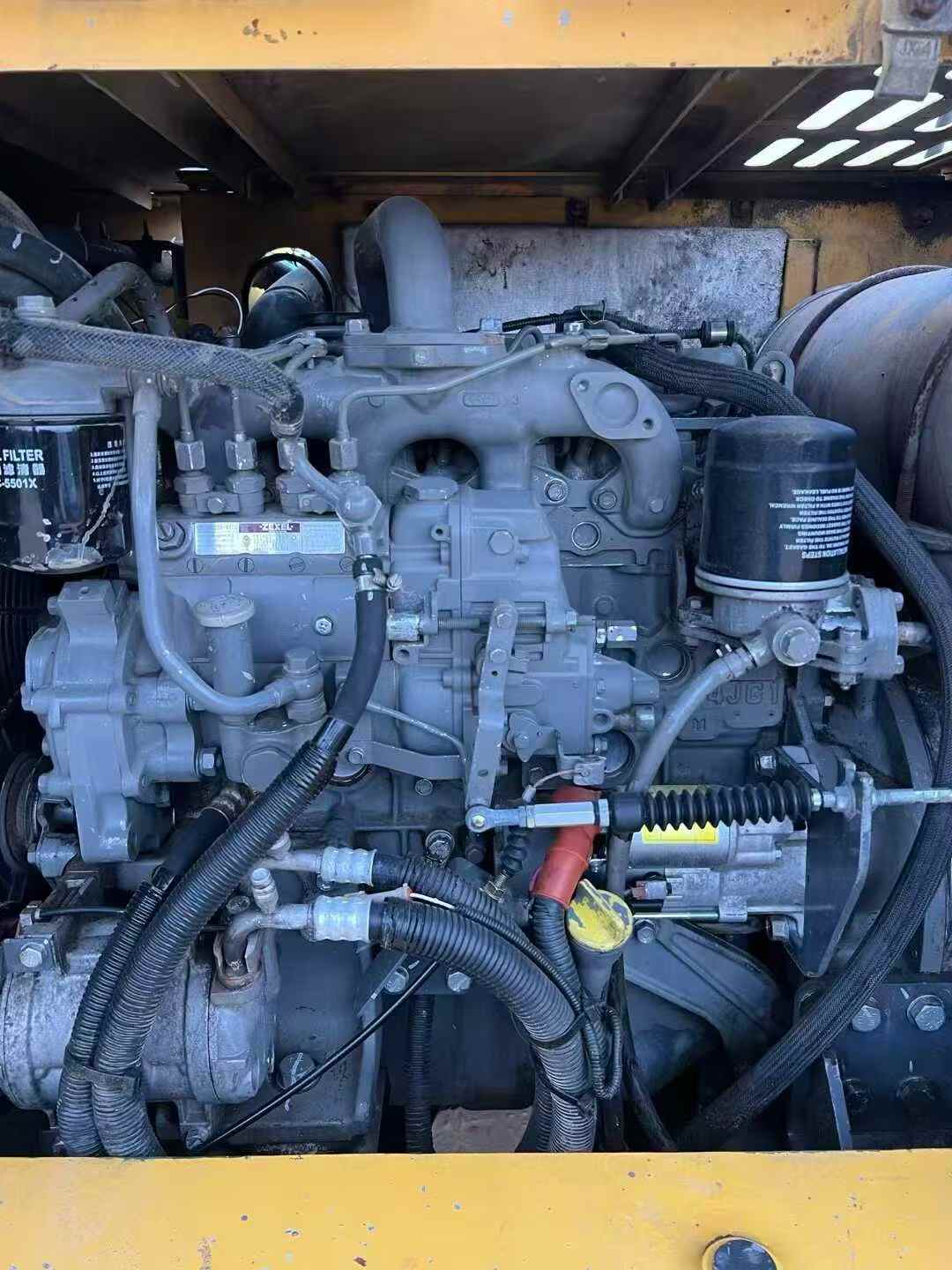

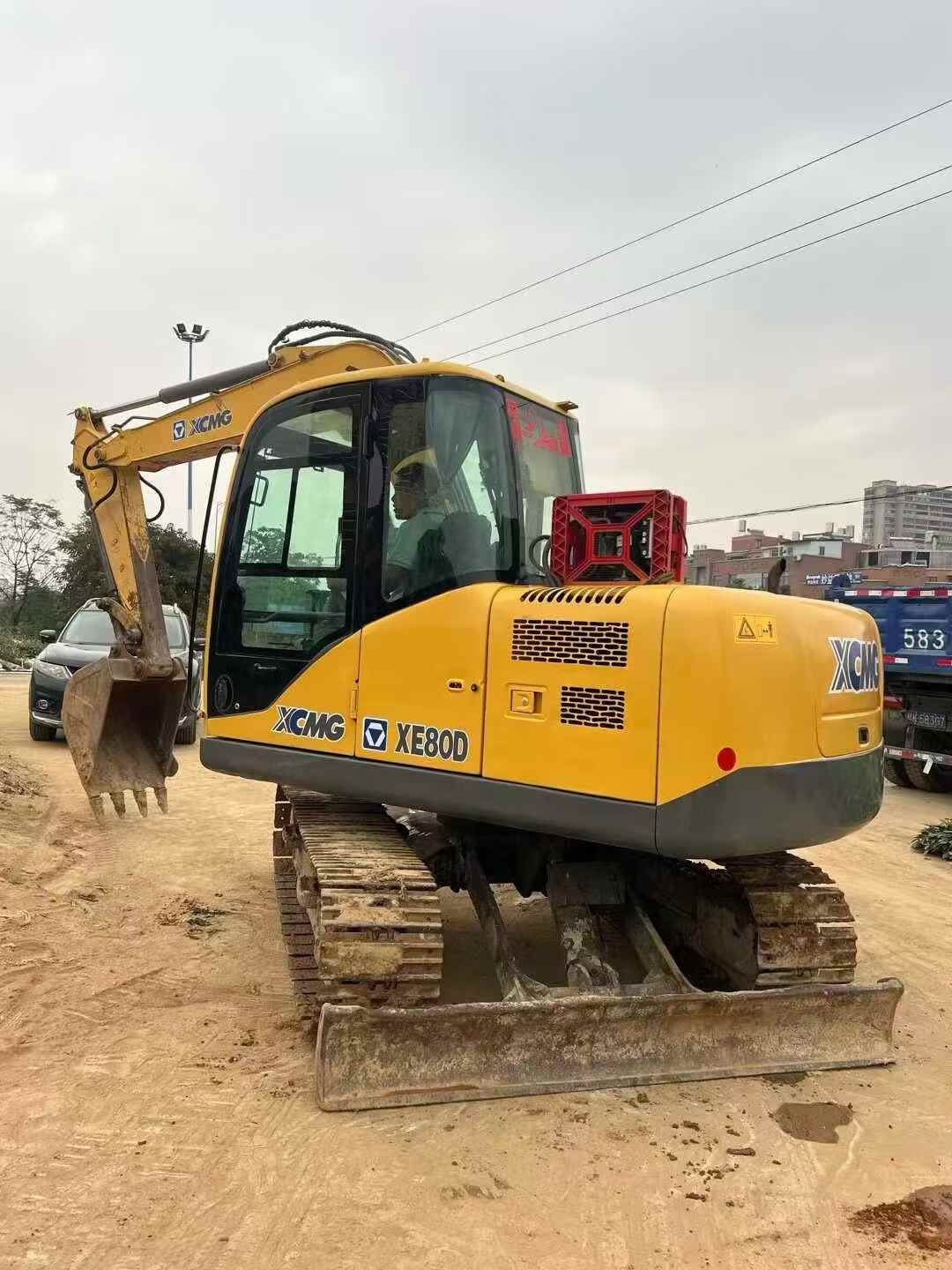

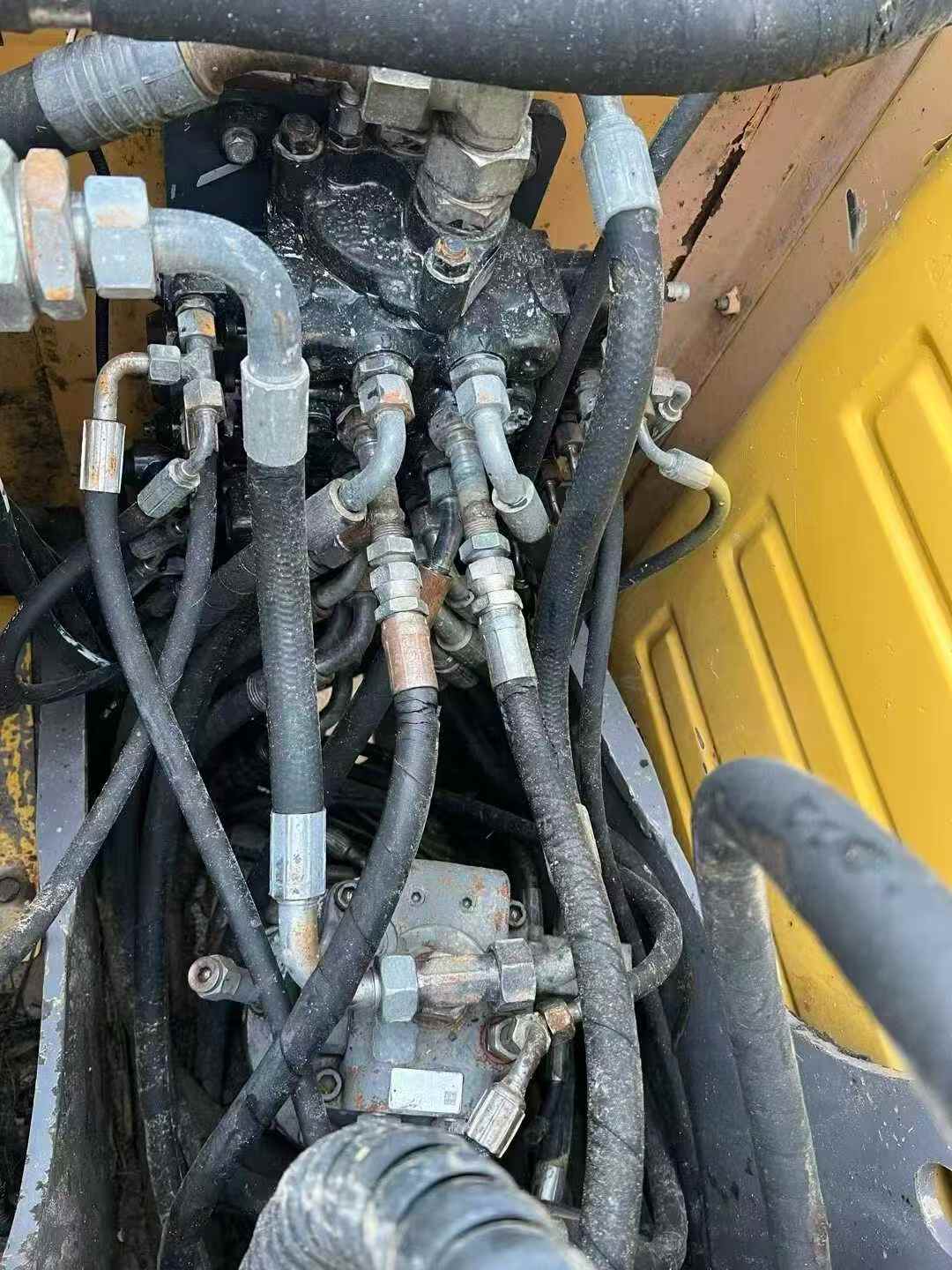

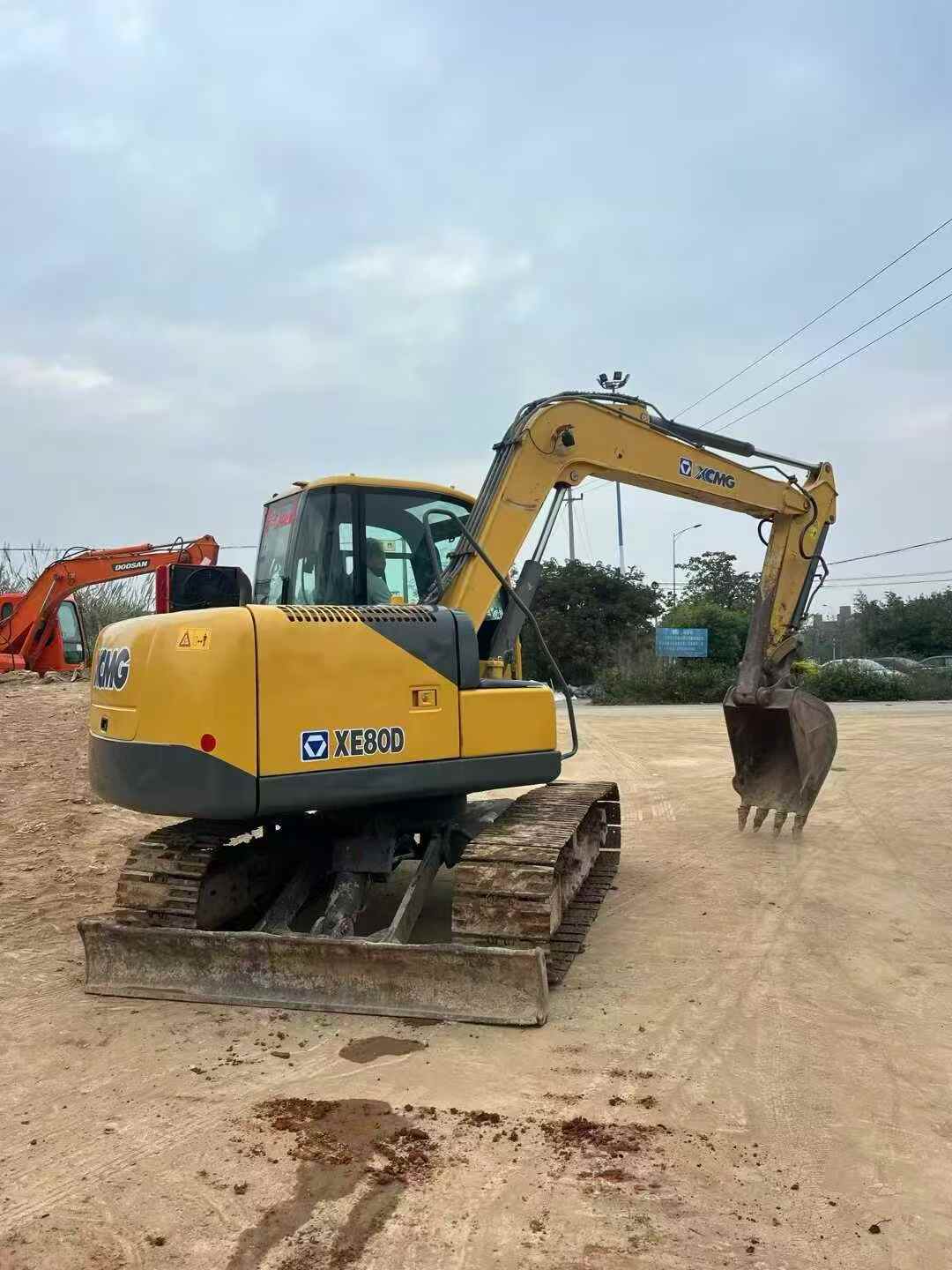

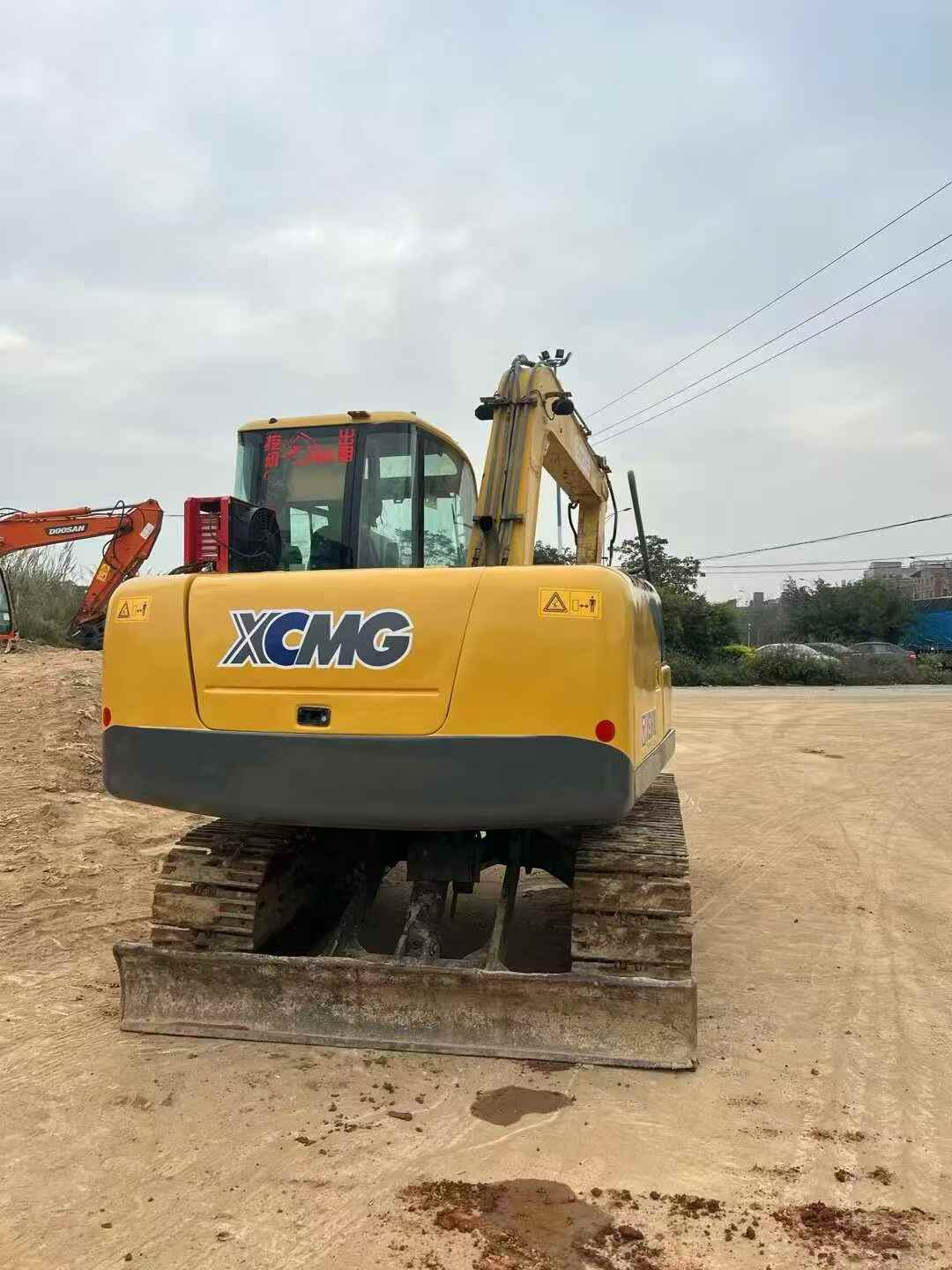

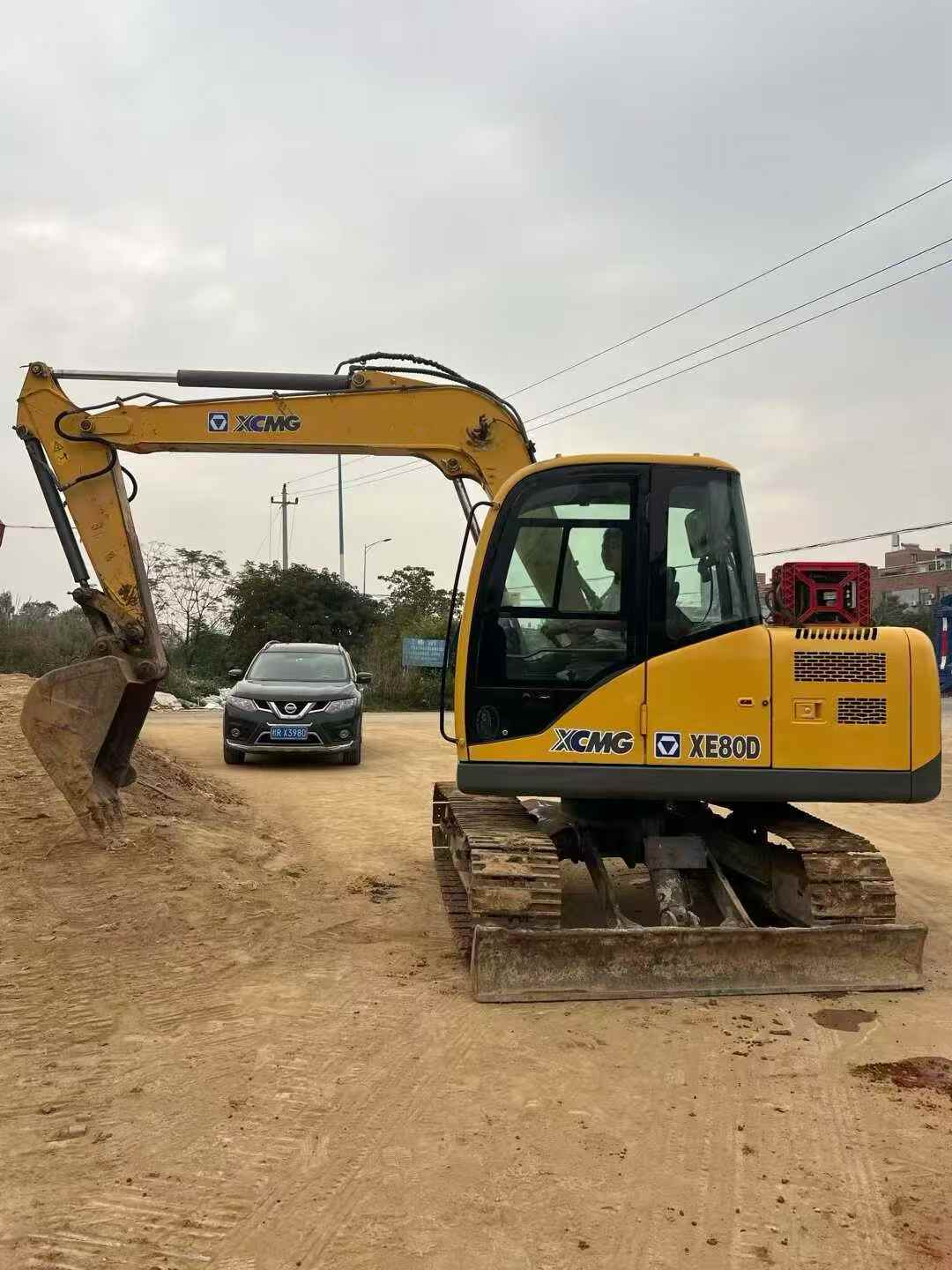

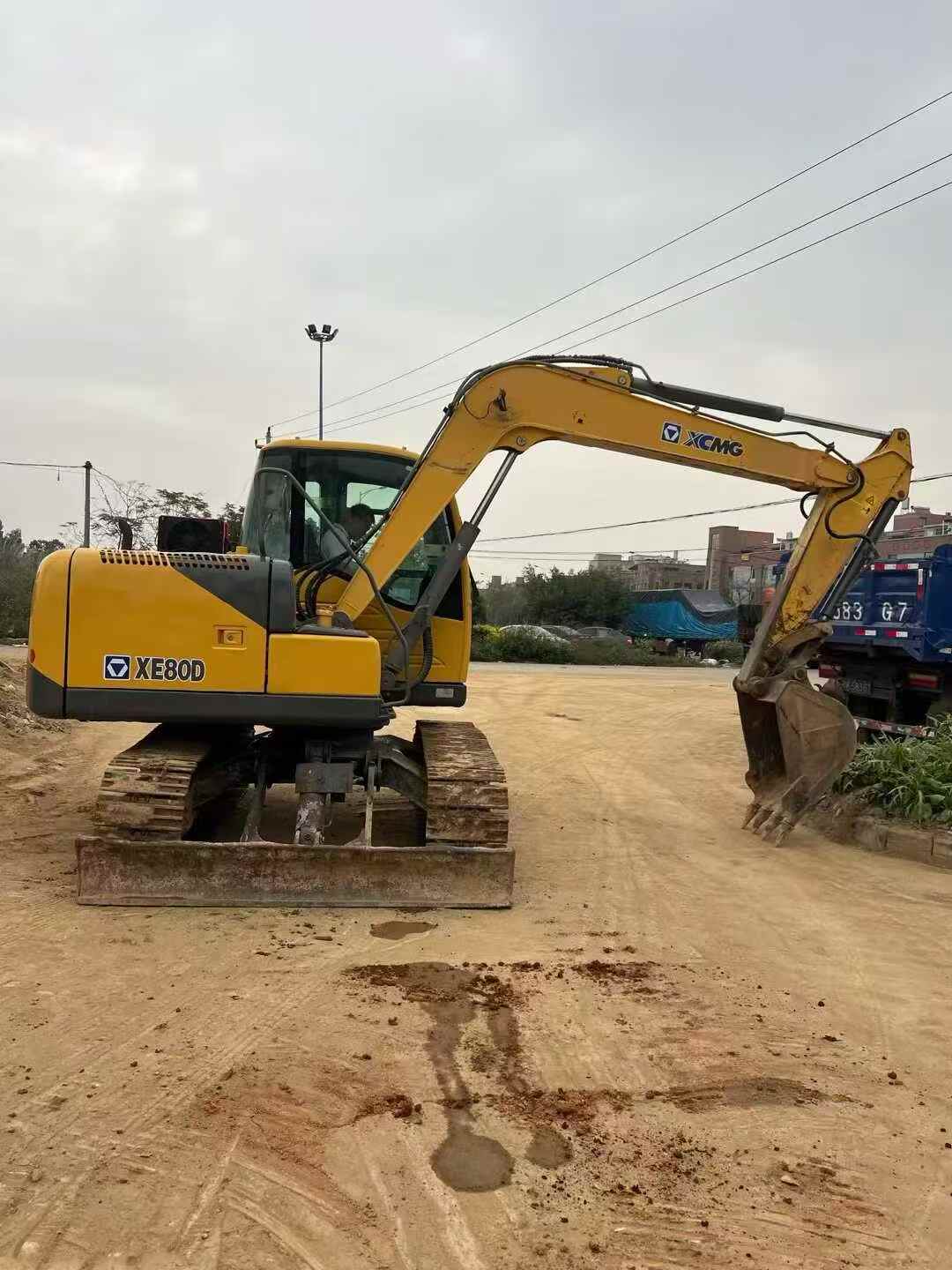

XCMG 80 excavator, highly efficient and stable, the best choice for cost performance This XCMG 80 excavator is one of the most popular small excavators in the market. With a super value price of 73,000 yuan, it is not only suitable for individual entrepreneurs but also for small engineering companies. This machine has a working time of only 1,200 hours. With low usage frequency and proper maintenance, it can almost be said to be in a nearly new car condition. In terms of the power system, this XCMG 80 excavator is equipped with a high-performance four-cylinder water-cooled turbocharged engine, which is powerful and has good fuel economy, and can easily handle various complex working environments. Whether it is excavation, loading or crushing operations, it can provide sufficient power support to ensure construction efficiency. The hydraulic system adopts advanced load-sensitive technology, which can automatically adjust the oil volume according to the actual working load, thereby achieving more precise operation control and higher working efficiency. In addition, its robust and durable design ensures that the entire machine maintains excellent performance even under long-term and high-intensity operation. We have also prepared deta
