| Specifications | Value |
|---|---|
| No. | 968591 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

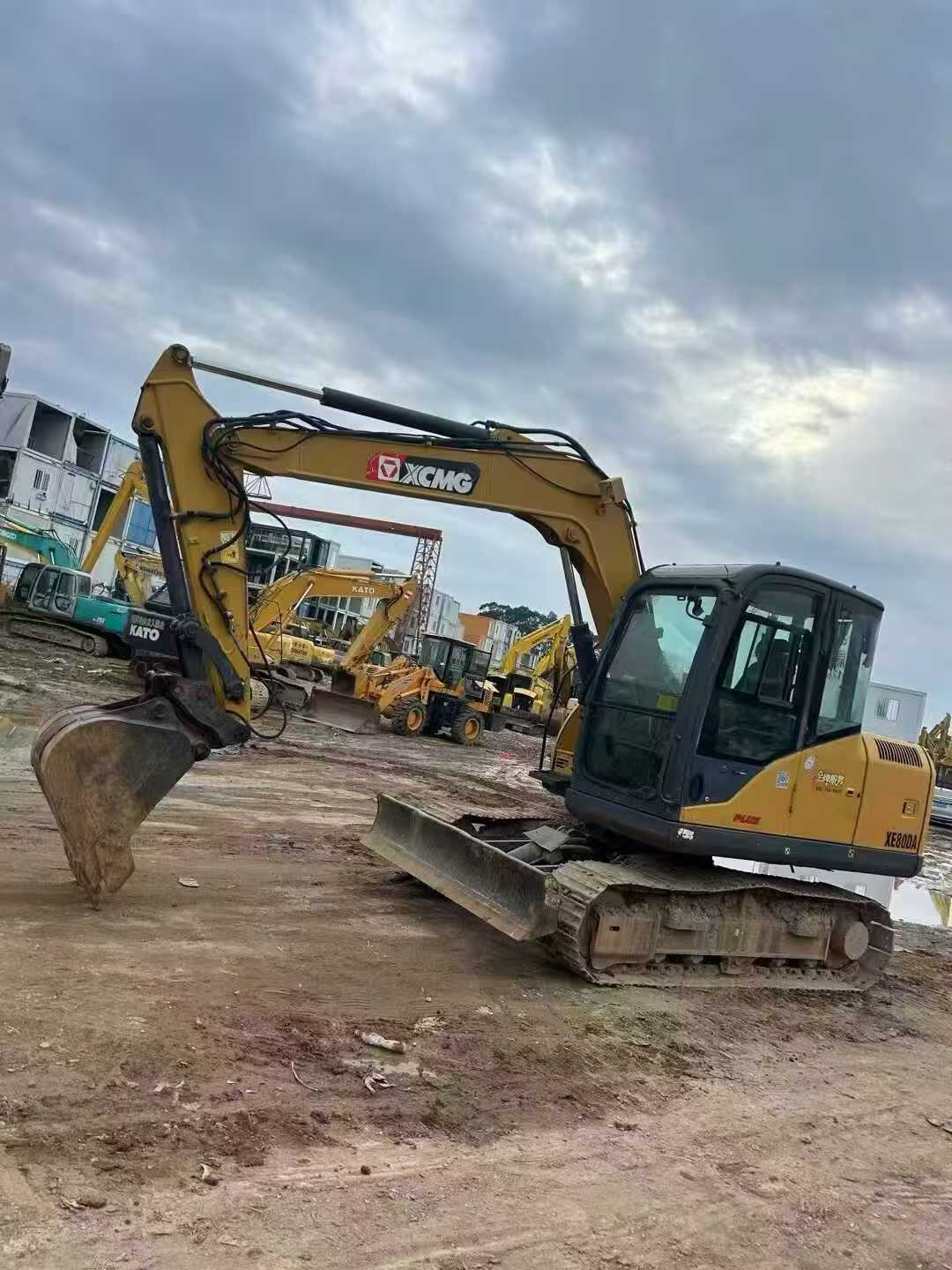

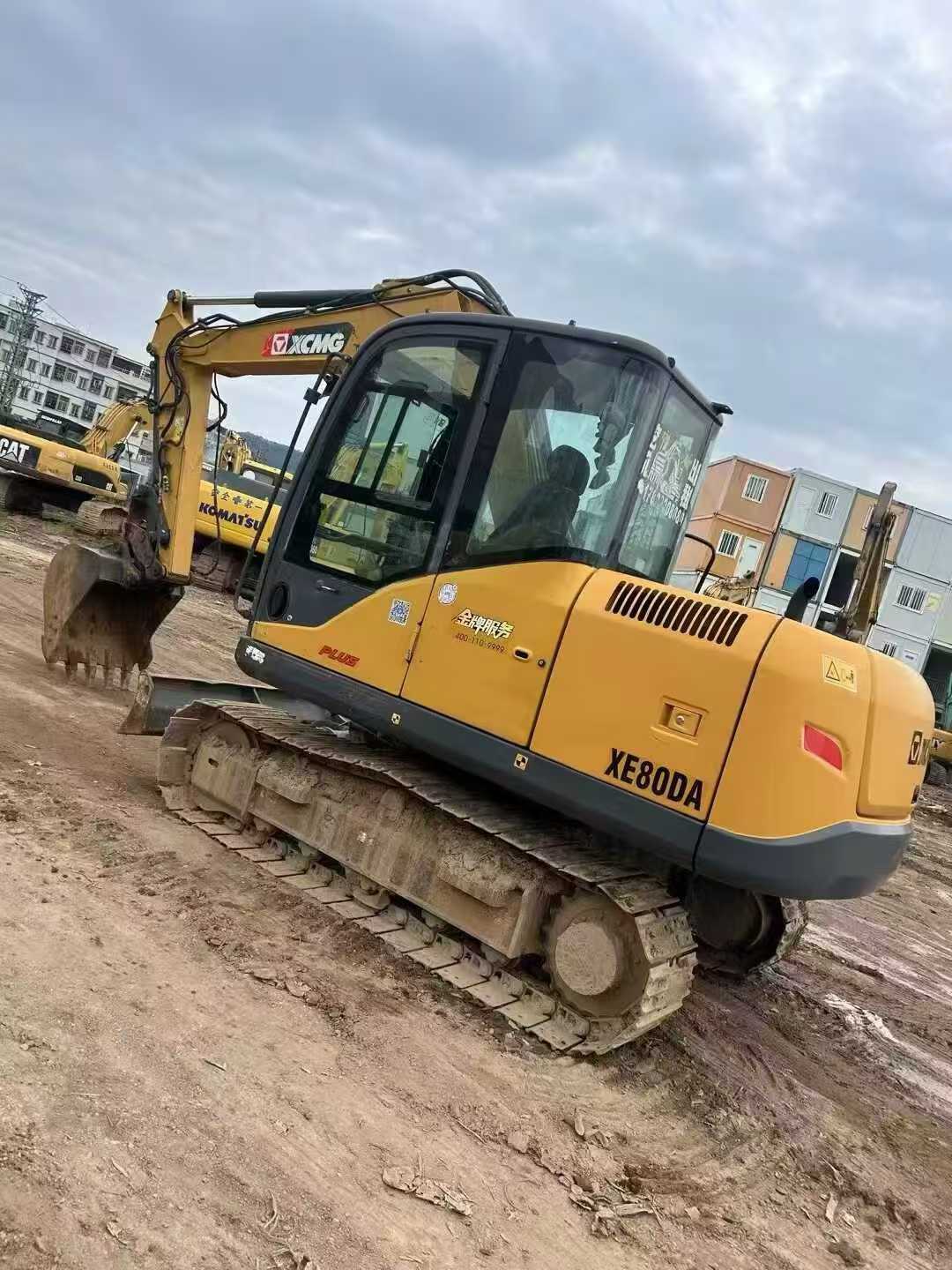

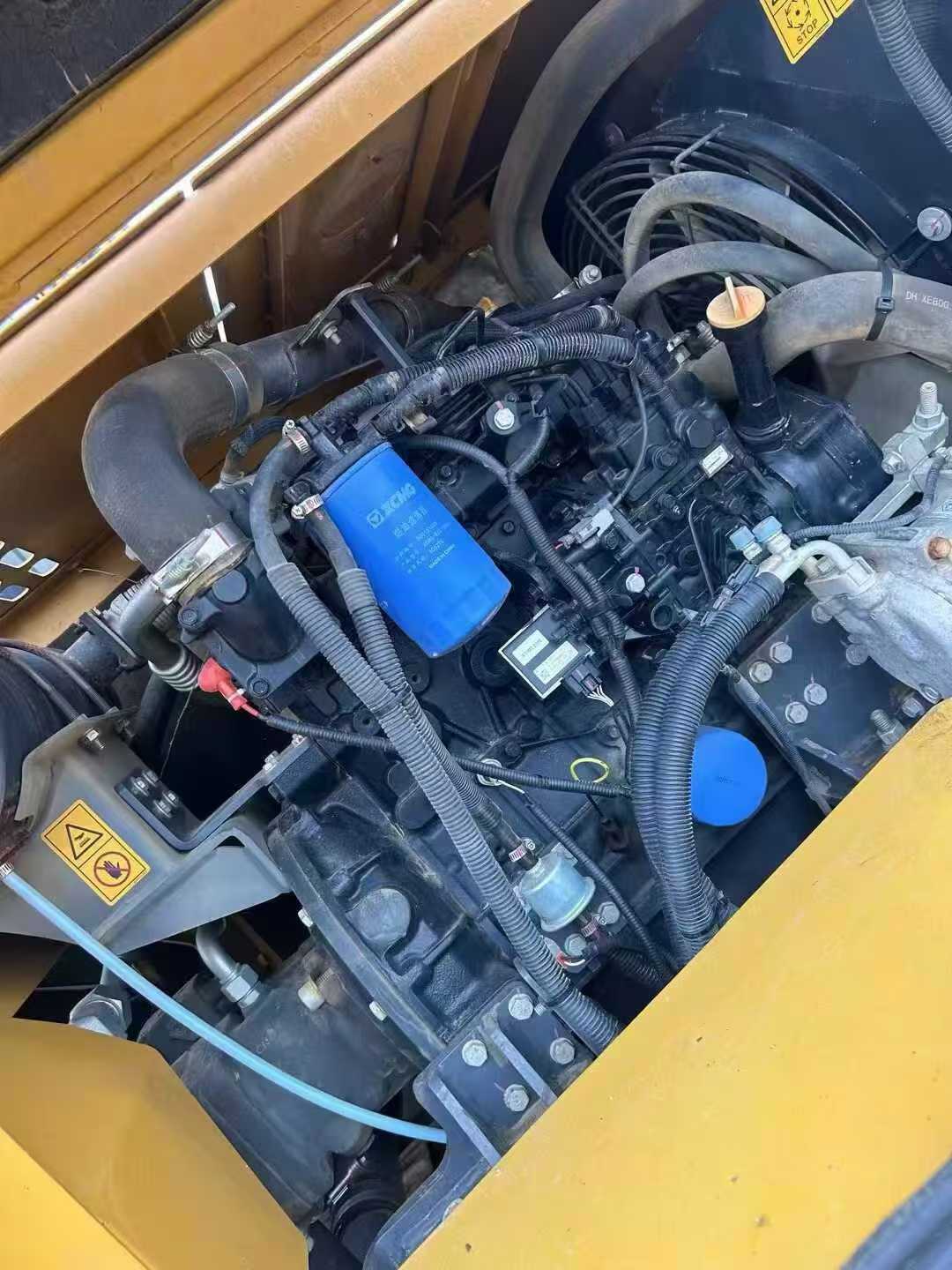

【 Premium Recommendation 】 Second-hand XCMG XE80 excavator from 2020, no inspection required for machine condition, affordable price! This XCMG XE80 excavator was manufactured in 2020 and has only been in operation for 1,500 hours so far, remaining in its best working condition. The whole machine is made of high-quality steel, with a solid and durable structure and a well-maintained appearance, showing no obvious damage or rust. The engine selected is an imported Cummins brand, which is powerful, stable and reliable, starts quickly, has low fuel consumption and low noise. In terms of the hydraulic system, this machine adopts advanced negative flow control technology, ensuring smooth and accurate operation. It can handle tasks such as excavation, loading and crushing with ease. In addition, it is equipped with a large-capacity fuel tank and an efficient heat dissipation device, which can effectively extend the continuous working time and improve work efficiency. It is worth mentioning that this excavator has been comprehensively tested and certified by a professional team. All key components are in good operating condition, so there is no need to worry about any potential malfunction issues. More importantly, the prices we offer are f
