| Specifications | Value |
|---|---|
| No. | 969829 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

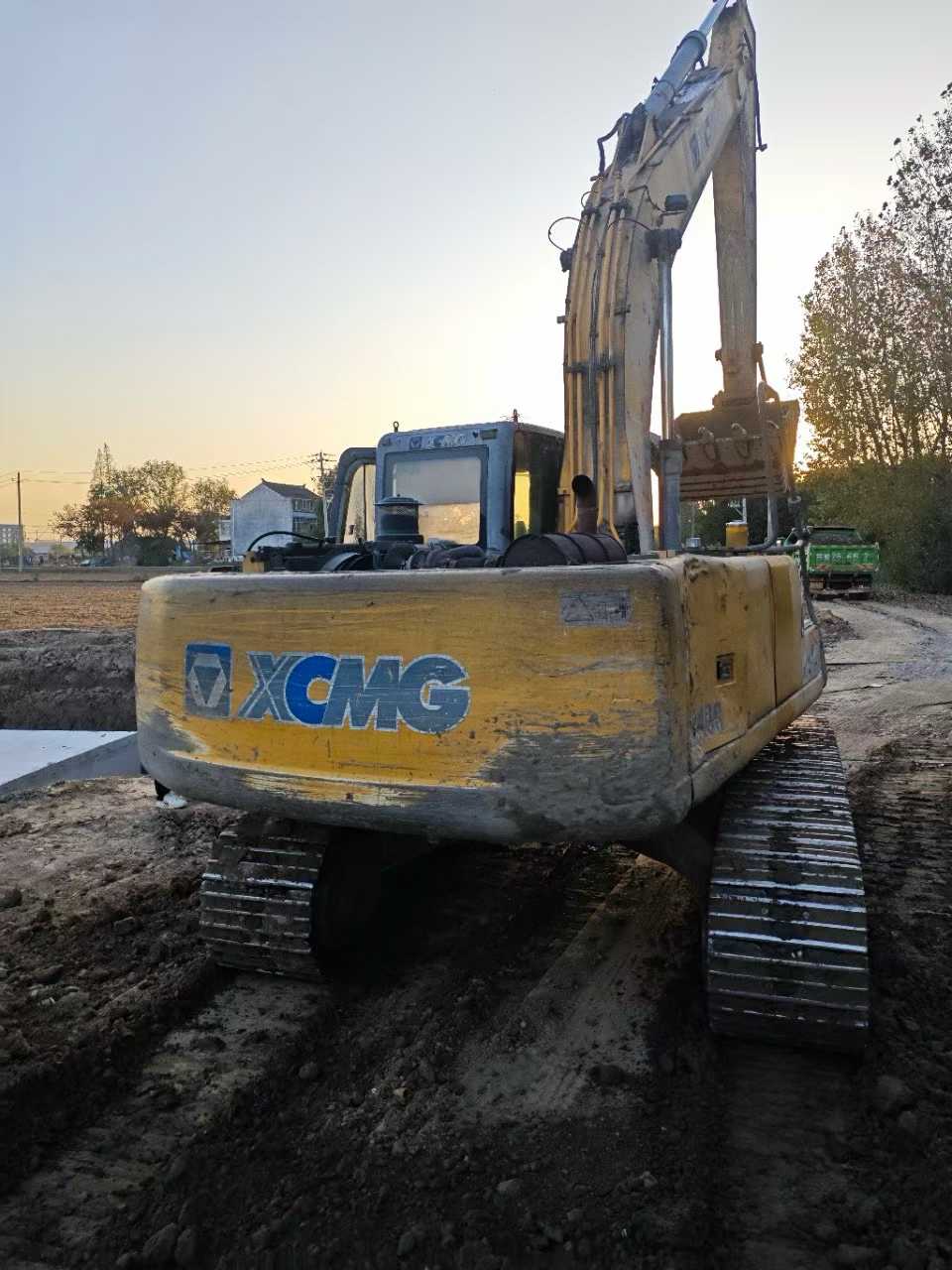

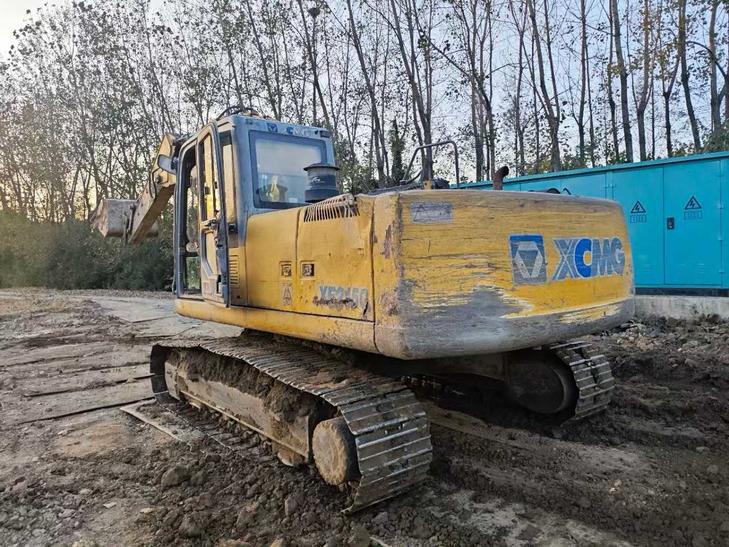

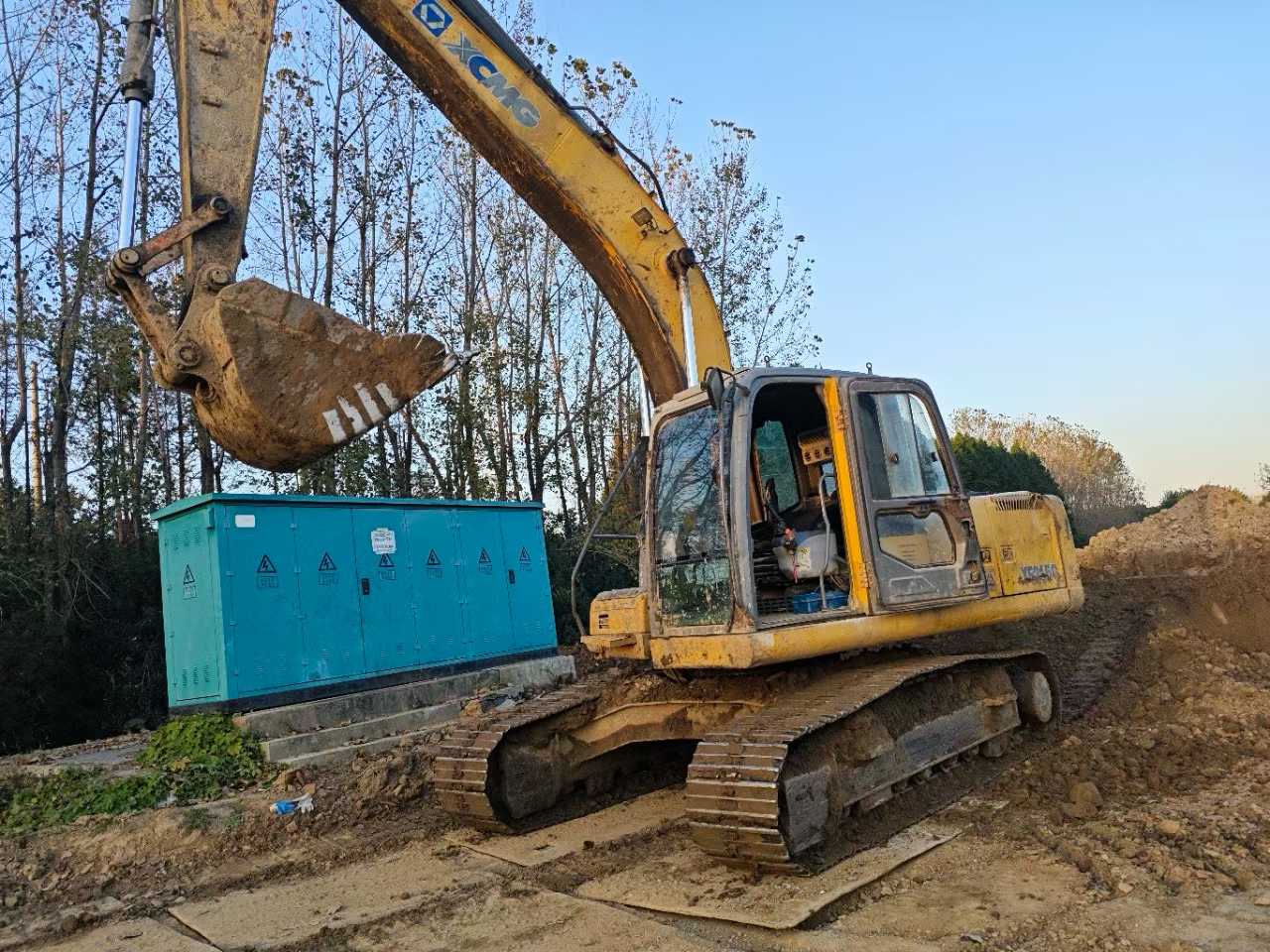

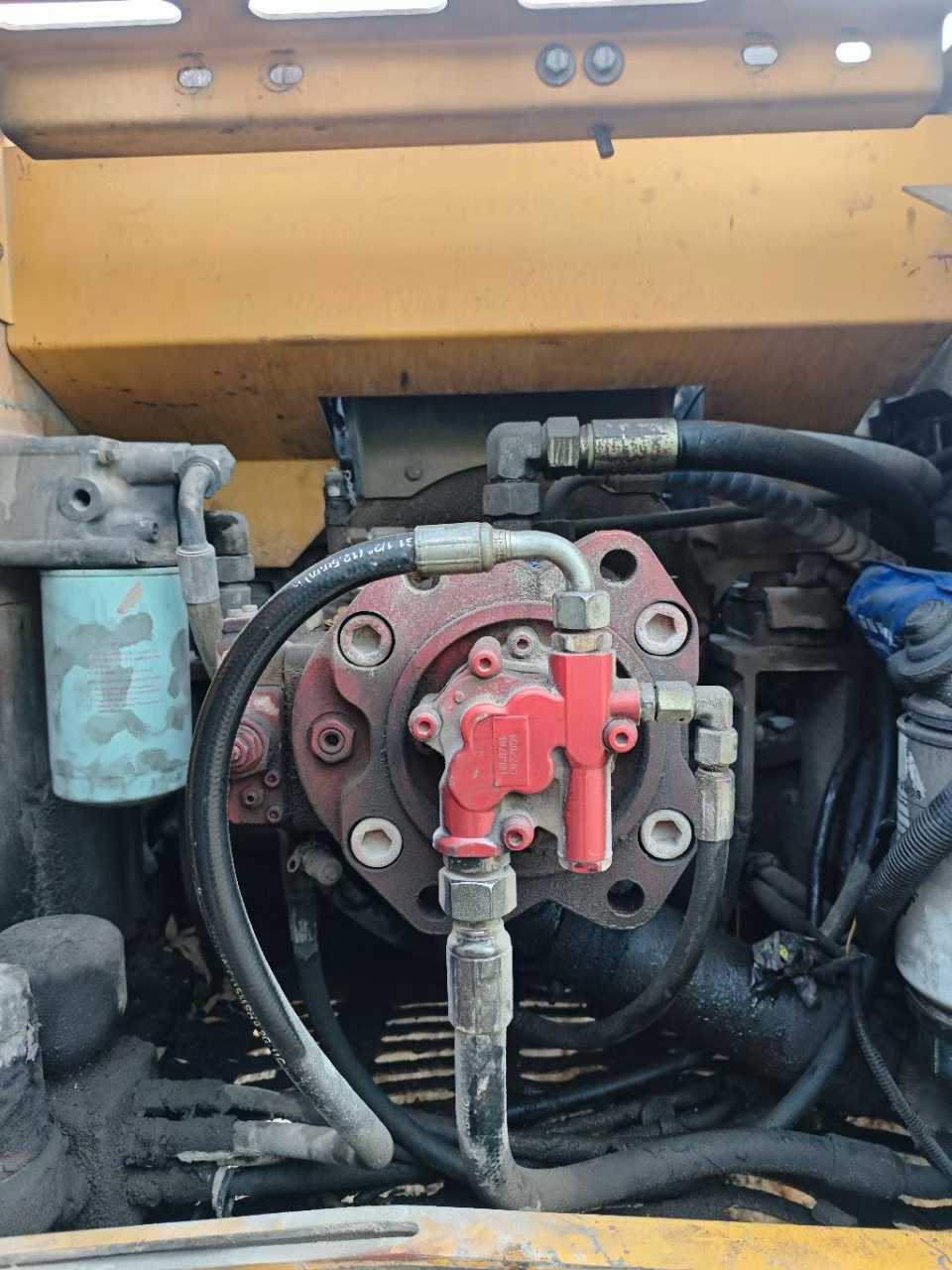

【 Premium Recommendation 】 Second-hand XCMG XE215 excavator, current price 49,800 yuan, no bargaining! This excavator was produced in 2010 and has only worked for 6,500 hours so far. For a veteran that has been in operation for ten years, this usage frequency is quite low, and the mechanical condition is maintained very well. It is equipped with an Isuzu engine and a Kawasaki hydraulic system. This power combination enjoys a high reputation in the industry. It is not only powerful and responsive, but also fuel-efficient and has relatively low maintenance costs. Isuzu engines are renowned for their outstanding stability and durability, while Kawasaki hydraulic systems are famous for their high efficiency and energy conservation. The combination of the two enables this excavator to perform exceptionally well in various complex working conditions. In addition, this XCMG XE215 also features the following major highlights: - ** Easy operation ** : The cab design is humanized, with a wide field of vision, making it less likely to cause fatigue during long-term operation. - ** Easy maintenance ** : The layout of key components is reasonable, making daily inspection and maintenance easy and quick. - ** Strong adaptability ** : It can handle b
