2020 XCMG XE80

1/9
Used XCMG XE80 Excavator 2020 Model / 1
Used XCMG XE80 Excavator 2020 Model / 2
Used XCMG XE80 Excavator 2020 Model / 3
Used XCMG XE80 Excavator 2020 Model / 4
Used XCMG XE80 Excavator 2020 Model / 5
Used XCMG XE80 Excavator 2020 Model / 6
Used XCMG XE80 Excavator 2020 Model / 7
Used XCMG XE80 Excavator 2020 Model / 8
Used XCMG XE80 Excavator 2020 Model / 9

Product Description

【 Premium Recommendation 】 A 20-year-old XCMG XE380D second-hand excavator, which has only been used for 1,500 hours and is in 90% new condition, is your reliable assistant on the construction site. This earthmoving vehicle has maintained an excellent working condition from beginning to end. Both its appearance and internal structure are well maintained, and the overall condition is very good. In terms of power, it is equipped with a high-performance Cummins engine, which is powerful, stable and reliable, and can maintain efficient operation even under harsh working conditions. More importantly, this engine has excellent fuel economy and can effectively reduce your operating costs. The hydraulic system adopts components of internationally renowned brands, ensuring smooth operation and rapid response of the entire machine. Whether it is the digging force or the lifting speed, it can meet your needs. In addition, its unique design makes operation more convenient and comfortable, and one won't feel tired even after working for a long time. This excavator is not only fast but also highly efficient, making it very suitable for projects that require the rapid completion of a large amount of earthwork. The most surprising thing is that desp

SpecificationsValue
No.971161
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

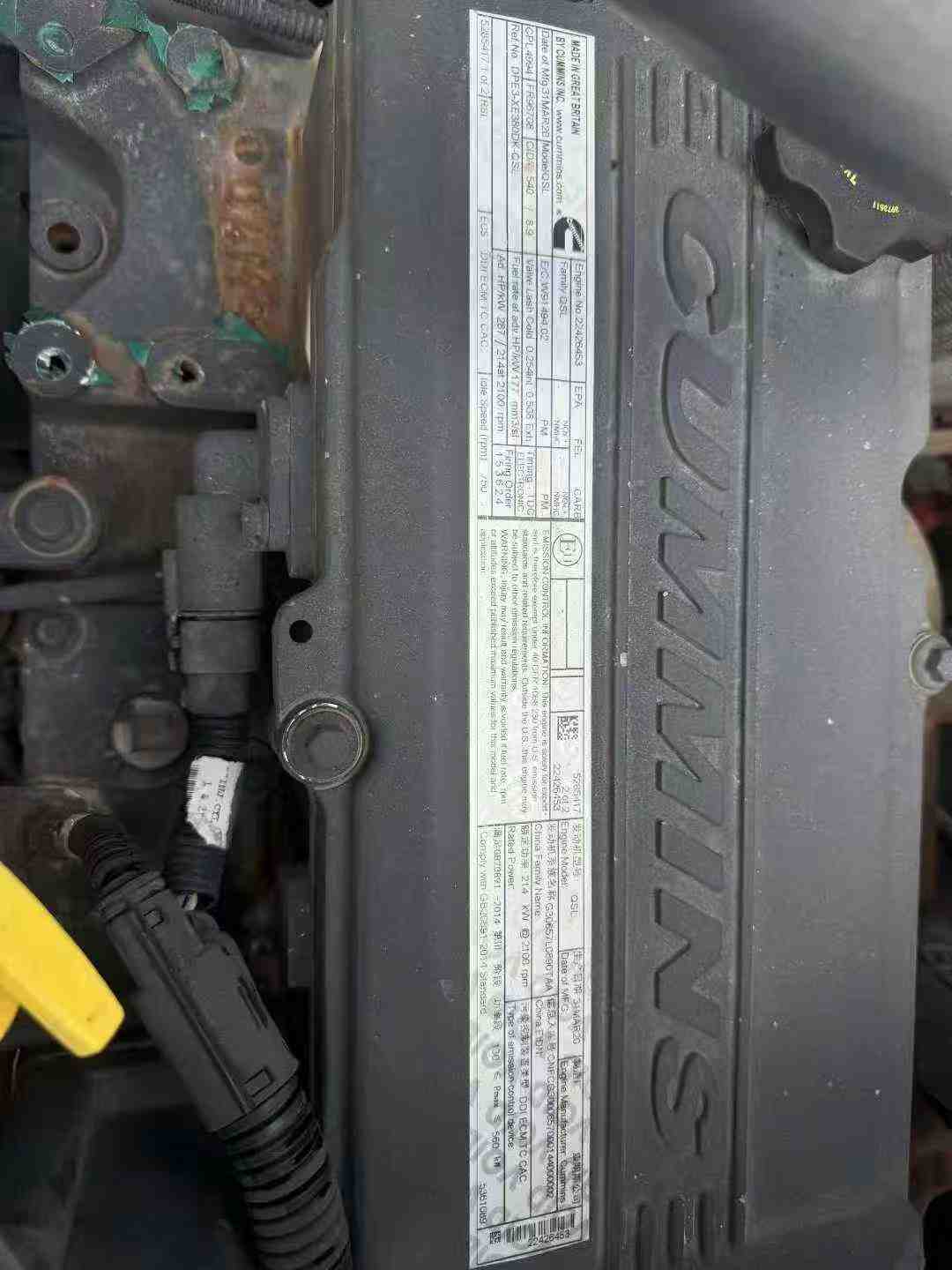

Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.971161

Brand Name:

XCMG

Model Number:

XE80

Year:

2020

Location:

Zhejiang China
