Product Description

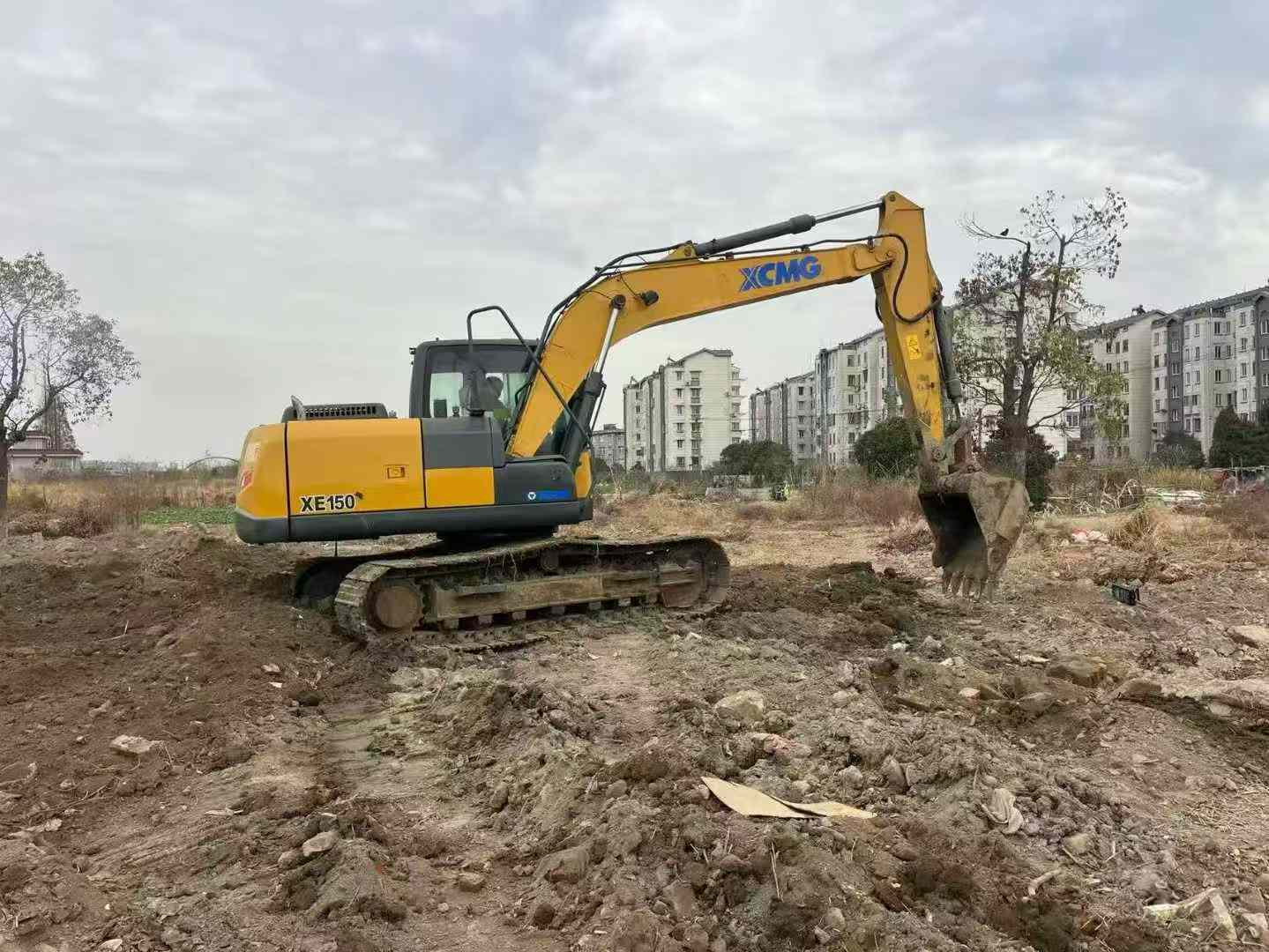

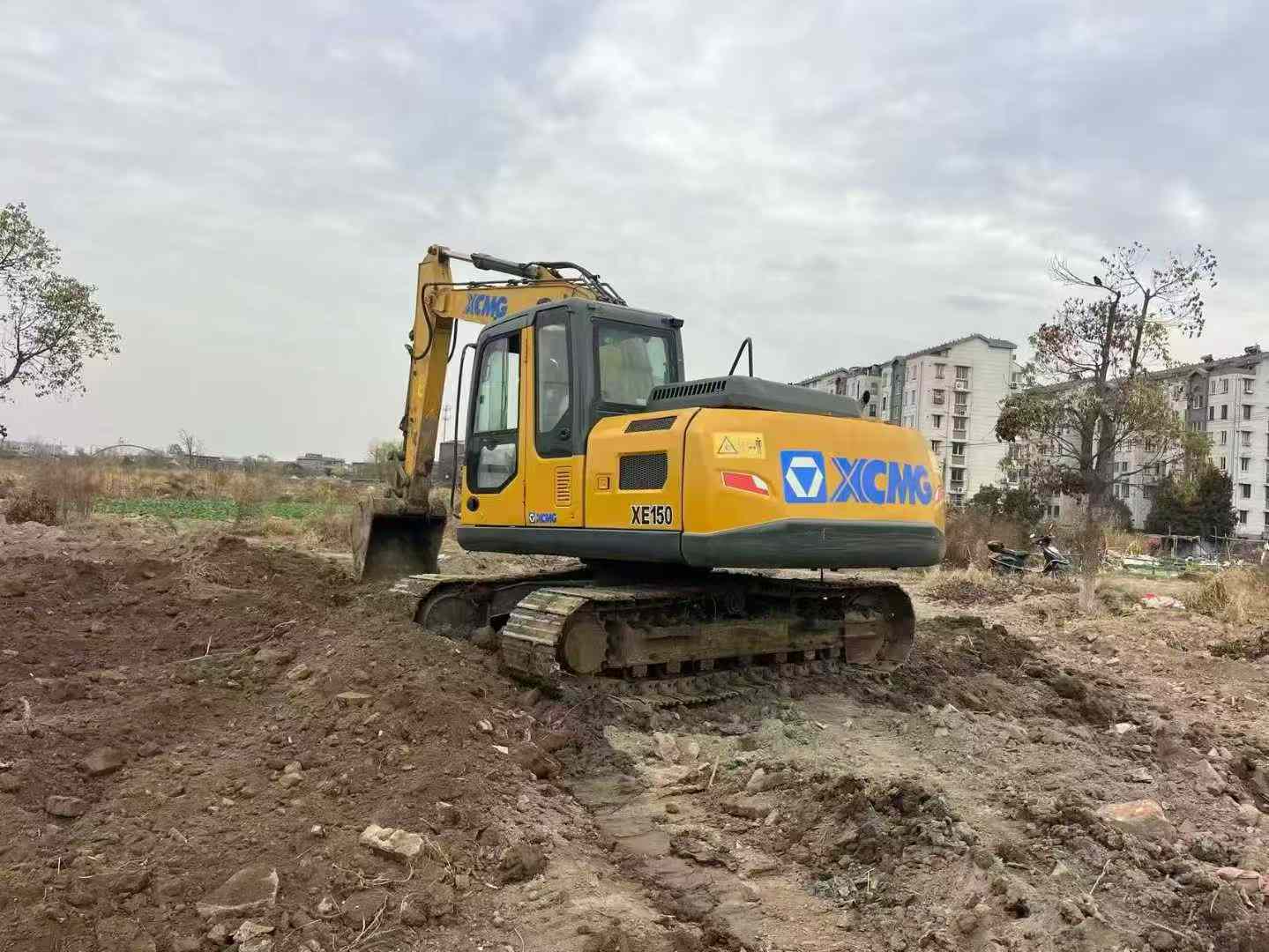

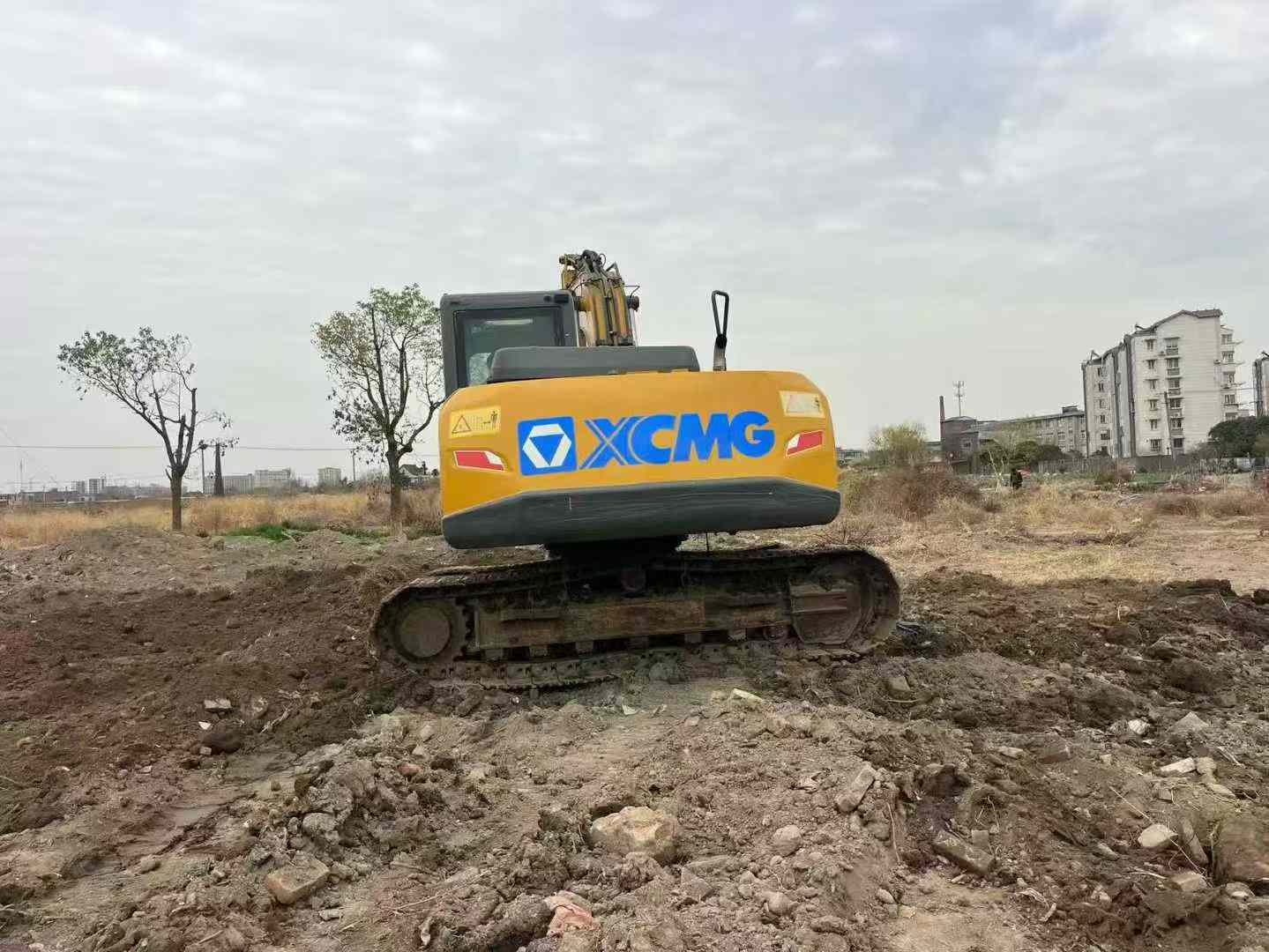

There is currently a second-hand XCMG XE150 excavator from 2017, priced at only 108,000 yuan. This device has a usage time of approximately 4,000 hours, is in good overall condition, well-maintained, and has stable and reliable performance. In terms of power, this excavator is equipped with a high-performance Weichai WP6G125E333 engine, with a maximum power output of up to 92 kilowatts, ensuring strong power output under various complex working conditions. This engine is renowned for its outstanding fuel economy and low-noise design, which can effectively reduce operating costs and enhance work efficiency. The hydraulic system adopts an advanced combination of variable piston pumps and high-quality hydraulic motors, ensuring smooth operation and rapid response of the entire machine. In addition, the optimized hydraulic circuit design has significantly enhanced the excavation force and lifting capacity, making it suitable for various earthwork operation requirements. The main advantages include: - High efficiency and energy saving: Equipped with an intelligent control system, it can automatically adjust the working mode according to the actual load, significantly reducing fuel consumption. - Comfort and safety: The cab is spacious an
| Specifications | Value |
|---|---|
| No. | 974584 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
