2013 XCMG XE80

1/6
Used XCMG XE80 Excavator 2013 Model / 1

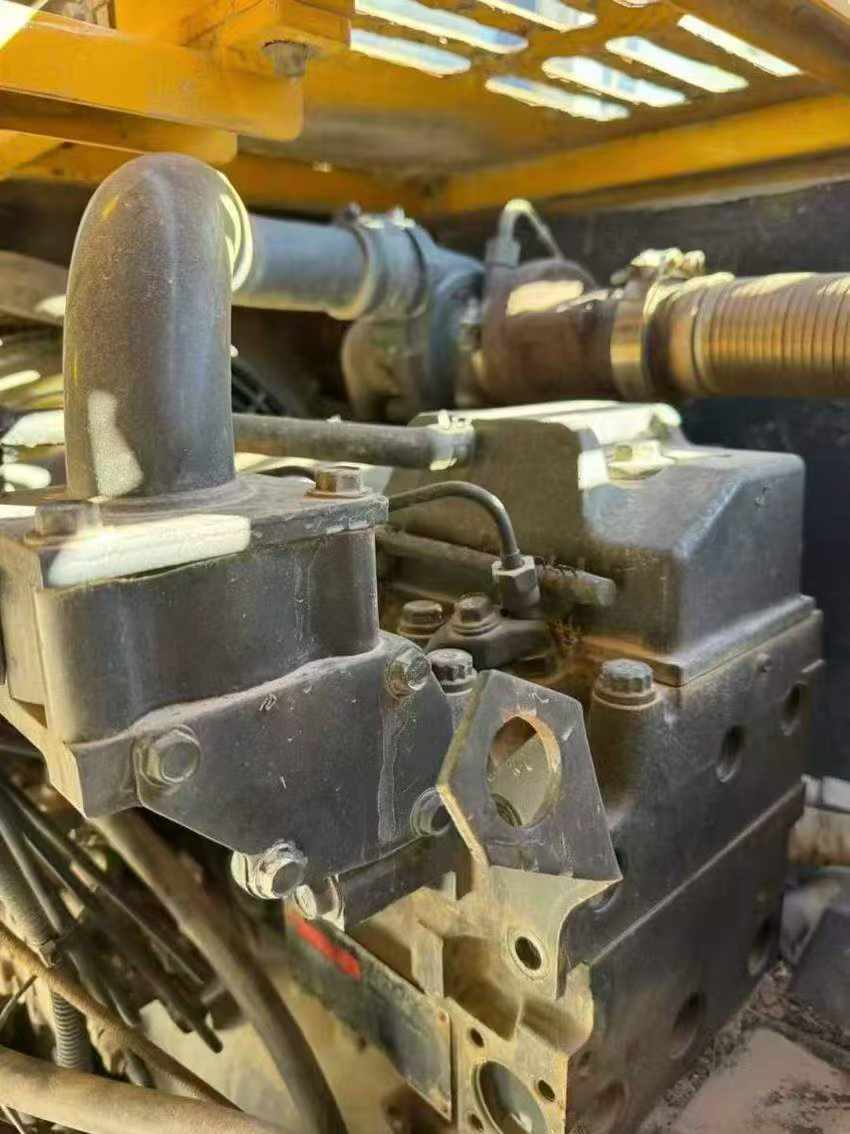

Used XCMG XE80 Excavator 2013 Model / 2

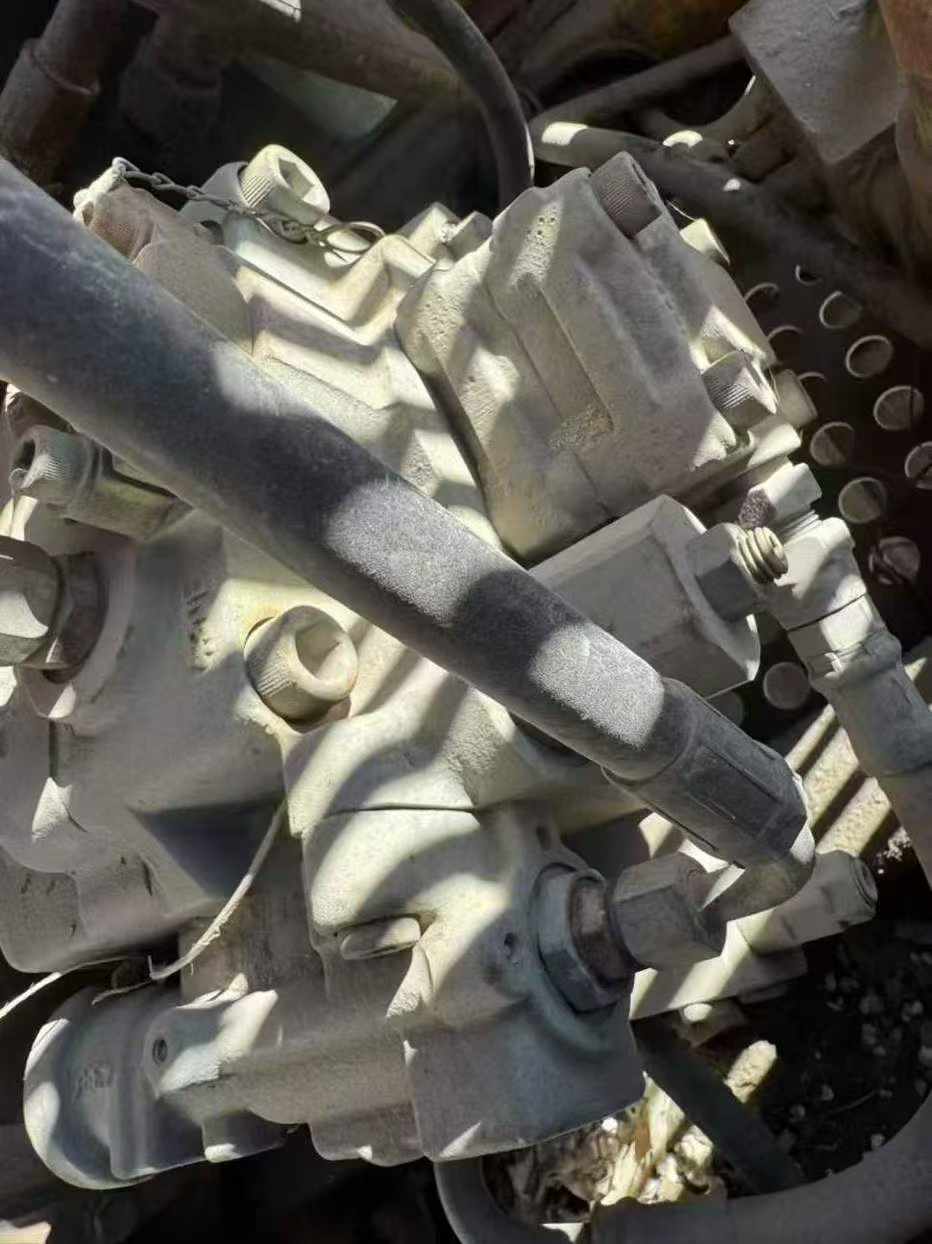

Used XCMG XE80 Excavator 2013 Model / 3

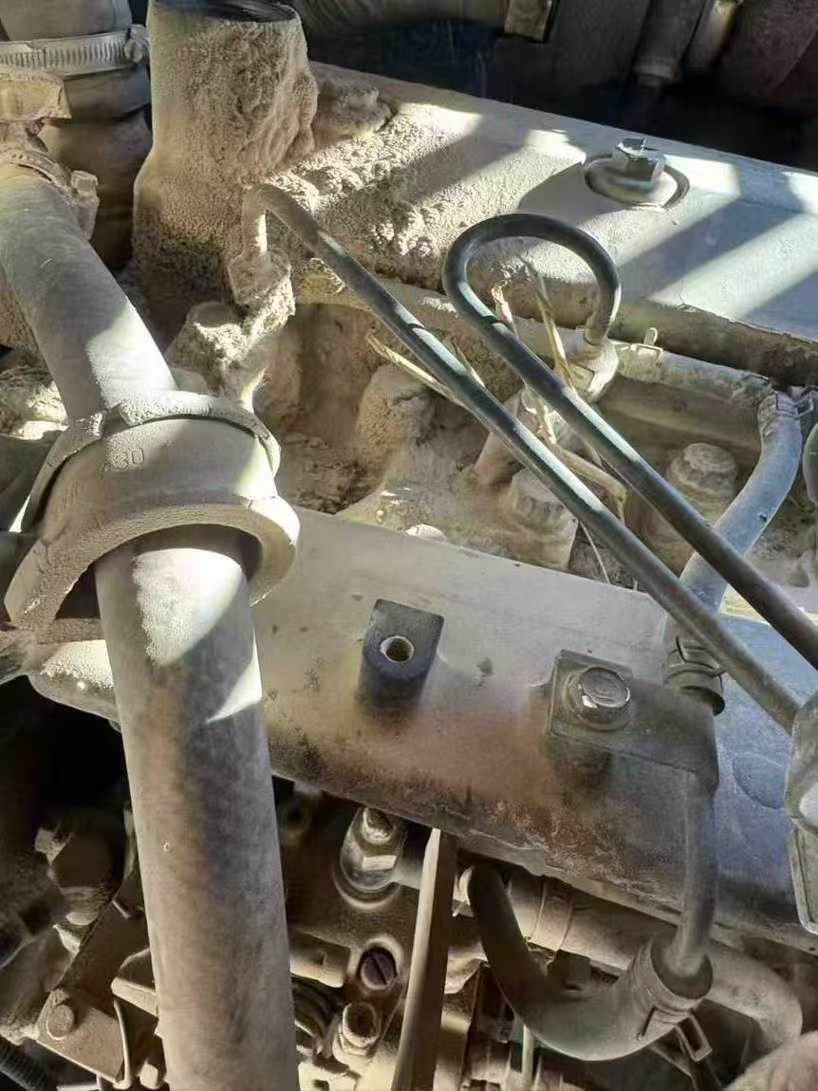

Used XCMG XE80 Excavator 2013 Model / 4

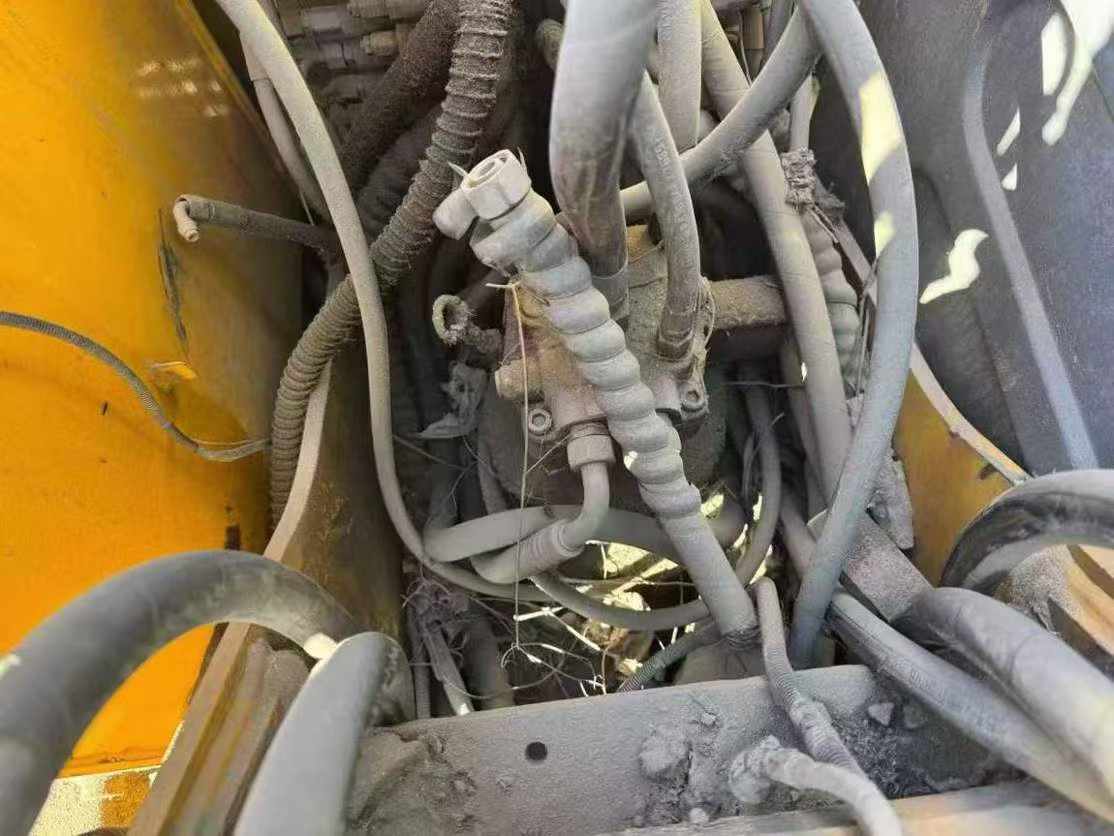

Used XCMG XE80 Excavator 2013 Model / 5
Used XCMG XE80 Excavator 2013 Model / 6

Product Description

This second-hand XCMG XE80 excavator produced in 2013, with its outstanding performance and reliable stability, has become a capable assistant in many construction projects. The equipment has a moderate working time, with a cumulative usage time of approximately 5,000 hours. The overall condition is good, and it can be put into operation immediately upon arrival without any additional maintenance or repair, ensuring that your project progress is not affected. In terms of the power system, this excavator is equipped with a highly efficient and energy-saving diesel engine. The expected model is Yanmar 4TNV98, with a maximum output power of up to 40.5 kilowatts at 2,200 revolutions per minute. This not only ensures strong power output but also features excellent fuel economy, effectively reducing operating costs. Meanwhile, advanced waste gas treatment technologies ensure that emissions comply with national environmental protection standards, making them greener and more low-carbon. The hydraulic system adopts a combination of high-performance variable piston pumps and low-noise, high-efficiency hydraulic motors, providing a stable and precise operating experience. The main pump has a large flow rate and a fast response speed, which can

SpecificationsValue
No.977095
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.977095

Brand Name:

XCMG

Model Number:

XE80

Year:

2013

Location:

Jiangsu China
