2016 XCMG XE80

1/5
Used XCMG XE80 Excavator 2016 Model / 1

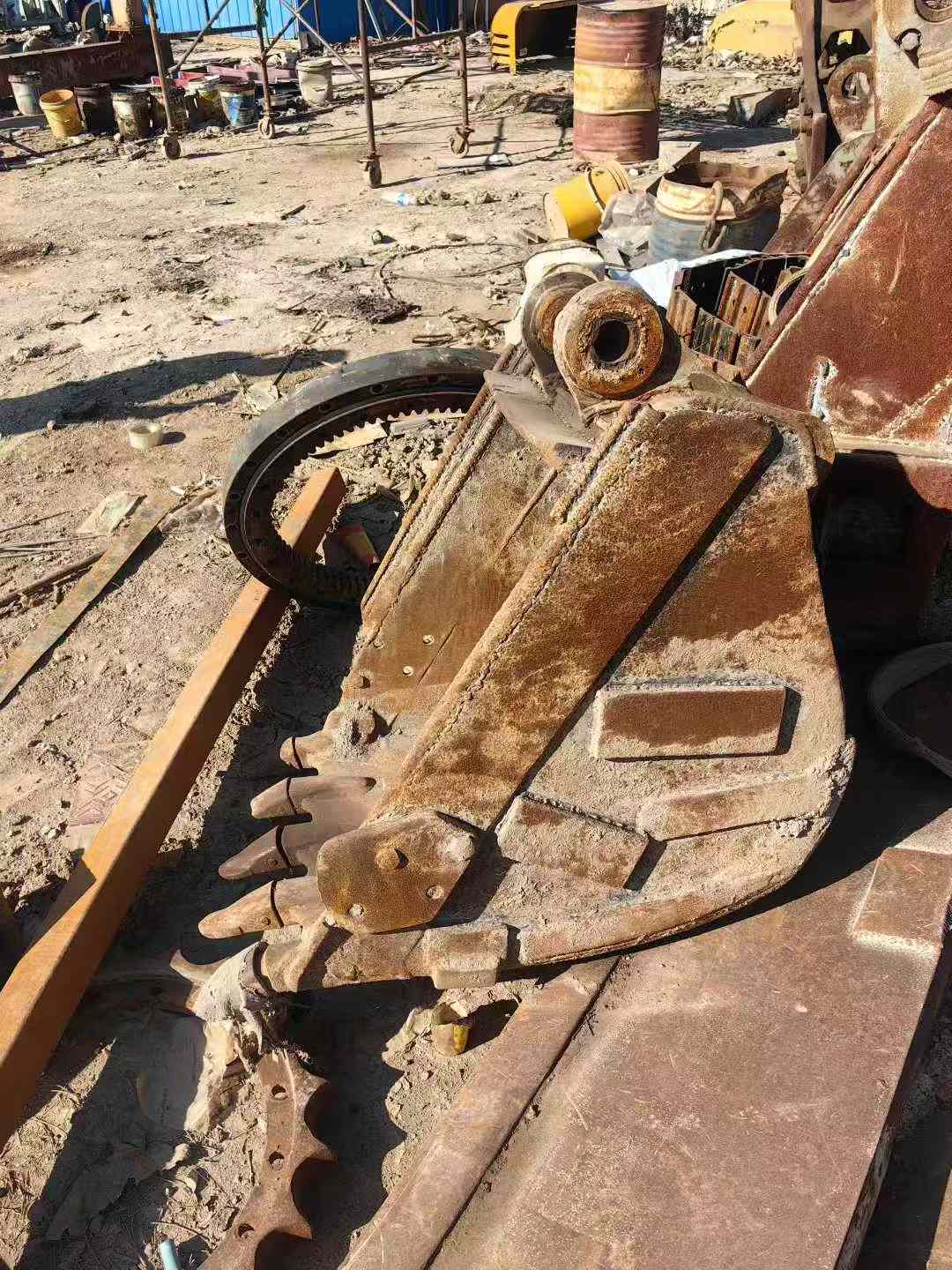

Used XCMG XE80 Excavator 2016 Model / 2

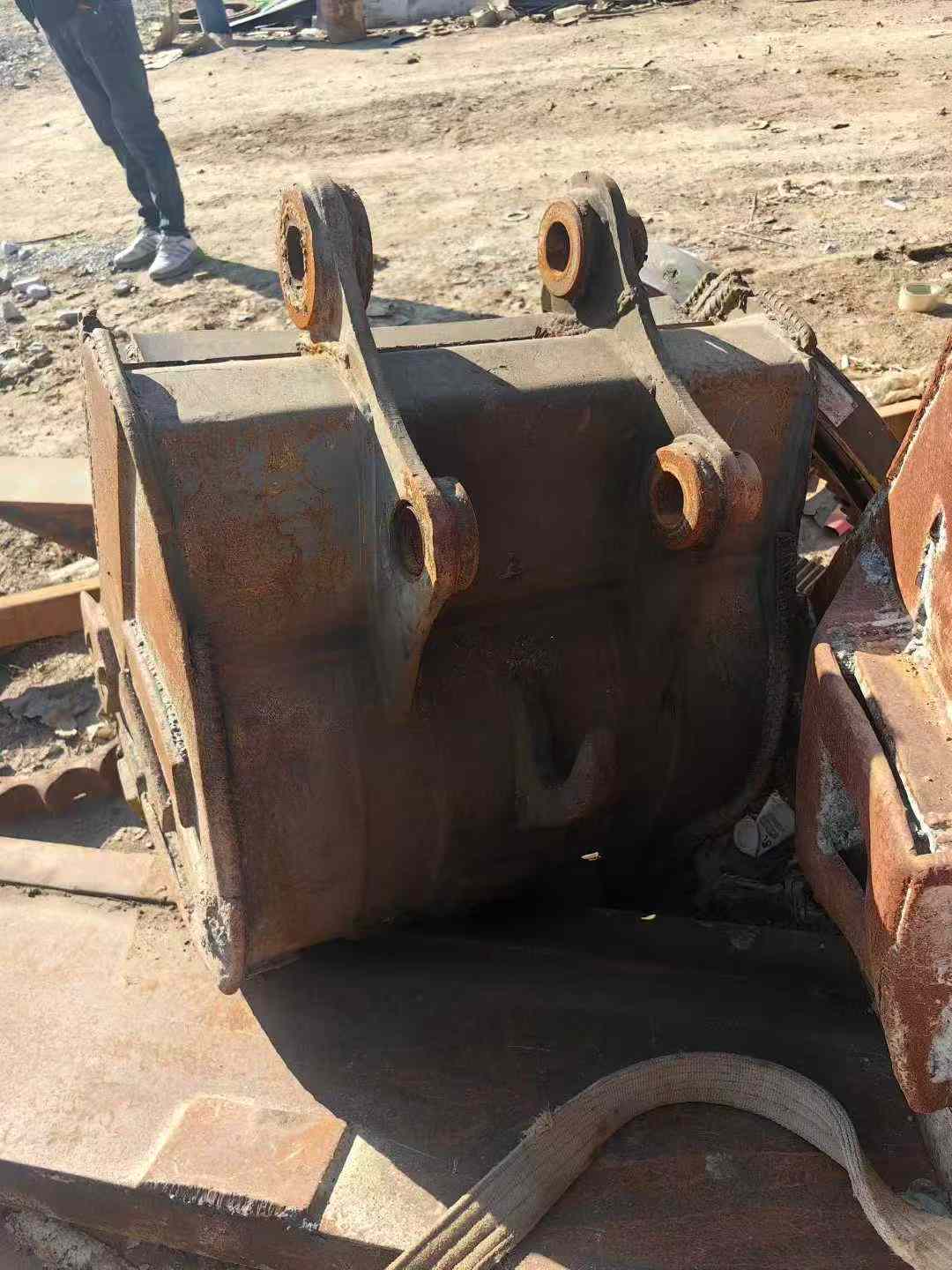

Used XCMG XE80 Excavator 2016 Model / 3

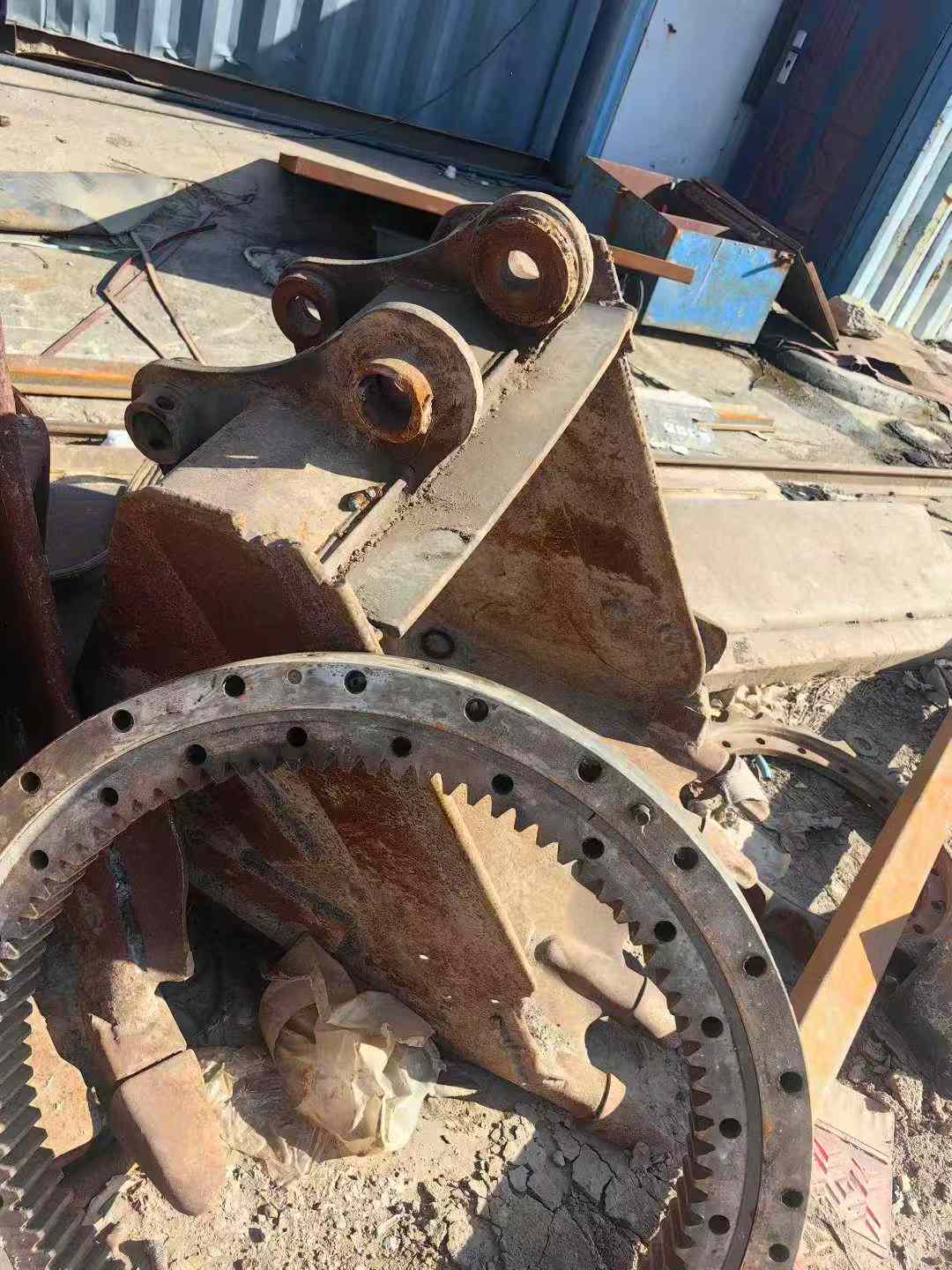

Used XCMG XE80 Excavator 2016 Model / 4

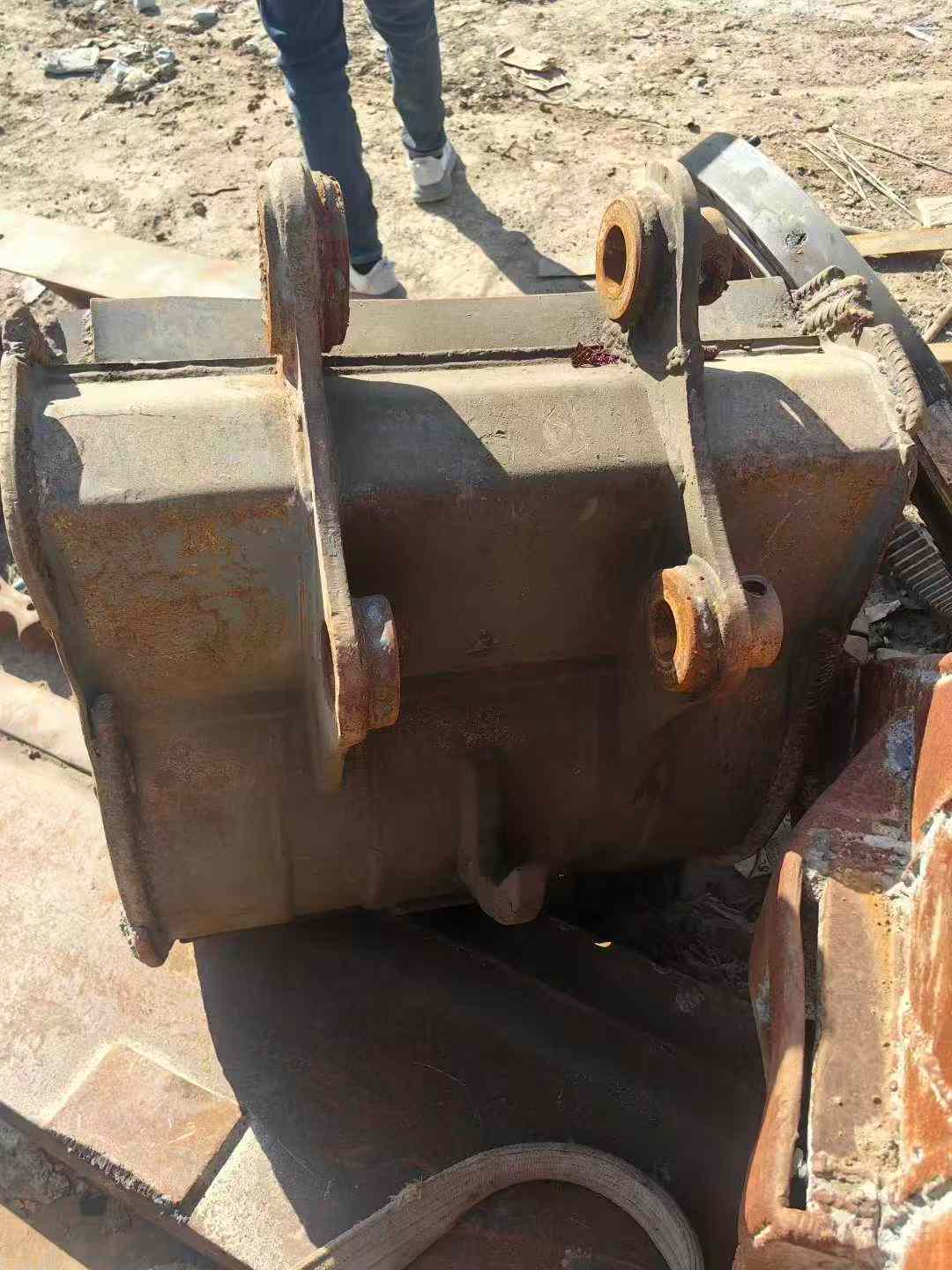

Used XCMG XE80 Excavator 2016 Model / 5

Product Description

We are selling second-hand XCMG XE80 excavators. The working time of this machine is only 2,500 hours. The overall condition is good and the performance is stable. This device is equipped with an efficient and reliable engine system, model Yanmar 4TNV98-Z, with a rated power of approximately 47.6 kilowatts (about 64 horsepower), ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, a high-quality main pump and motor combination is adopted, which can provide a smooth and precise operation experience. Whether it is excavation or loading operations, it can handle them with ease. As a medium-sized excavator, XCMG XE80 has received wide acclaim for its outstanding working efficiency, excellent stability and easy maintenance. Its sturdy and durable design enables it to maintain a long service life even under harsh conditions. In addition, the spacious and comfortable cab design greatly enhances the working comfort of the operator. The intuitive and easy-to-understand control panel further simplifies the operation process and reduces the learning cost. In conclusion, this XCMG XE80 excavator not only possesses powerful construction capabilities but also boasts excellent economy and reliability, making it

SpecificationsValue
No.977400
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno
Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.977400

Brand Name:

XCMG

Model Number:

XE80

Year:

2016

Location:

Jiangsu China
