Product Description

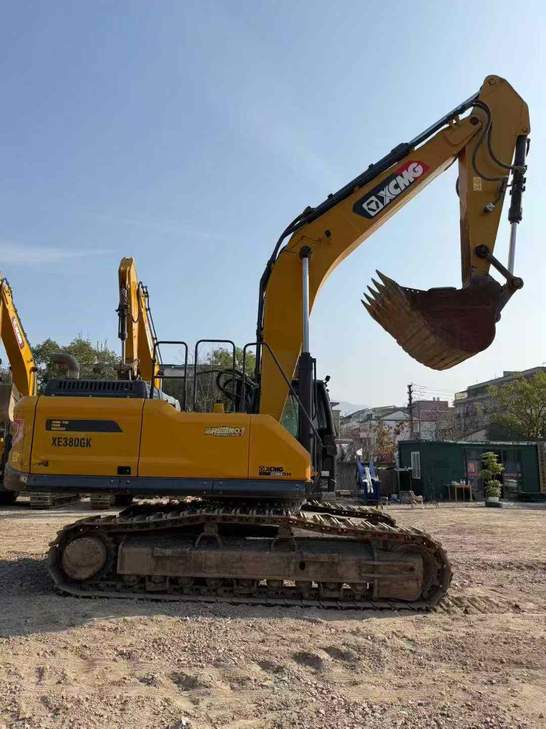

We recommend this XCMG XE380GK excavator purchased in 2023 that meets the National IV emission standards. Its actual usage time is only over 4,000 hours. The vehicle's condition and performance are exempt from inspection. If it is fake, we will compensate tenfold. Quality is guaranteed. This device is equipped with a high-performance engine (possibly Weichai WP12), which has a strong power output of 276kW, ensuring efficient and stable working performance. In terms of the hydraulic system, this machine adopts an advanced combination of hydraulic pumps and hydraulic motors, providing excellent digging force and a smooth operating experience. It can handle both heavy-load operations and precise operations with ease. The main advantages of XCMG XE380GK excavator include: Adopting the latest environmental protection technology, it complies with the national fourth-stage emission standards and is more environmentally friendly and energy-efficient. It features a spacious and comfortable cab design, equipped with a multi-functional display screen, which enables the driver to monitor the machine's status in real time. The powerful power output and efficient hydraulic matching have significantly enhanced the overall working efficiency of the m
| Specifications | Value |
|---|---|
| No. | 978677 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
