Product Description

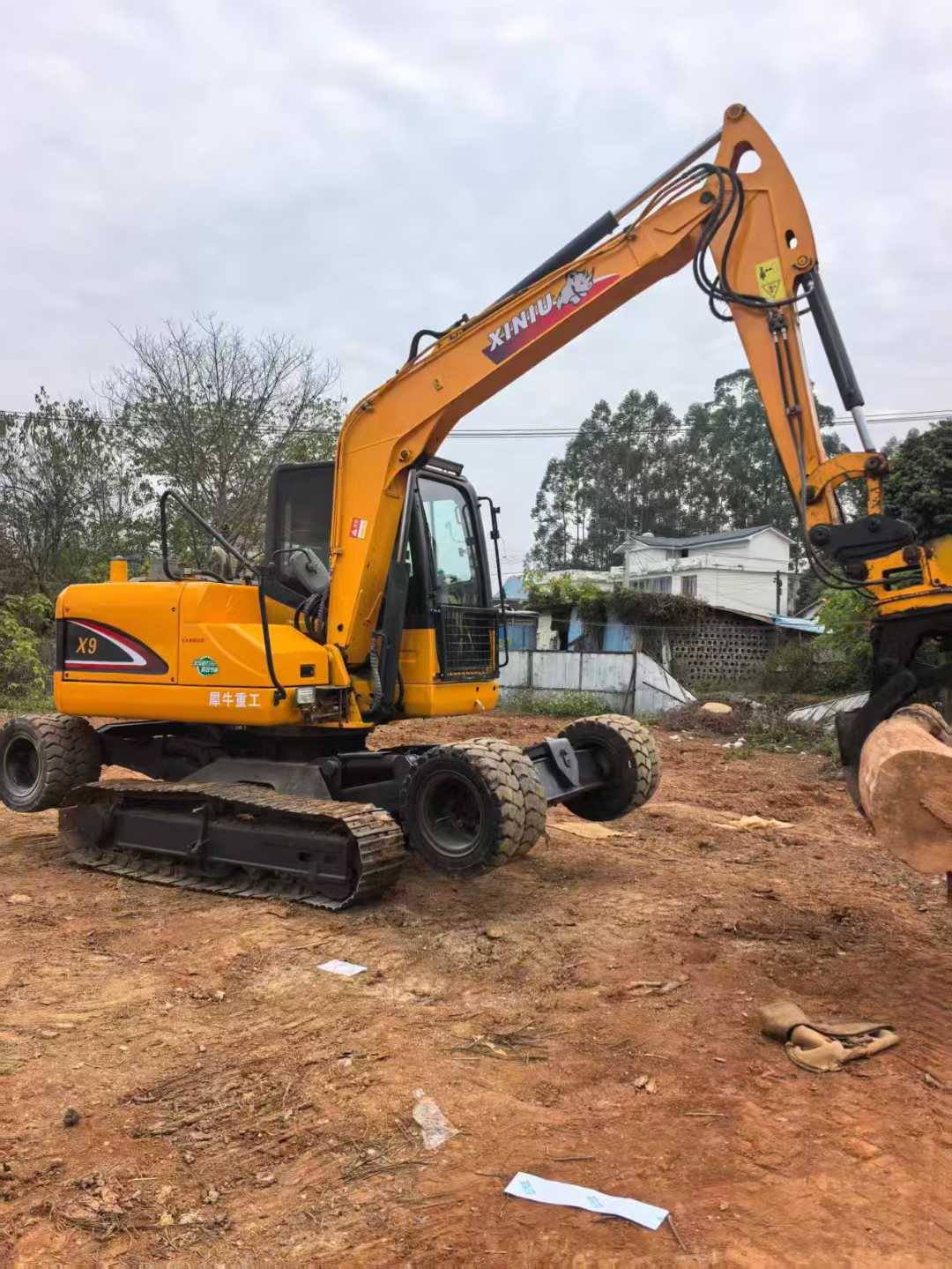

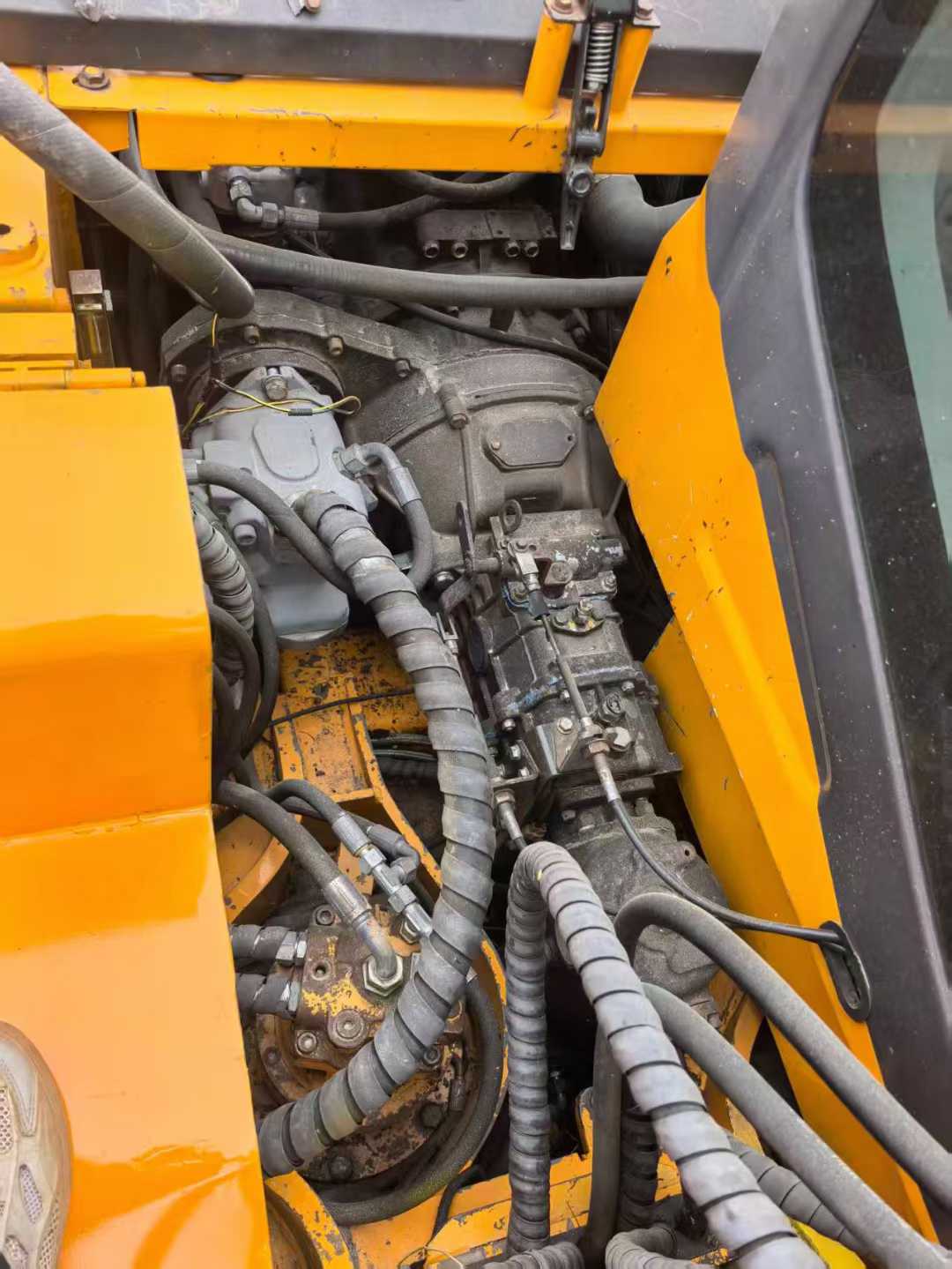

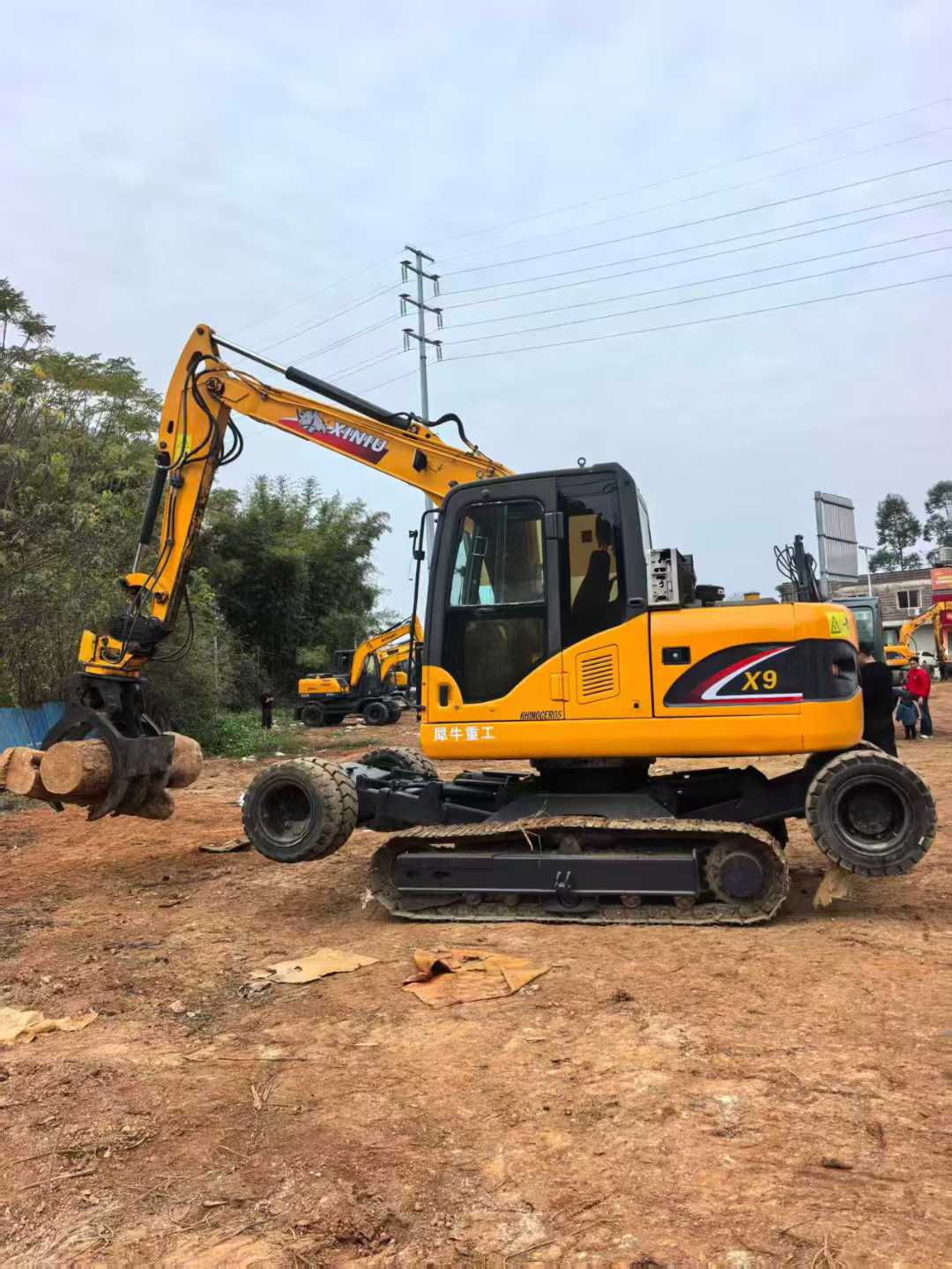

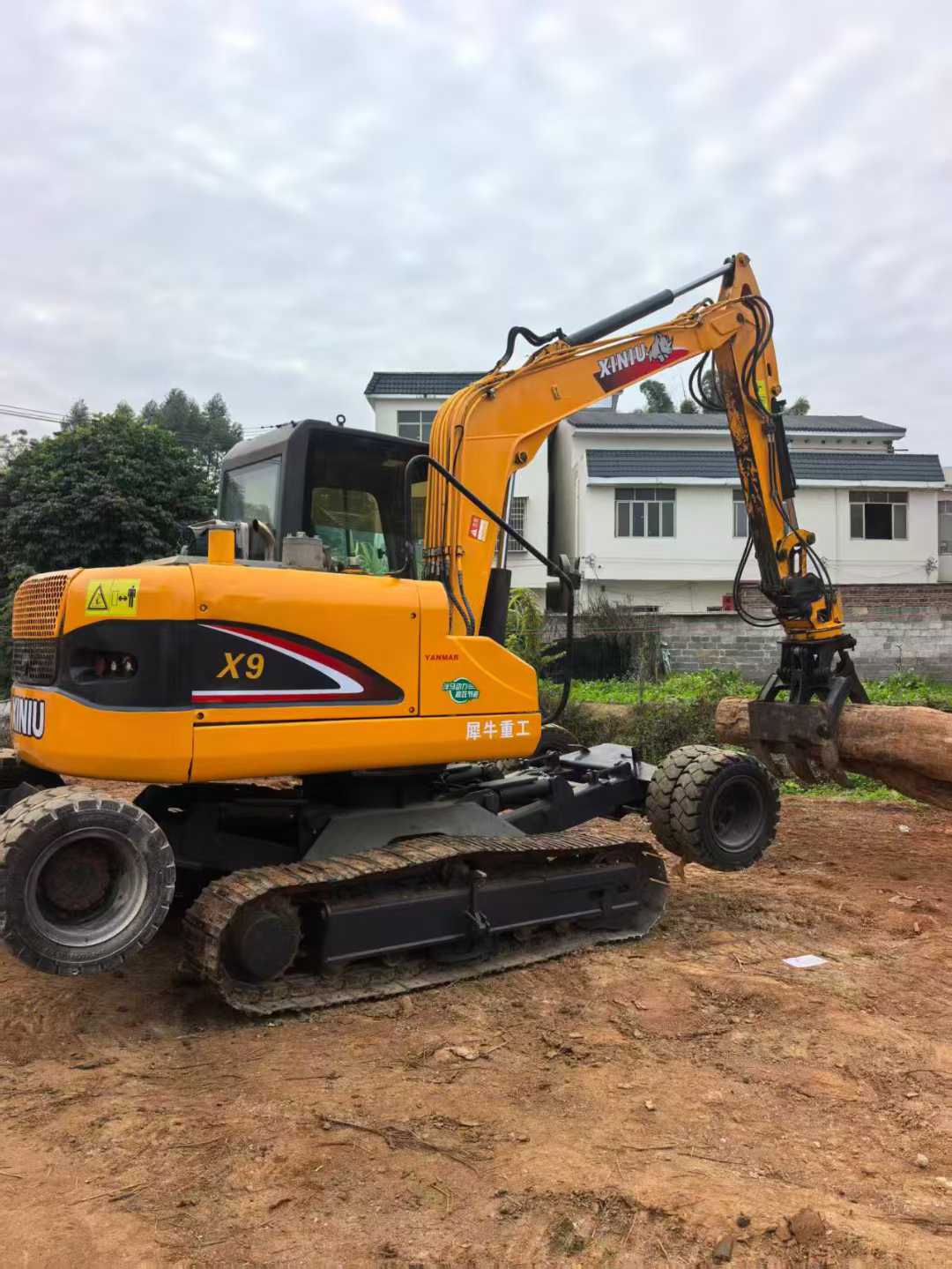

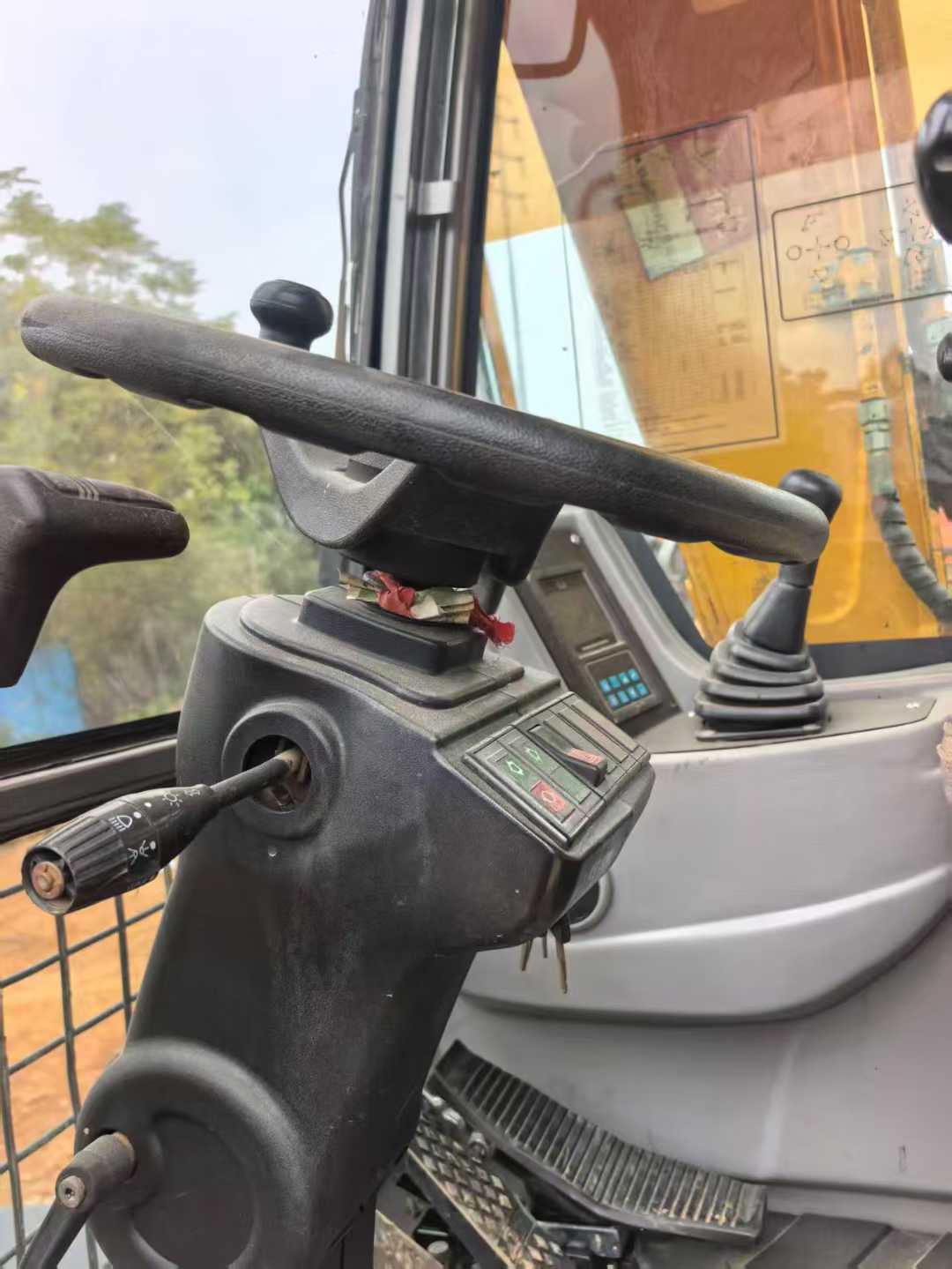

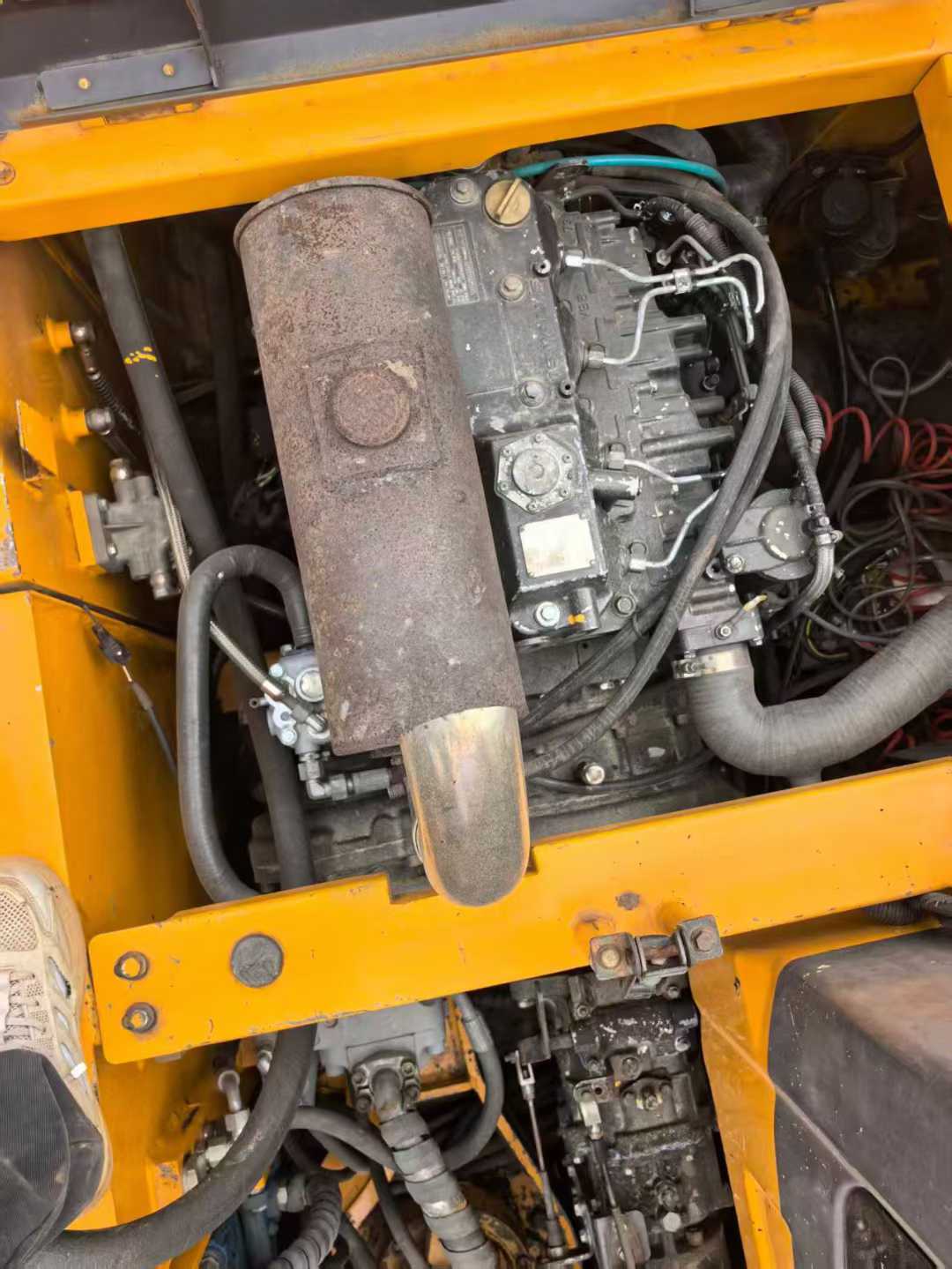

There is currently a second-hand Rhino X9 Forestry Edition excavator with a working time of only 1,000 hours and in excellent overall condition. This equipment is equipped with imported Yanmar engines, renowned for their outstanding reliability and powerful output, ensuring efficient operation under various complex working conditions. In terms of the hydraulic system, high-performance imported plunger pumps are adopted, which can provide stable and powerful hydraulic power to meet the requirements of high-intensity operations. In addition, this excavator is equipped with electronic throttle technology, which makes operation more precise and smooth, significantly improving work efficiency and fuel economy. It is worth mentioning that this machine has been specially customized with an extended upper and lower arm design, which is highly suitable for applications requiring long-distance excavation or tree felling and other special operation scenarios, greatly expanding its application range. After professional inspection and confirmation, the three major components of the equipment are in good condition with no leakage at all, ensuring that the buyer can put it into use immediately after purchase. The current full payment price is 108,00
| Specifications | Value |
|---|---|
| No. | 976032 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7775 |
| Bucket capacity (m³) | 0.3 |
| Country of origin | Fukuoka, Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98-XBVB |
| Rated power (kw/rpm) | 43.4/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Four-stroke water-cooled diesel engine |
| Ground specific pressure (Kpa) | 33.9 |
| Rotation speed (rpm) | 9.4 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 54.8 |
| Rod digging force (kN) | 38.2 |
| Travel speed (km/h) | 4.3/2.4 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 70.4+60.4+13.0 |
| Fuel Tank (L) | 100 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2270 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 2120 |
| Back end turning radius (mm) | 1130 |
| Total track length (mm) | 2890 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2270 |
| Maximum digging depth (mm) | 4400 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 4920 |
| Maximum vertical digging depth (mm) | 3500 |
| Bulldozer lift or depth (mm) | 460 |
| Dodging plate width × height (mm) | 2260 x 450 |
| Maximum excavation radius of stop surface (mm) | 6740 |
| Boom turning Angle (left/right °) | 68/68 |
