Caterpillar 320B

2016 Caterpillar 320B

1/7

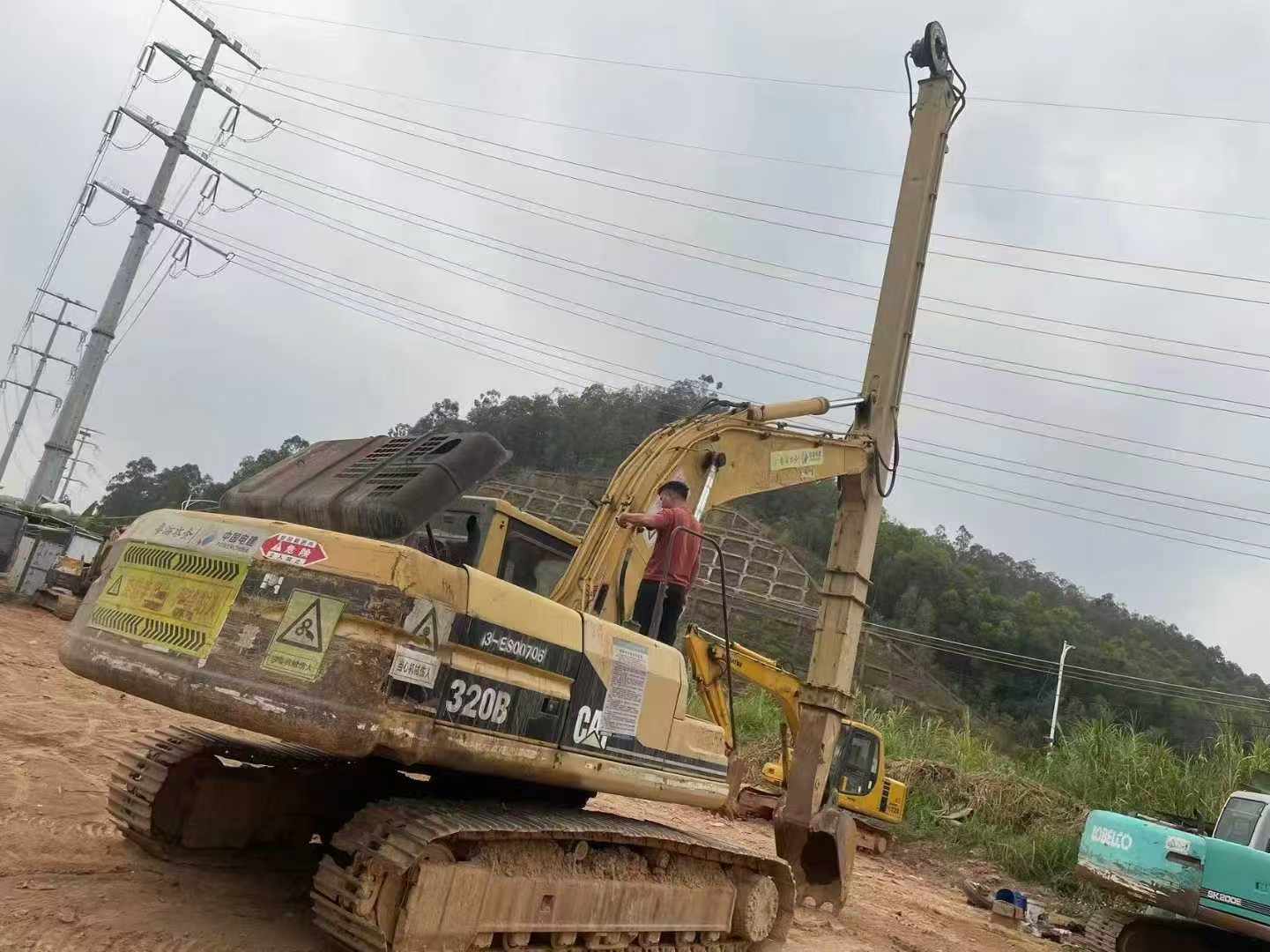

Used Caterpillar 320B Excavator 2016 Model / 1
Used Caterpillar 320B Excavator 2016 Model / 2

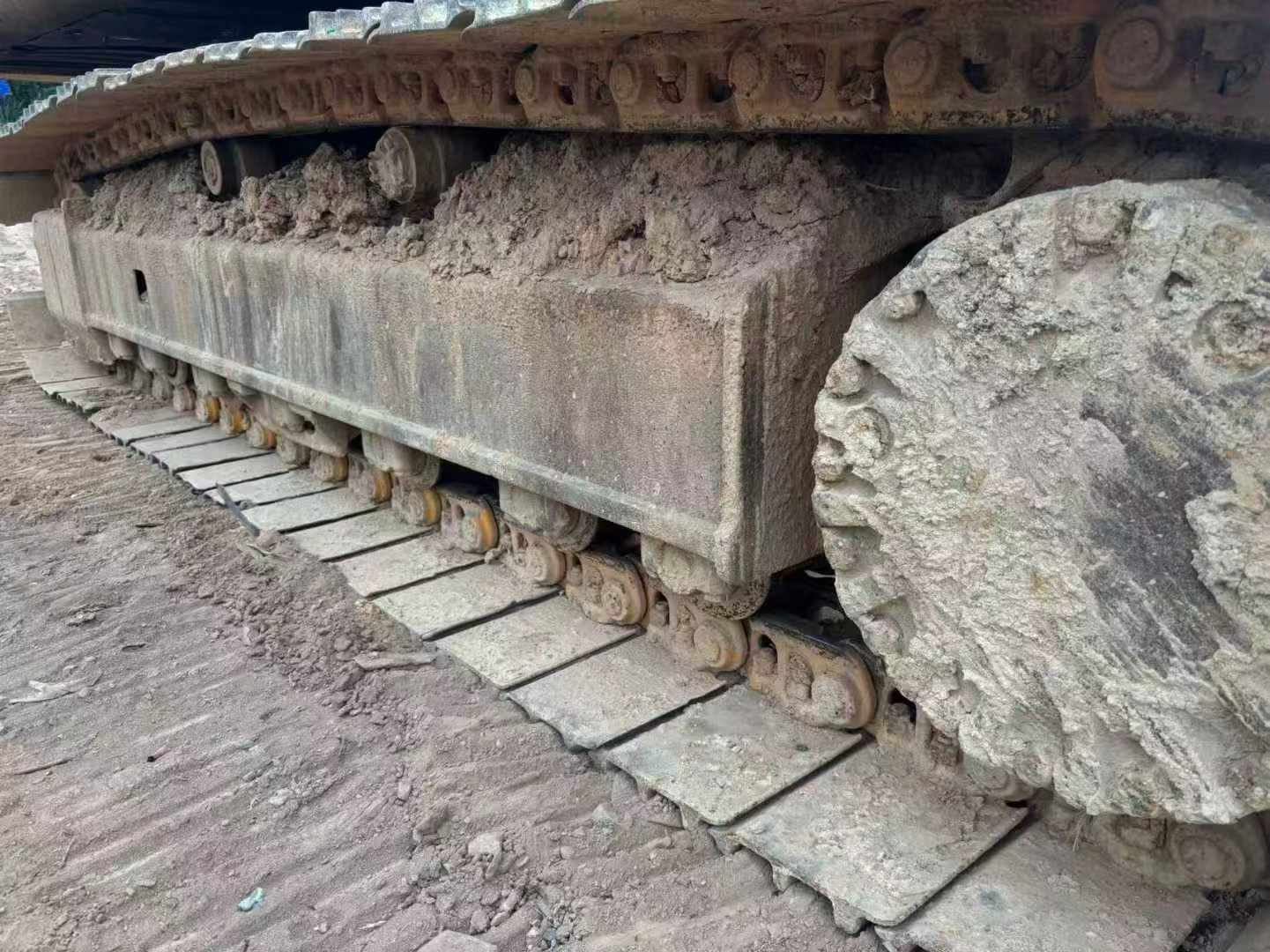

Used Caterpillar 320B Excavator 2016 Model / 3

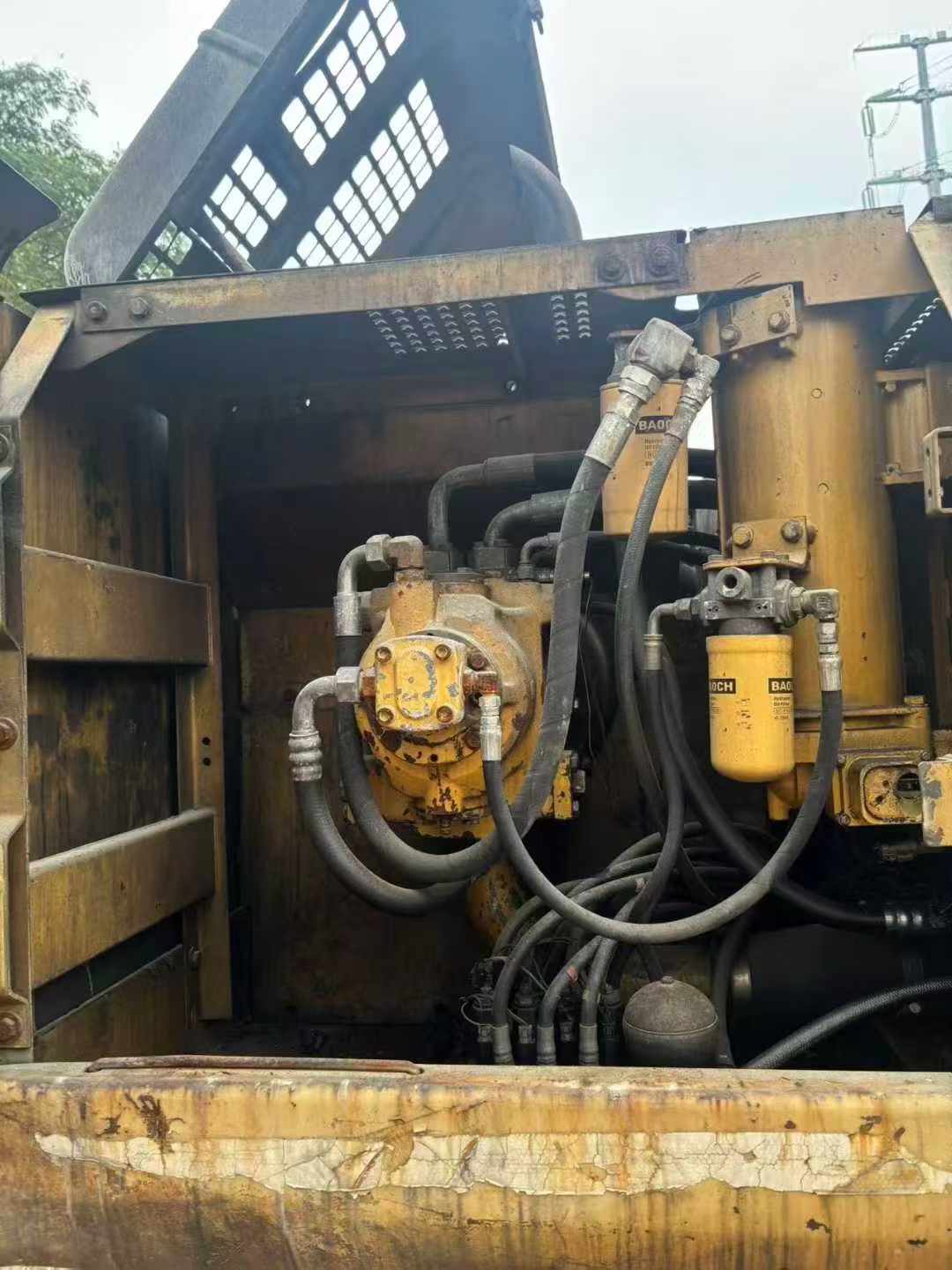

Used Caterpillar 320B Excavator 2016 Model / 4

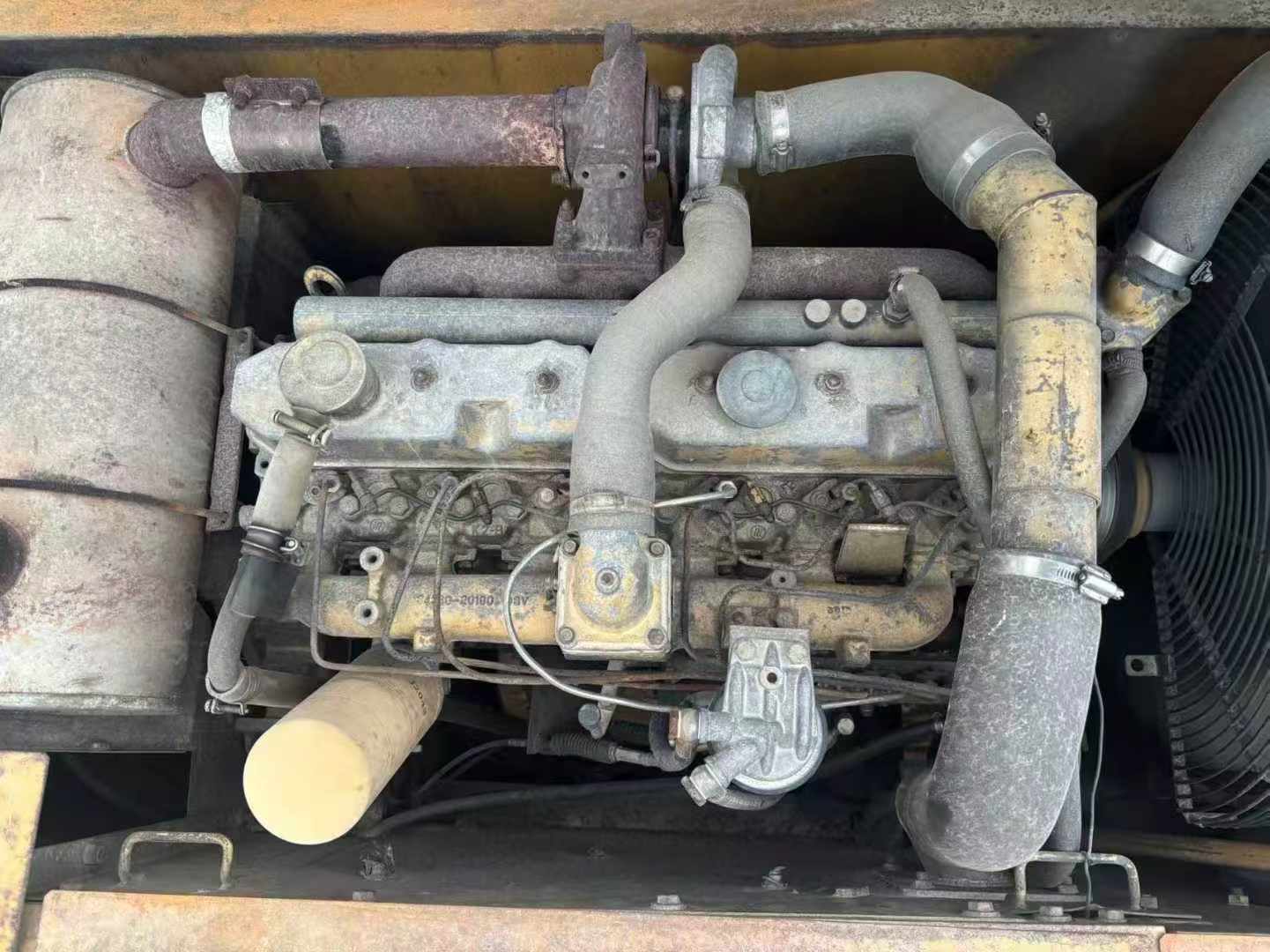

Used Caterpillar 320B Excavator 2016 Model / 5

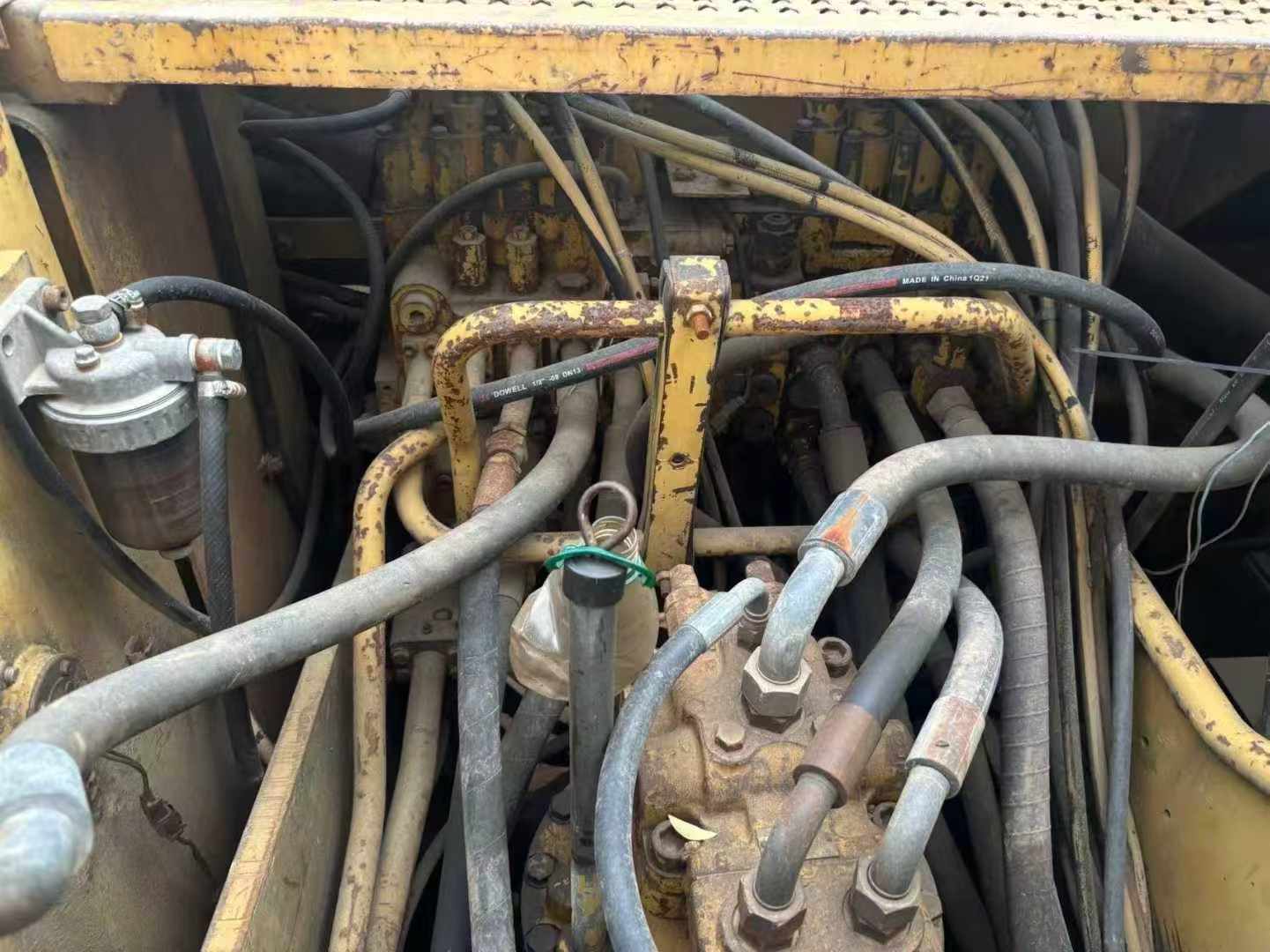

Used Caterpillar 320B Excavator 2016 Model / 6

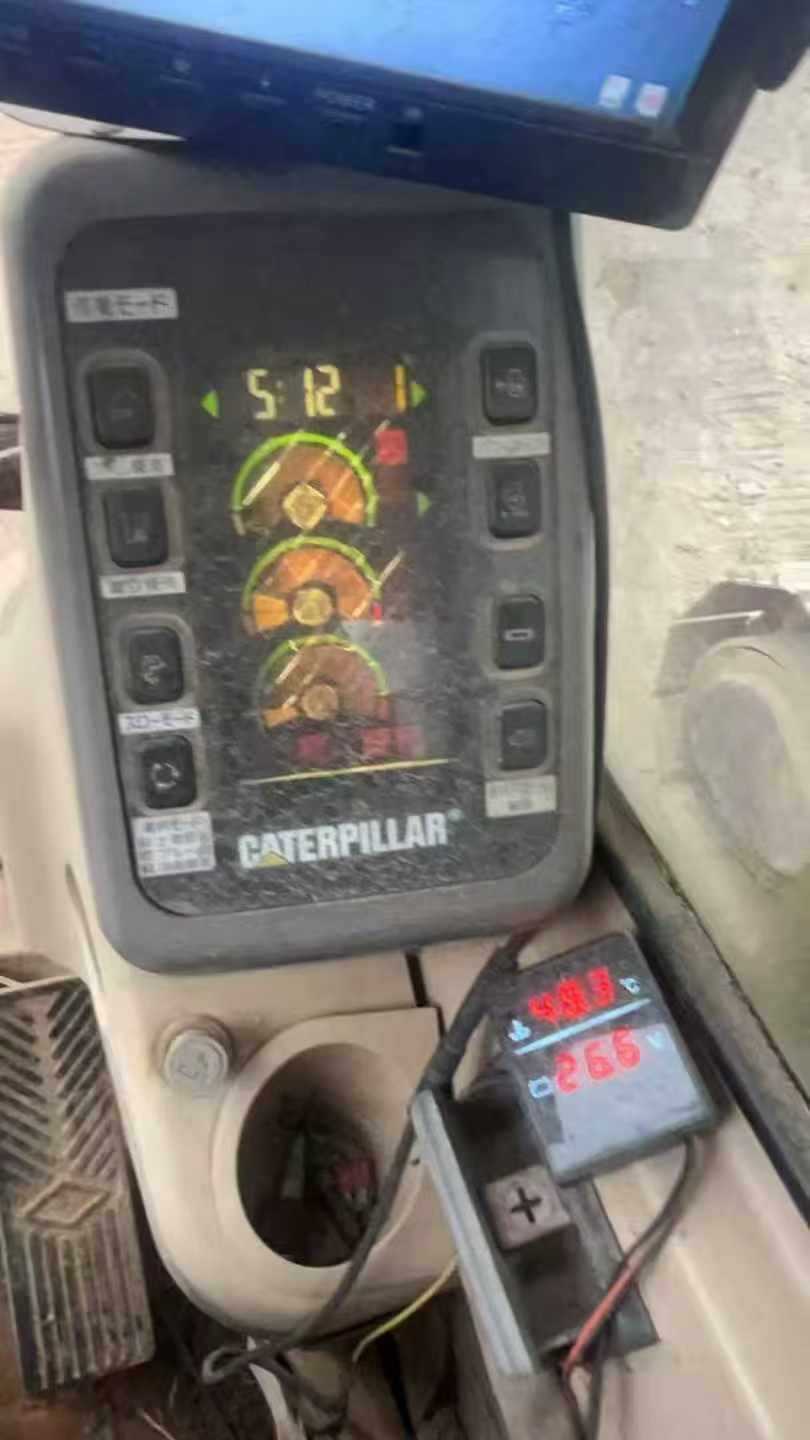

Used Caterpillar 320B Excavator 2016 Model / 7
Product Description
SpecificationsValue
No.961448
Tonnage (tons)20
Working weight (kg)19400
Bucket capacity (m³)0.92
Boom length (mm)5680
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066T
Rated power (kw/rpm)99.9/1800
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Rotation speed (rpm)10.7
Travel speed (km/h)3.4/5.5
Maximum flow of main pump (l/min)185
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)23
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)340
Hydraulic Tank (L)130
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)220
Total transport length (mm)9440
Total transport width (mm)2800
Total transport height (mm)2940
Full cab height (mm)2940
Minimum ground clearance (mm)475
Back end turning radius (mm)2750
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3265
Maximum digging depth (mm)6640
Maximum excavation height (mm)9470
Maximum unloading height (mm)6570
Maximum vertical digging depth (mm)6040
Maximum excavation radius of stop surface (mm)9780
see more

Description

【 Premium Recommendation 】 Second-hand Caterpillar 320B excavator, equipped with a 14-meter telescopic boom, is an indispensable and capable assistant in your engineering projects. This excavator not only has a well-maintained appearance but also has excellent overall performance. Its working time is only 3,500 hours, which is far shorter than the average service life of similar equipment. This means that it still has a long service life waiting for your excavation. In terms of the power system, the 320B model is equipped with Caterpillar's self-developed high-efficiency and energy-saving engine, which features strong power output and smooth operation. It can handle complex terrains and heavy-load operations with ease. Meanwhile, this engine also features excellent fuel economy, which can effectively reduce your operating costs. The hydraulic system adopts an advanced closed center load sensitive system, which responds quickly and operates flexibly, maintaining high accuracy even when performing fine actions. In addition, its unique energy-saving design can automatically adjust the pump's flow rate to match actual demand, further enhancing work efficiency and reducing energy consumption. The most notable feature of this excavator is

Overview

No.961448

Brand Name:

Caterpillar

Model Number:

320B

Year:

2016

Location:

Fujian China
