Name: 2016 Caterpillar 320B Used Excavator
Brand: Caterpillar

HOME>>Find Excavators>>

Caterpillar 320B

2016 Caterpillar 320B

1/8

Used Caterpillar 320B Excavator 2016 Model / 1

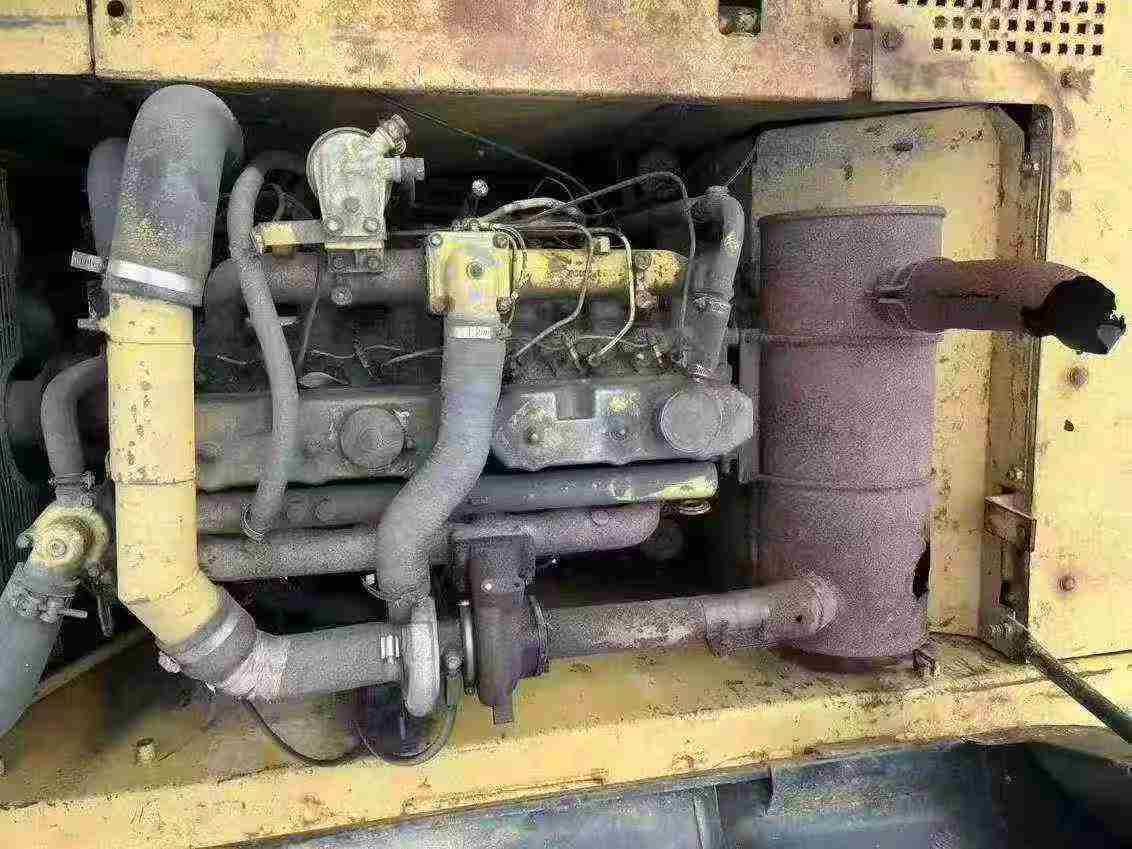

Used Caterpillar 320B Excavator 2016 Model / 2

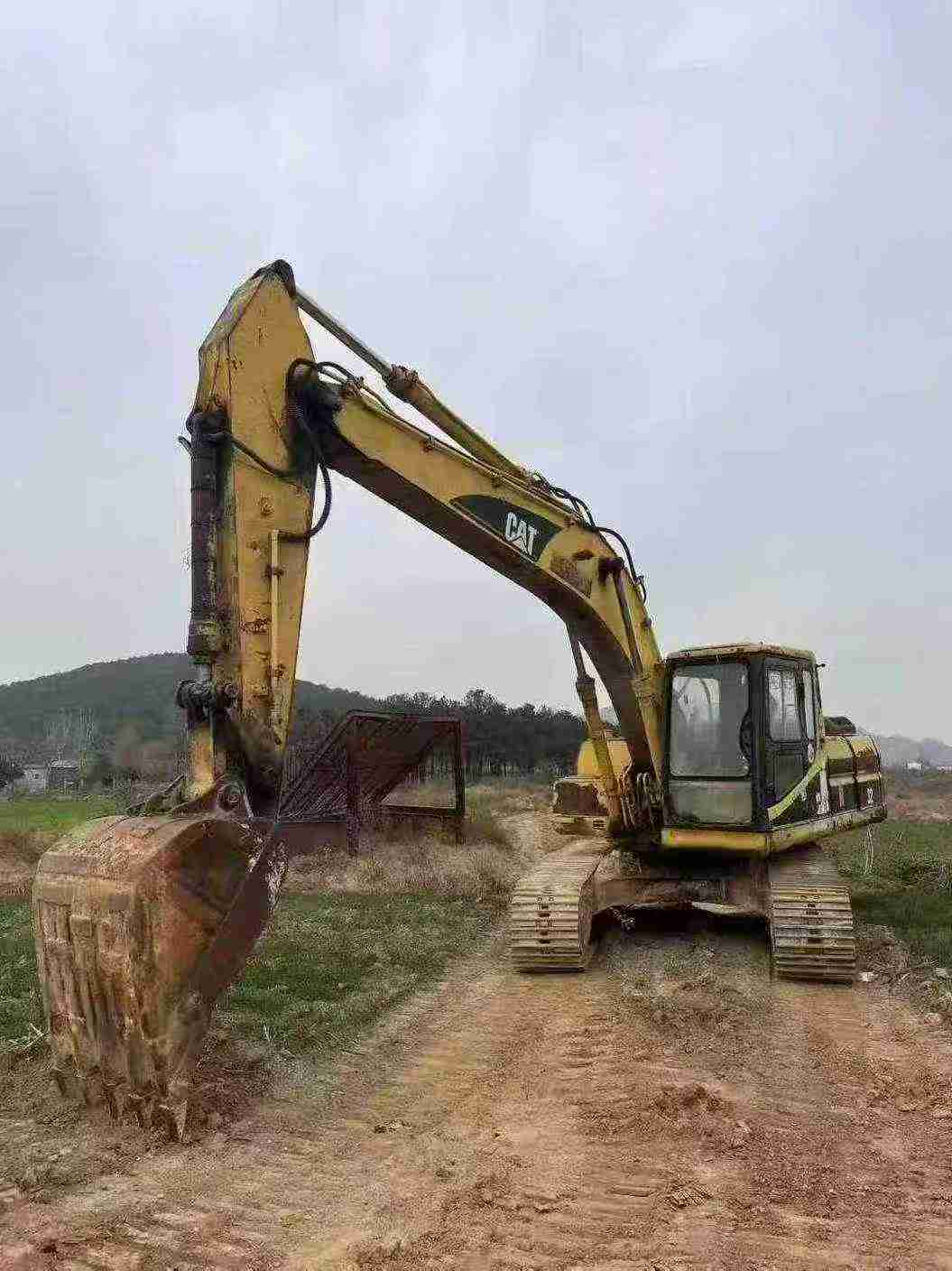

Used Caterpillar 320B Excavator 2016 Model / 3

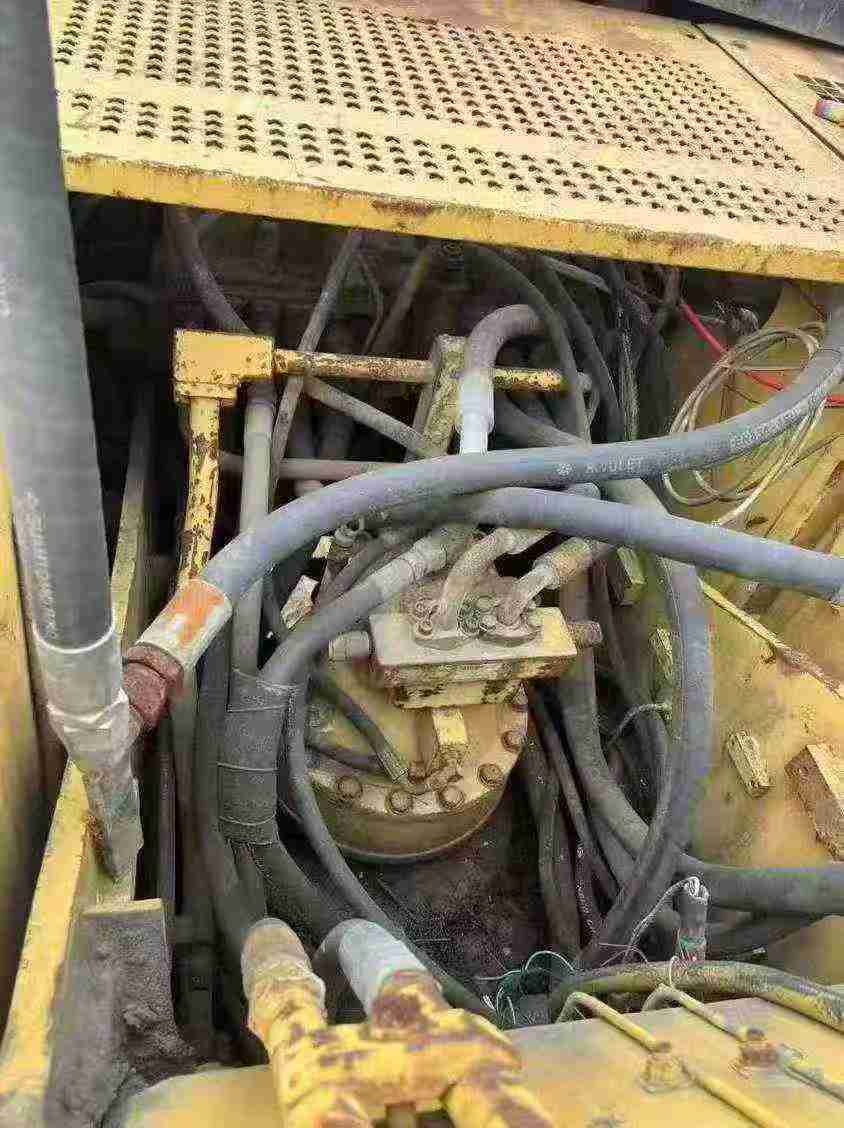

Used Caterpillar 320B Excavator 2016 Model / 4

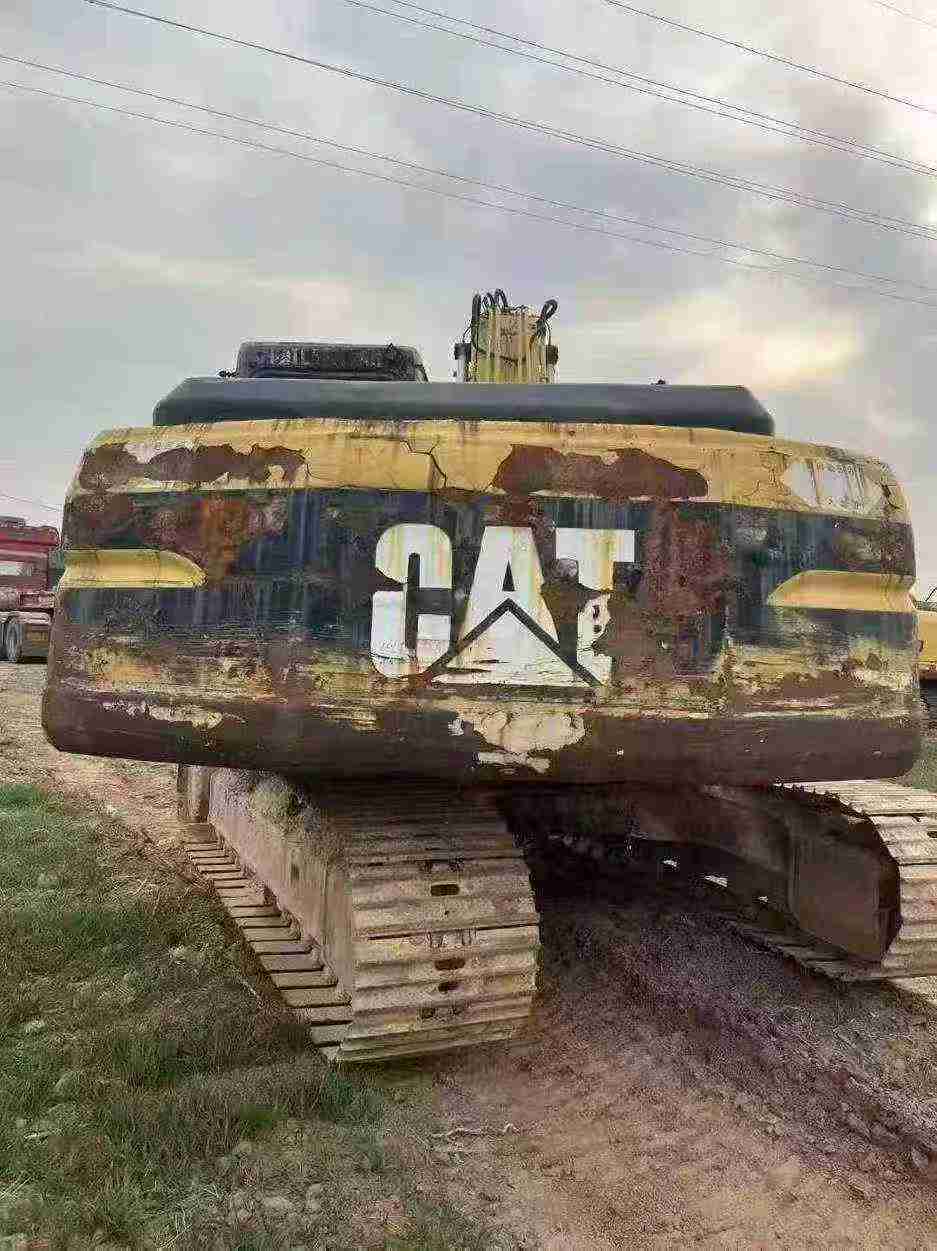

Used Caterpillar 320B Excavator 2016 Model / 5

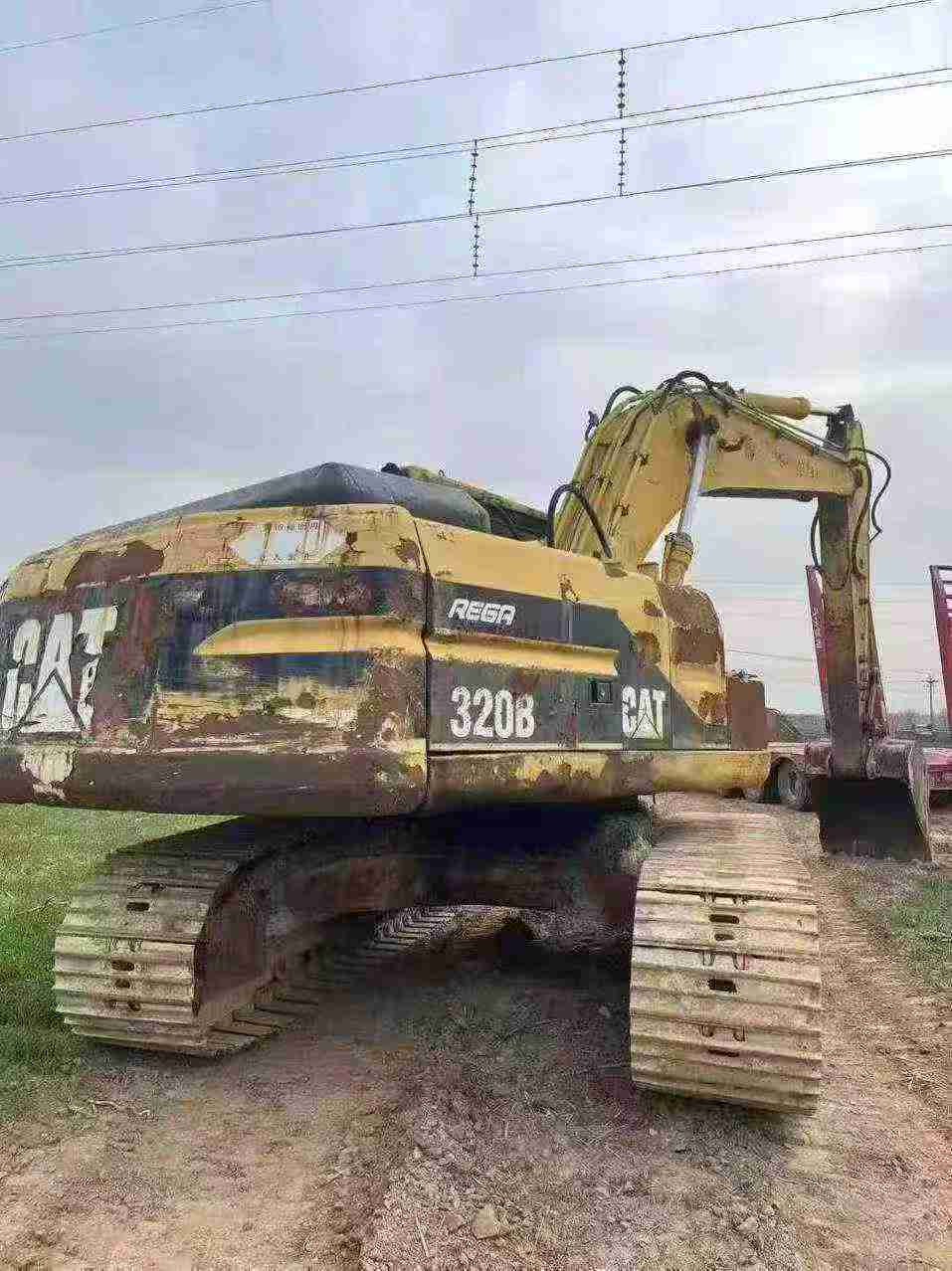

Used Caterpillar 320B Excavator 2016 Model / 6

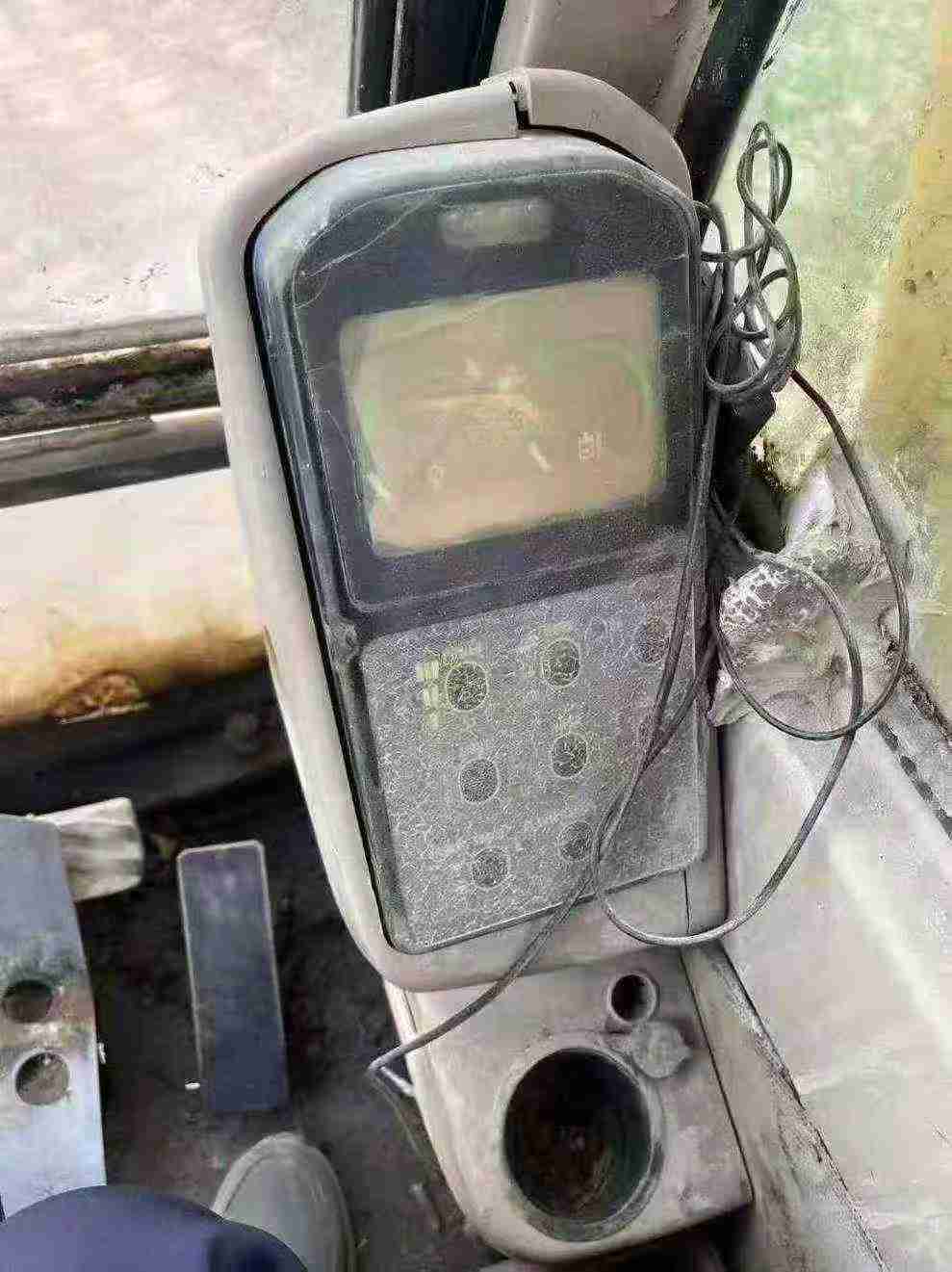

Used Caterpillar 320B Excavator 2016 Model / 7

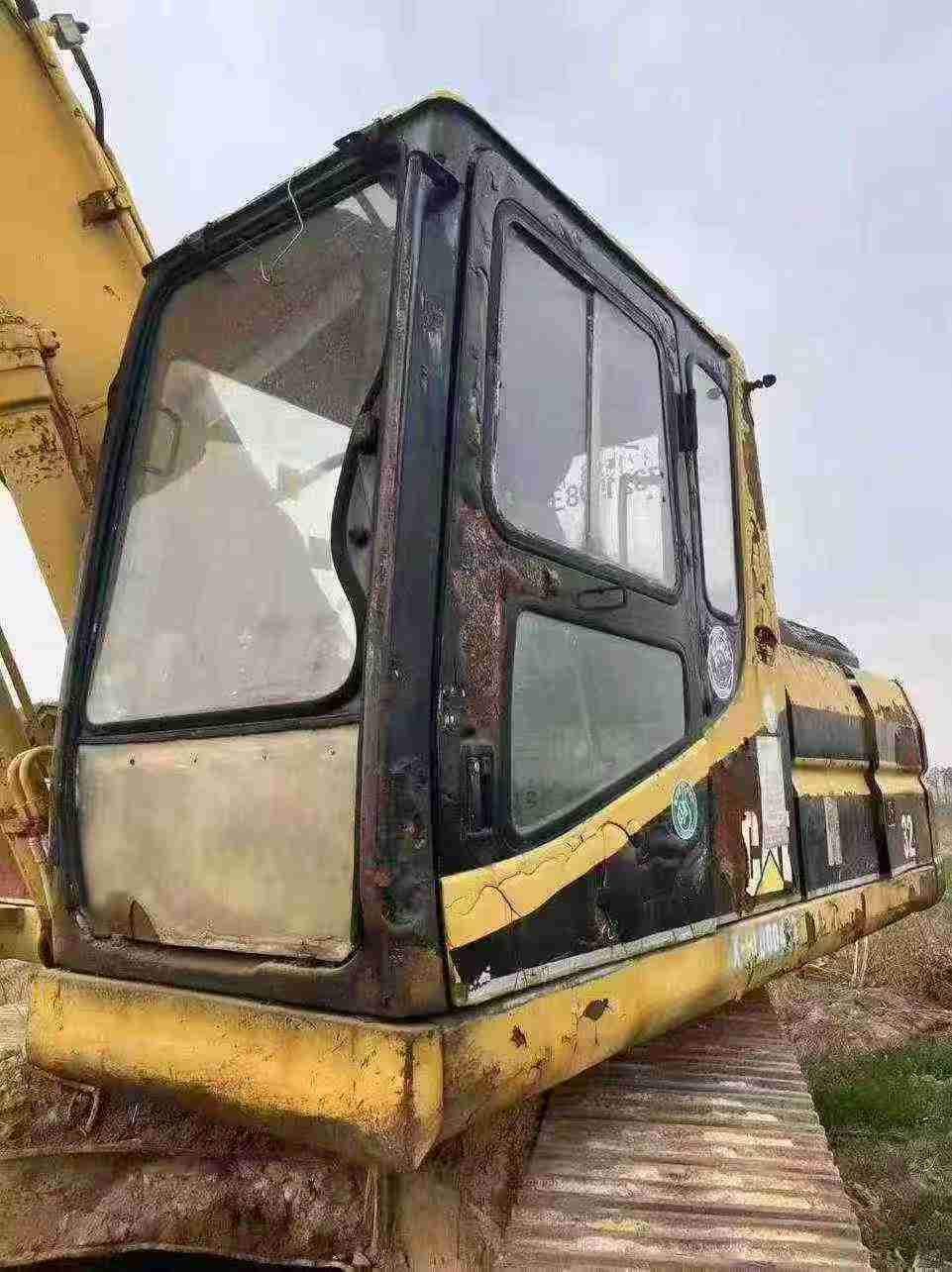

Used Caterpillar 320B Excavator 2016 Model / 8

Product Description
Specifications	Value
No.	961963
Tonnage (tons)	20
Working weight (kg)	19400
Bucket capacity (m³)	0.92
Boom length (mm)	5680
Rod length (mm)	2900
Country of origin	Japan
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Caterpillar CAT 3066T
Rated power (kw/rpm)	99.9/1800
Cylinder diameter × stroke (mm)	102 x 130
Displacement (L)	6.4
Rotation speed (rpm)	10.7
Travel speed (km/h)	3.4/5.5
Maximum flow of main pump (l/min)	185
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	23
Working Hydraulic Circuit (Mpa)	34.3
Pilot Oil Circuit (MPa)	4.12
Bucket cylinders - Number × diameter × stroke (mm)	1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)	1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)	2-120 x 1260
Fuel Tank (L)	340
Hydraulic Tank (L)	130
Engine Oil changes (L)	20.5
Coolant (L)	25
Hydraulic System (L)	220
Total transport length (mm)	9440
Total transport width (mm)	2800
Total transport height (mm)	2940
Full cab height (mm)	2940
Minimum ground clearance (mm)	475
Back end turning radius (mm)	2750
Track gauge (mm)	2200
Track plate width (mm)	600
Total track width (mm)	2800
Track ground length (mm)	3265
Maximum digging depth (mm)	6640
Maximum excavation height (mm)	9470
Maximum unloading height (mm)	6570
Maximum vertical digging depth (mm)	6040
Maximum excavation radius of stop surface (mm)	9780

Description

【 Premium Recommendation 】 Second-hand Caterpillar 320B excavator We have carefully selected for you a second-hand Caterpillar 320B excavator with an extremely high cost performance. This equipment is only sold for over 40,000 RMB. It is not only affordable but also has excellent performance, making it an ideal choice for your engineering work. 【 Basic Information - Brand: Caterpillar Model: 320B - Working hours: Approximately 5,000 hours - Price: Over 40,000 RMB "Power System This excavator is equipped with an original high-performance engine from Caterpillar, which is powerful and has good fuel economy. After professional maintenance and upkeep, the engine operates smoothly with low noise, capable of meeting the construction requirements under various complex working conditions. Whether it's digging, loading or leveling the land, it can all be handled with ease. "Hydraulic System It adopts an advanced hydraulic control system, which is flexible and precise in operation and responds quickly. The entire hydraulic system has undergone comprehensive inspection and debugging to ensure no leakage occurs, guaranteeing that the equipment maintains an efficient and stable working state even during long-term and high-intensity operations. 2025-12-04 14:25:49
