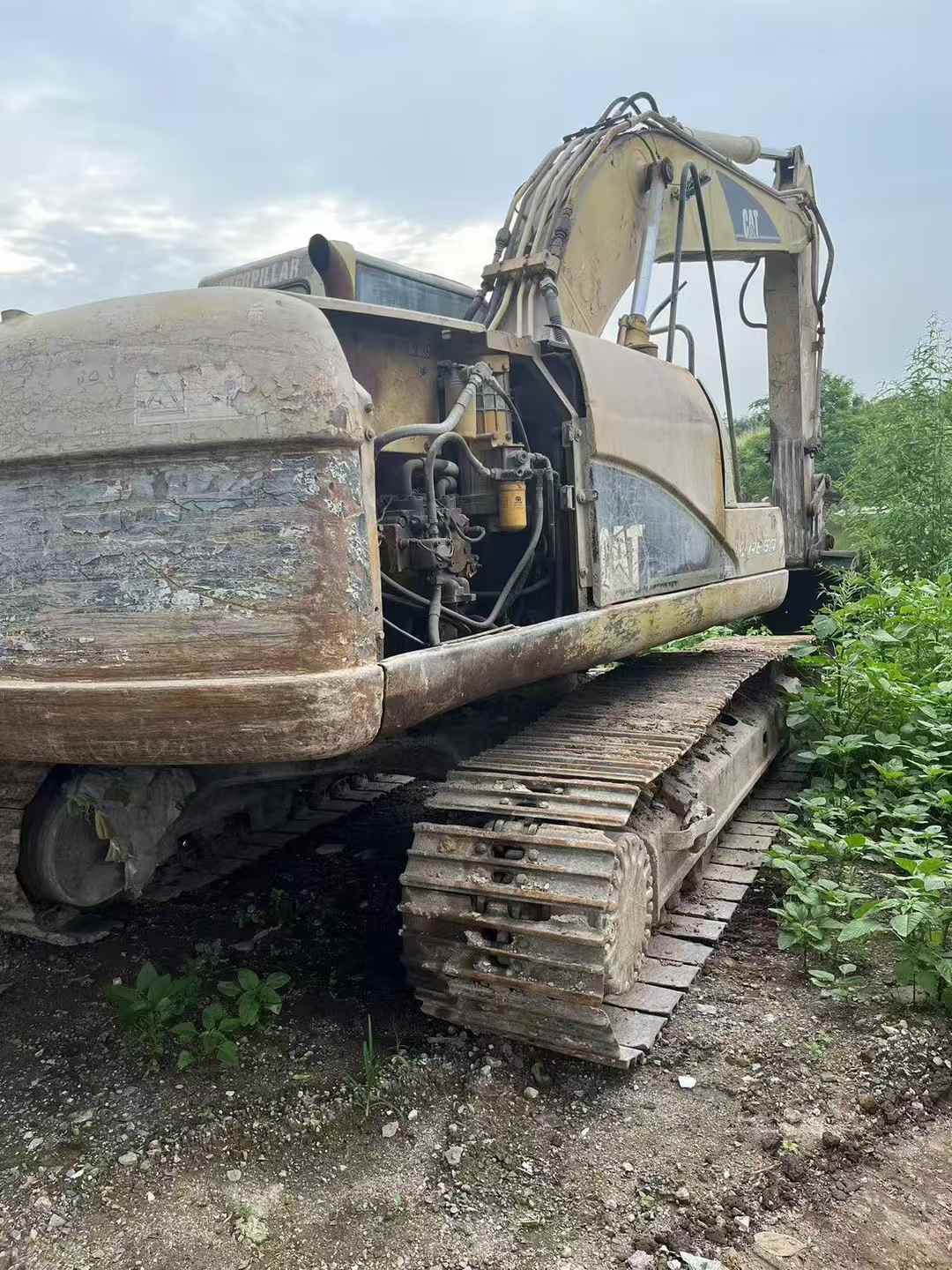

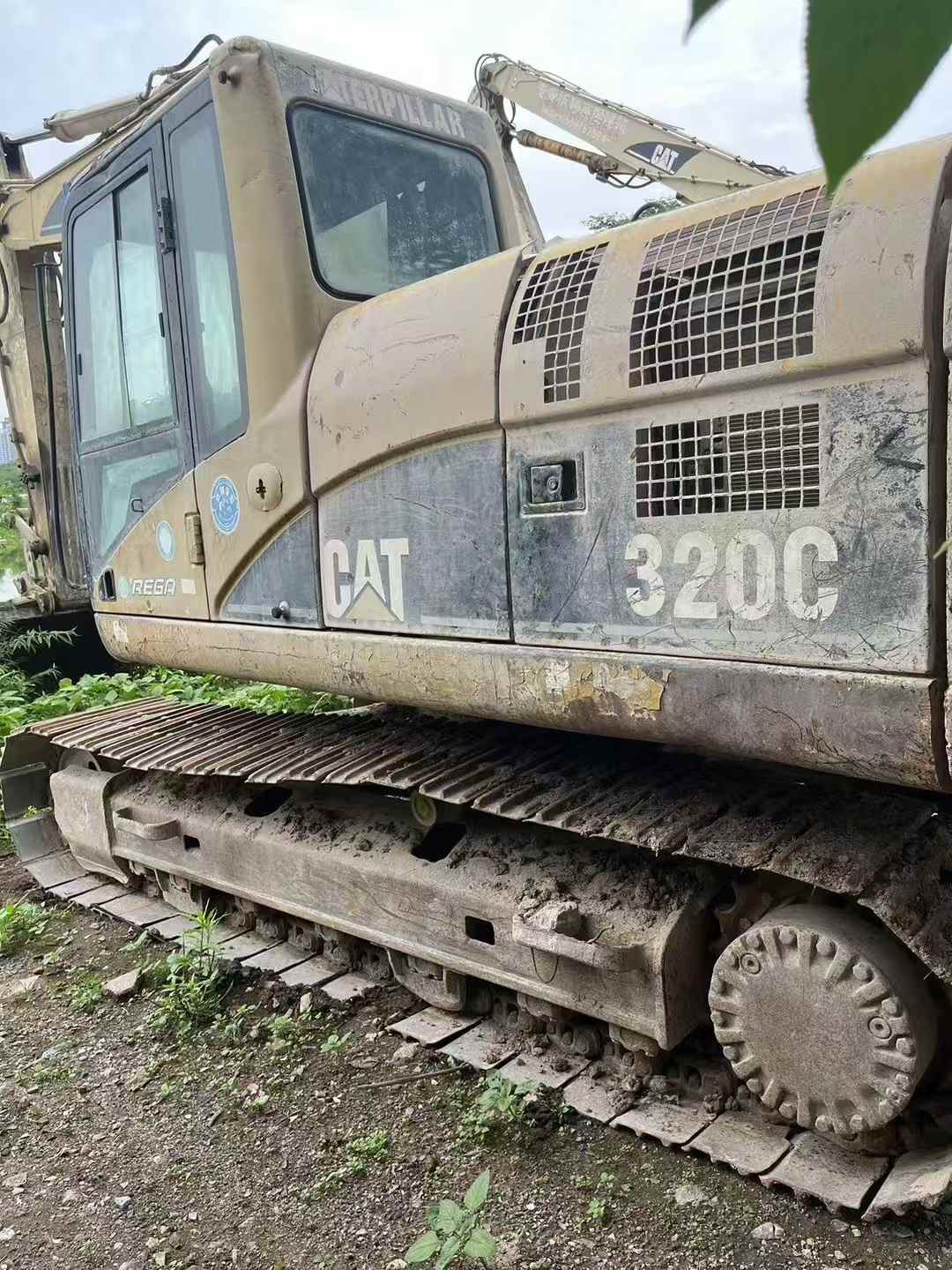

2016 Caterpillar 320C





| Specifications | Value |
|---|---|
| No. | 960528 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description
【 Premium Recommendation 】 Second-hand Caterpillar 320C AMC excavator We currently have a second-hand Caterpillar 320C AMC excavator with outstanding performance waiting for your purchase. This excavator has a working time of only 5,000 hours and is in excellent overall condition. With professional maintenance and upkeep, it ensures efficient and stable operation during construction. In terms of the power system, this machine is equipped with an original imported Caterpillar engine, which is powerful and has low fuel consumption. Even in complex and changeable working environments, it can handle them with ease. Whether it is excavation, loading or crushing operations, it can demonstrate outstanding working efficiency. Meanwhile, this engine also features excellent fuel economy and environmental protection performance, meeting the latest emission standards. The hydraulic system adopts advanced load sensing technology, which can automatically adjust the oil distribution according to actual needs, ensuring smooth operation while reducing energy consumption. In addition, this excavator is also equipped with a variety of safety protection devices, such as overload protection and temperature alarm, which further enhance the safety and rel
Overview
No.960528
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangxi China
