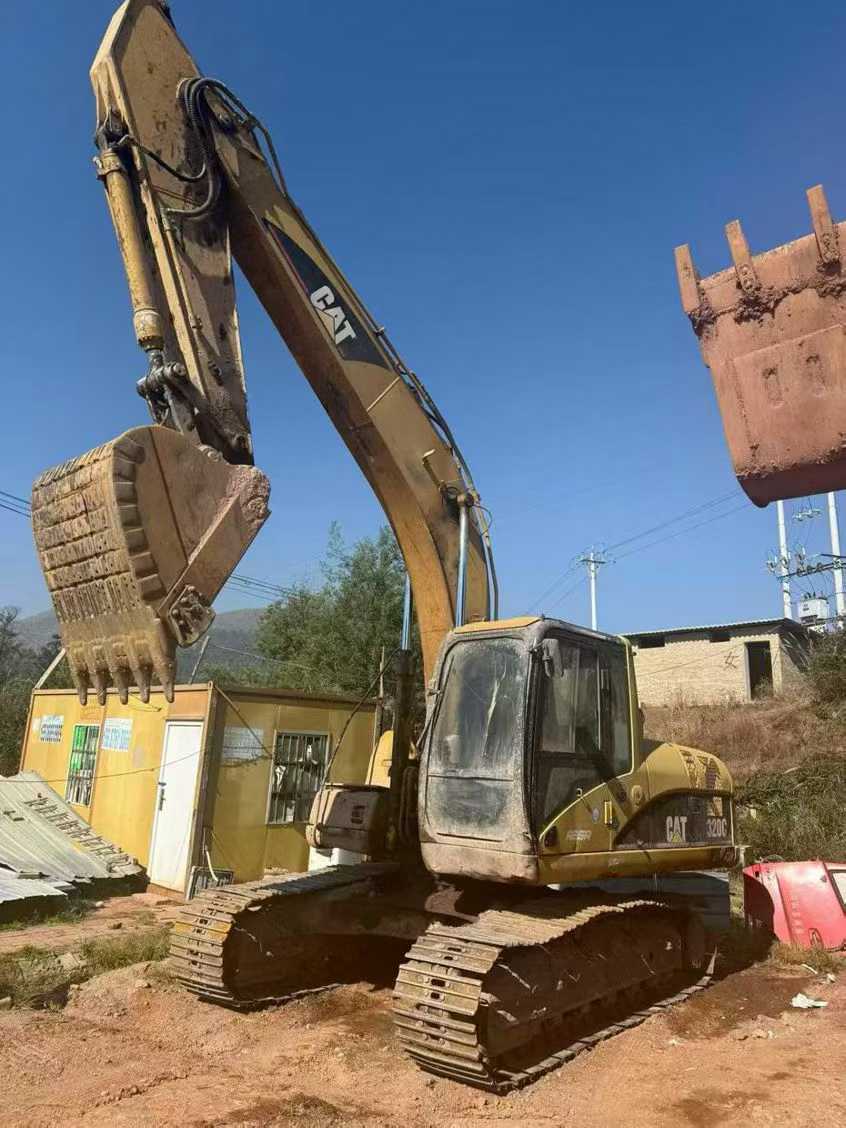

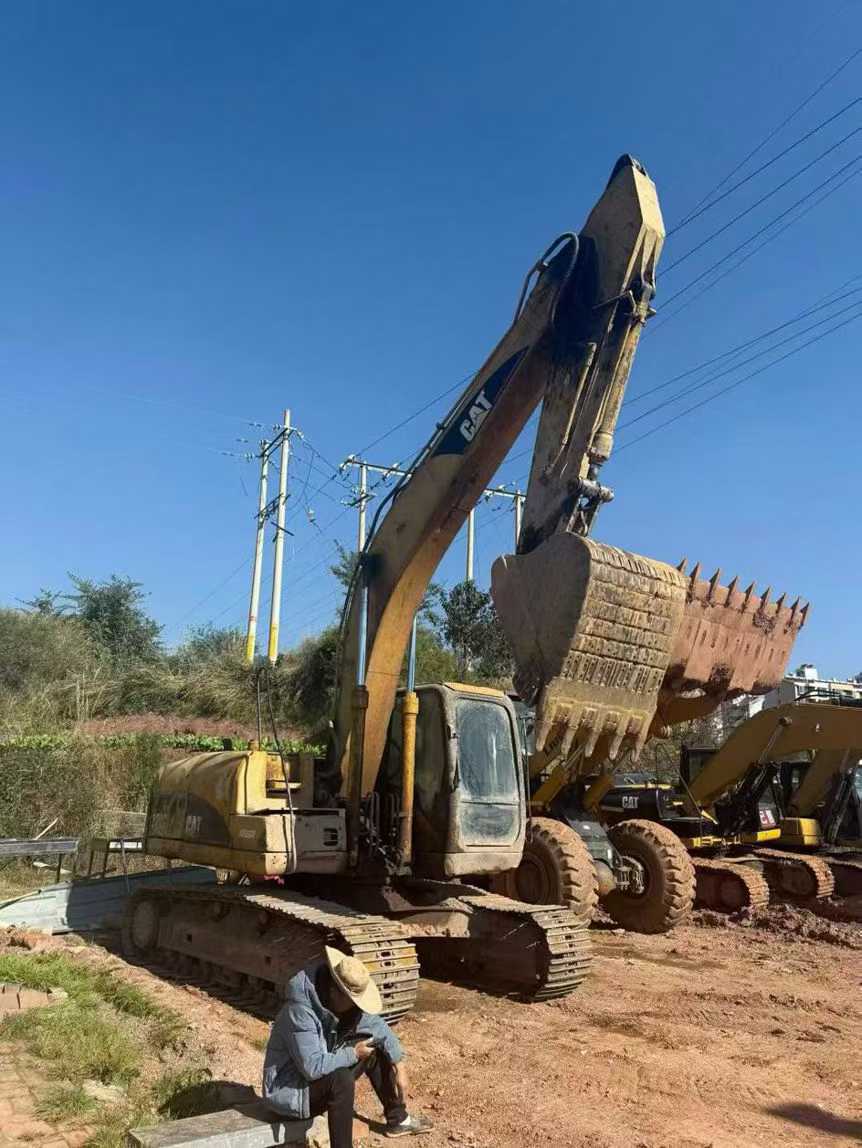

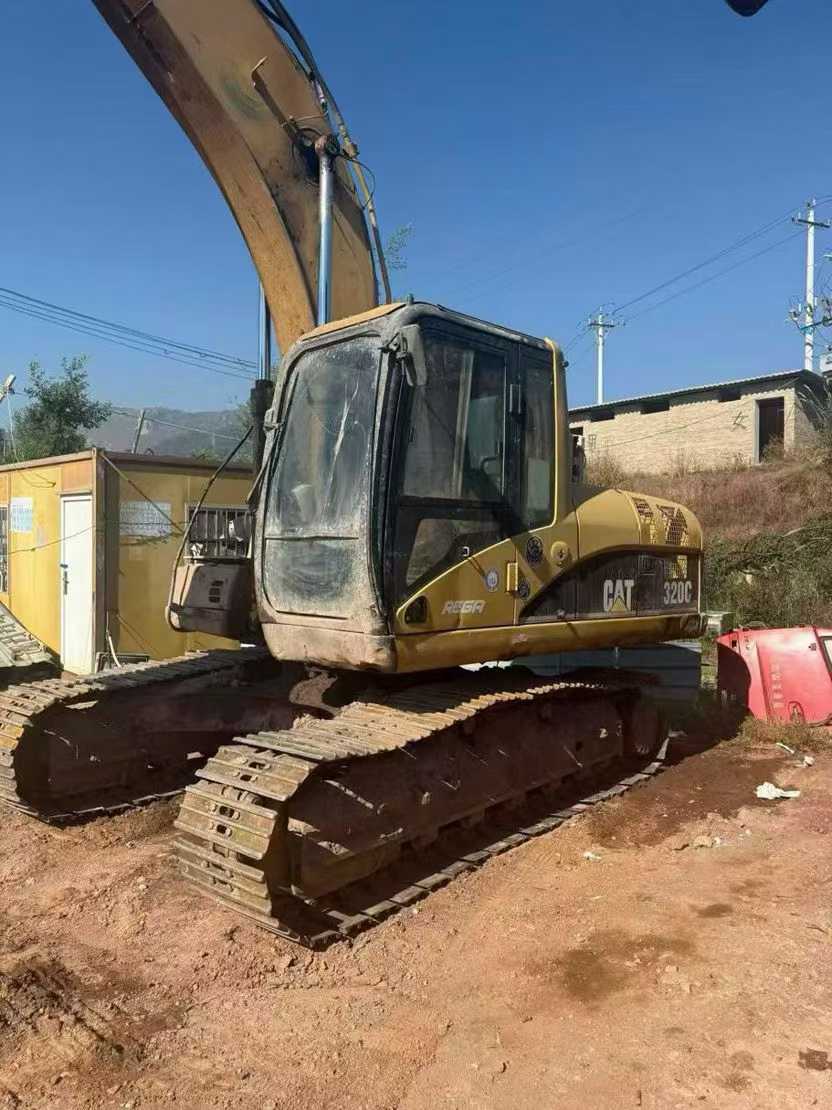

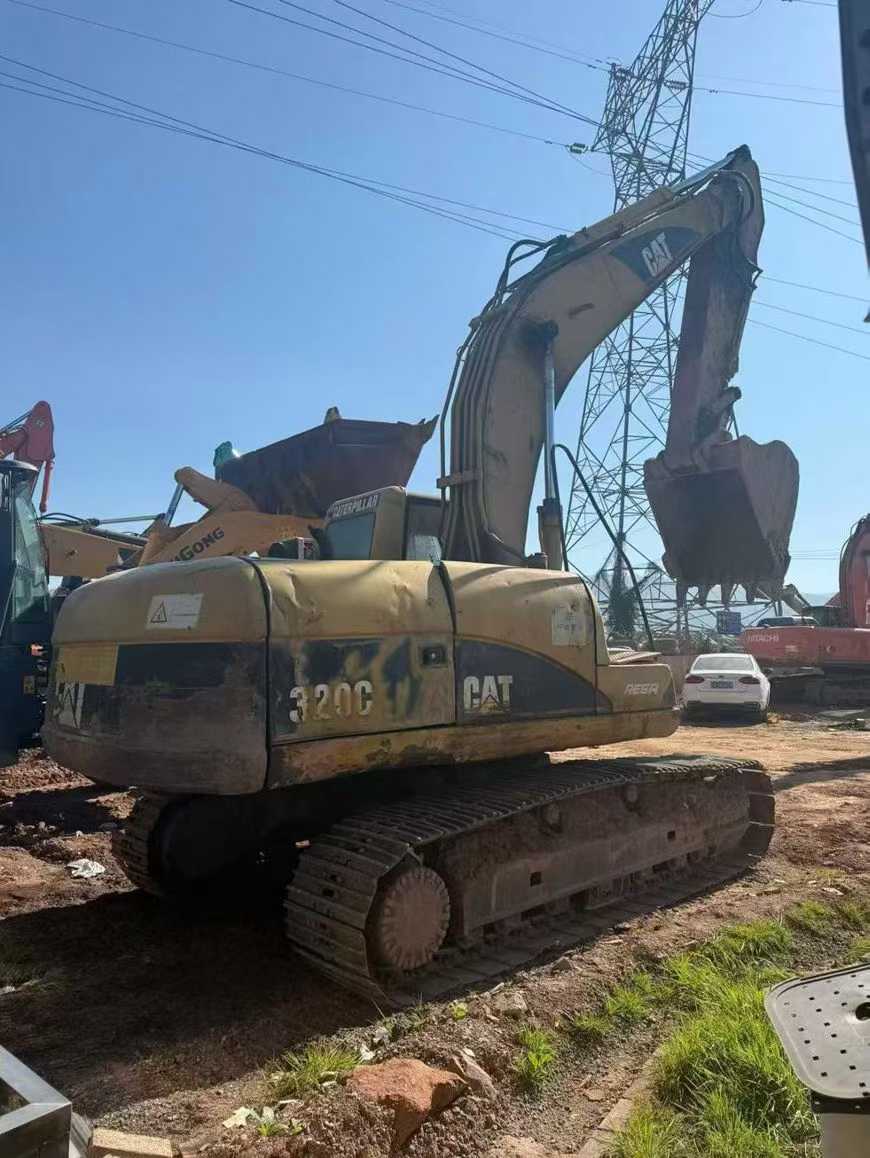

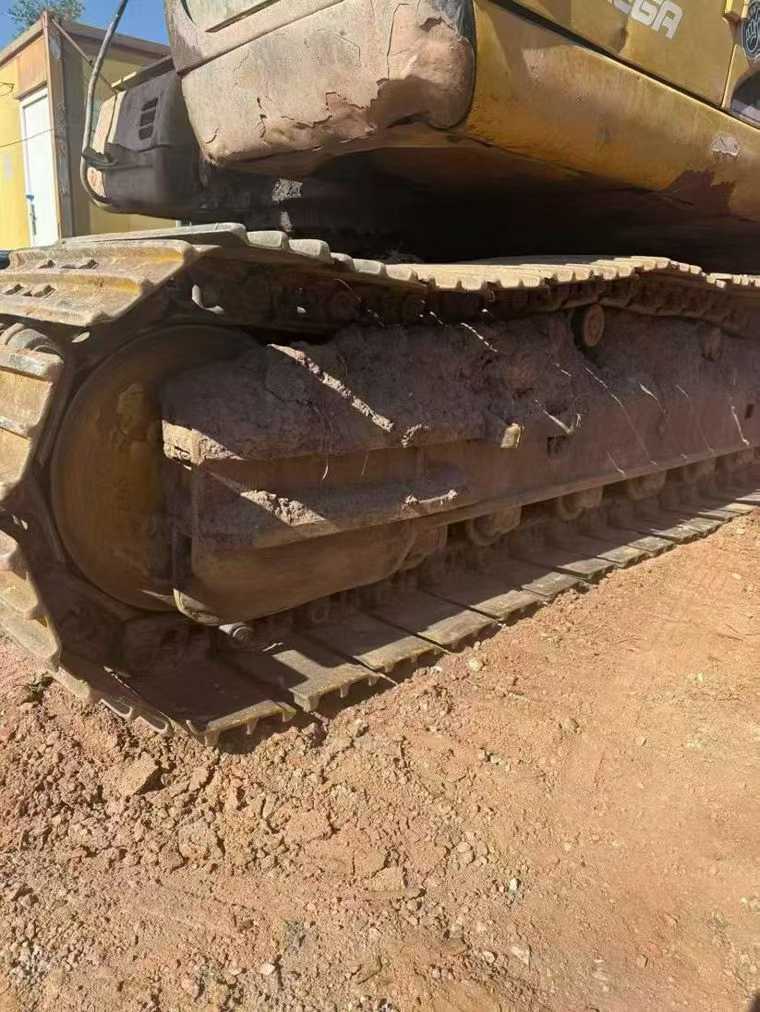

2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 961852 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

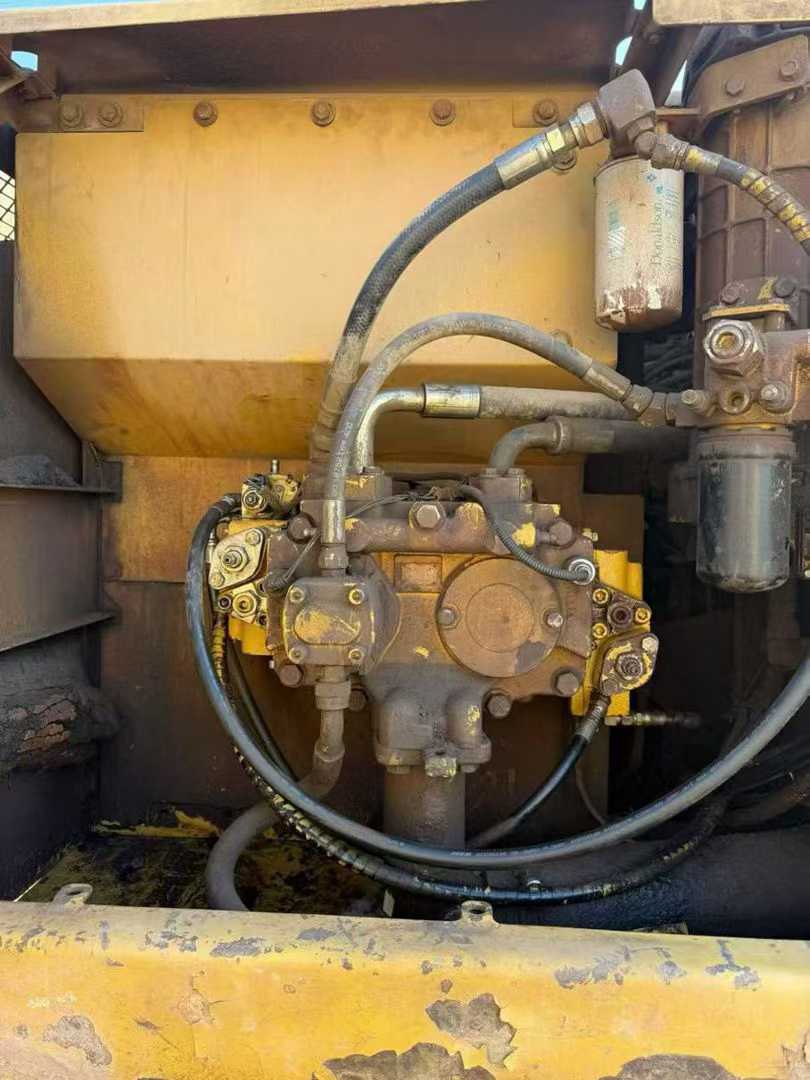

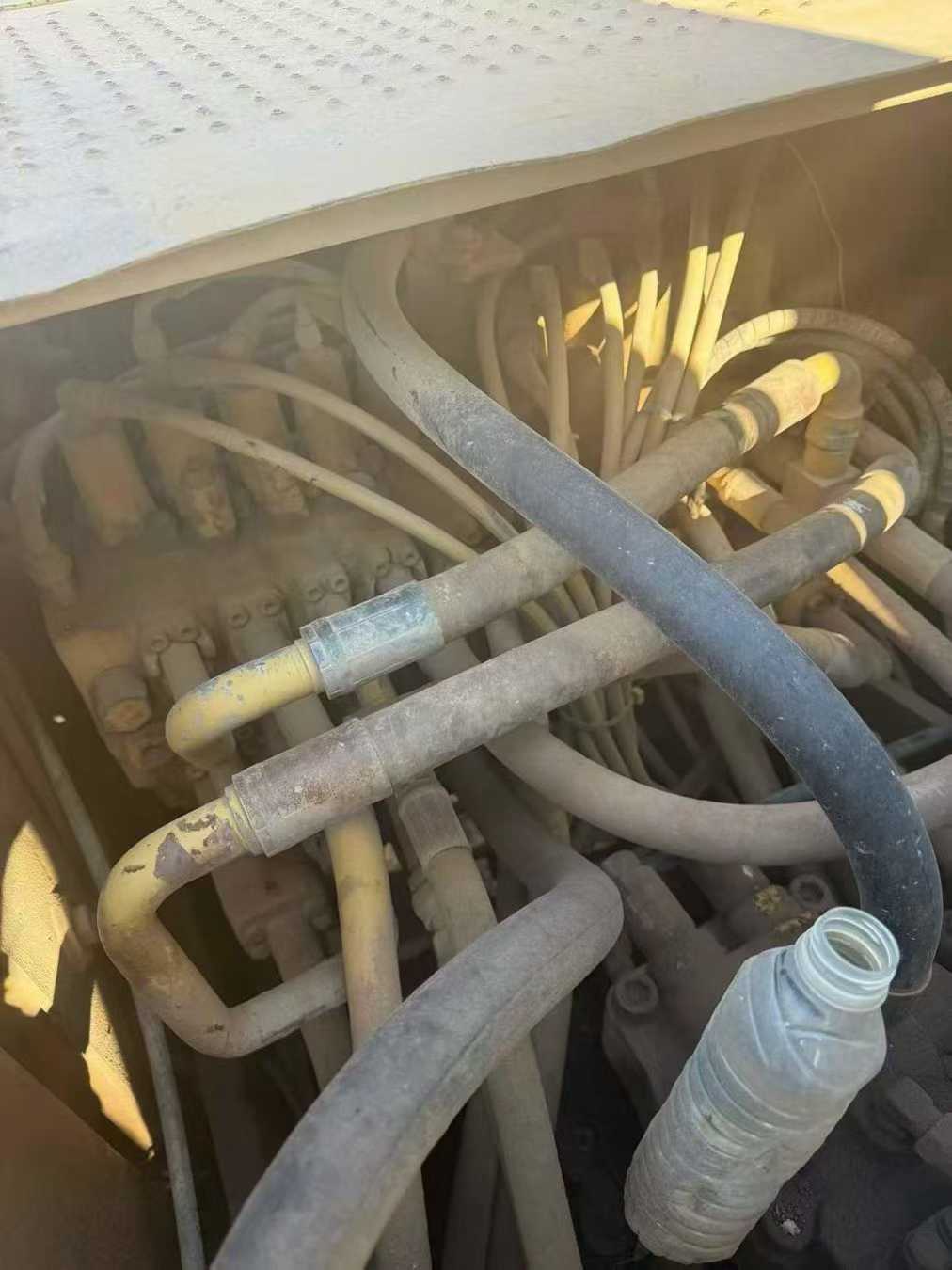

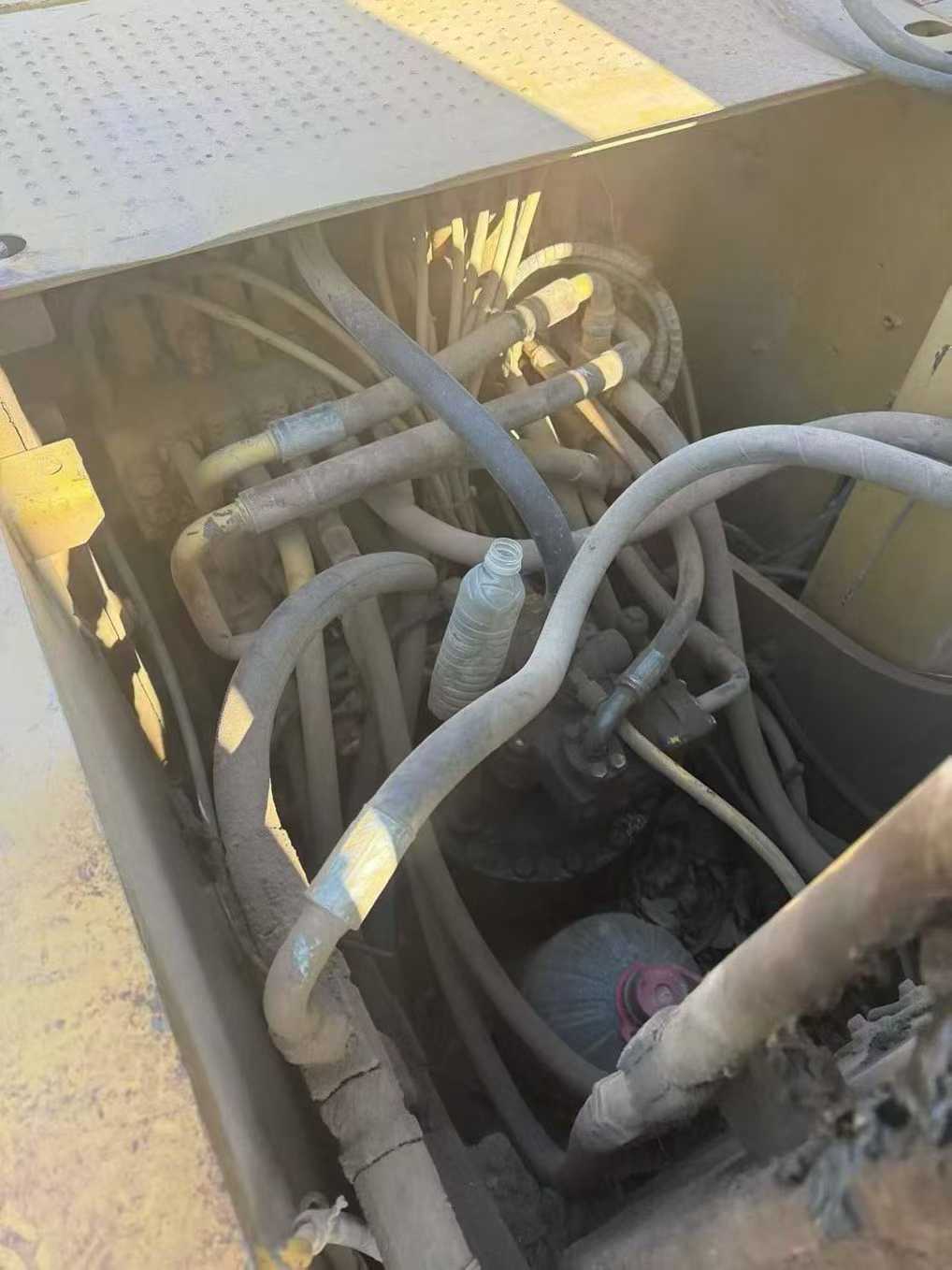

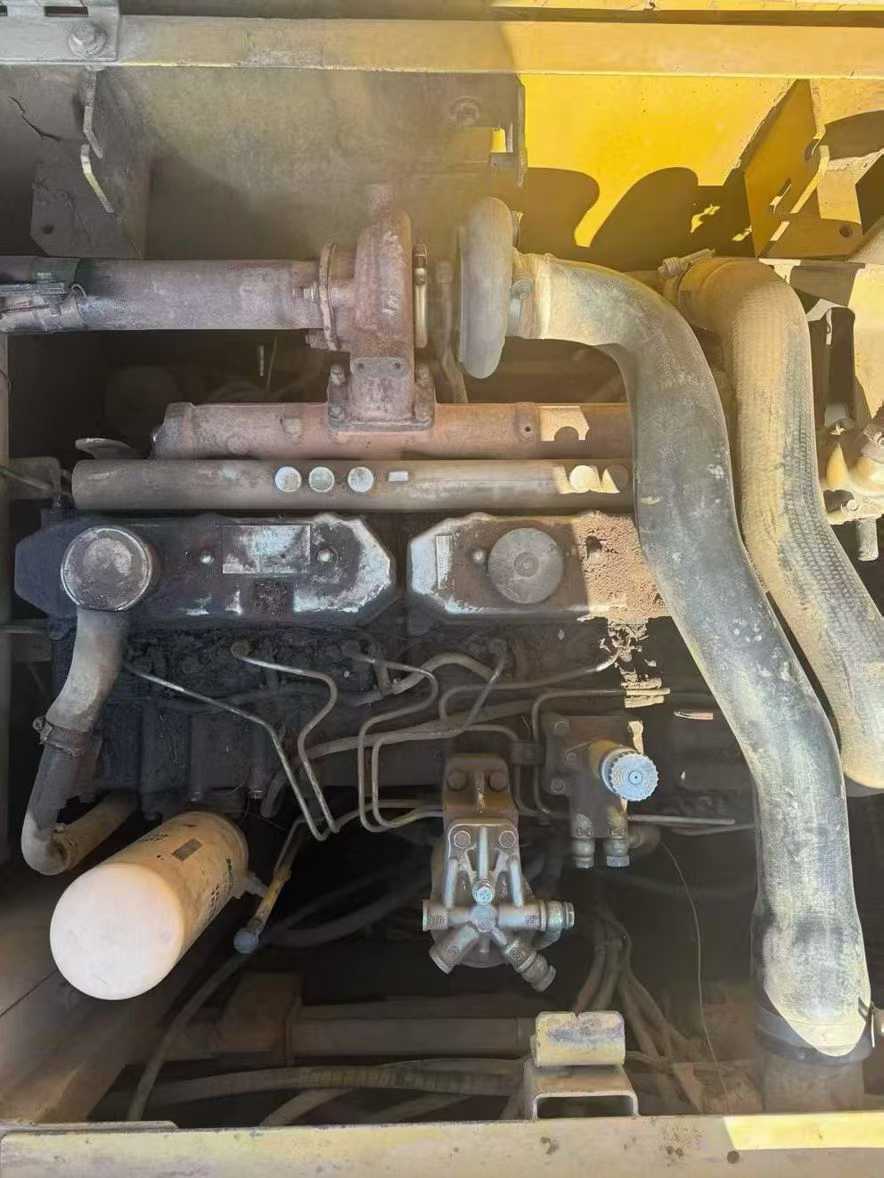

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator, no inspection required for machine condition, and favorable price! This Caterpillar 320C excavator is one of the most sought-after models in the market, featuring outstanding working performance and reliability. The current working time is only 5,000 hours, and it is in the best usage condition, ensuring the high efficiency and durability of the equipment. The power system is equipped with a powerful engine produced by Caterpillar itself. It not only has abundant power but also excellent fuel economy, maintaining stable output under various working conditions and reducing operating costs. The hydraulic system, after meticulous maintenance, responds quickly and operates flexibly. It can handle tasks such as excavation, loading and crushing with ease, significantly enhancing work efficiency. In addition, this machine is also equipped with an advanced electronic control system, which can achieve precise control and reduce unnecessary energy loss. Most importantly, we promise that this excavator is "exempt from inspection for machine condition", which means it has passed a strict inspection process, all key components are in good condition, and there are no major maintena
Overview
No.961852
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Yunnan China
