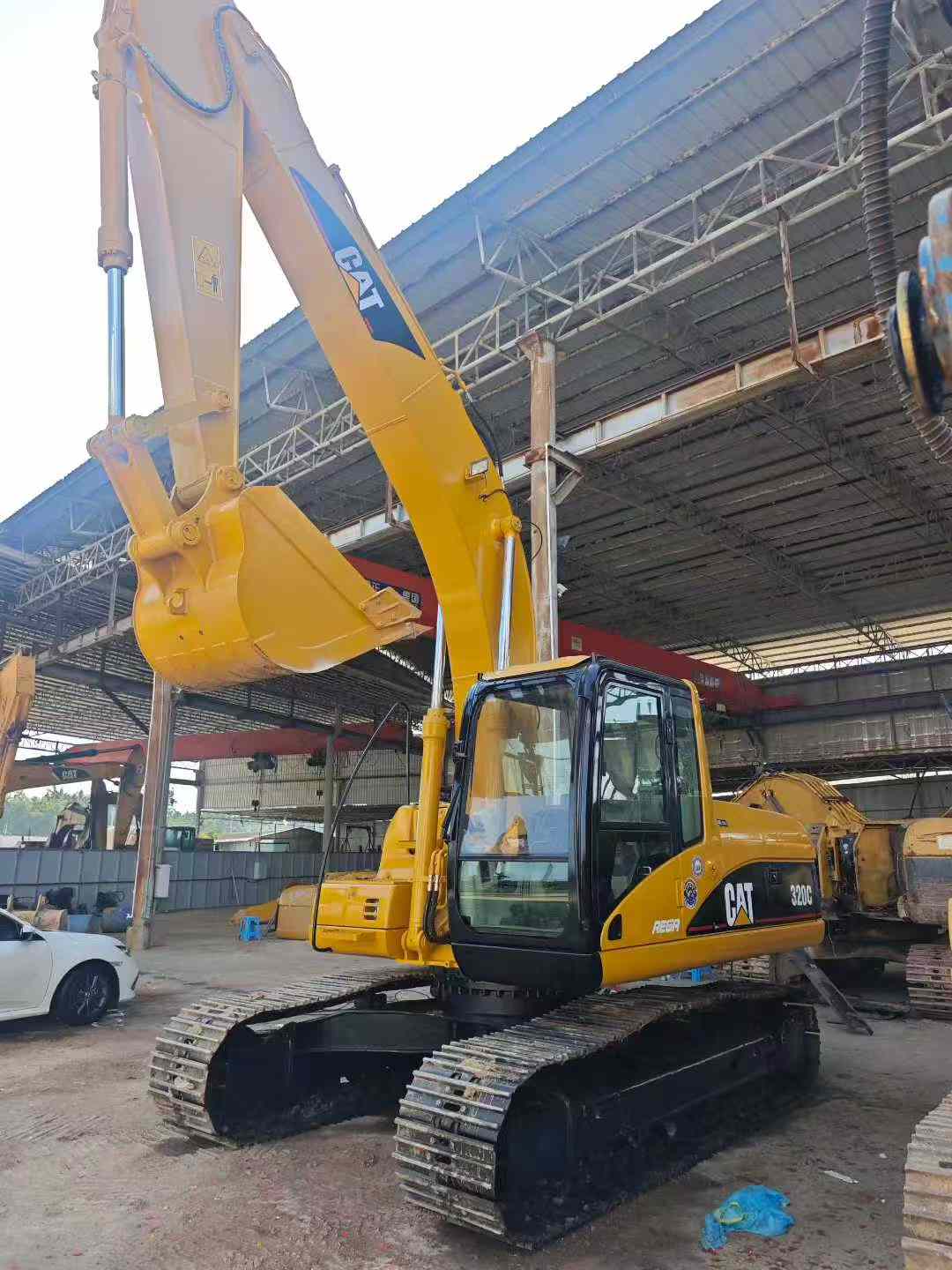

2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 969215 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

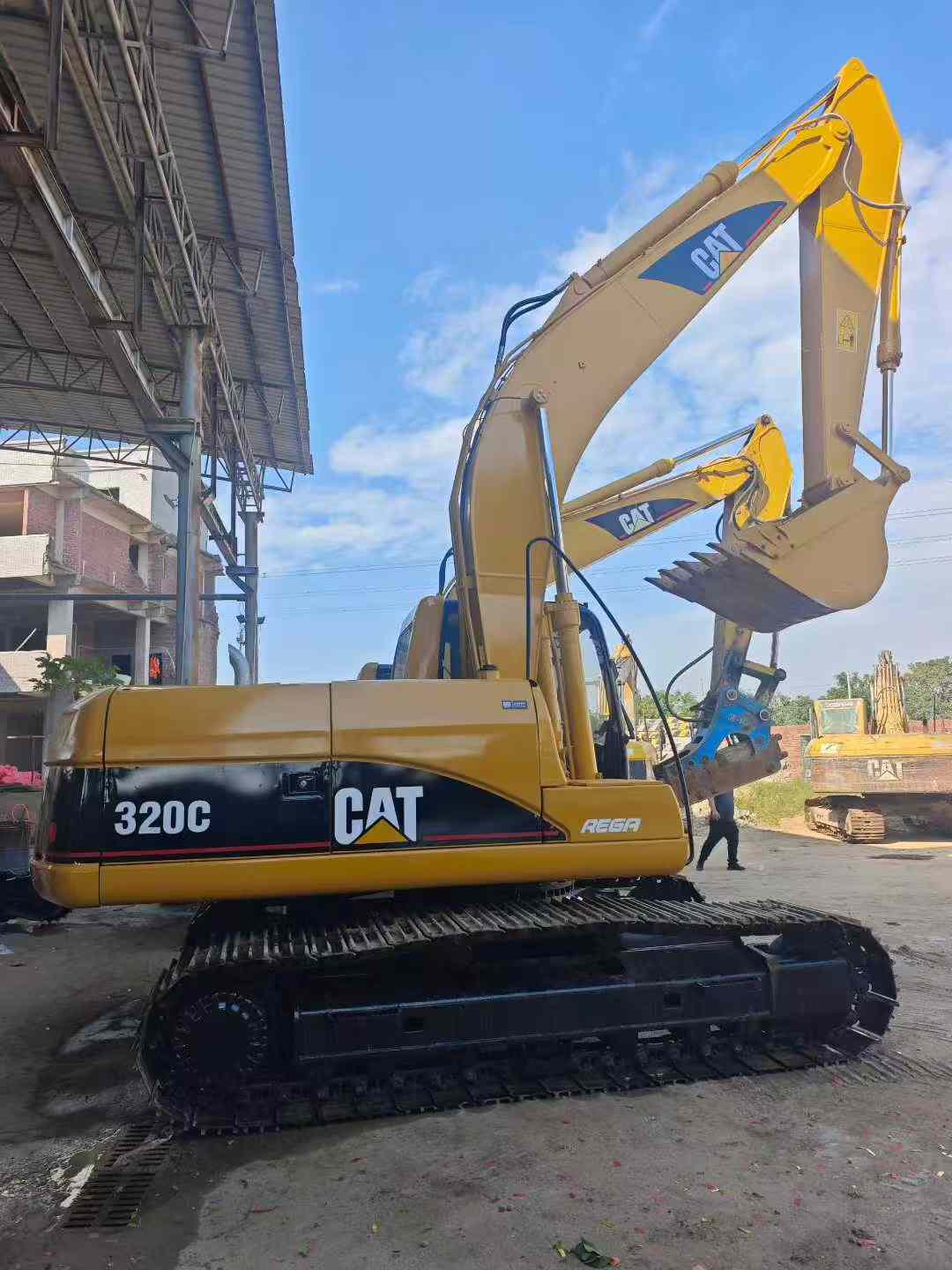

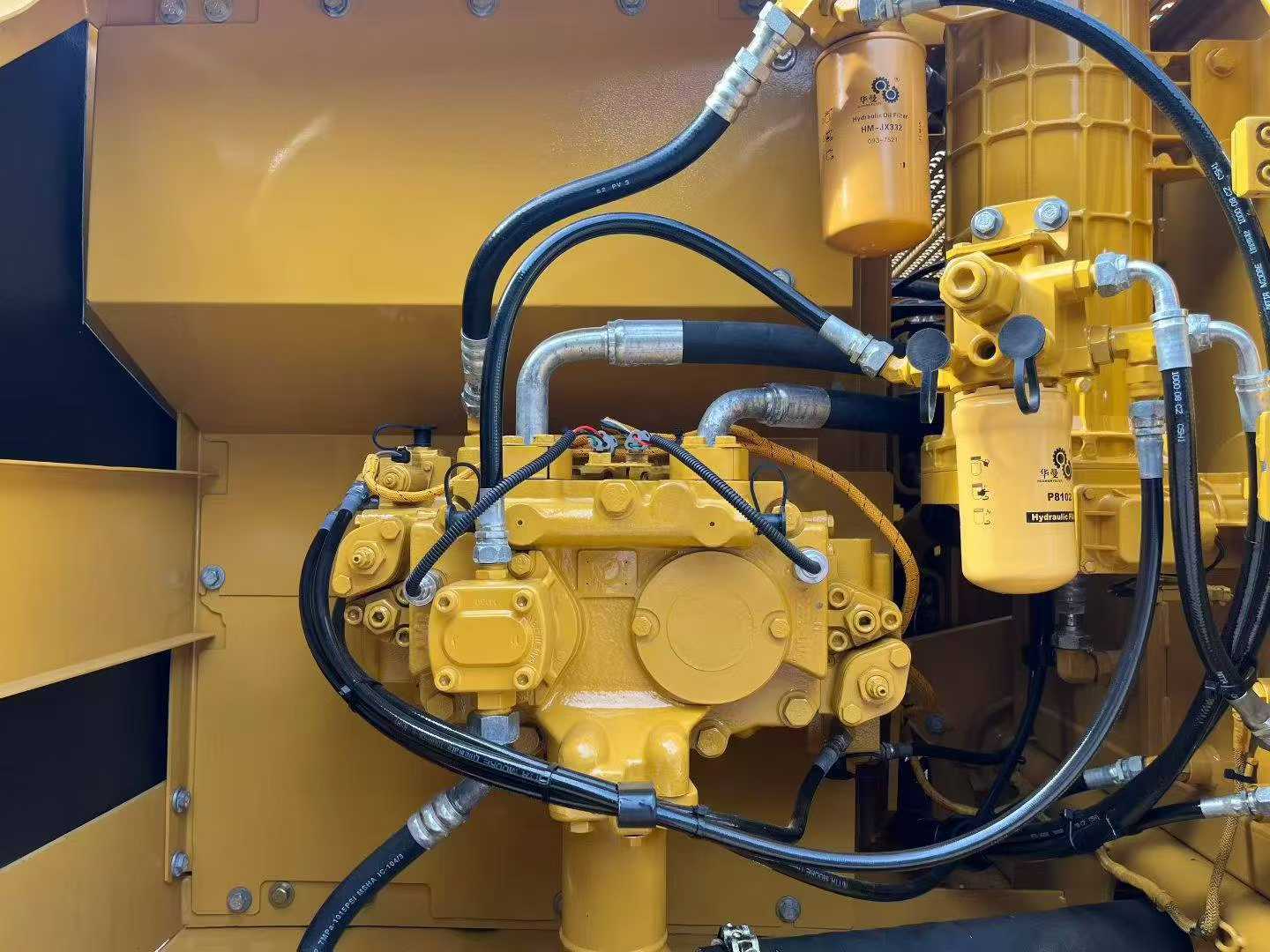

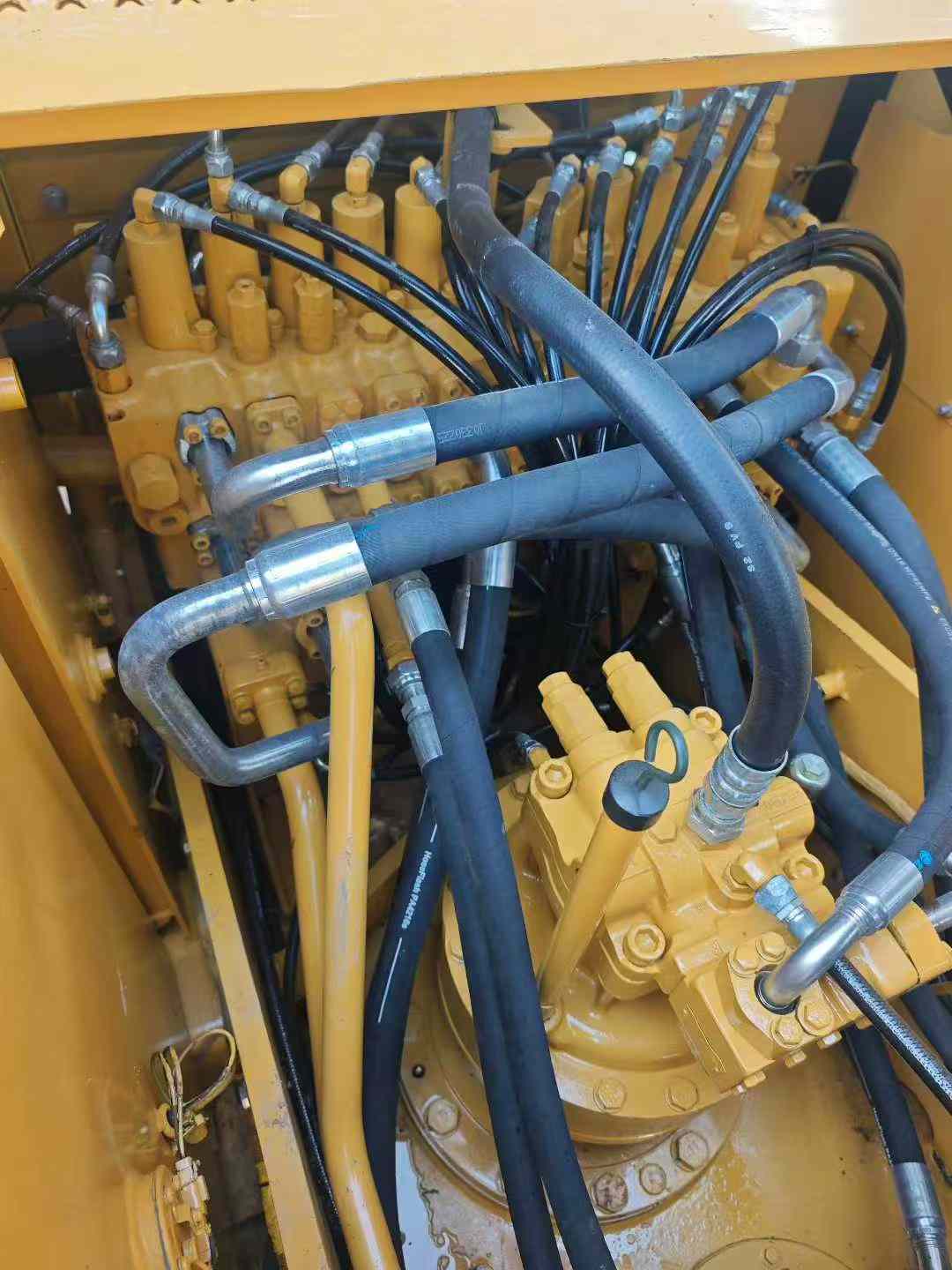

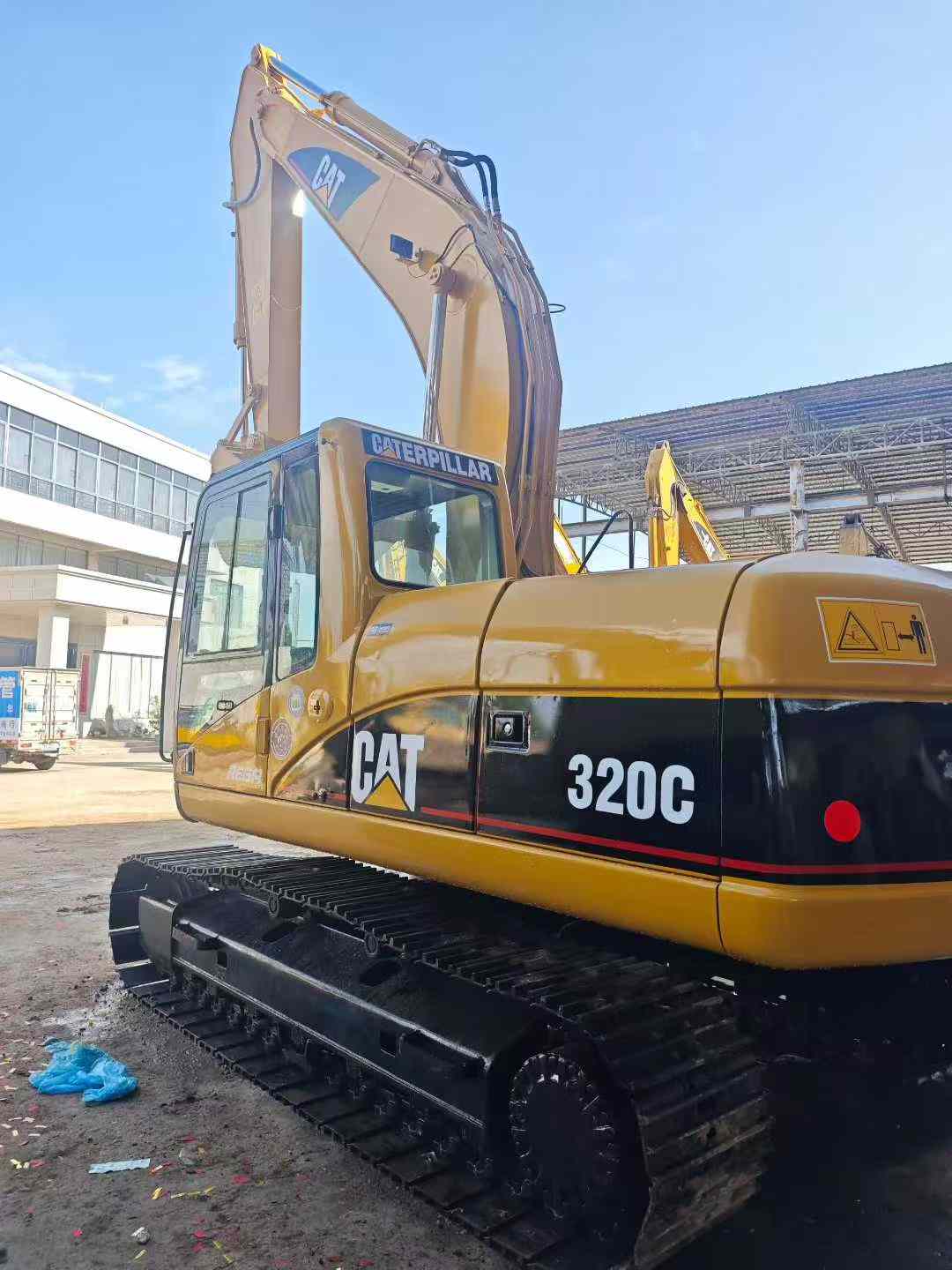

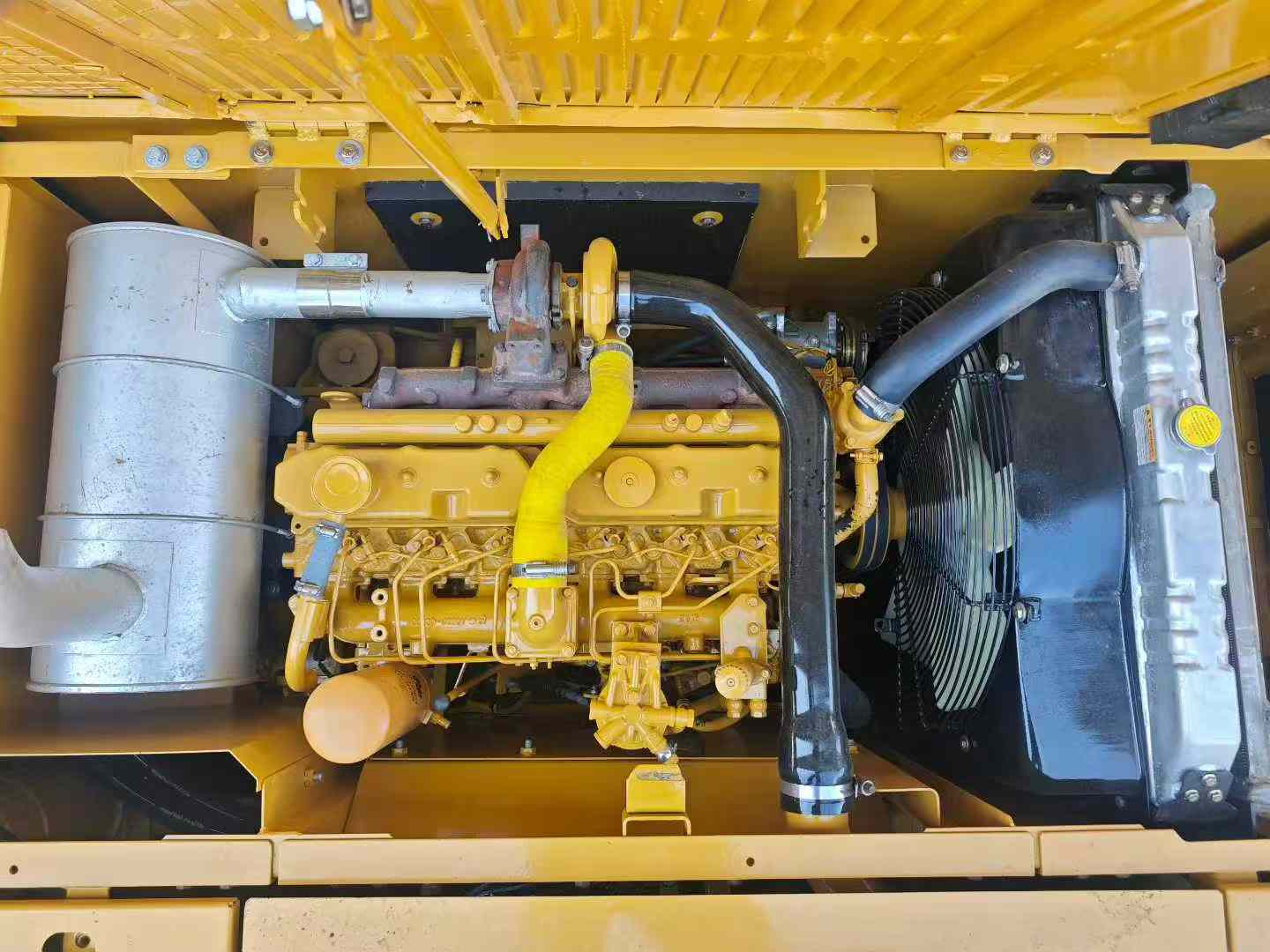

Remanufactured Caterpillar 320C excavators, long-term supply of Caterpillar 320C/320D for foreign trade We are extremely honored to recommend to you this fully remanufactured Caterpillar 320C excavator. This device not only boasts outstanding working performance, but also, under the meticulous maintenance of our professional team, has been restored to a nearly brand-new state, ensuring its excellent reliability and durability. This machine has a cumulative working time of approximately 5,000 hours. For a second-hand device that has undergone strict screening and high-standard repair processes, such a usage period indicates that it still has a long service life waiting for you to discover. In terms of the power system, the Caterpillar 320C is equipped with an original imported Caterpillar engine, which is renowned for its powerful output and smooth operation. It can maintain efficient and stable performance under various complex working conditions. Meanwhile, the advanced fuel management system leads to lower fuel consumption and less emissions, meeting modern environmental protection requirements while also reducing operating costs. The hydraulic system is one of the key factors in evaluating the quality of an excavator, and this is
Overview
No.969215
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
