2019 Caterpillar 326DL






| Specifications | Value |
|---|---|
| No. | 961870 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Description

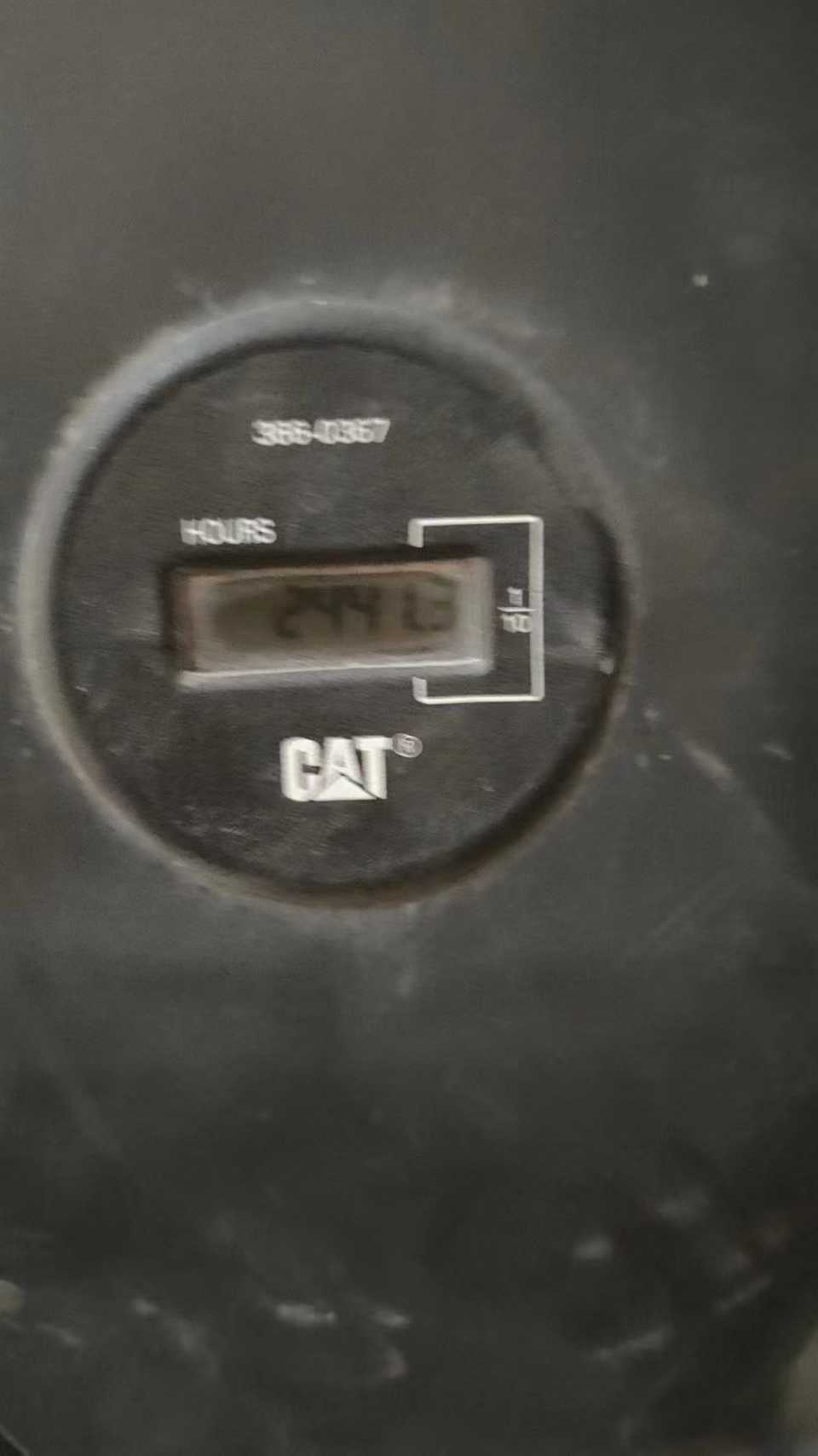

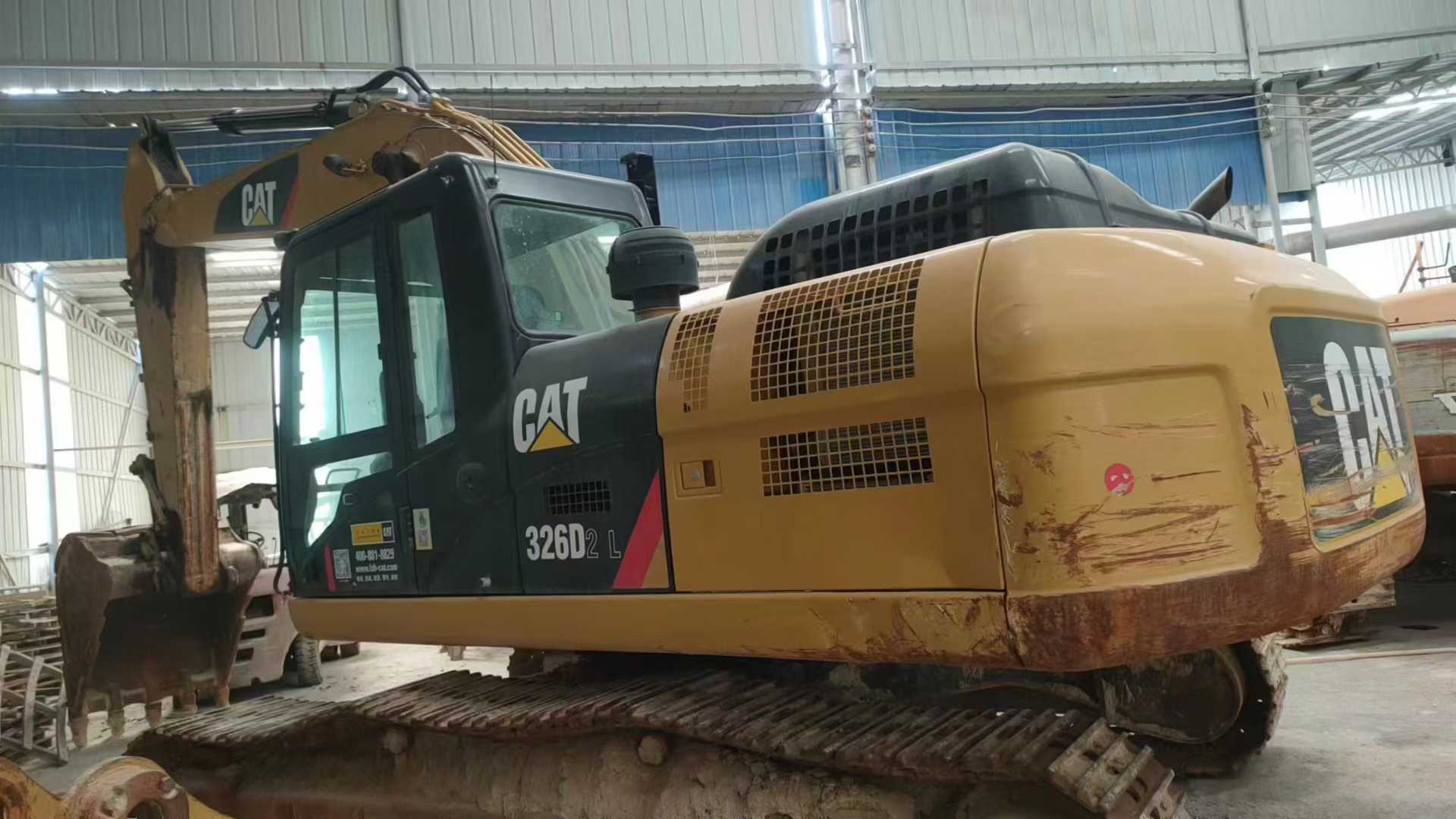

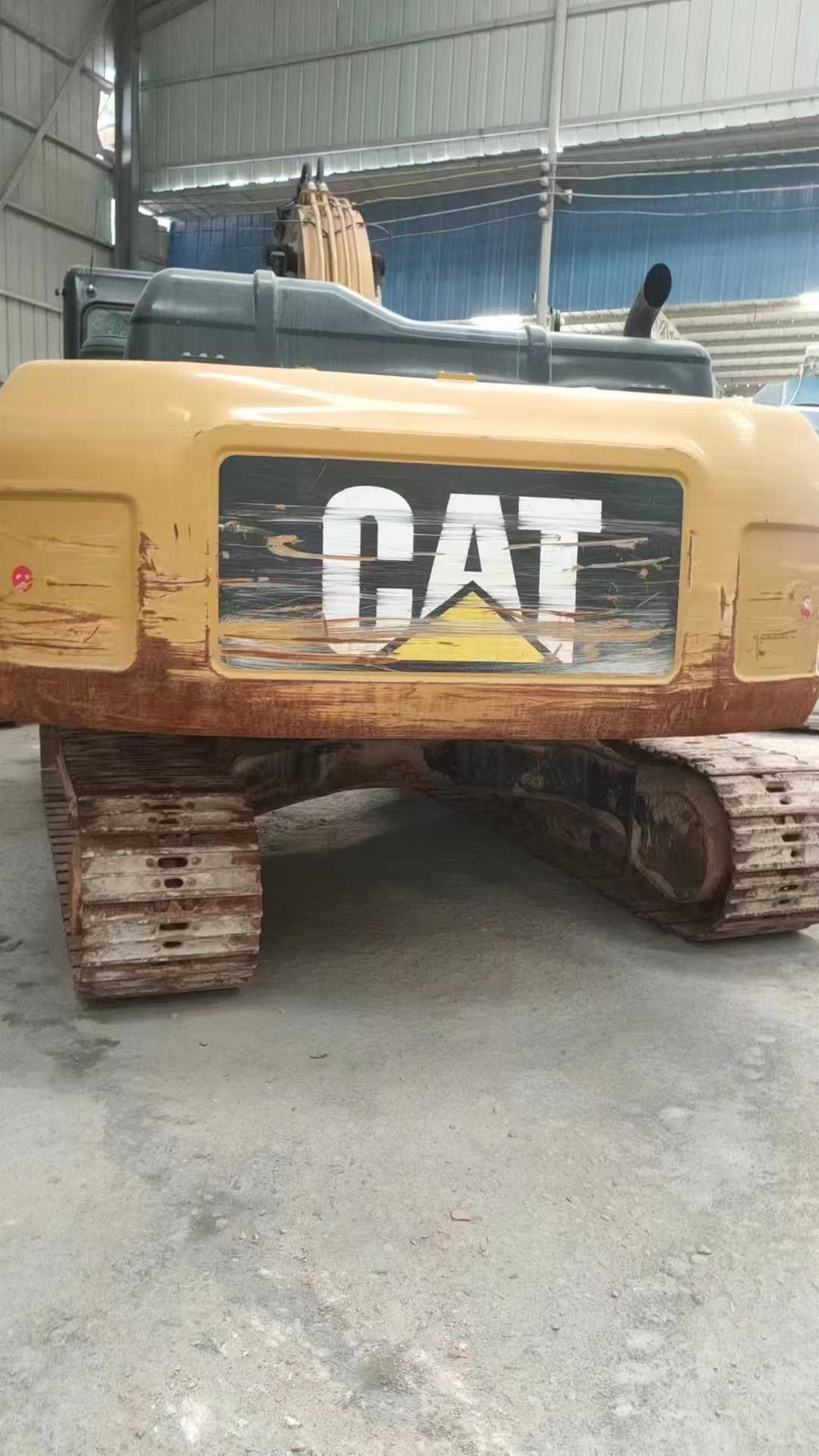

【 Premium Recommendation 】2019 Caterpillar 326D2 excavator, this is a high-performance second-hand excavator that has received high praise in the market. This device has a working time of only 3,500 hours and is in excellent overall condition. With proper maintenance, there are almost no obvious signs of wear and tear. It maintains an extremely high standard both in appearance and performance. In terms of the power system, this excavator is equipped with the C7.1 ACERT engine produced by Caterpillar itself. This is a high-performance engine specially designed for heavy machinery, featuring strong power output and smooth operation characteristics. Its maximum power can reach 140kW (approximately 187 horsepower), which not only enables it to easily handle excavation tasks under various complex working conditions, but also performs well in fuel economy, significantly reducing operating costs. The hydraulic system adopts the advanced CLSS (Closed Center Load Sensing) technology, making the operation of the entire machine more flexible and precise, with a faster response speed. Especially in fine operations, its advantages are more evident. In addition, this model is equipped with a variety of intelligent control systems, such as automati
Overview
No.961870
Brand Name:
CaterpillarModel Number:
326DLYear:
2019
Location:
Fujian China
