2014 Caterpillar CT16
| Specifications | Value |
|---|---|
| No. | 962014 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 17600 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.4 ACERT |
| Rated power (kw/rpm) | 89 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Working form | Meet EU Stage IIIB emission standards |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 111 |
| Rod digging force (kN) | 88 |
| Maximum tractive force (kN) | 156.2 |
| Travel speed (km/h) | 5.2 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 300 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 25.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 110 x 1039 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 13.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8570 |
| Total transport width (mm) | 2520/2590/2690 (with different width tracks) |
| Total transport height (mm) | 3180 (to the top of the boom) |
| Full cab height (mm) | 2890 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2520/2590/2690 |
| Maximum digging radius (mm) | 8910 |
| Maximum digging depth (mm) | 6090 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6280 |
| Maximum vertical digging depth (mm) | 4930 |
| Maximum excavation radius of stop surface (mm) | 8780 |
| Maximum effective digging depth (mm) | 5870 |
Description

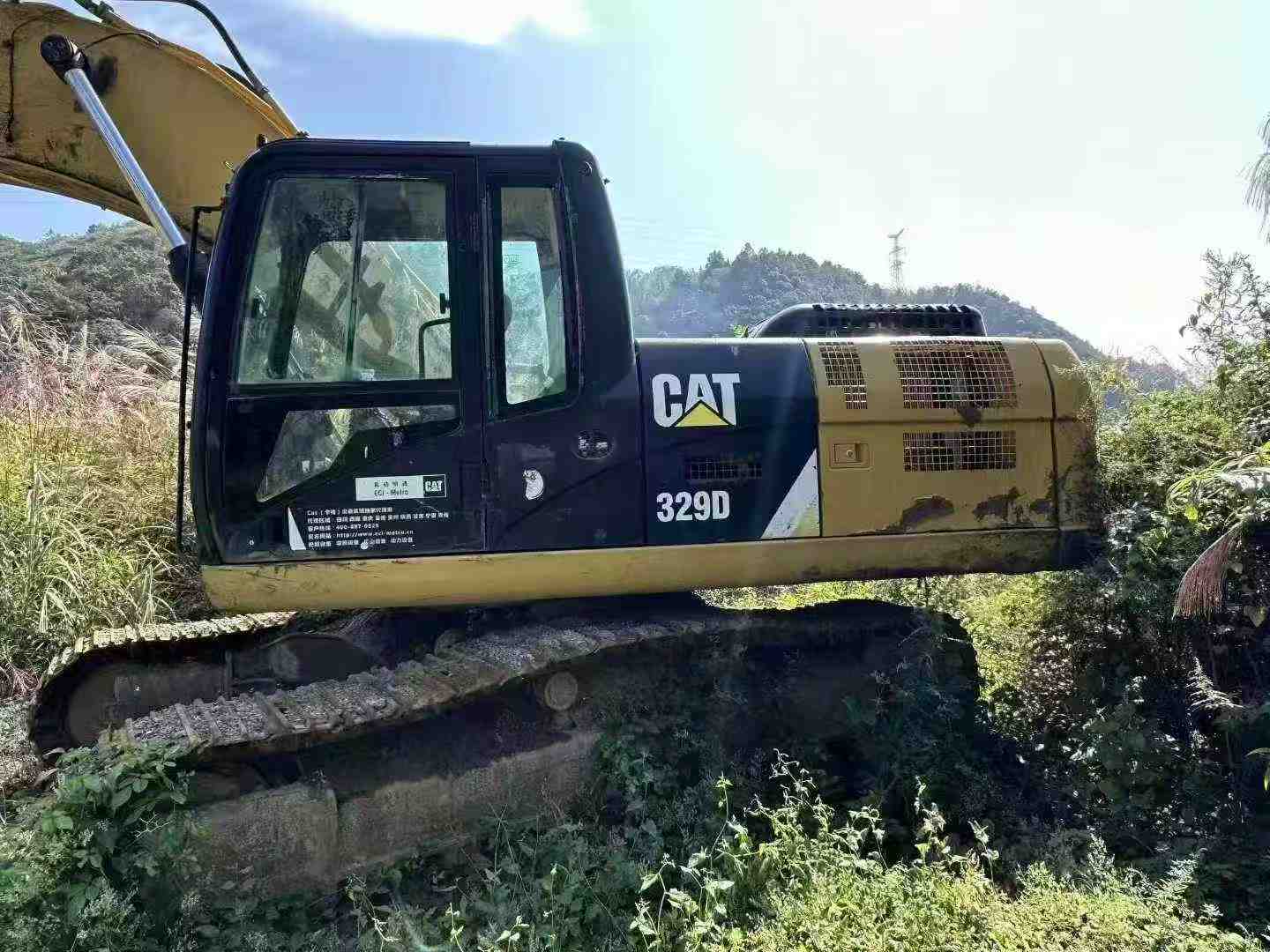

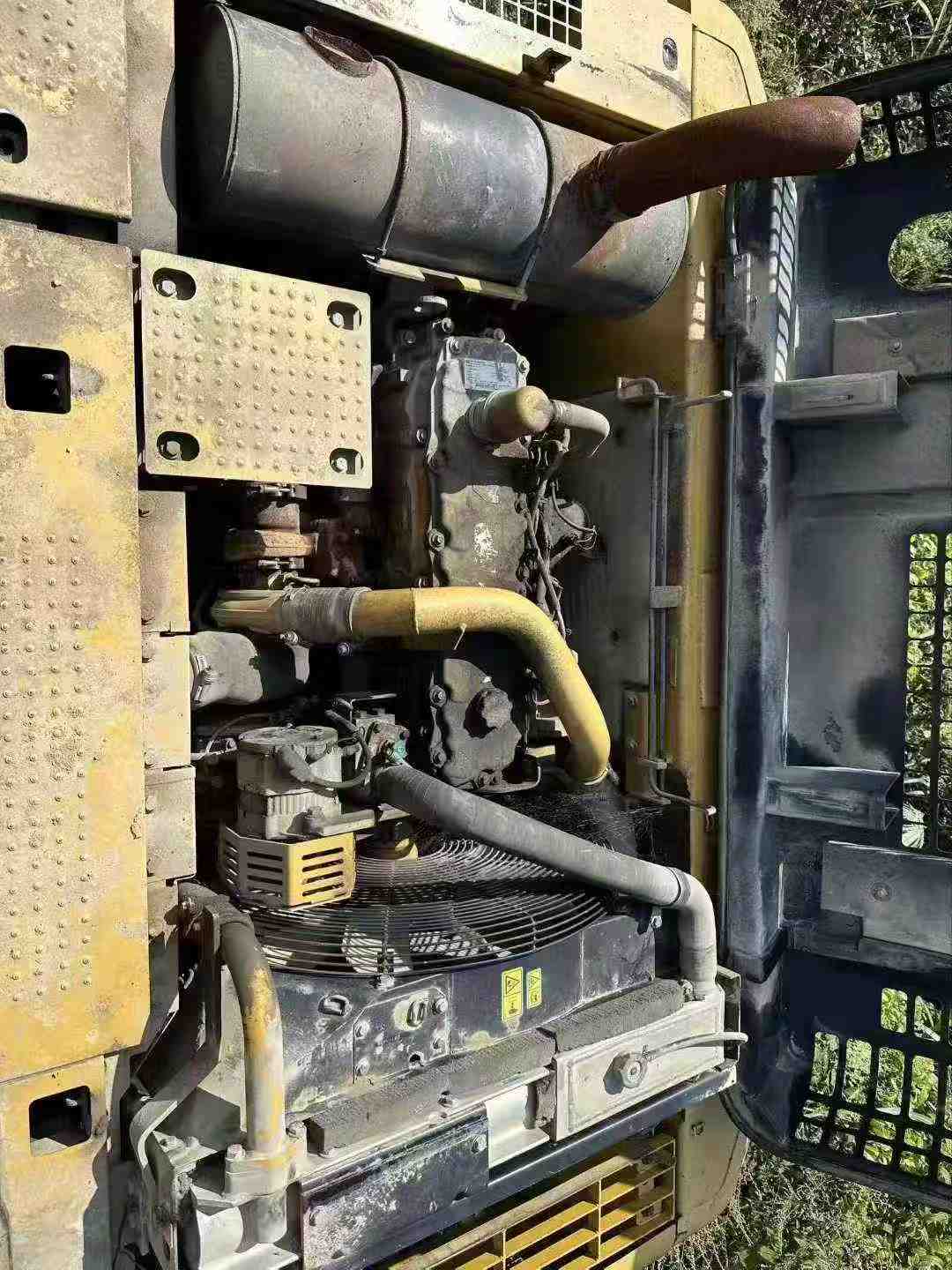

【 Premium Recommendation 】 Second-hand Caterpillar 329D excavator from 2014, now priced at only 160,000 yuan! Since this equipment was put into use in 2014, its cumulative working time has only been 5,800 hours, which is far lower than the average service life of equipment of the same model, and it is in the best working condition. Caterpillar, as one of the world's leading manufacturers of construction machinery, is renowned worldwide for its outstanding performance and reliable quality. This 329D excavator is equipped with a Caterpillar C7.1 inline six-cylinder turbocharged diesel engine, with a maximum output power of 192kW. It is powerful and has good fuel economy, maintaining efficient operation even under harsh working conditions. The hydraulic system adopts advanced load sensing technology, ensuring smooth operation and response speed. It can handle excavation, loading and crushing operations with ease. In addition, this machine is equipped with a spacious and comfortable cab, offering a wide field of vision. The air conditioning system operates well, providing an excellent working environment for the operator. After comprehensive professional inspection and maintenance, all performance indicators of this 329D excavator have rea
Overview
No.962014
Brand Name：
CaterpillarModel Number：
CT16Year：
2014
Location：
Sichuan China
