| Specifications | Value |
|---|---|
| No. | 961951 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14000 |
| Bucket capacity (m³) | 0.58 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 71 / 1850 |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.2 |
| Bucket digging force (kN) | 106 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 4.9 / 3.0 |
| Turning torque (Nm) | 40 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 114 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 900 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1180 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 75 x 1085 |
| Fuel Tank (L) | 267 |
| Hydraulic Tank (L) | 147 |
| Coolant (L) | 24 |
| Total transport length (mm) | 7680 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2755(to top of cab) |
| Full cab height (mm) | 2750 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2325 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2540 |
| Total track length (mm) | 3750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5655 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4450 |
| Maximum excavation radius of stop surface (mm) | 8160 |
| Maximum effective digging depth (mm) | 5430 |
Description

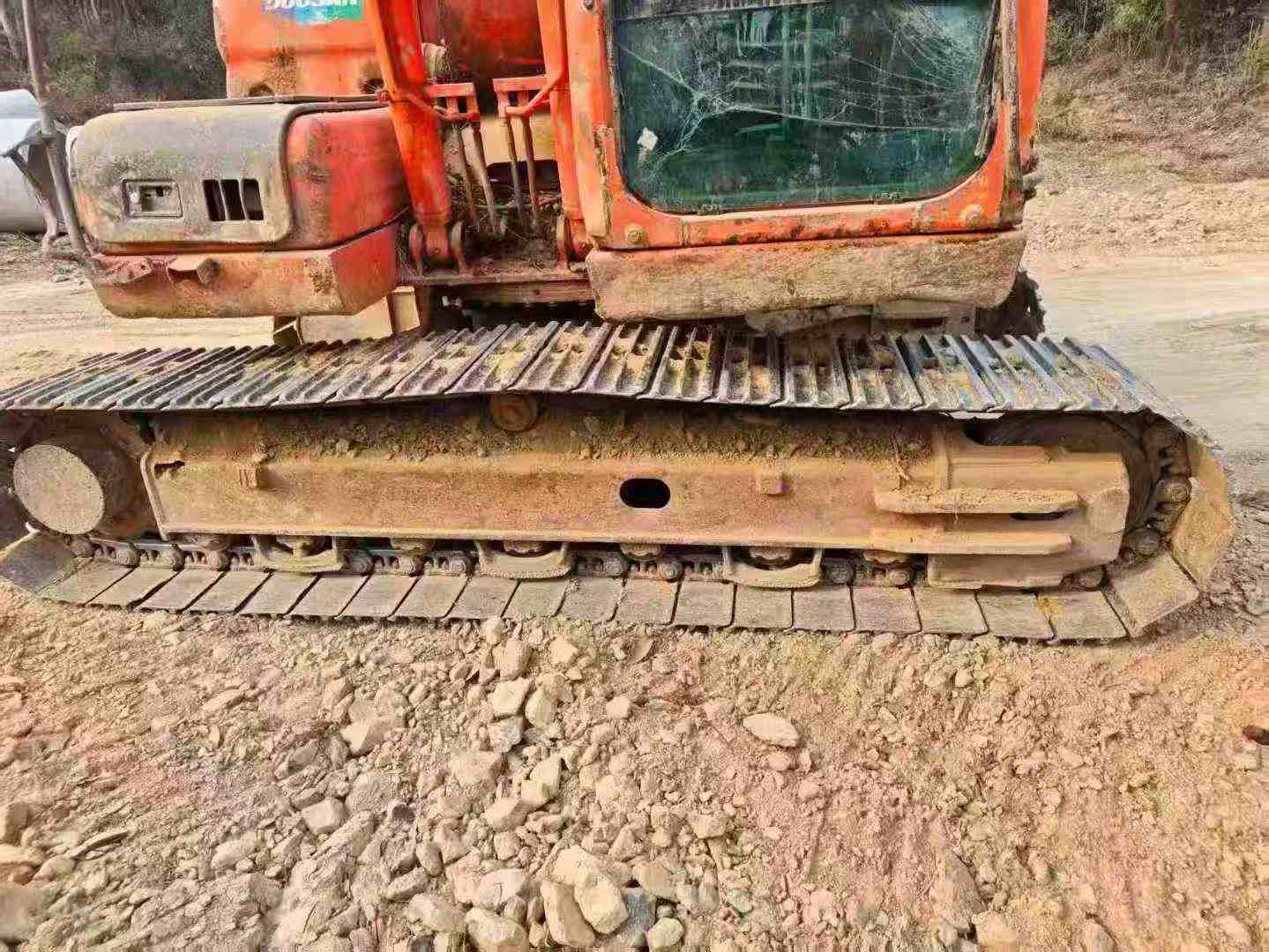

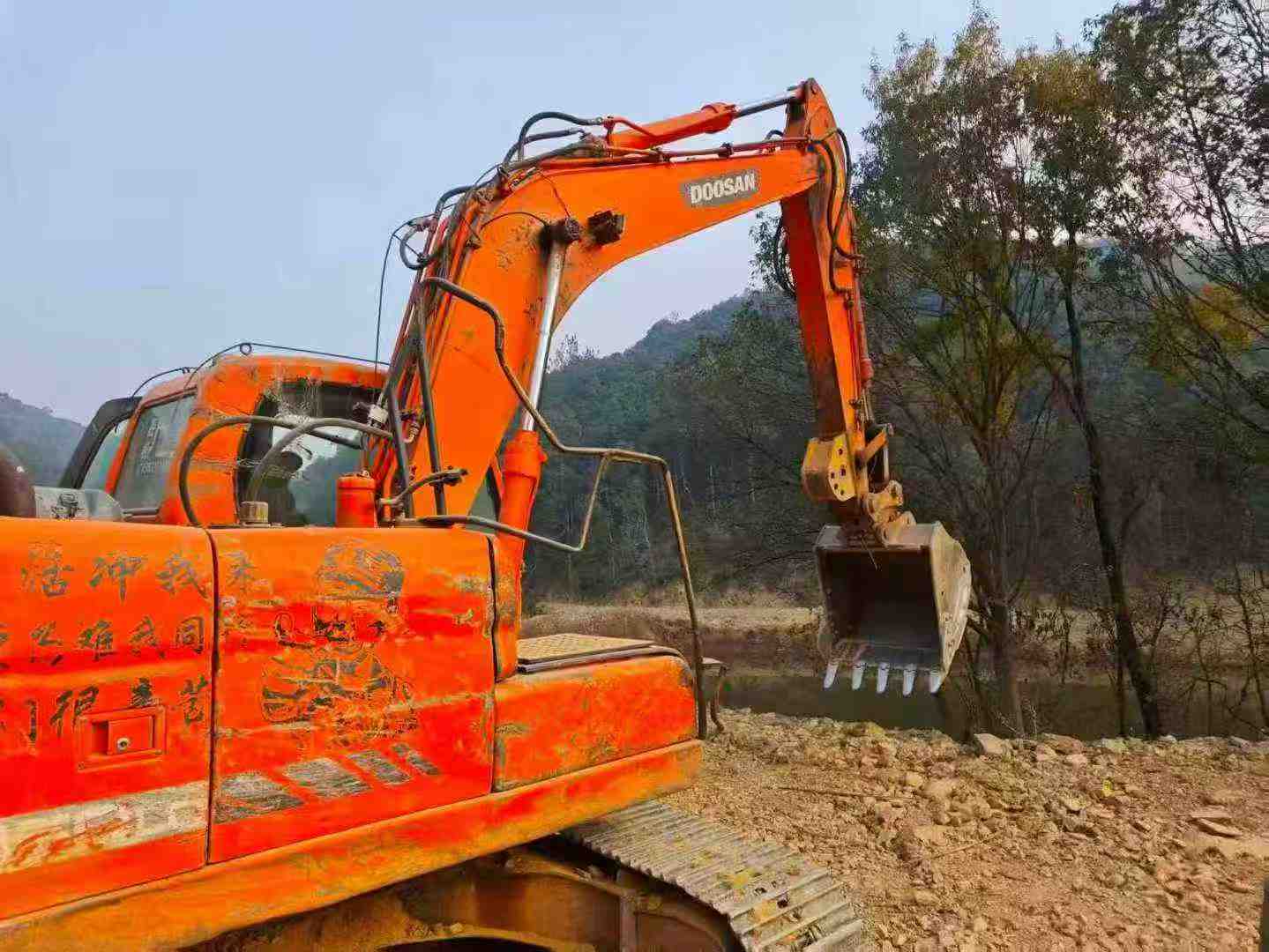

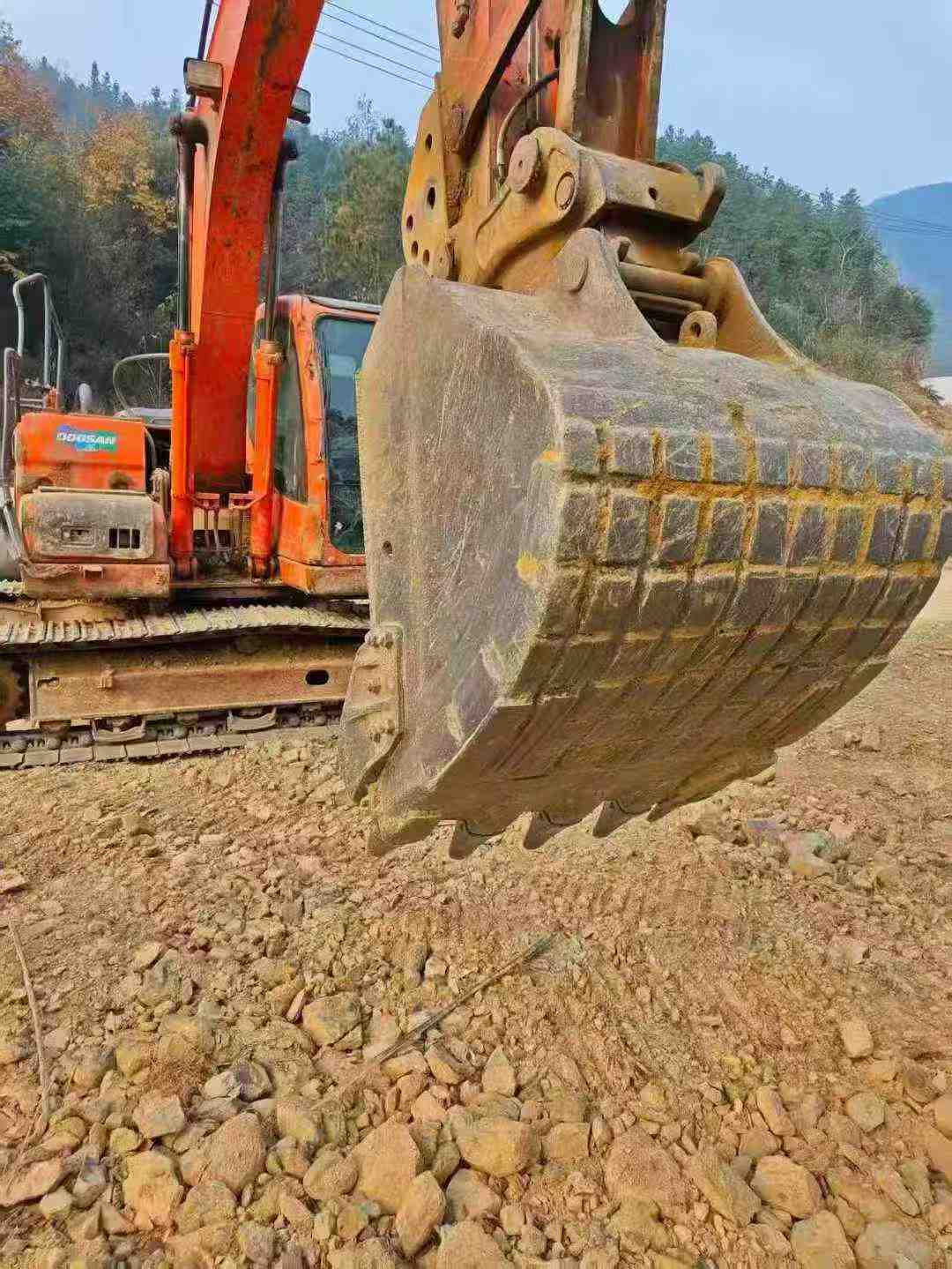

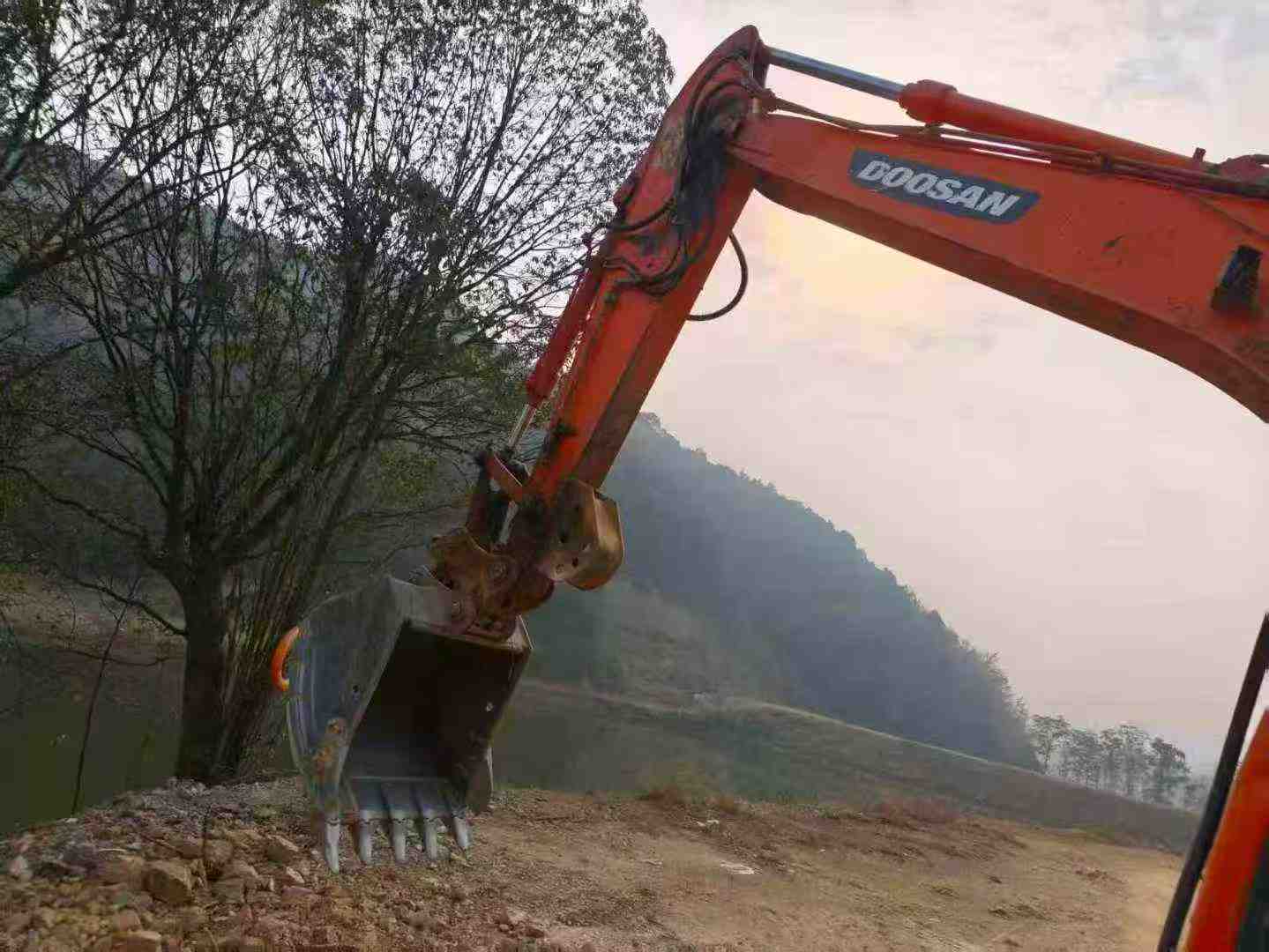

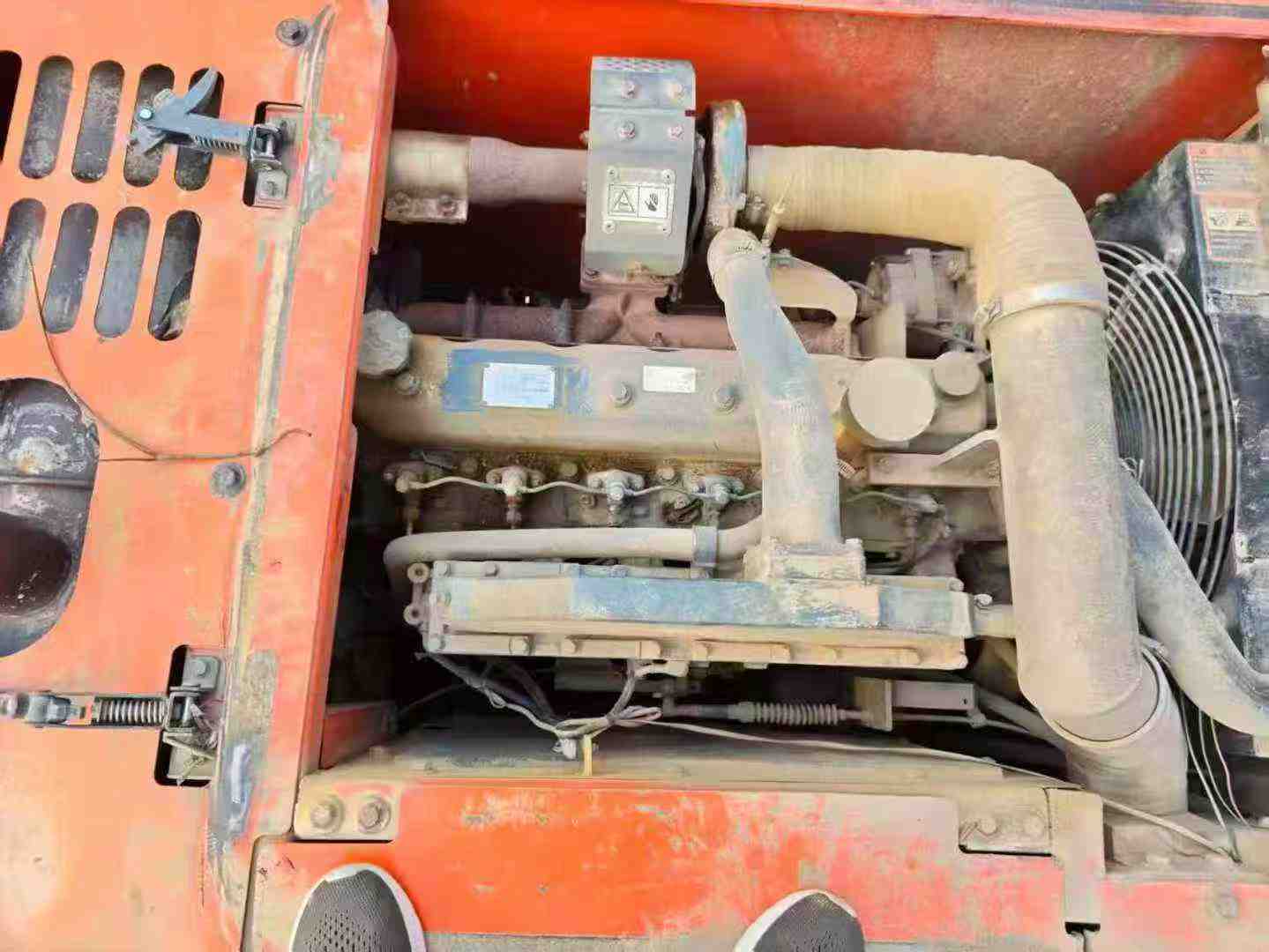

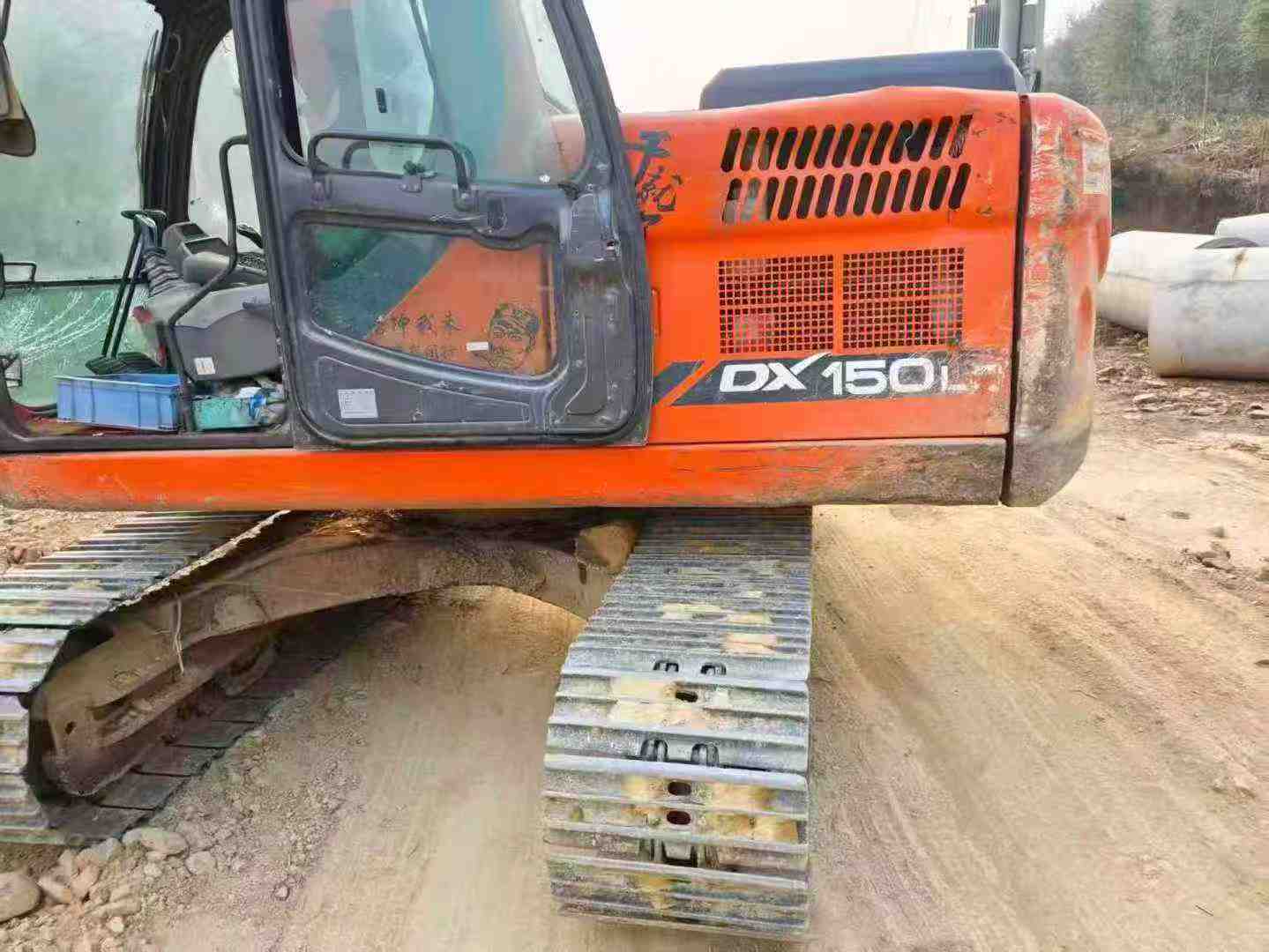

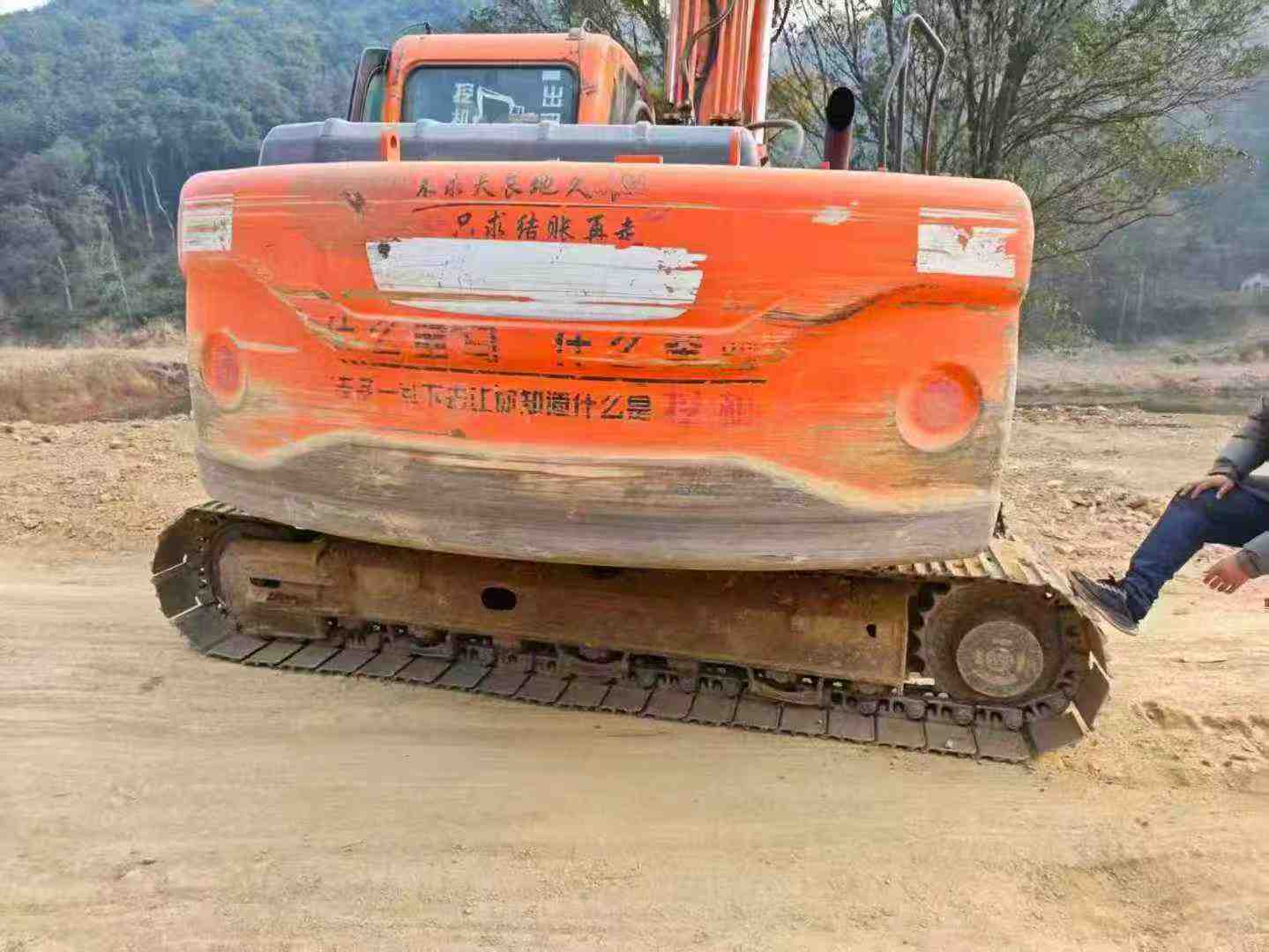

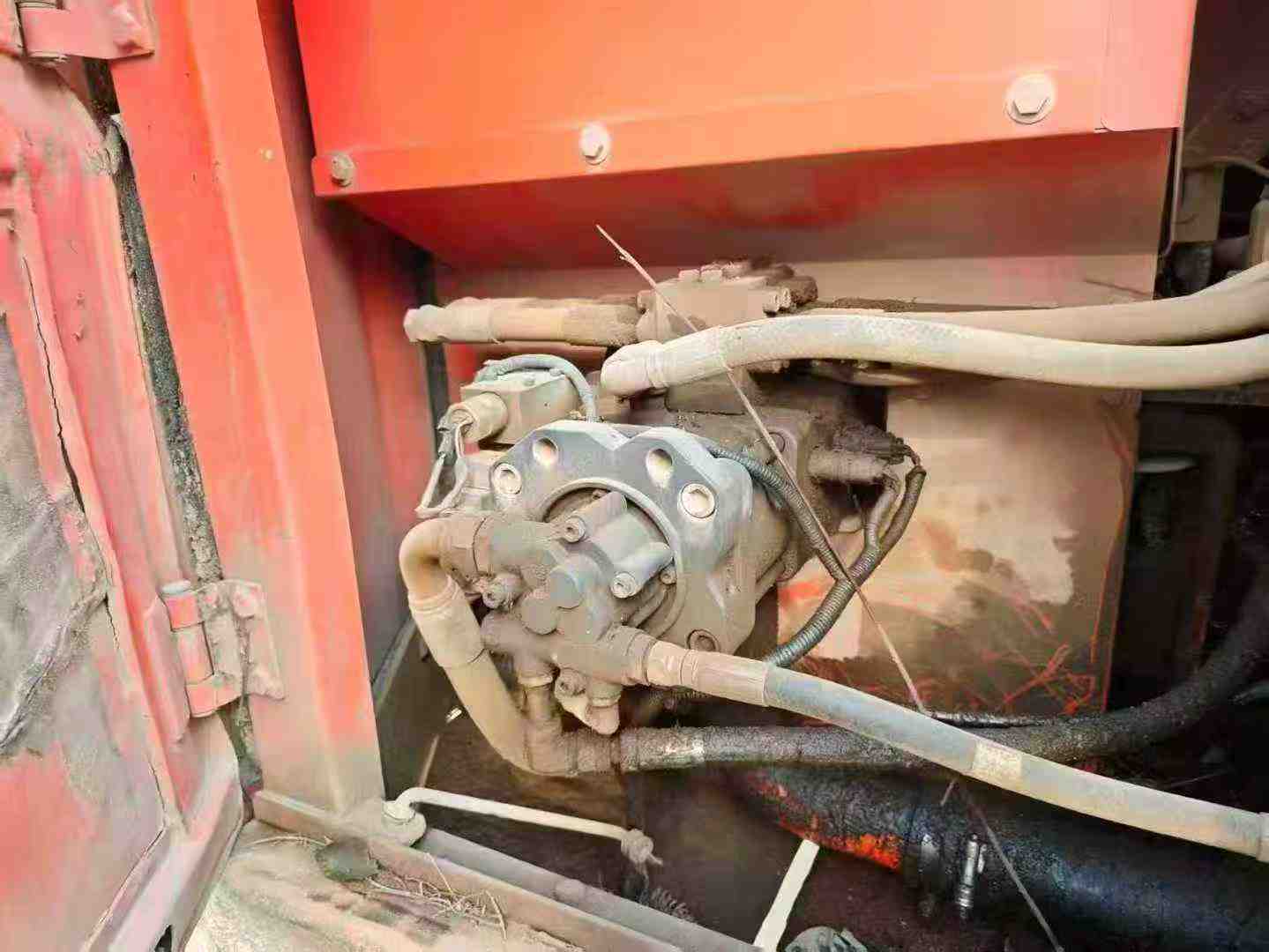

"Second-hand Doosan DX150LC excavator This Doosan DX150LC excavator from 2014 has been in operation for approximately 6,000 hours up to now. It is in good overall condition and well maintained. As a medium-sized excavator, it is widely used in multiple fields such as earthwork, road construction and municipal construction. Its power system is equipped with the well-tested Yanmar engine, which is renowned for its high efficiency and energy conservation. While providing strong power, it can also maintain a low fuel consumption level, making it highly suitable for long-term continuous operation. After professional testing, the engine of this machine has stable performance, starts quickly, and shows no obvious signs of wear or malfunction. In terms of the hydraulic system, Doosan DX150LC is equipped with advanced load-sensing hydraulic technology, which can automatically adjust the pumping flow according to the actual load, thereby achieving a smoother operation experience and higher work efficiency. In addition, this model also pays special attention to the design of operational comfort. The cab is spacious and bright, with a wide field of vision. The seats can be adjusted at multiple angles and are equipped with an air conditioning sys
