| Specifications | Value |
|---|---|
| No. | 967450 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
Description

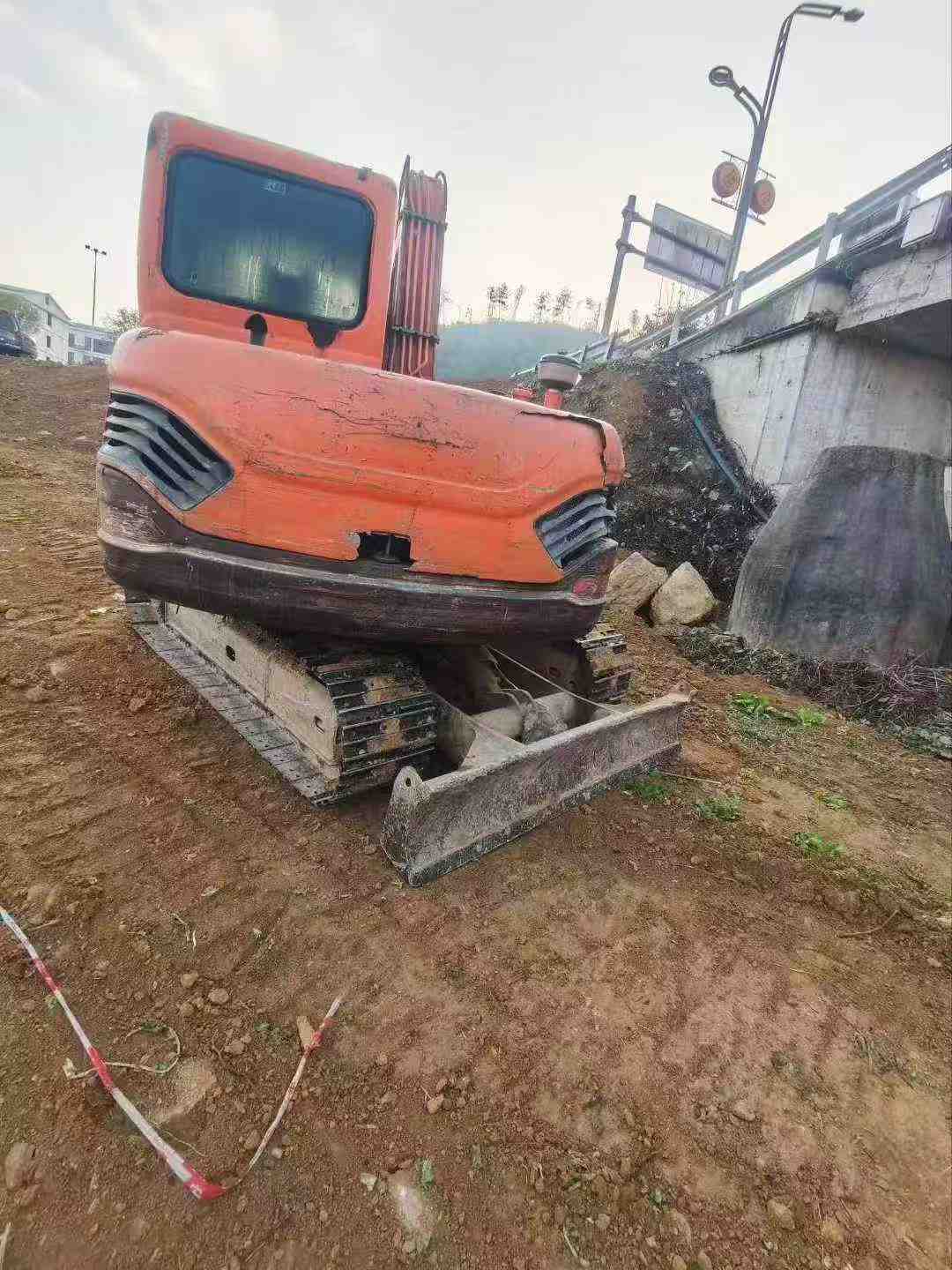

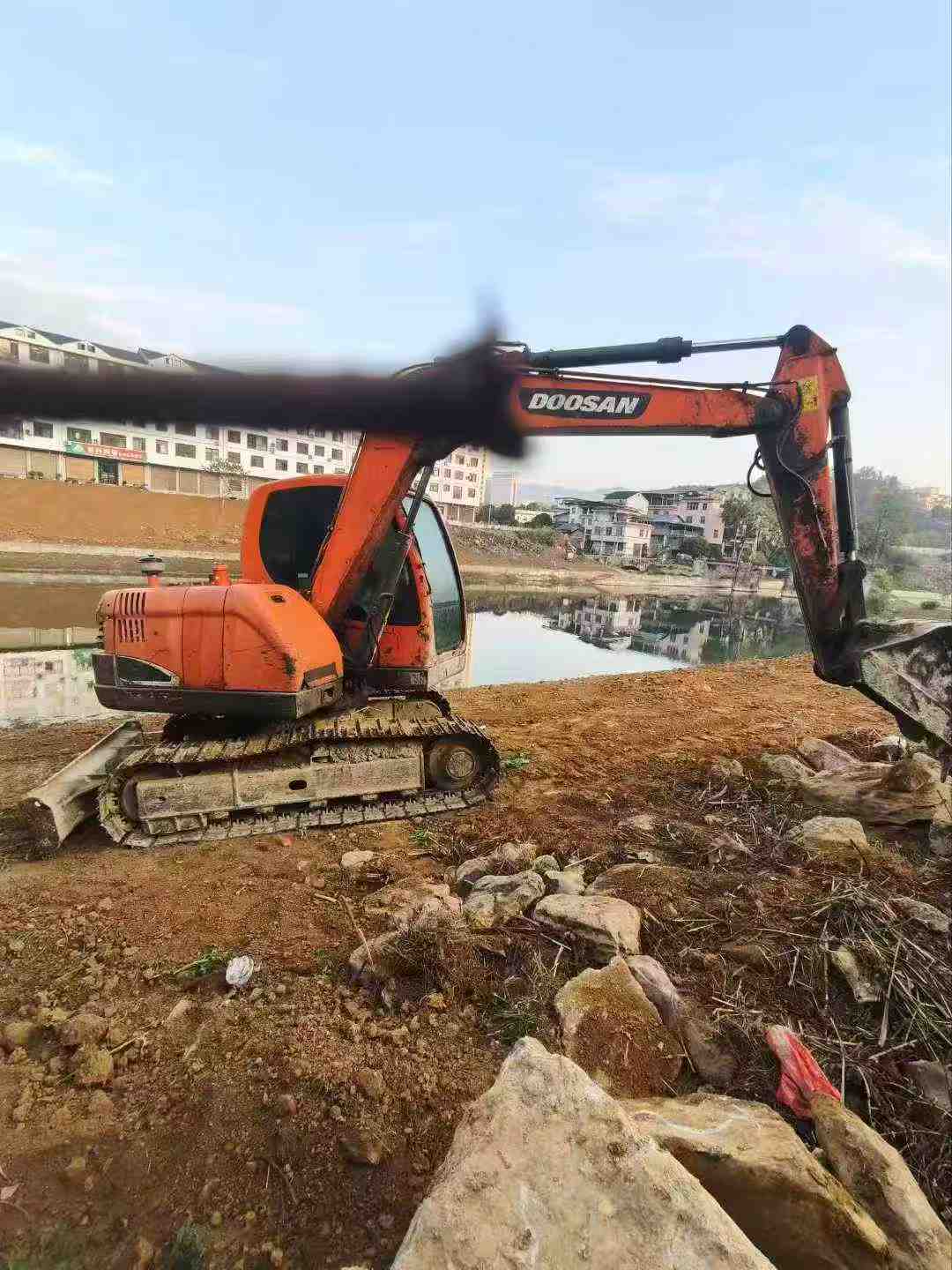

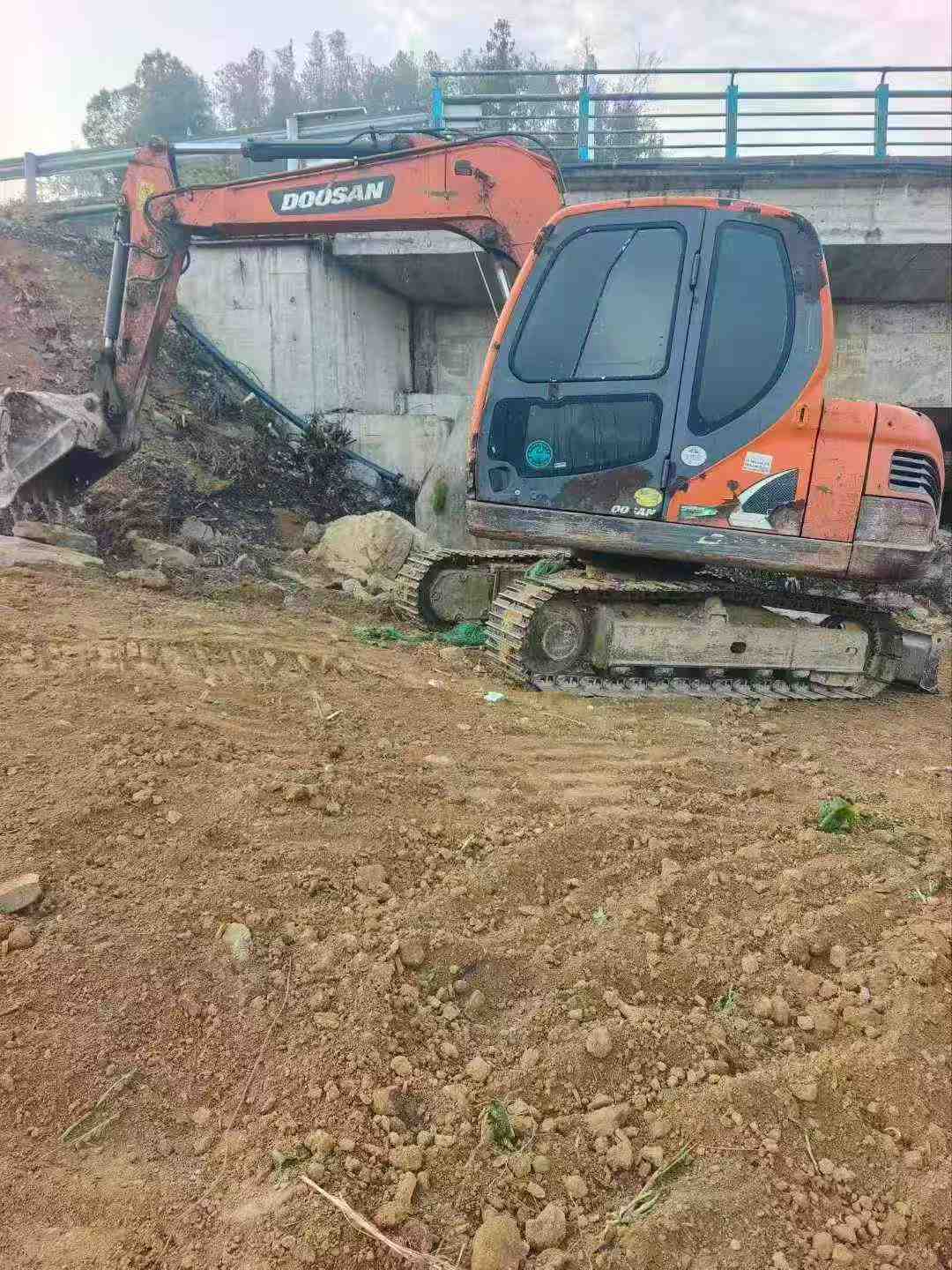

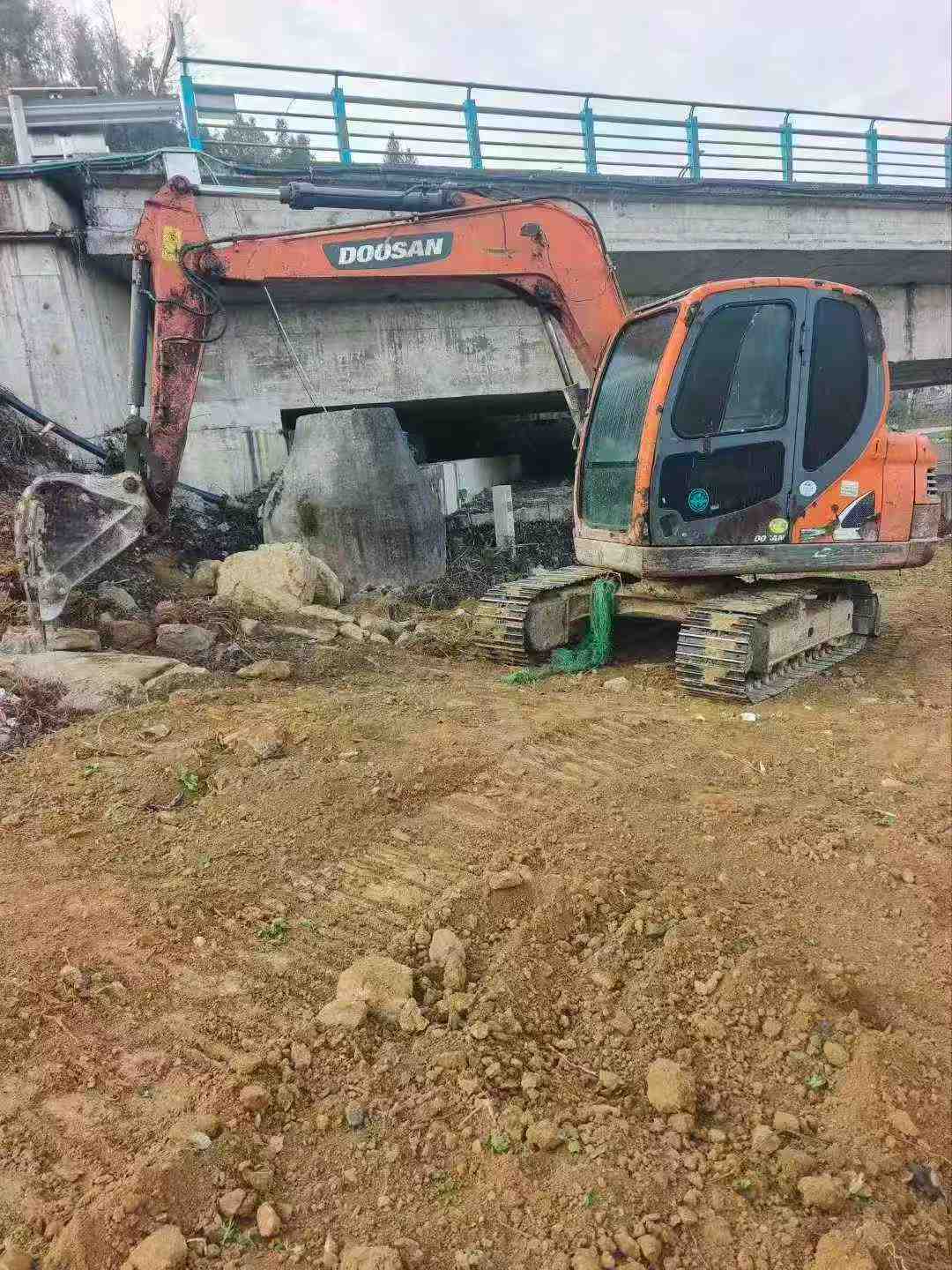

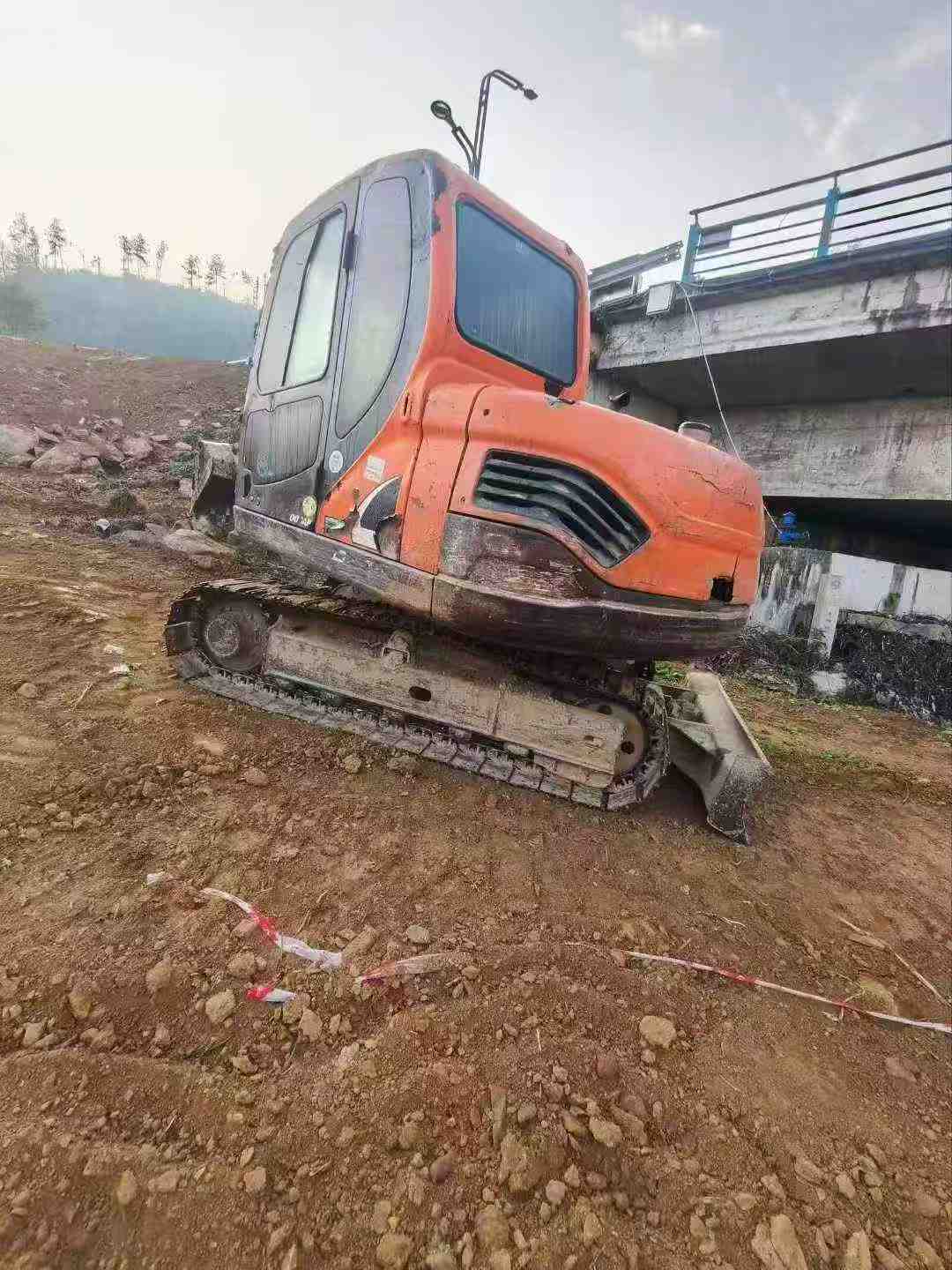

【 Premium Recommendation 】 A second-hand Doosan DX75 excavator from 2017 is now priced at over 70,000 yuan, offering an extremely high cost performance! Since this equipment was put into use in 2017, its cumulative working hours have only been 3,800 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life and good mechanical condition. Doosan, as one of the globally renowned brands of construction machinery, is famous for the durability and efficiency of its products, and this DX75 is no exception. In terms of power, this machine is equipped with a high-performance Yanmar engine, which features strong power output and smooth operation characteristics, and can easily meet the operational requirements under various complex working conditions. More importantly, this engine also pays special attention to fuel economy, effectively reducing operating costs. The hydraulic system adopts advanced load sensing technology, ensuring precise control and rapid response during operation. Whether it is excavation, loading or crushing operations, it can be handled with ease. In addition, this machine is also equipped with reinforced structural components, further enhancing the stab
