| Specifications | Value |
|---|---|
| No. | 932838 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.59/0.65 |
| Boom length (mm) | 4600 (H type) |
| Rod length (mm) | 2520/2100 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

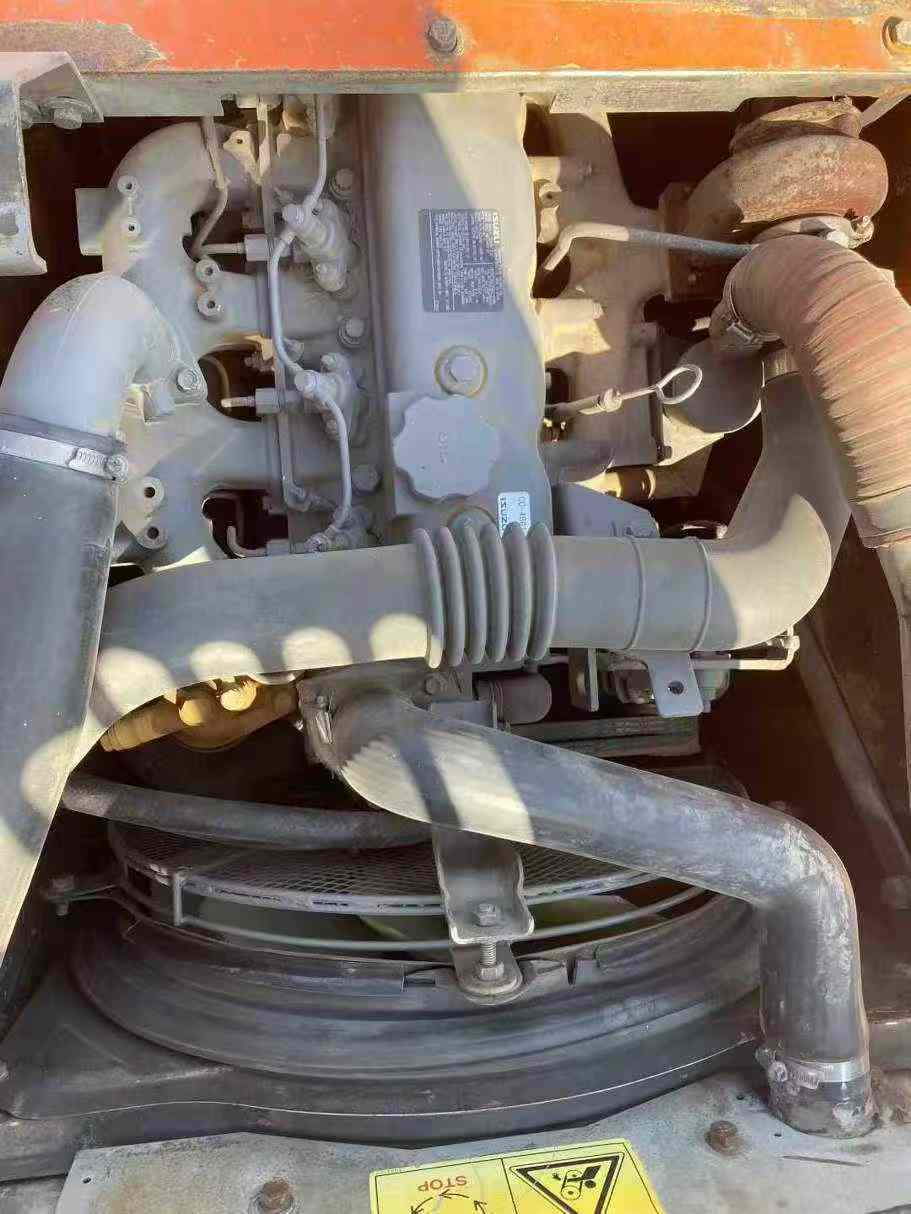

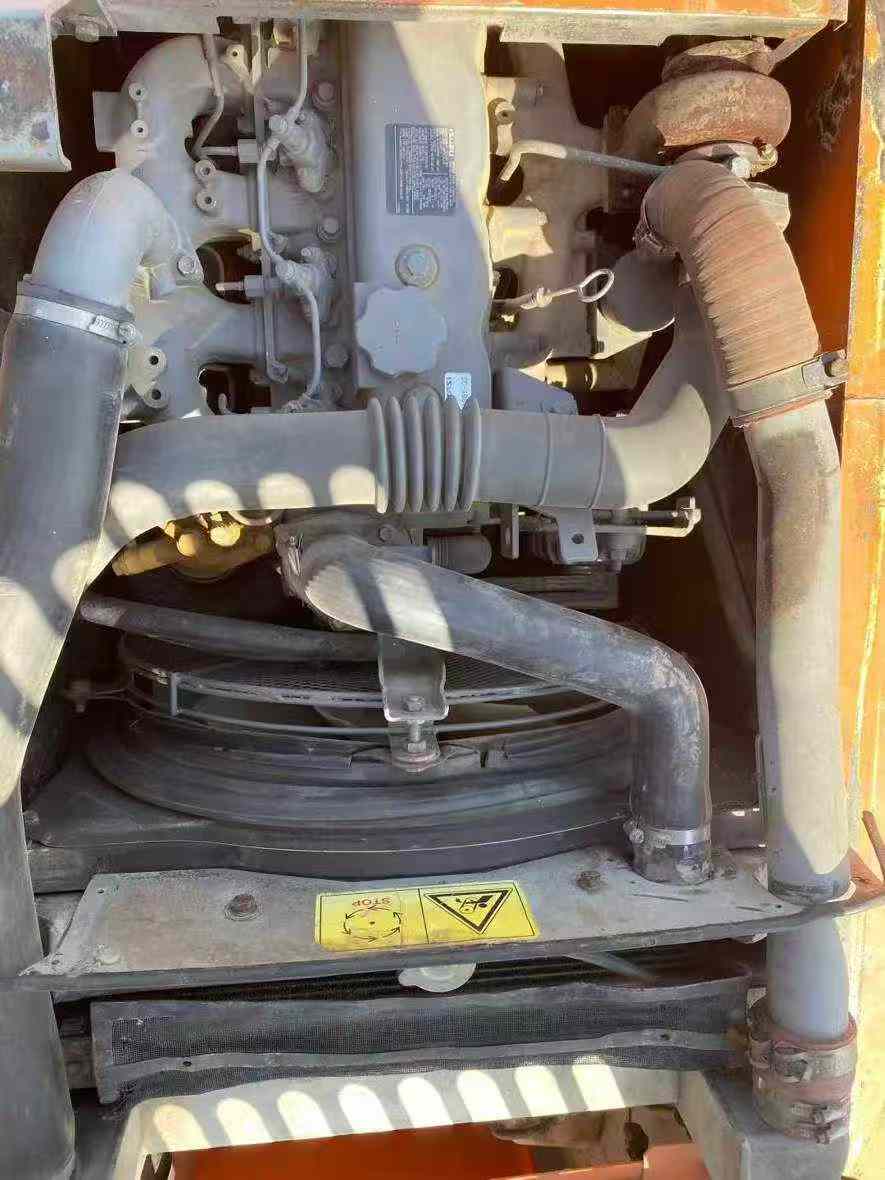

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection; Turbocharging; intercooling |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Maximum tractive force (kN) | 102 |
| Travel speed (km/h) | 3.4/5.5 |
| Turning torque (Nm) | 34 |
| Main overflow set pressure (Mpa) | 34.3 |

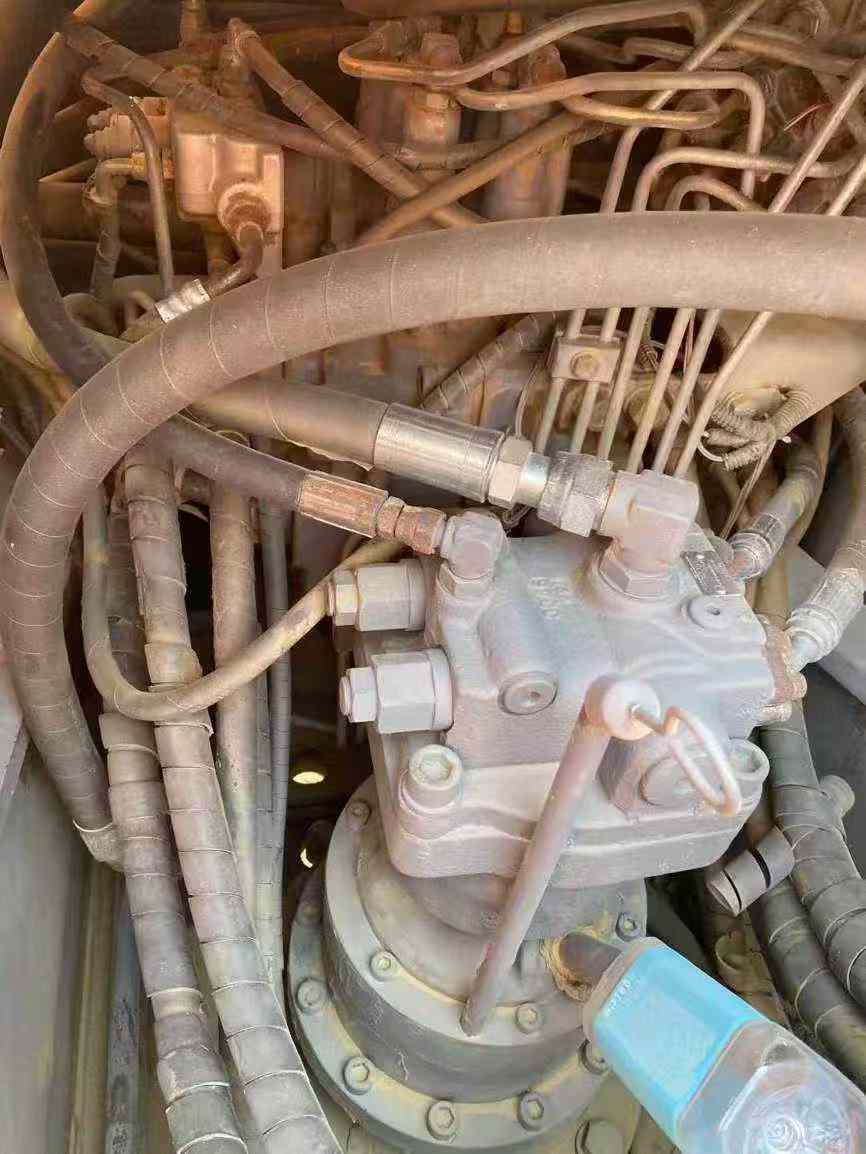

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable plunger motor ×2 |
| Maximum flow of main pump (l/min) | 105 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Hydraulic crushing pipeline is standard | no |

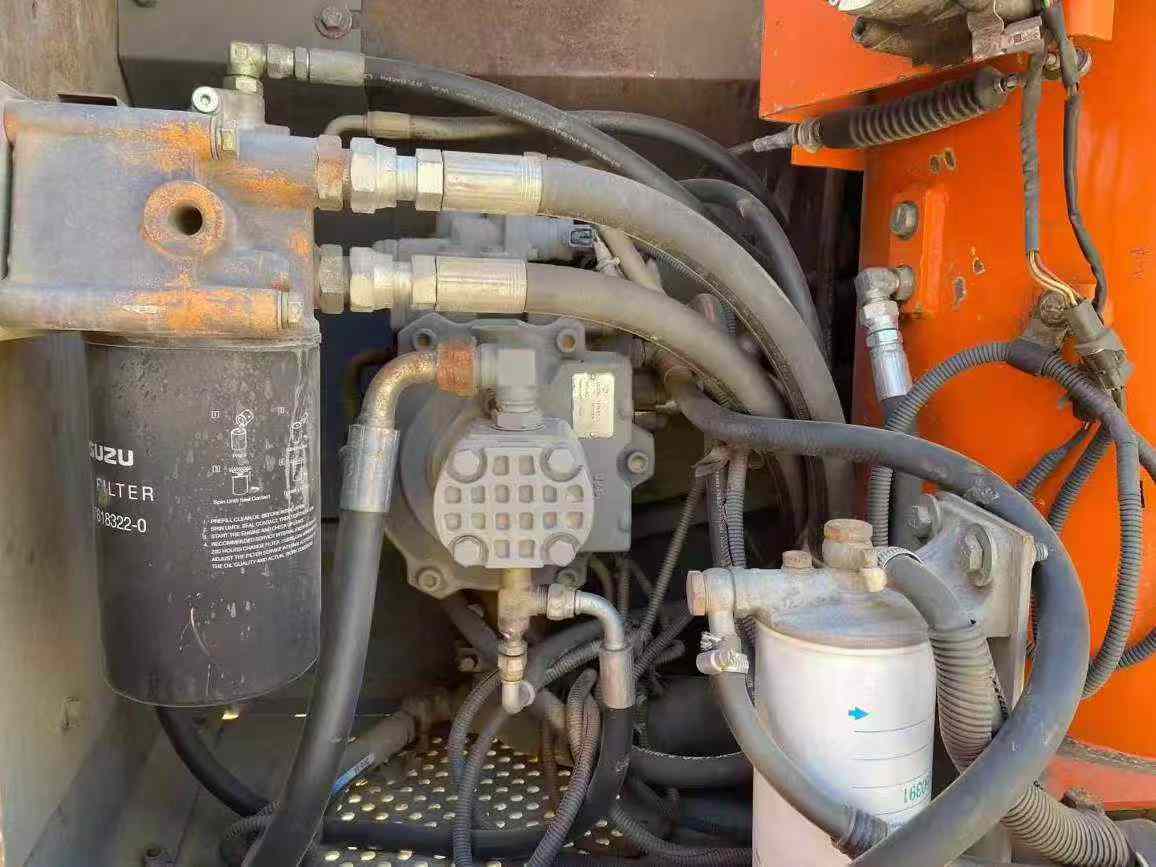

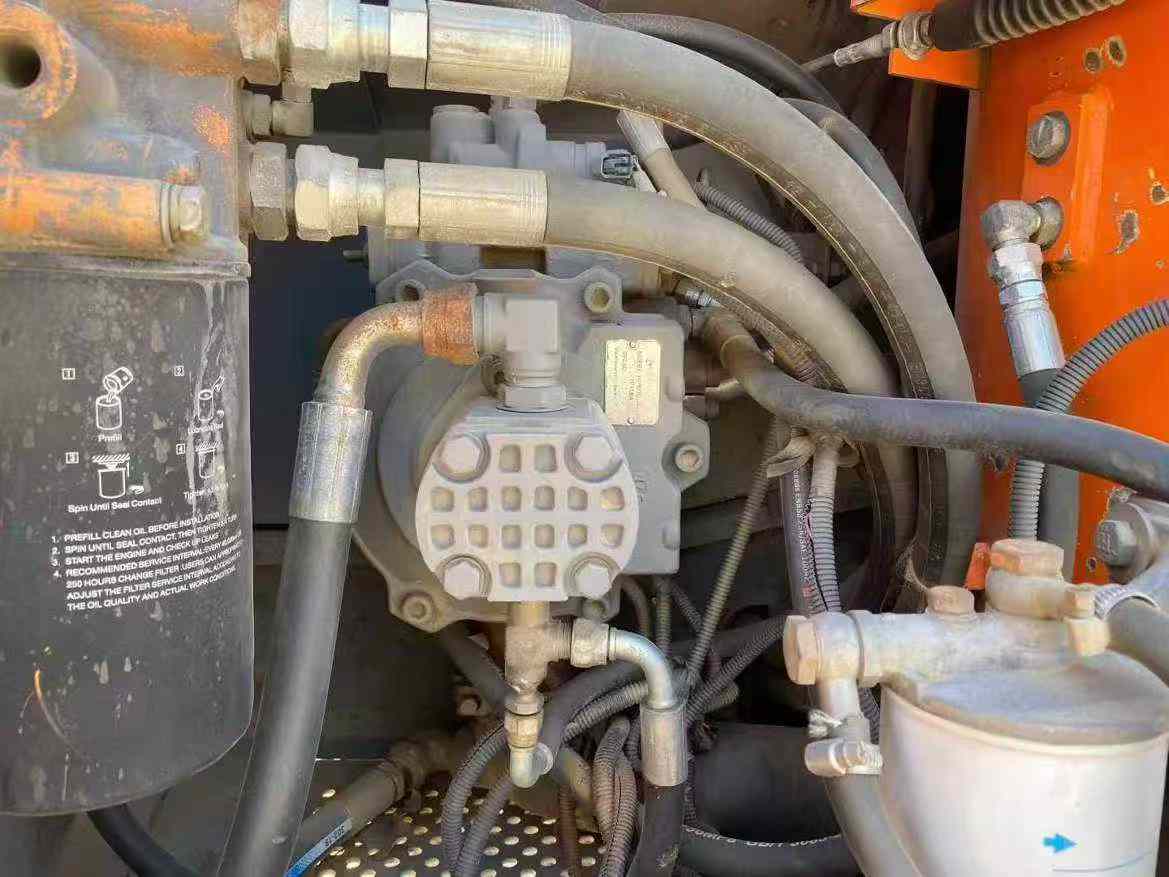

| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 33 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 70 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8140 |
| Maximum effective digging depth (mm) | 5360 |
see more
Description

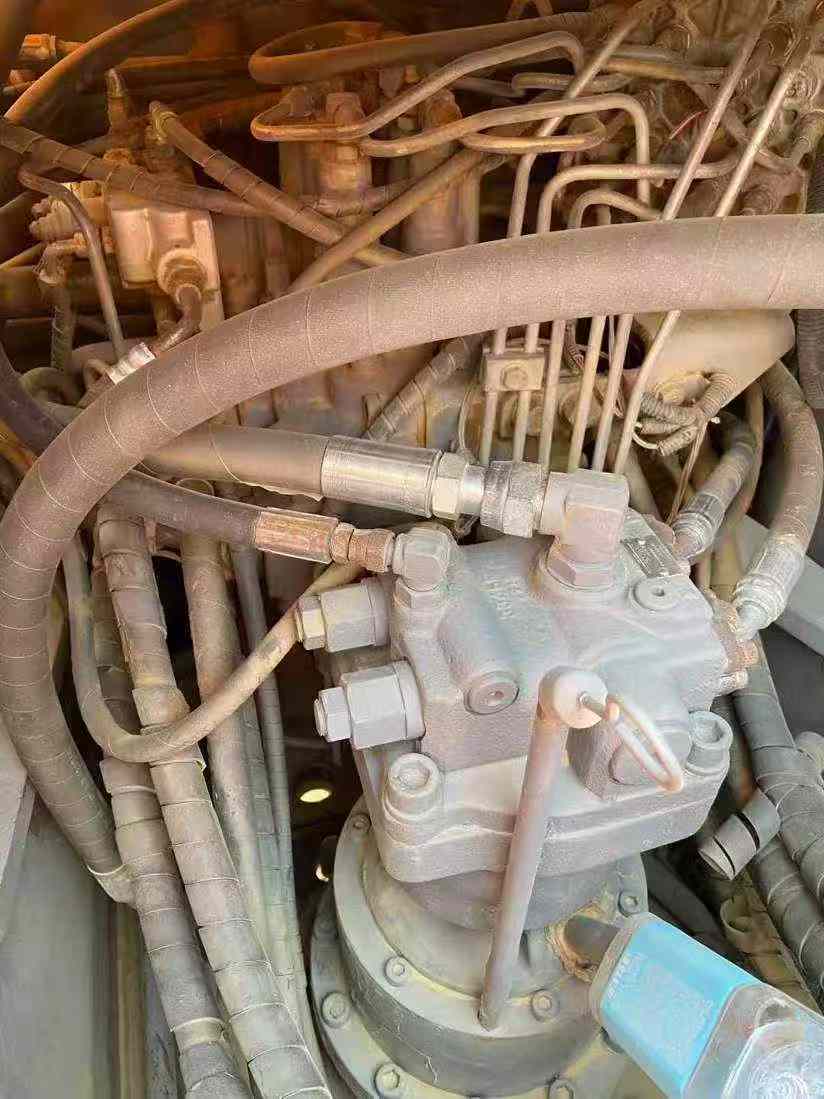

Pure imported Hitachi ZX130H, with original vehicle conversion valve, hammer pipe, over 100,000 yuan, original paint for the entire vehicle, original vehicle panel shaking, large and beautiful parts that haven't been touched, hurry up
