| Specifications | Value |
|---|---|
| No. | 962072 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20200-20300 |
| Bucket capacity (m³) | 0.91~1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-02 |
| Rated power (kw/rpm) | 113/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 638/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 5.5/3.5 |
| Turning torque (Nm) | 68 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 212 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 115 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 120 x 85 |
| Fuel Tank (L) | 400.0 |
| Hydraulic Tank (L) | 135.0 |
| Engine Oil changes (L) | 23.0 |
| Hydraulic System (L) | 31.0 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
Description

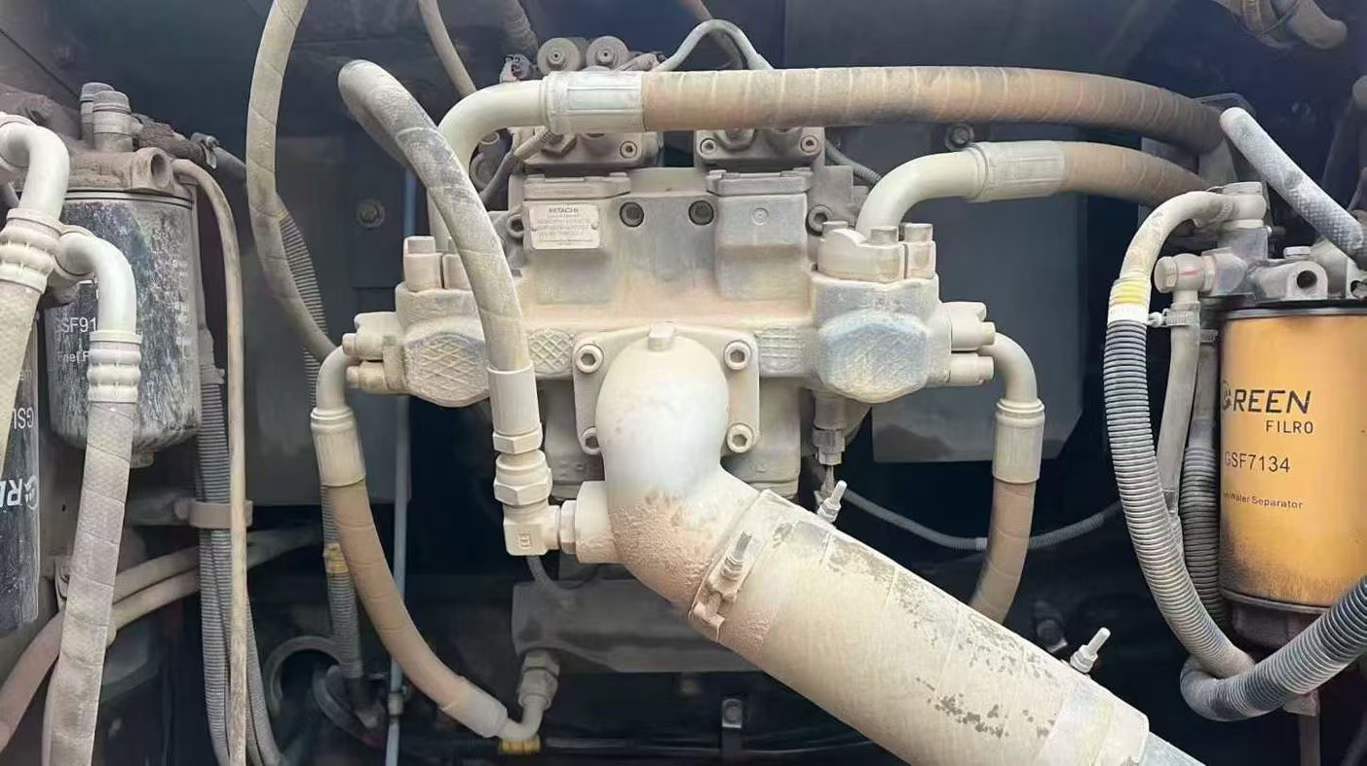

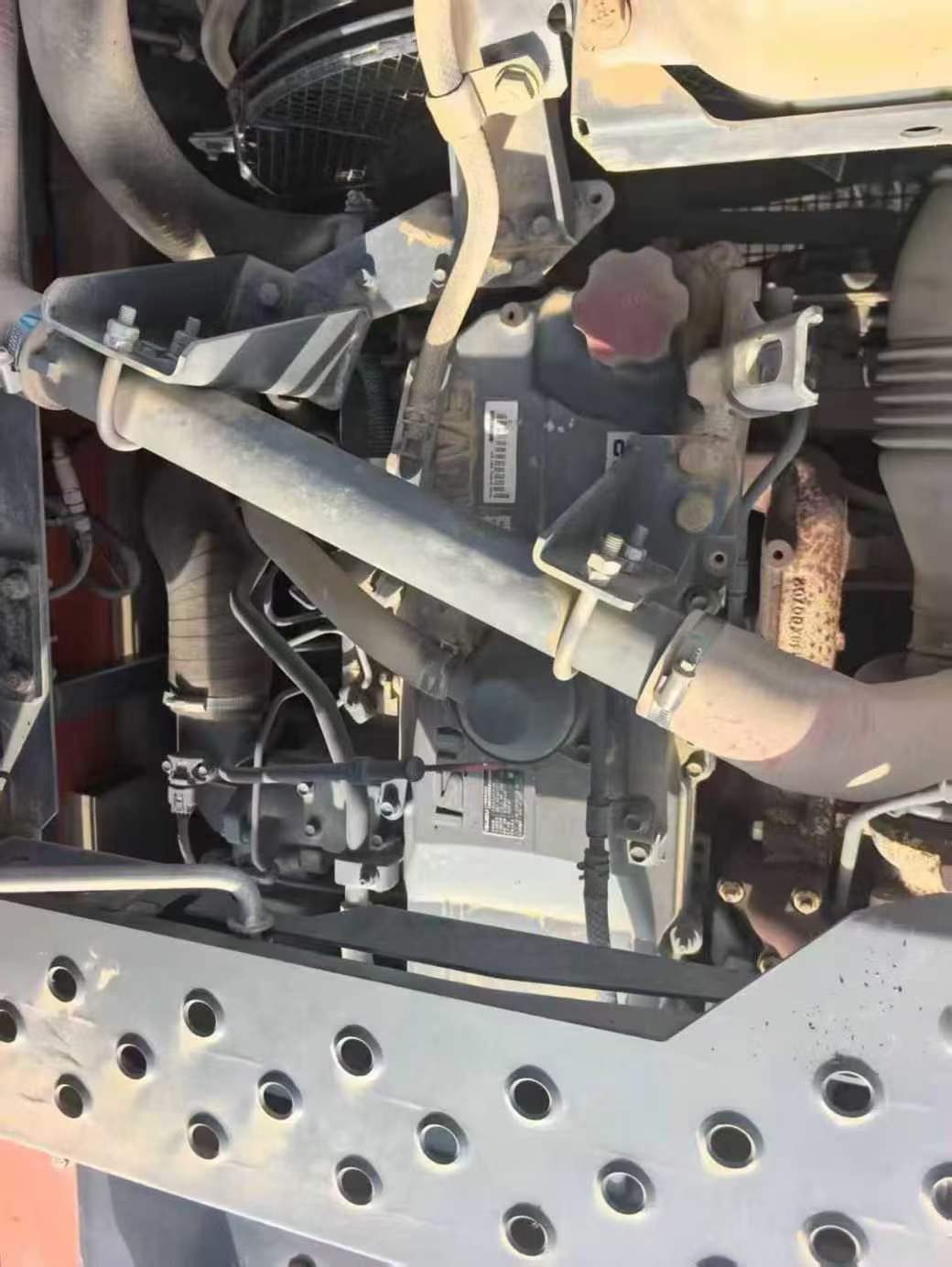

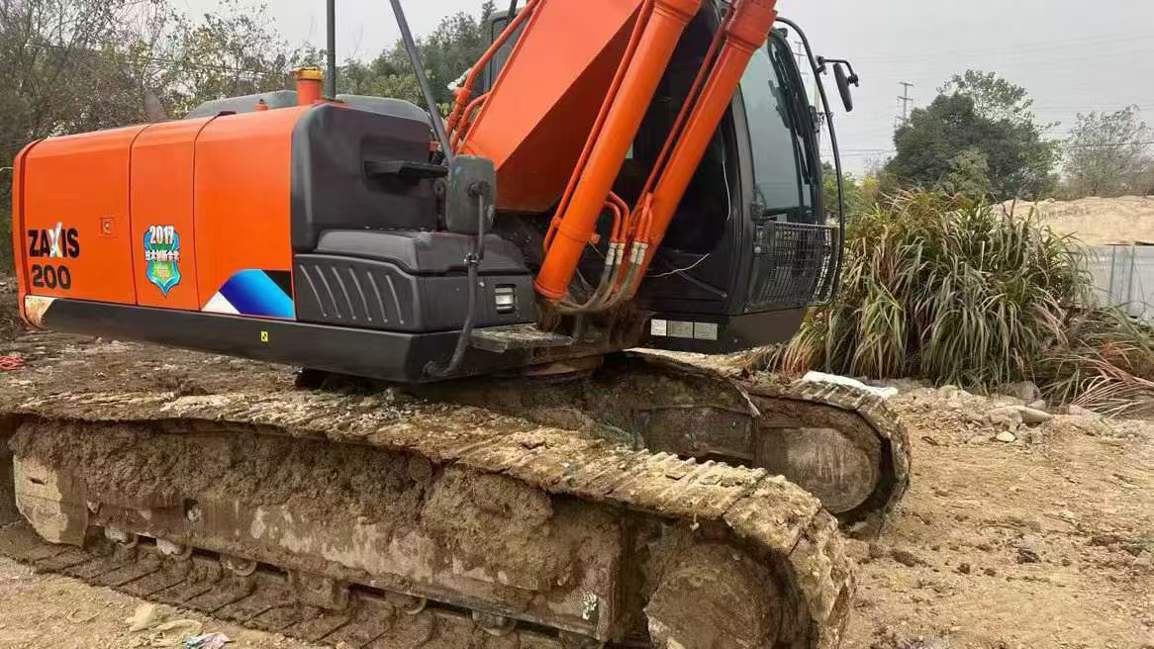

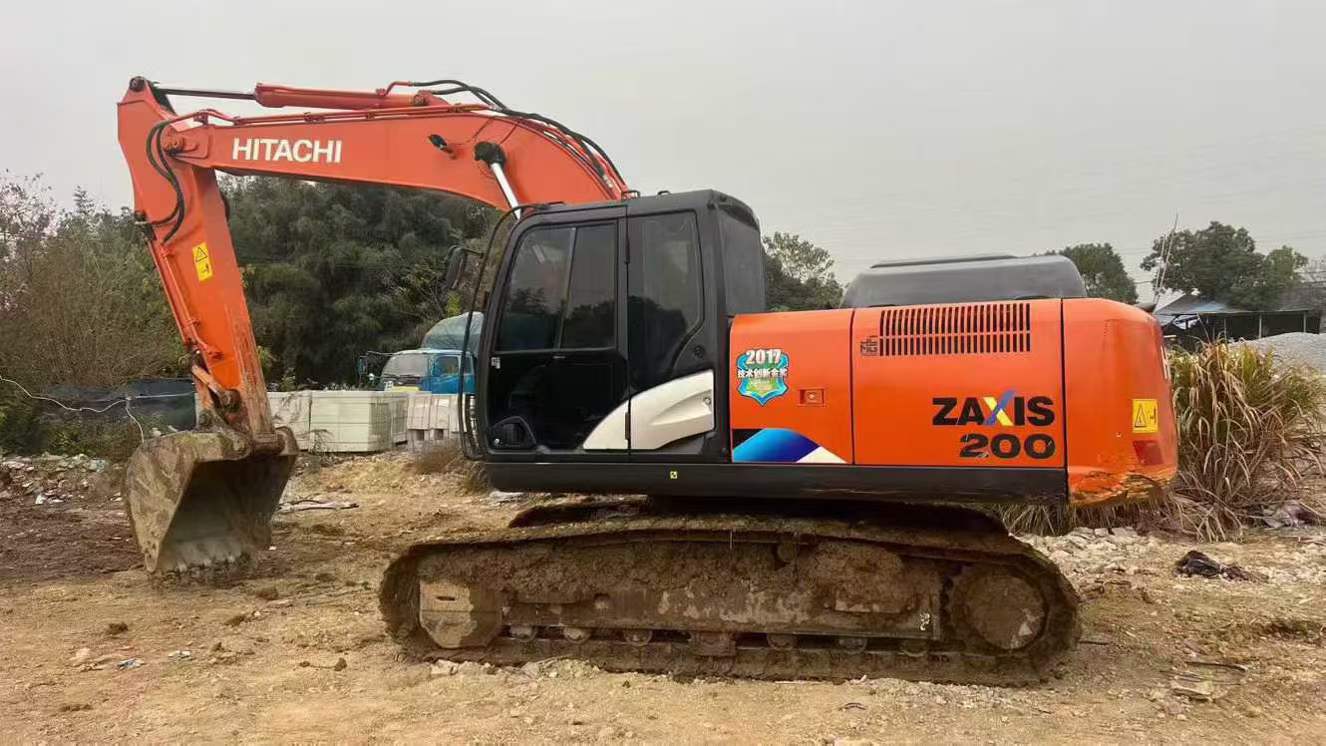

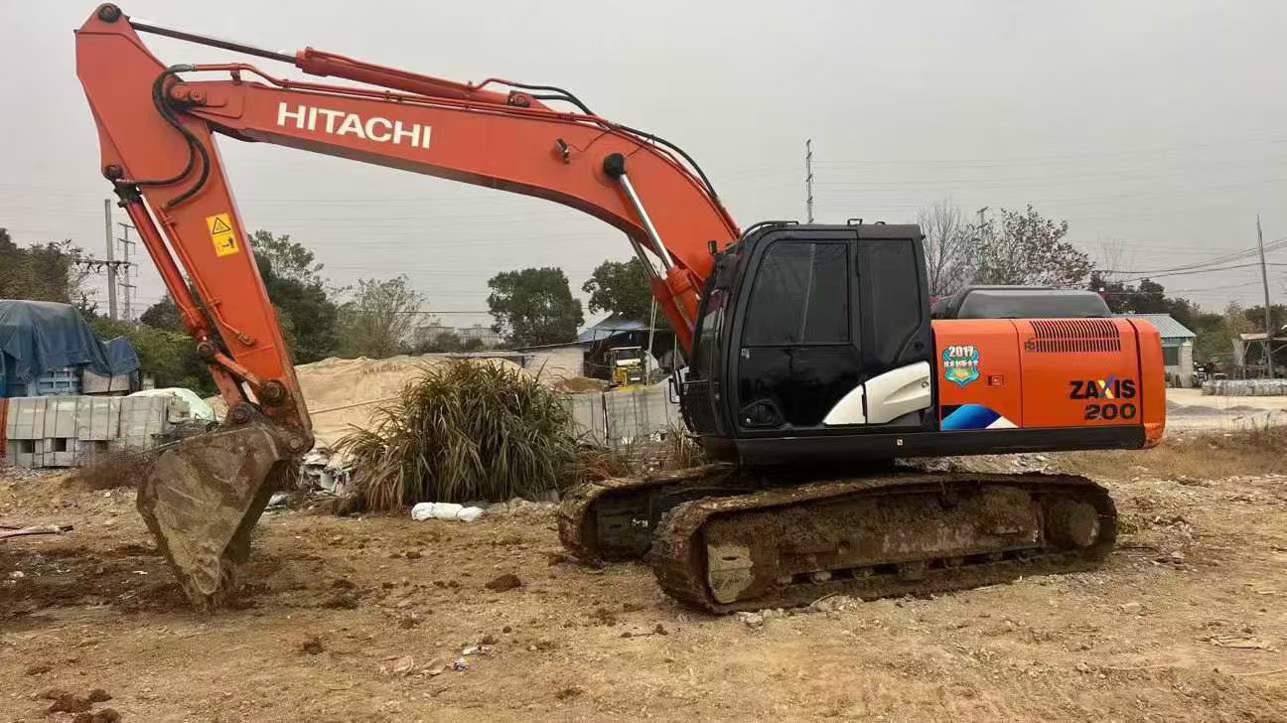

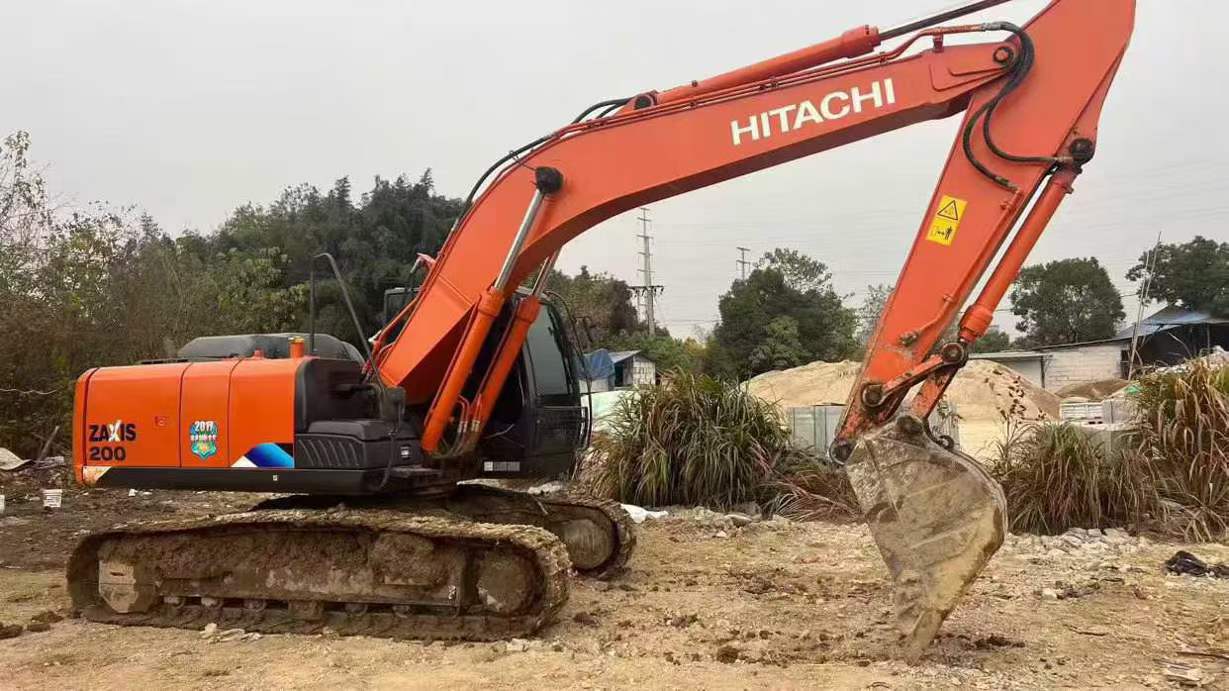

【2021 Hitachi ZX200-5A Second-hand excavator, in stock Supply 】 This second-hand Hitachi ZX200-5A excavator from 2021 has a working time of only 1,800 hours and is in good condition. It is an ideal choice for your efficient construction. This model adopts Hitachi's advanced engine technology, which is powerful, economical and environmentally friendly, and can meet the operation requirements under various complex working conditions. The 4.4-liter inline four-cylinder water-cooled turbocharged diesel engine it is equipped with not only provides abundant power output but also significantly reduces fuel consumption by optimizing combustion efficiency, ensuring that every penny is spent where it counts. In terms of the hydraulic system, the ZX200-5A is equipped with a high-performance main pump and control valve group, ensuring smoothness and response speed during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this device also features excellent maneuverability and stability, maintaining a good working posture even on narrow or uneven ground. It is worth mentioning that this excavator has been meticulously maintained and serviced by a professional team. Its appearance is cl
