| Specifications | Value |
|---|---|
| No. | 966664 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

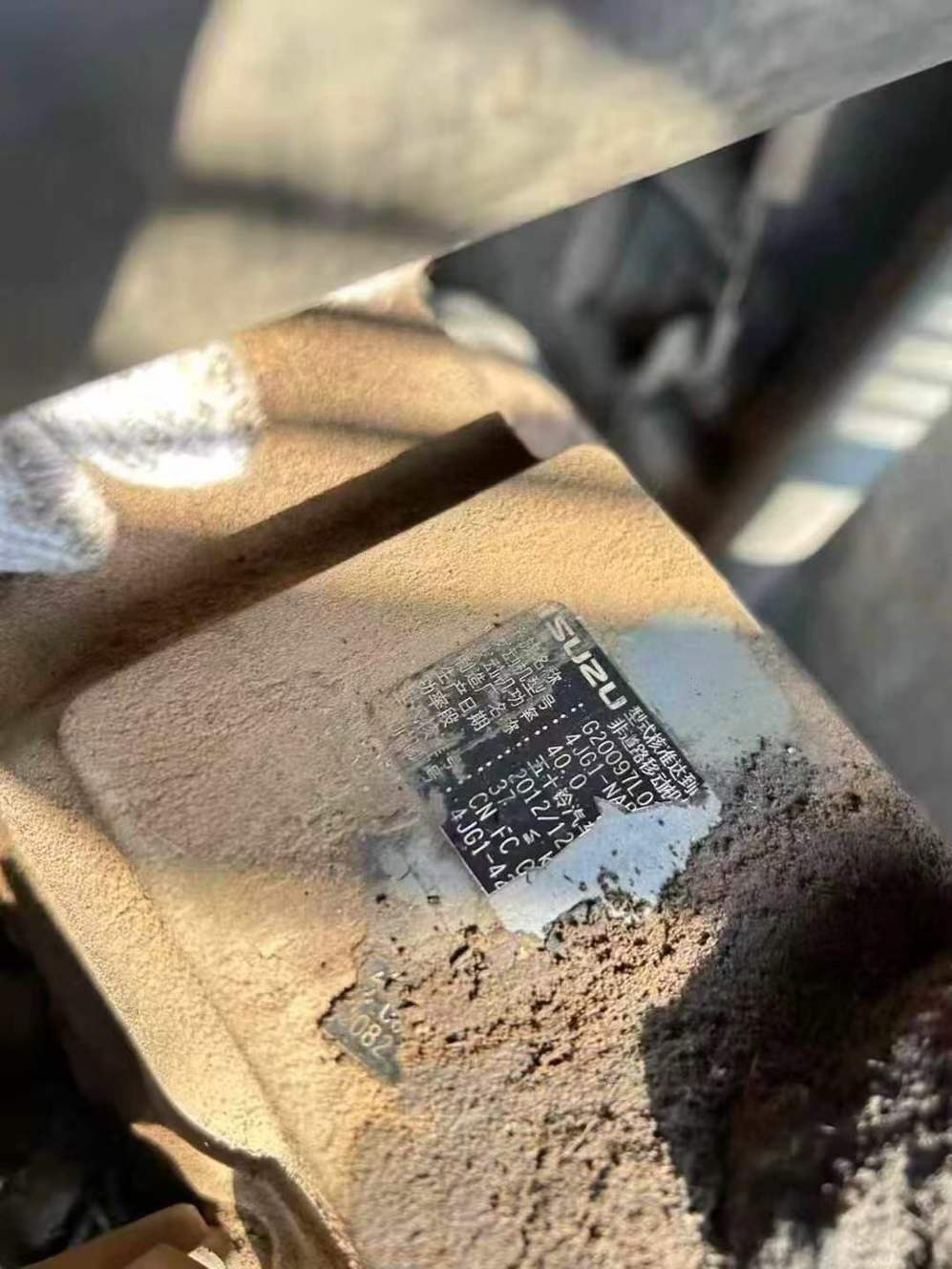

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

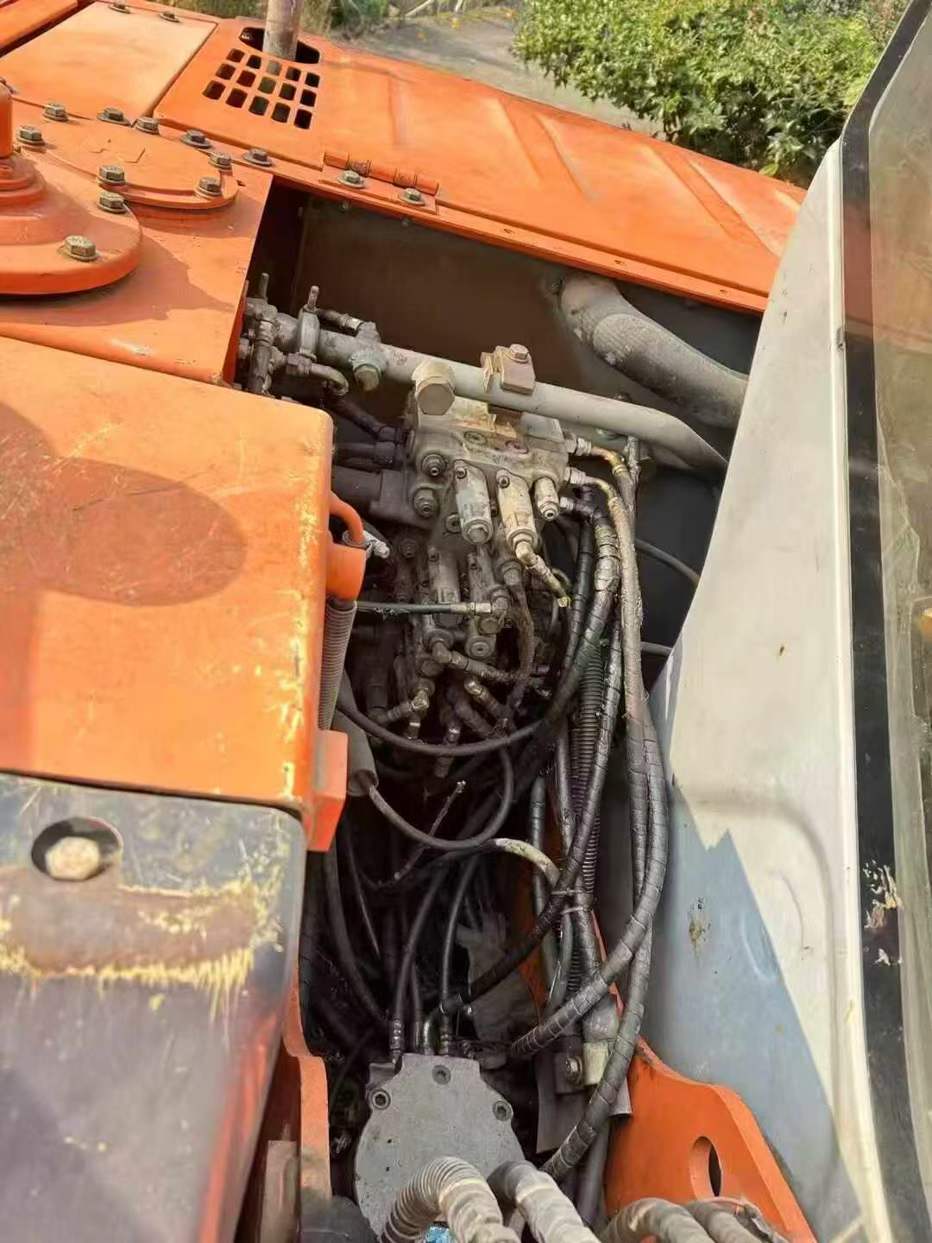

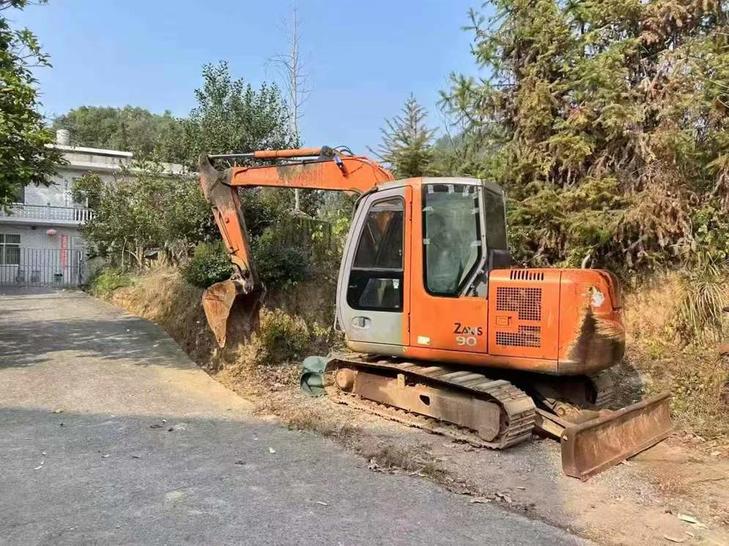

【 Premium Recommendation 】 Second-hand Hitachi ZX60 excavator from 2013, only over 60,000! This second-hand Hitachi ZX60 excavator from 2013 is a rare and cost-effective choice in the market. It not only has a good appearance, but more importantly, its outstanding working performance and reliability. It can definitely be called a "top-quality" second-hand excavator. This device has accumulated a working time of approximately 5,000 hours. For a machine that has been in service for nearly a decade, this usage period is relatively short, indicating that it still has a long service life waiting for its new owner to discover. In terms of the power system, this excavator is equipped with a well-tested original imported Hitachi engine, which is powerful and has good fuel economy, and can easily meet the operation requirements under various complex working conditions. Meanwhile, through the meticulous maintenance and upkeep by our professional team, the engine is always in the best operating condition, with excellent performance in both starting speed and noise control. The hydraulic system, as one of the core components of an excavator, has also been fully demonstrated on this ZX60. The adoption of an advanced negative flow control system
