| Specifications | Value |
|---|---|
| No. | 961329 |
| Tonnage (tons) | 31 |
| Working weight (kg) | 31700 |
| Bucket capacity (m³) | 1.44/1.63 |
| Boom length (mm) | 6250 |
| Rod length (mm) | 3050/2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B7 |
| Rated power (kw/rpm) | 173/2000 |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 949/1200 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 5.6/3.2 |
| Turning torque (Nm) | 93.7k |
| Maximum flow of main pump (l/min) | 2*285 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 34 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 360 |
| Urea Tank (L) | 70 |
| Total transport length (mm) | 10600 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3240 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4280 |
| Back end turning radius (mm) | 3210 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4030 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10785 |
| Maximum digging depth (mm) | 7305 |
| Maximum excavation height (mm) | 10115 |
| Maximum unloading height (mm) | 7175 |
| Maximum vertical digging depth (mm) | 5065 |
| Maximum excavation radius of stop surface (mm) | 10580 |
Description

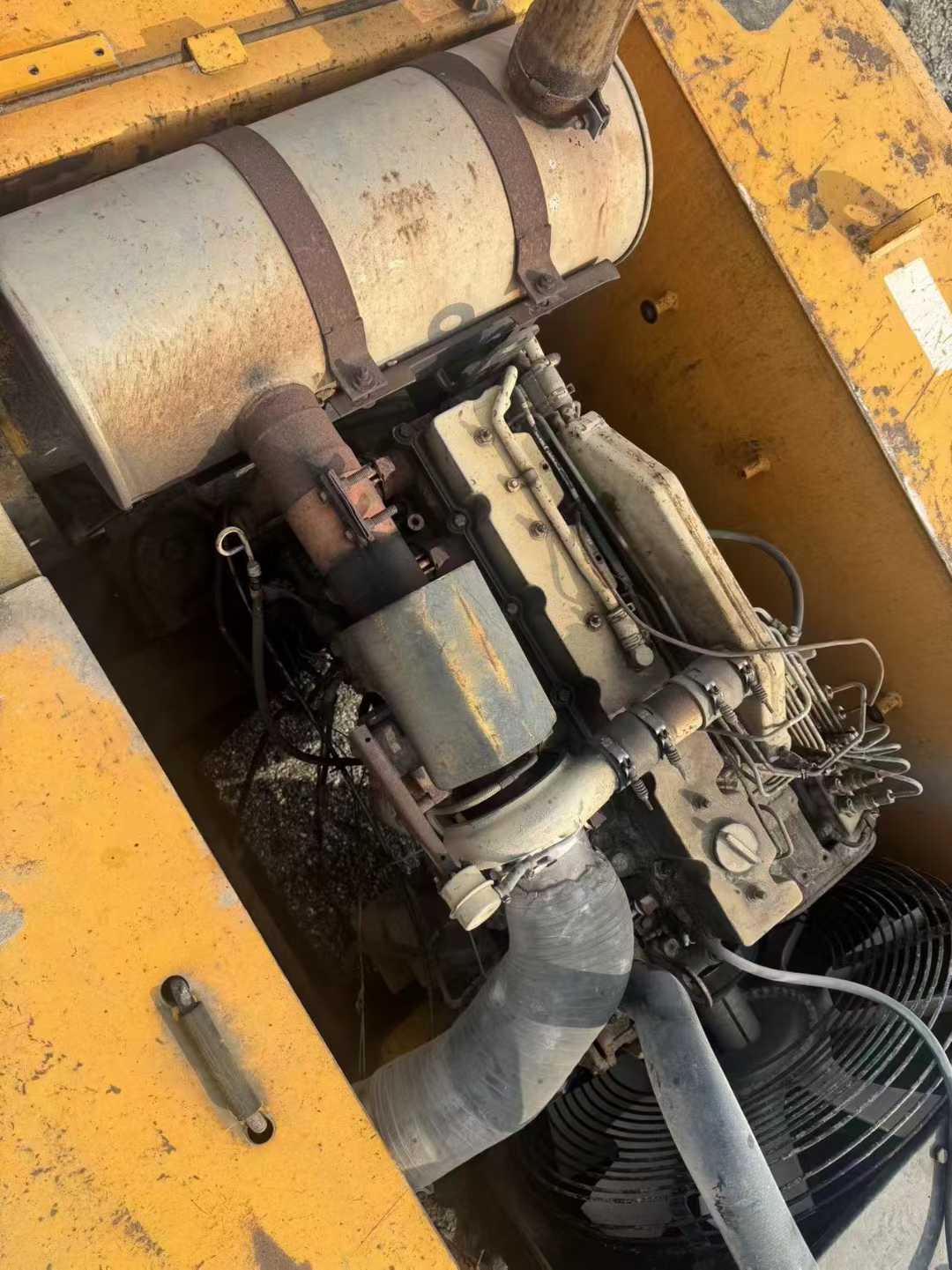

"Modern 305-7 second-hand excavator This second-hand Hyundai R305-7 excavator enjoys an extremely high reputation in the market for its outstanding performance and stable operation. The working time of this machine is only 2,500 hours, which is far shorter than the average service life of similar equipment. This means that it still has a long service life waiting for you to explore. This model is equipped with a well-tested Cummins turbocharged diesel engine, which not only offers powerful performance and rapid response but also has excellent fuel economy, effectively reducing operating costs. Meanwhile, its advanced hydraulic system is provided by world-class suppliers, ensuring smooth and precise operation. Whether it is digging or loading, it can handle it with ease. It is worth noting that this excavator is currently not equipped with a bucket or a breaker (which can be configured according to customer requirements), but its foundation structure is intact and all functions are operating normally. In addition, the "loading onto the vehicle" service is also included. We will be responsible for safely transporting the machine to the designated location, saving you the trouble of arranging additional transportation. Overall, this Hyu
