| Specifications | Value |
|---|---|
| No. | 960508 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22570 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 113 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Climbing ability (%) | 35 ° (70%). |
| Travel speed (km/h) | 5.3/ 3.4 |

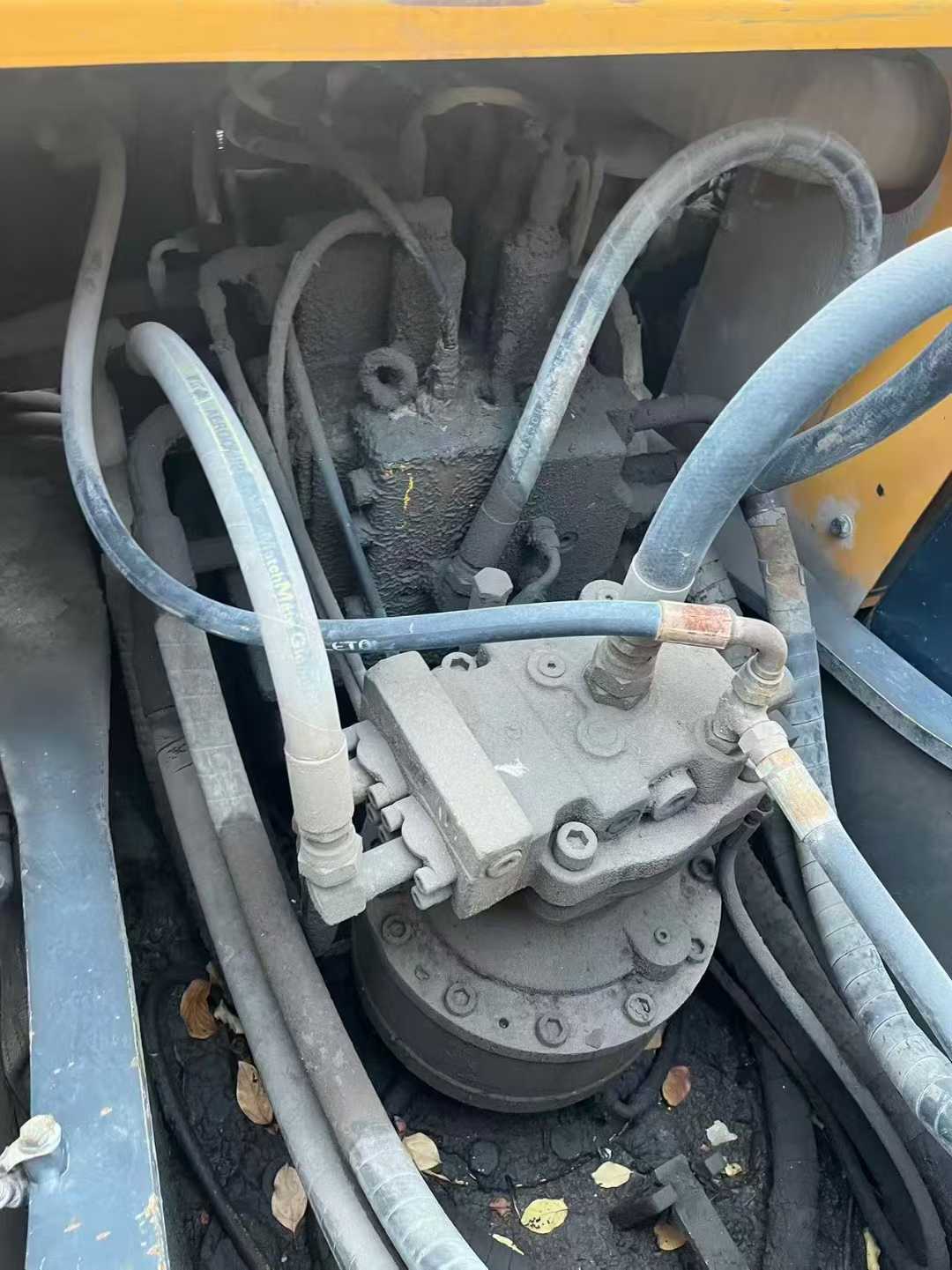

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 85 x 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 100 x 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 120 x ø 85 x 1290 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Theoretical fuel consumption (L/h) | 160 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Maximum excavation radius of stop surface (mm) | 2990 |
| Maximum effective digging depth (mm) | 6730 |
Description
"Modern 225 Second-hand Excavator This modern 225 second-hand excavator stands out among numerous second-hand construction machinery with its outstanding performance and efficient working capacity. Since its manufacture, this equipment has accumulated a working time of only 4,000 hours, which is in the golden stage of its mechanical life cycle. It not only ensures the good condition of the machinery but also means that it still has a long service life waiting for you to explore. In terms of the power system, the Hyundai 225 is equipped with a high-performance engine, which is the heart specially designed for heavy construction environments. It can provide strong and stable power output, and can handle both hard rocks and soft soil with ease. More importantly, this engine also performs well in fuel economy, significantly reducing operating costs. The hydraulic system is one of the key factors in measuring the working efficiency of an excavator. This Hyundai 225 is equipped with an advanced hydraulic control system, ensuring smooth and precise operation. Its rapid response capability and excellent control accuracy enable it to handle even fine operations in complex terrains with ease. "Speed" is the best interpretation of this highly e
