| Specifications | Value |
|---|---|
| No. | 969095 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22570 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 113 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Climbing ability (%) | 35 ° (70%). |
| Travel speed (km/h) | 5.3/ 3.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 85 x 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 100 x 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 120 x ø 85 x 1290 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Theoretical fuel consumption (L/h) | 160 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Maximum excavation radius of stop surface (mm) | 2990 |
| Maximum effective digging depth (mm) | 6730 |
Description

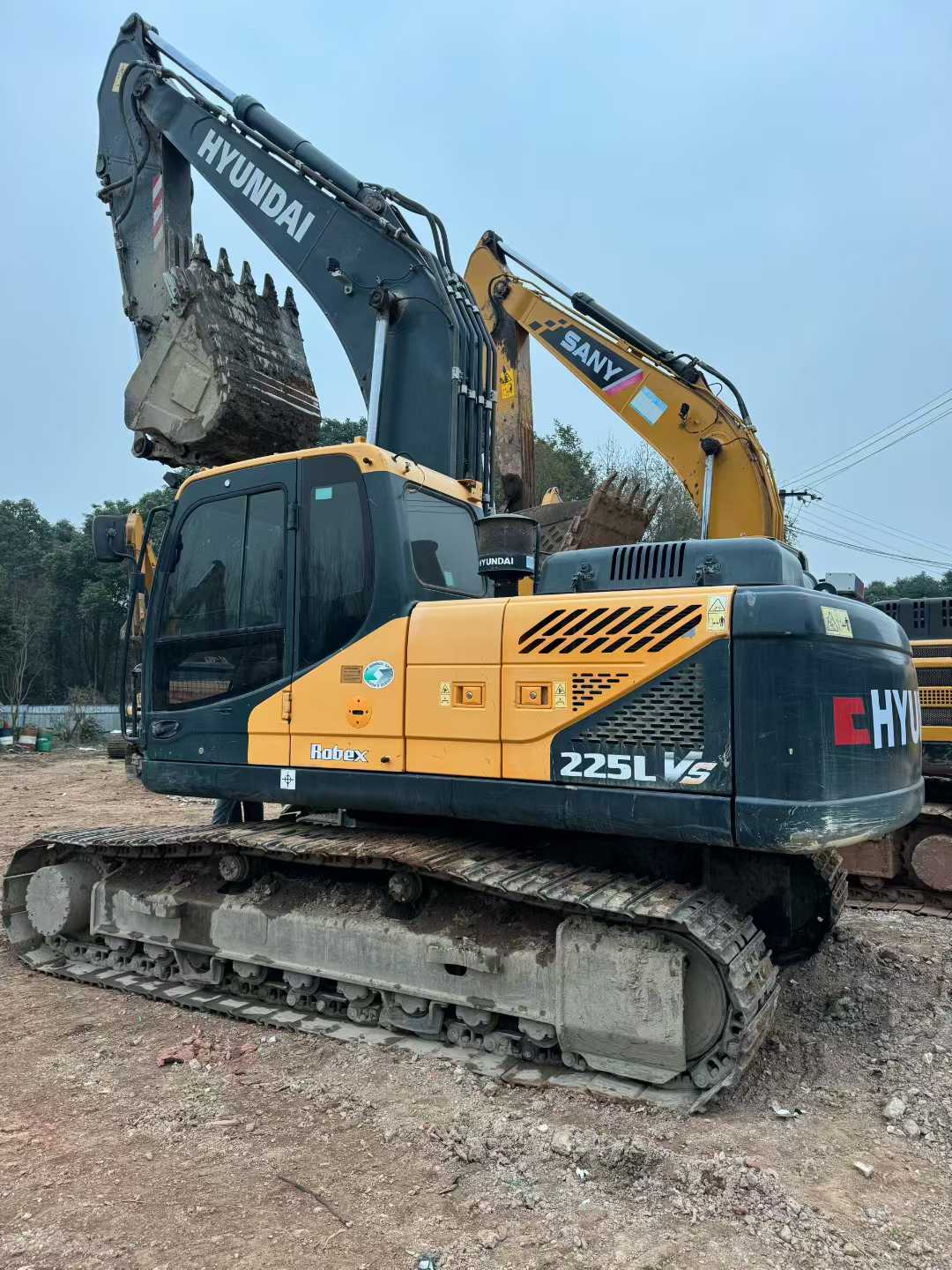

【 Premium Recommendation 】 The Hyundai R225VS excavator produced in June 2021 is an absolute top-quality product, ready for immediate delivery! This excavator has only been in operation for 1,500 hours, with an extremely low usage frequency and is almost in brand new condition. The overall appearance of the machine is undamaged, the paint surface is as smooth as new, the interior of the cab is clean and tidy, and all functions are intact, fully meeting your high standards. In terms of the power system, this Hyundai R225VS is equipped with a high-performance Cummins QSB6.7 engine, with a maximum output power of up to 130 kilowatts. The powerful performance ensures efficient operation under various complex working conditions. Meanwhile, this engine also features excellent fuel economy and low emissions, which not only reduces operating costs but also meets increasingly strict environmental protection standards. The hydraulic system adopts advanced negative flow control technology, ensuring the smoothness of operation and response speed. Whether it is operations such as excavation, loading or crushing, they can all be handled with ease. In addition, this machine is also equipped with a variety of safety protection devices, such as overl
